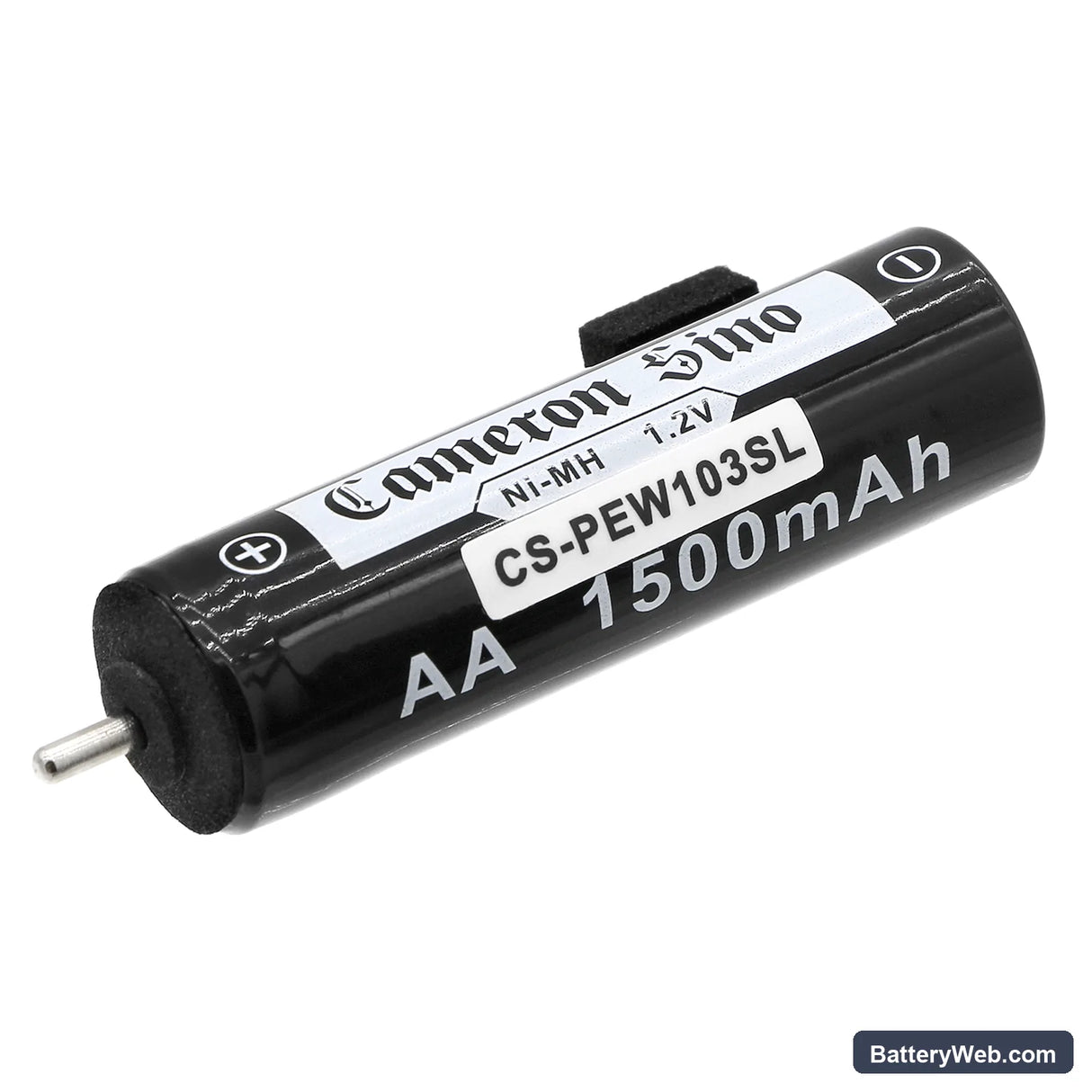

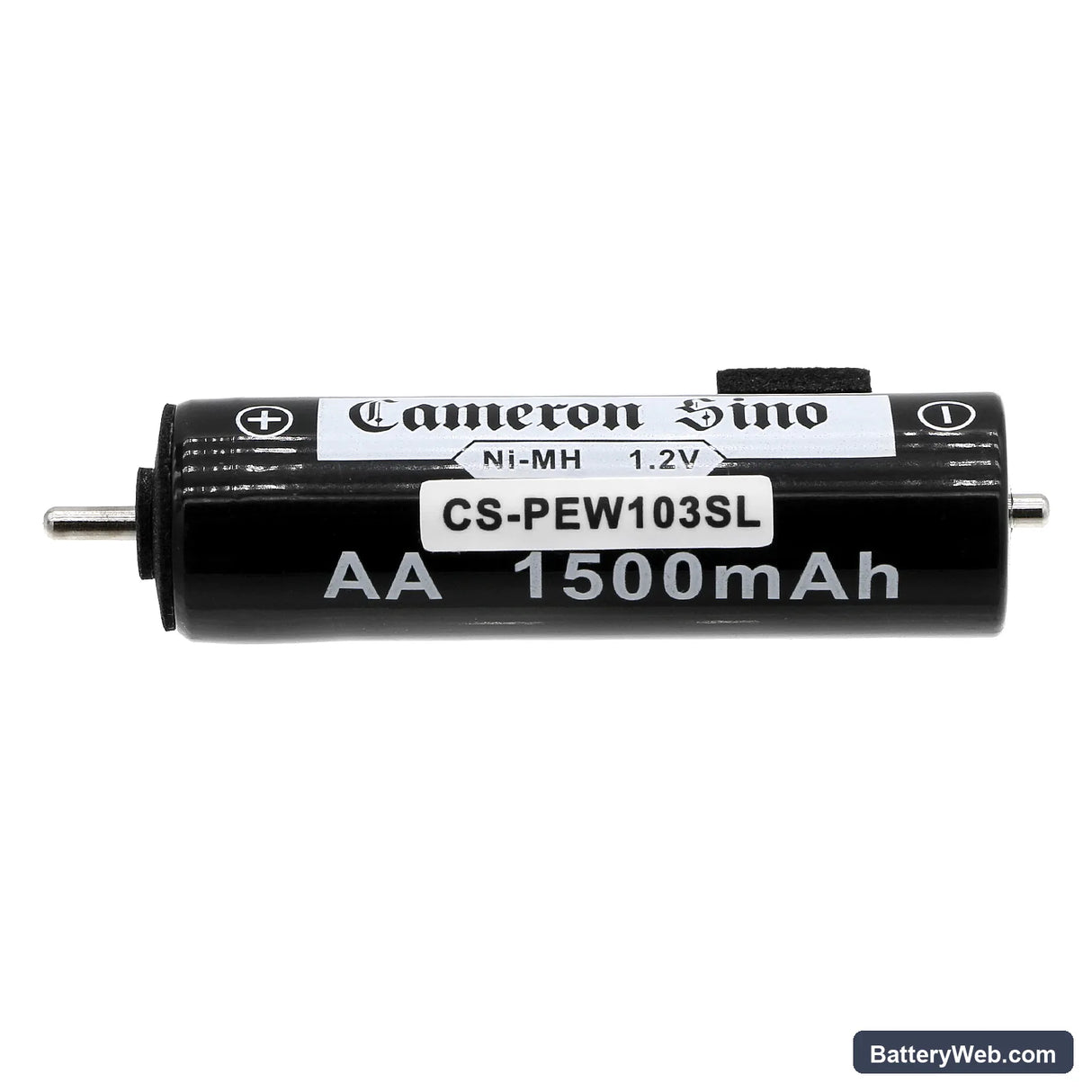

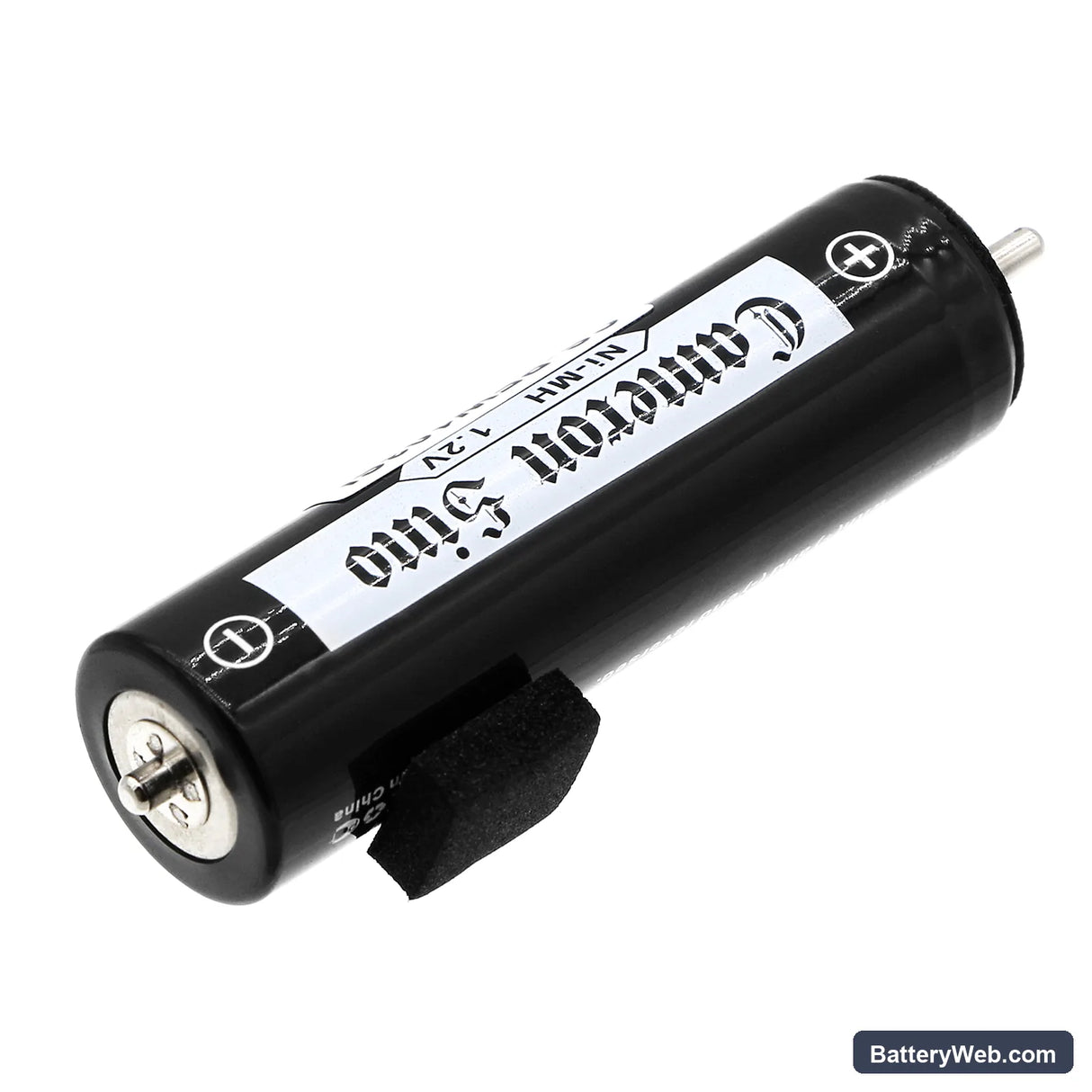

Panasonic EW1411 Replacement Battery 1.2V 1500mAh Ni-MH

Panasonic EW 1411 / DentaCare EW 1031 — 1.2V Ni-MH Replacement Battery (EW1031RB84W)

This is a 1.2V, 1500mAh Ni-MH replacement battery for the Panasonic EW 1411 electric toothbrush and DentaCare EW 1031 series. It also fits the EW1012 and EW1031CM. When the original cell degrades and the brush loses power mid-use or stops holding a charge, this battery restores full motor output without replacing the whole handle.

• EW 1411 / EW 1031 series fit: These models share the same cylindrical cell format, 1.2V nominal voltage, and internal connector orientation. The BMS in each handle accepts a 1500mAh Ni-MH cell — swapping in a different voltage chemistry trips the protection circuit and prevents charging.
• Bench tested on actual hardware: We ran this cell through the EW 1411 inductive charging base and confirmed the charge acceptance curve matched OEM behaviour. The BMS completed a full charge cycle without tripping, and motor torque at full charge matched a new-handle baseline.
• Dock charging discipline for Ni-MH cells: Remove the toothbrush from the charging base once the charge indicator shows full. Leaving a Ni-MH cell on continuous trickle charge accelerates capacity fade faster than normal use cycles — this matters more for Ni-MH than Li-ion because the chemistry has no passive overcharge tolerance.

Battery fade from continuous base-dock charging on the EW 1411

The EW 1411 charging base delivers a low-level trickle current indefinitely when the toothbrush sits on it. Ni-MH cells do not absorb this passively — sustained trickle charge generates heat inside the cell and breaks down electrode material over time. Capacity drops noticeably after several months of always-docked use, even if the brush is used daily. Cycling the battery — removing it from the base when full and returning it below roughly 30% charge — keeps the cell in its stable operating range.

Brush head vibrating weakly after fitting a new battery

A newly installed Ni-MH cell often delivers below-rated voltage on the first one or two charge cycles because the electrodes have not yet reached full activation. This shows up as reduced motor speed and weaker brush vibration even after a full charge. The BMS is not at fault — the cell simply needs two to three complete charge-and-use cycles to reach stable capacity. After the third cycle, motor output should match the torque level of the original battery when new.
