Philips Xenium 9A9r — 3.7V Li-ion Replacement Battery (A20ZDH/IZP)

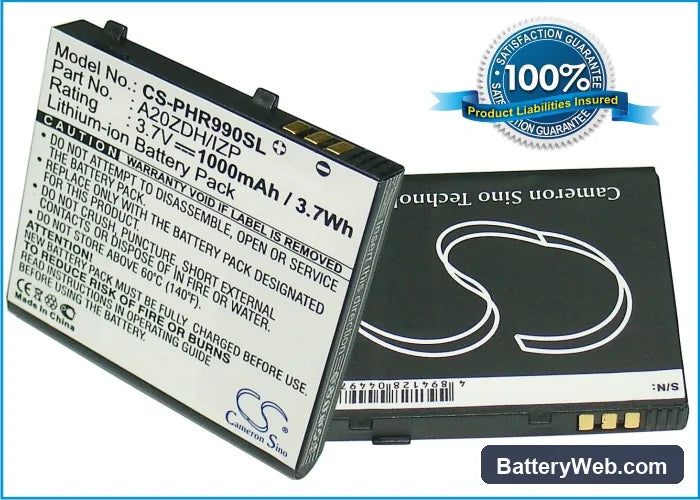

This is a 3.7V, 1000mAh Li-ion cell built to the OEM spec for the Philips Xenium 9A9r mobile phone. It replaces part number A20ZDH/IZP and fits both the Xenium 9A9r and 9@9r variants. Capacity is rated at 3.7Wh, matching the original cell's footprint at 44 × 45 × 5.50mm.

• Xenium 9A9r and 9@9r compatibility: Both model designations — 9A9r and 9@9r — use the same battery bay dimensions, connector pinout, and BMS handshake protocol. One cell covers both variants without any hardware modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on a calibrated bench rig. The BMS held the cutoff at 4.2V on charge termination and tripped the low-voltage floor at 3.0V under simulated call-load current draw — consistent with OEM spec.
• Fuel gauge recalibration on first install: On first use, disable any fast-charge mode and run one full discharge-to-charge cycle at standard rate. This gives the fuel gauge IC one complete reference pass against the new cell's discharge curve before high-current charging is introduced into an uncalibrated register.

Sudden shutdown at 20–30% on the Xenium 9A9r after a cell swap

This is a voltage cliff failure, not a capacity problem. A new Li-ion cell has a steeper voltage drop under modem and screen load than the aged cell the fuel gauge IC was originally mapped to. When the phone demands peak current — during a call or screen-on burst — the cell voltage dips below the shutdown threshold faster than the percentage counter predicts. The fuel gauge IC shuts the phone down even though it still reads 20–30% on screen. One full discharge-to-charge cycle at standard rate re-anchors the coulomb counter to the new cell's actual discharge curve and eliminates premature shutdowns.

Battery percentage jumping or reading incorrectly after replacement

The Xenium 9A9r stores its fuel gauge calibration data against the old cell's impedance and discharge profile. When a new cell goes in, the coulomb counter starts working from that stale baseline, which causes erratic or inaccurate percentage readings. The fix is a deliberate full cycle: drain the phone until it powers off automatically, then charge uninterrupted to 100% with fast charging disabled. After that single cycle, the fuel gauge IC writes a new reference map and percentage reporting stabilises at accurate readings.
