Sound Devices 633 Mixer Replacement Battery 7.4V 10400mAh

Sound Devices 633 / PIX 240i / 7-Series — 7.4V Li-ion 10400mAh Replacement Battery

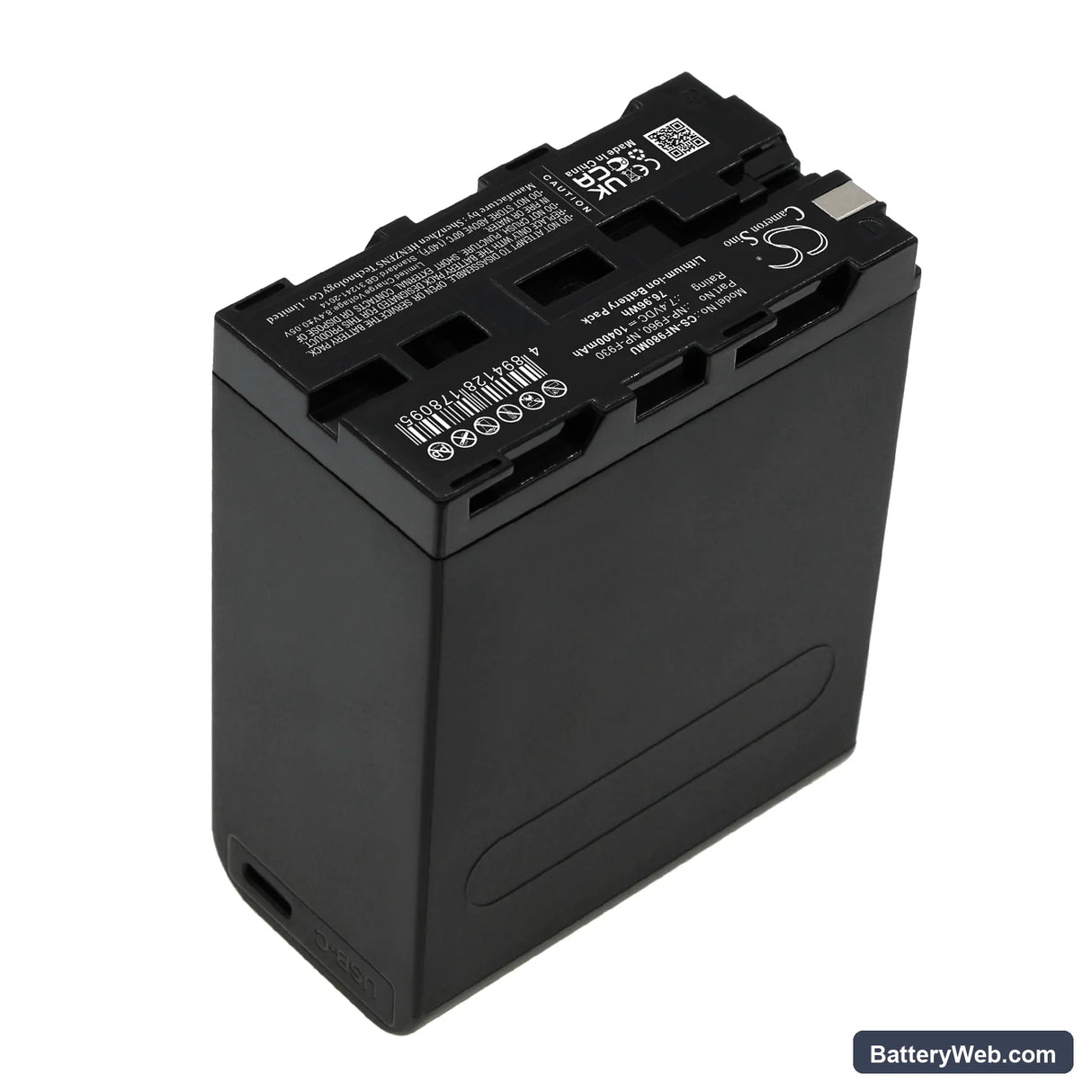

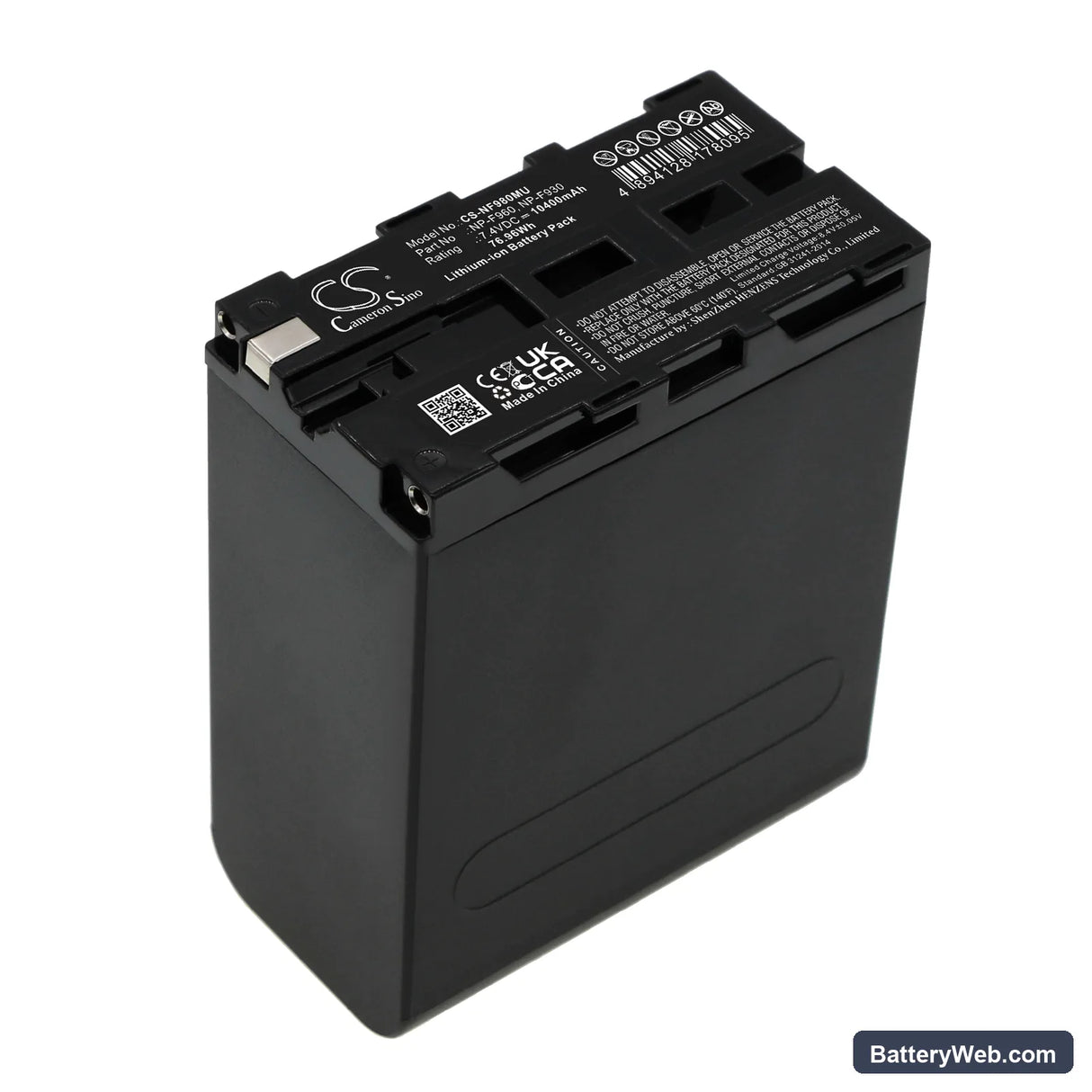

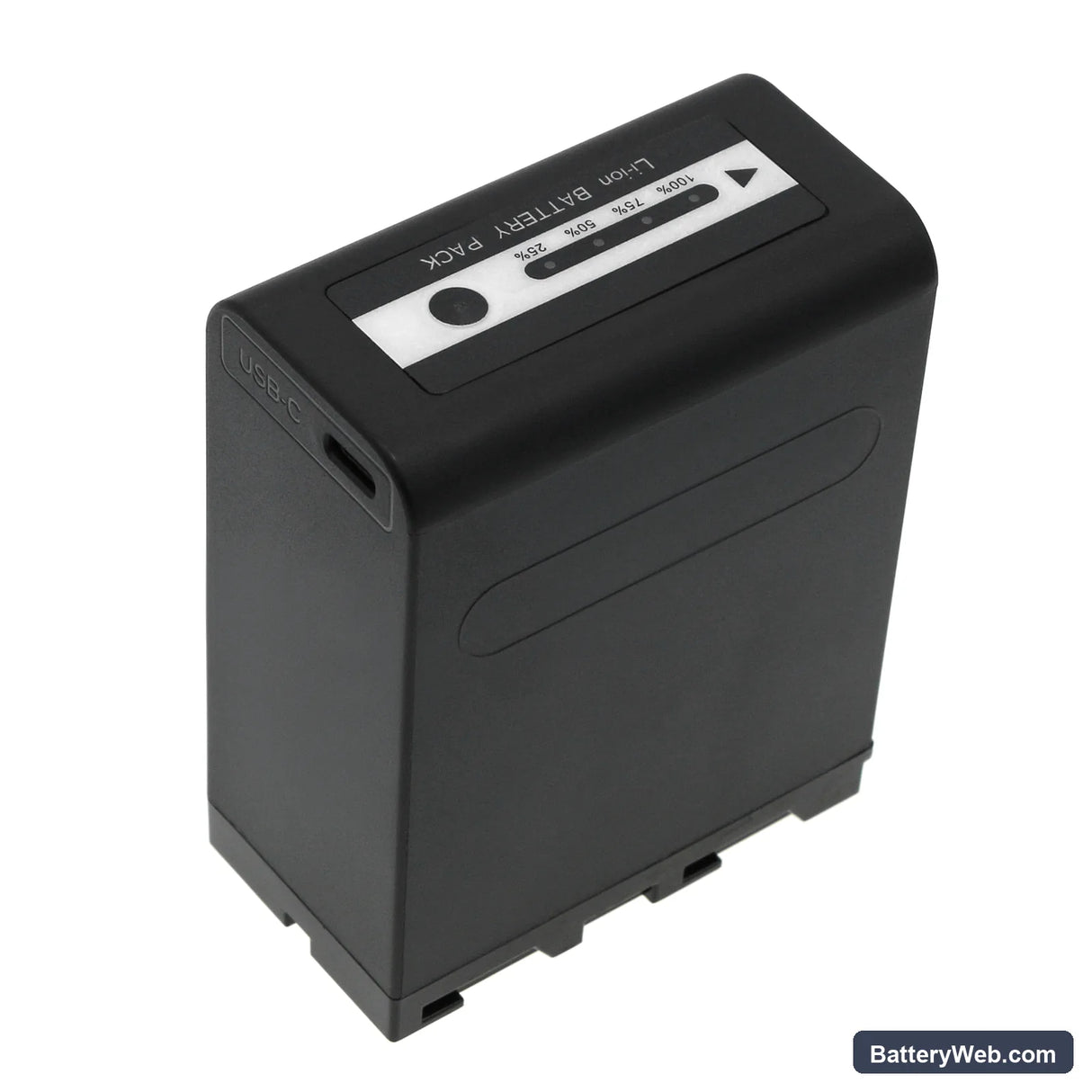

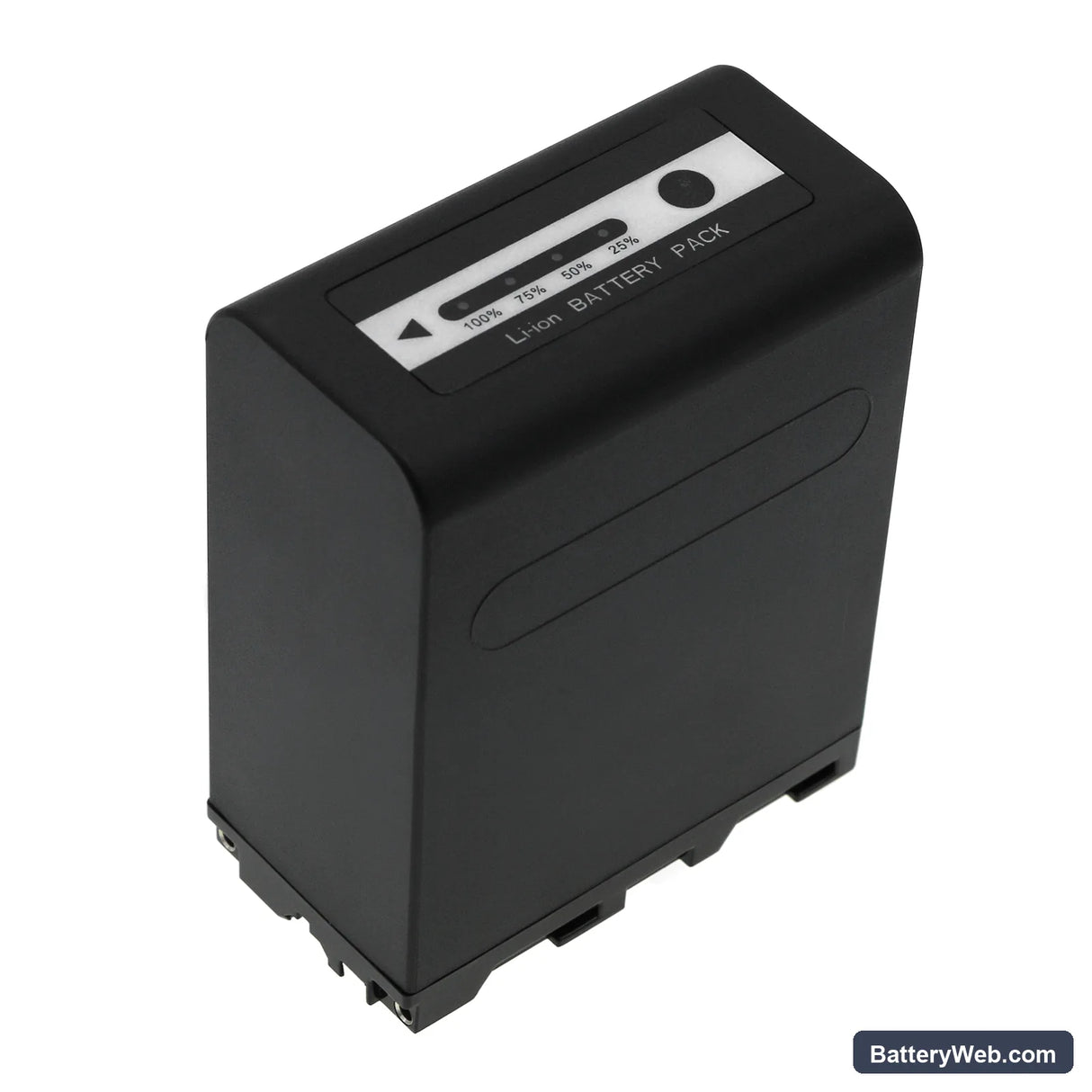

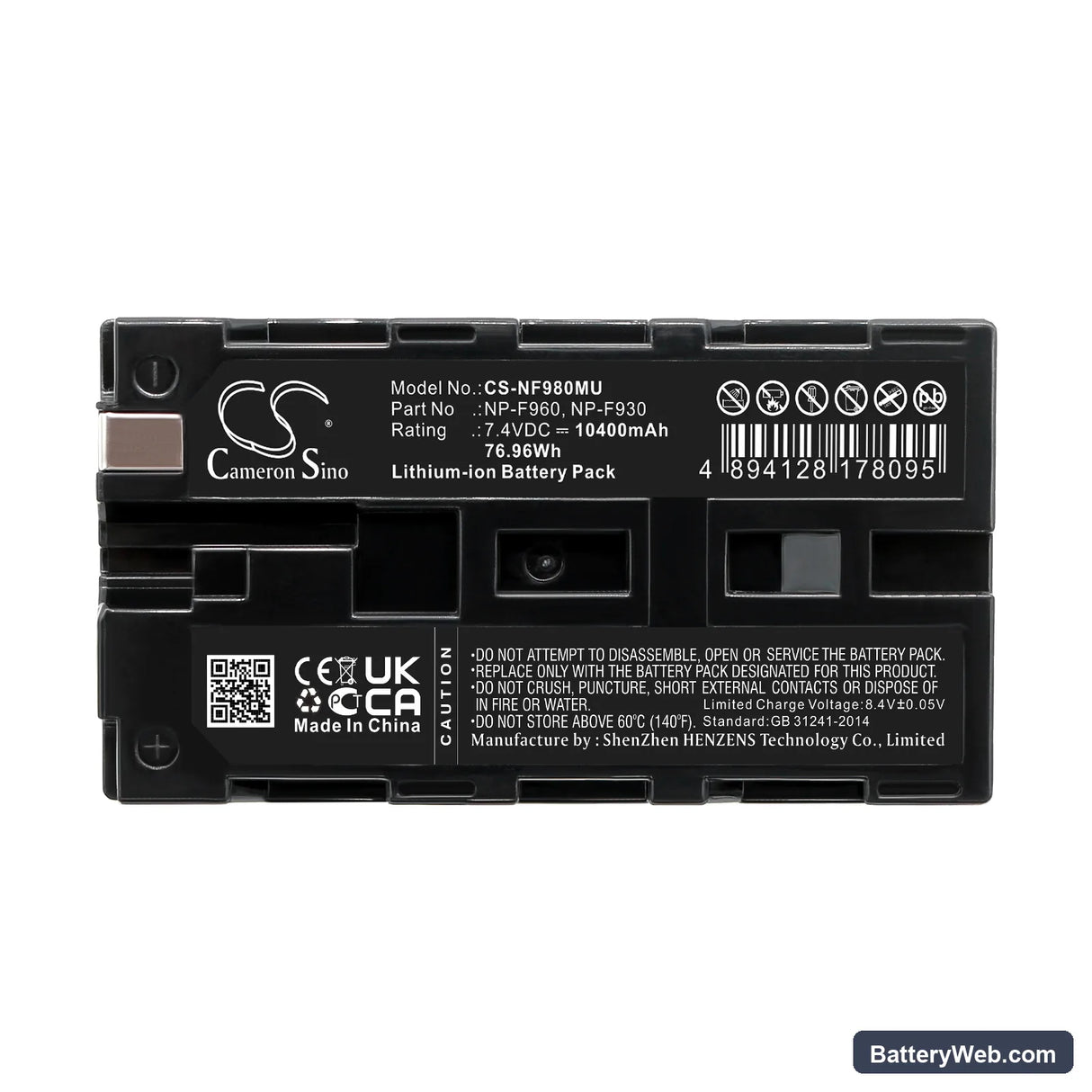

This 7.4V 10400mAh lithium-ion battery replaces the internal rechargeable cell used in the Sound Devices 633 mixer, PIX 240i, PIX-E, and 7-Series audio recorders. These are professional field audio devices used on film sets, broadcast rigs, and location shoots. Capacity figures are taken directly from product data — 76.96Wh total energy.

• 633, PIX 240i, PIX-E, and 7-Series compatibility: These units share the same internal battery format, voltage rail, and BMS communication protocol. Swapping between models in the field is straightforward because the connector pinout and charge termination logic are identical across the platform.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles while monitoring BMS handshake, charge termination voltage, and cutoff behaviour under sustained load typical of multi-track recording sessions. The BMS accepted the cell without error flags on every test run.
• Firmware and BMS acceptance on the 633: If the mixer displays a battery warning immediately after install, run one full charge cycle using the Sound Devices external charger or the unit's own charge circuit before relying on the battery-remaining indicator. Some firmware versions require this cycle to calibrate the fuel gauge against the new cell's discharge curve.

Why the 633 mixer drops power without warning at apparent mid-charge

The 633's internal fuel gauge maps battery percentage to a voltage-threshold table built around the original cell chemistry. A replacement cell with a slightly different discharge curve can read 30–40% on the display while the actual cell voltage is already approaching the BMS low-cutoff point, typically 6.0V for a 7.4V Li-ion pack. When the BMS trips at that threshold, the mixer cuts power instantly — no gradual warning. Running one full calibration cycle through the unit resets the gauge mapping and brings the display reading back in line with actual remaining capacity.

Battery percentage jumping between readings during a recording session

Erratic percentage readings on the 633 are almost always a fuel gauge calibration issue, not a faulty cell. The mixer's BMS samples open-circuit voltage to estimate state of charge, but under dynamic load — phantom power, timecode output, and multiple active preamps simultaneously — voltage sag briefly pulls the reading down, then recovers when load drops. The fix is one complete discharge to the BMS cutoff followed by a full uninterrupted charge. After that cycle, the gauge tracks the new cell's actual discharge curve and the jumping stops.
