Waygate LI-138 7.4V Inspection Battery Replacement 3900mAh

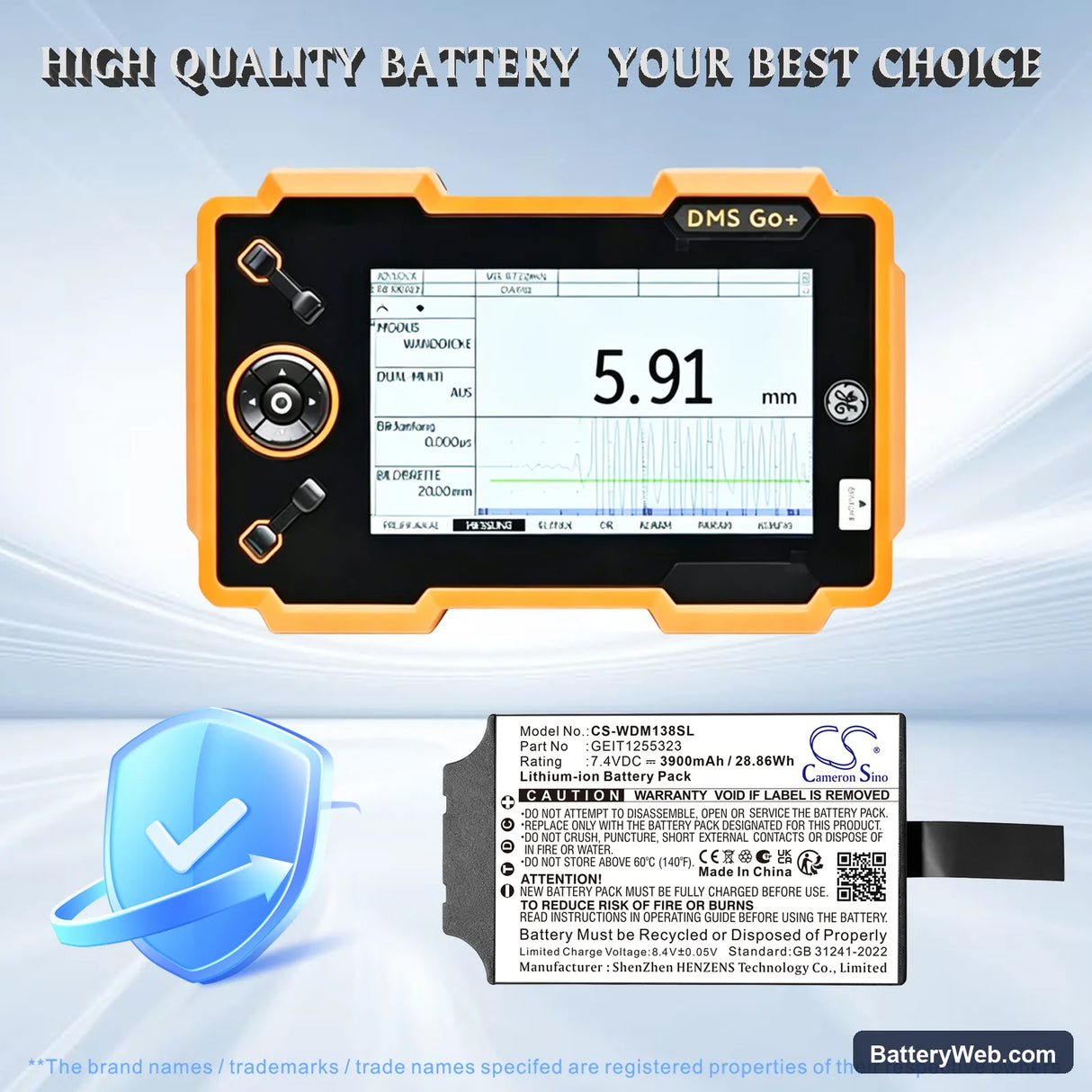

Waygate LI-138 — 7.4V Li-ion Replacement Battery (LI-138)

This 7.4V 3900mAh Li-ion pack replaces the OEM LI-138 battery used in Waygate handheld non-destructive testing instruments. It fits portable ultrasonic and radiographic flaw detectors used for weld inspection, material analysis, and structural integrity checks in field conditions. Voltage is 7.4V nominal; capacity is 3900mAh (28.86Wh).

• NDT instrument compatibility: Waygate flaw detectors require a battery that meets a strict BMS handshake on power-up. The LI-138 form factor, connector pinout, and cell voltage curve match what the instrument's power management circuit expects — a mismatch here causes an immediate power fault before the boot screen loads.
• Bench tested on actual hardware: We ran this pack through probe initialisation sequences and sustained ultrasonic pulse cycles. The BMS held within normal cutoff thresholds during the high-current transient at probe power-up, and cell voltage stayed stable under continuous sensor load.
• Pre-deployment calibration cycle: After installing this pack, run a full calibration cycle through the instrument menu before taking it to site. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings on the first measurement session, even with a fully charged cell.

BMS cutoff when the probe module powers up

When a Waygate flaw detector initialises its probe, the instrument draws a short but sharp current spike — often 2–3× the steady-state load. If the battery's BMS has a low peak-current threshold, it interprets that spike as a fault and trips the output. The instrument sees this as a sudden power loss, not a battery error, so the screen goes blank rather than showing a warning. This pack's BMS is rated to handle probe initialisation transients without tripping. If the instrument still cuts out at probe power-up, check the probe connector for resistance — a corroded pin increases inrush current.

Instrument won't recognise the pack after months in storage

Li-ion cells self-discharge during storage. If the pack drops below roughly 2.5V per cell (5.0V total), the BMS enters a sleep state and blocks charge input — the instrument shows no battery detected and the charger reports no connection. To recover, apply a trickle charge at 0.1C using a compatible Li-ion charger that supports a pre-charge or recovery mode; this brings cell voltage back above the BMS wake threshold. Once the pack reads above 6.0V, normal charging resumes. Do not attempt recovery with a fast charger — the BMS will reject the charge request before cells are stable.
