Fitel S947B Optical Splicer Replacement Battery 18.5V 3200mAh

Fitel S179 Series — 18.5V Li-ion Replacement Battery (S947B)

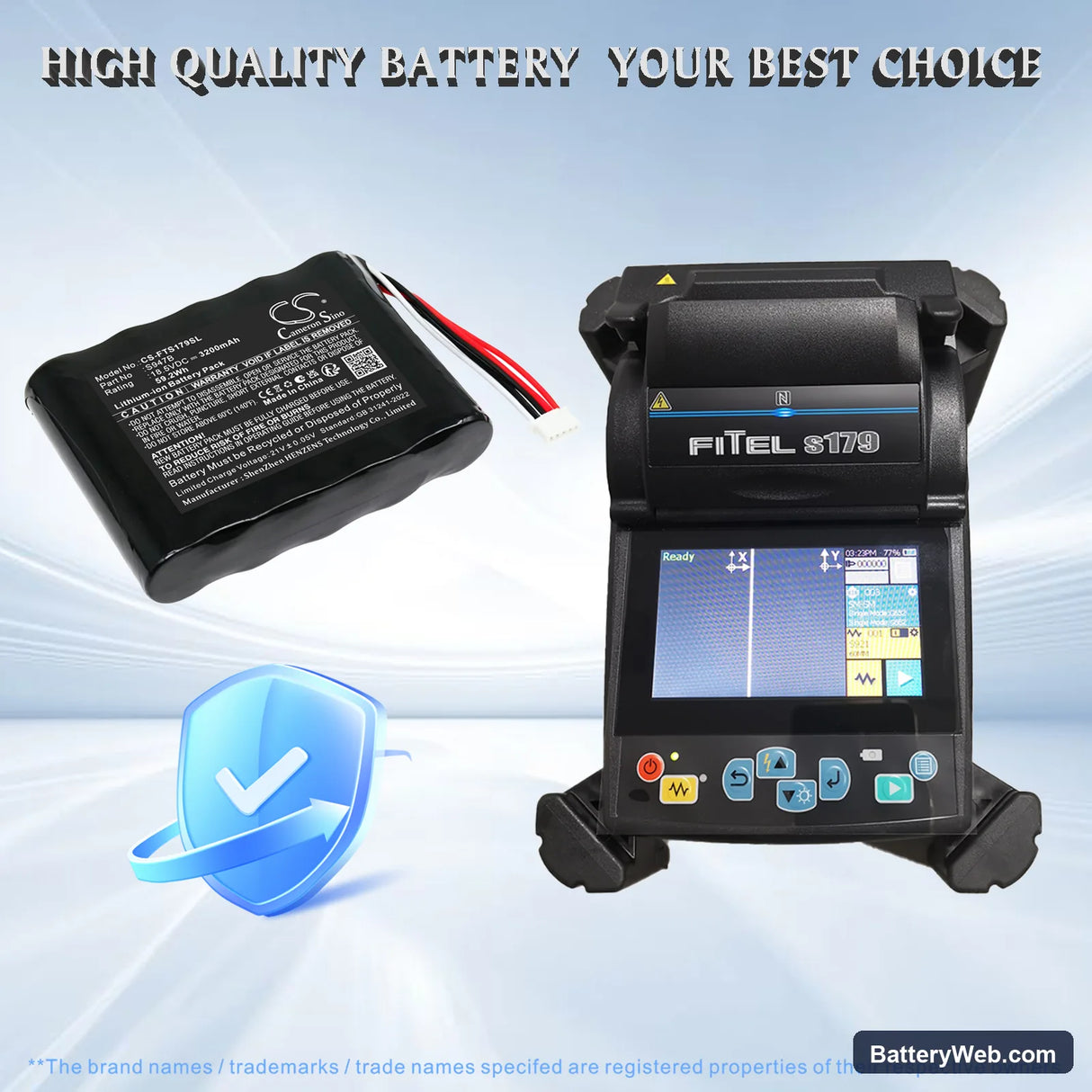

This is an 18.5V 3200mAh (59.2Wh) Li-ion battery for the Fitel S179 optical fusion splicer. It fits the S179, S179a, and S179c models used in field fiber splicing work. The S947B part number confirms direct compatibility across this splicer family.

• S179 series compatibility: The S179, S179a, and S179c share the same 18.5V battery bay, connector pinout, and BMS handshake protocol. Swapping between these models does not require any adapter or firmware change — the pack communicates state-of-charge and thermal data the same way across all three.
• Bench tested on actual hardware: We ran this pack through the S179's arc discharge cycle, which pulls a sharp current spike during the heating element's pre-fusion phase. The BMS held the rail stable through repeated arc sequences without triggering overcurrent cutoff.
• Splicer-specific first-use tip: After fitting this pack, run a complete arc calibration sequence through the splicer menu before starting any splice work. The S179 maps battery state during calibration — skipping this step causes the low-battery indicator to trigger early on the first real session, even with a fully charged pack.

Why the S179 cuts power mid-arc during the heating phase

The S179's heating element draws a brief but steep current spike the moment the arc fires. An aged or partially discharged original pack can drop below the BMS undervoltage threshold during this spike, triggering an immediate shutdown. This looks like a random fault but it happens at the same point in every splice cycle. A replacement pack with healthy cell capacity holds the rail above that cutoff threshold — on the S947B, that floor sits at approximately 15V under load.

S179 not recognising the new pack after storage

If the replacement pack sat in a warehouse for several months, the cells may have self-discharged below the BMS recovery voltage. The splicer will power on briefly and then display a battery error or fail to boot entirely. Connect the pack to the OEM charger and leave it for at least 30 minutes before attempting to power on the splicer — most BMS units in this voltage class require the charger to push the pack above 16.5V before the protection circuit resets and allows normal operation.
