Opticon PHL-2700 Replacement Battery 2.4V 1500mAh Ni-MH

Opticon PHL-2700 Series — 2.4V Ni-MH Replacement Battery (2540000020)

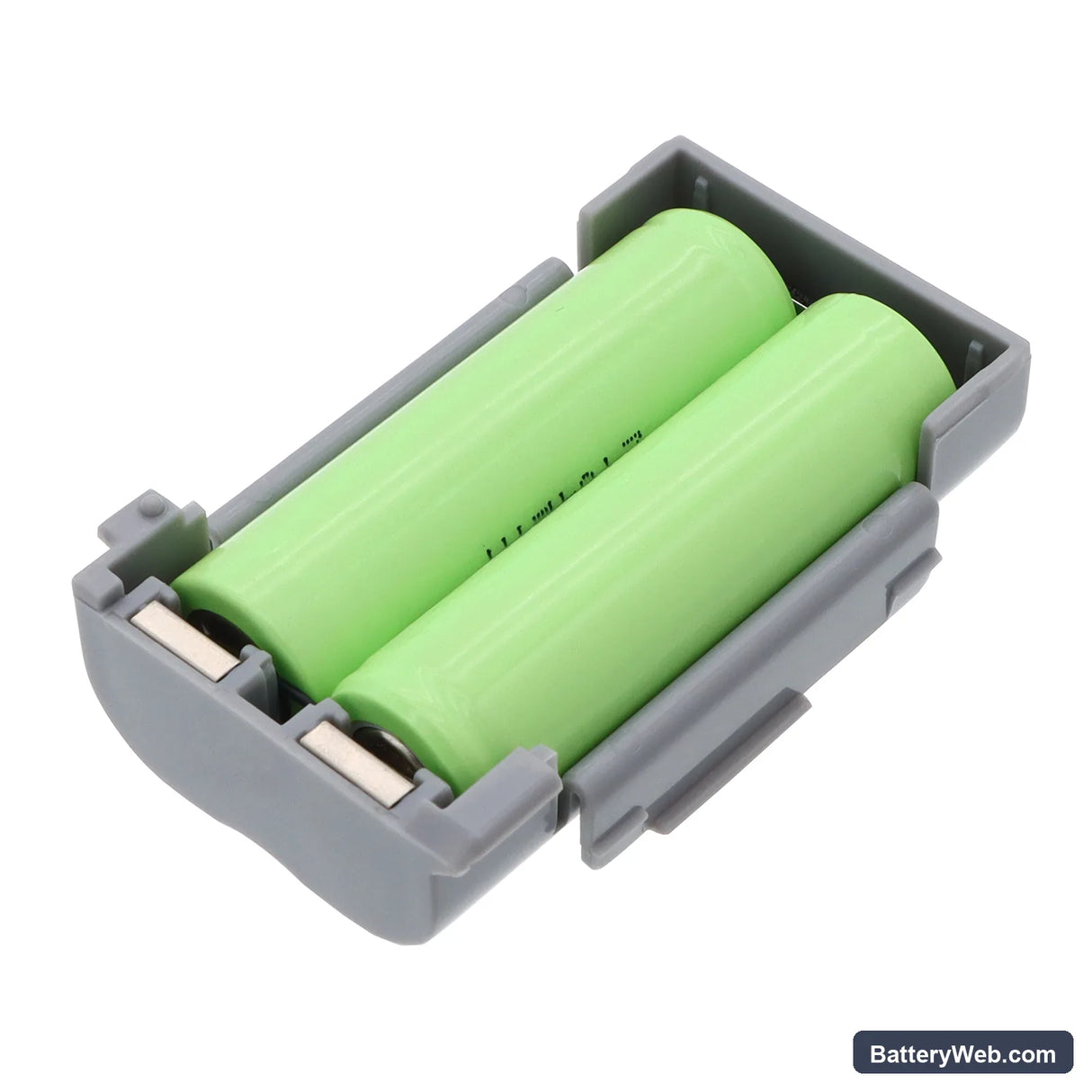

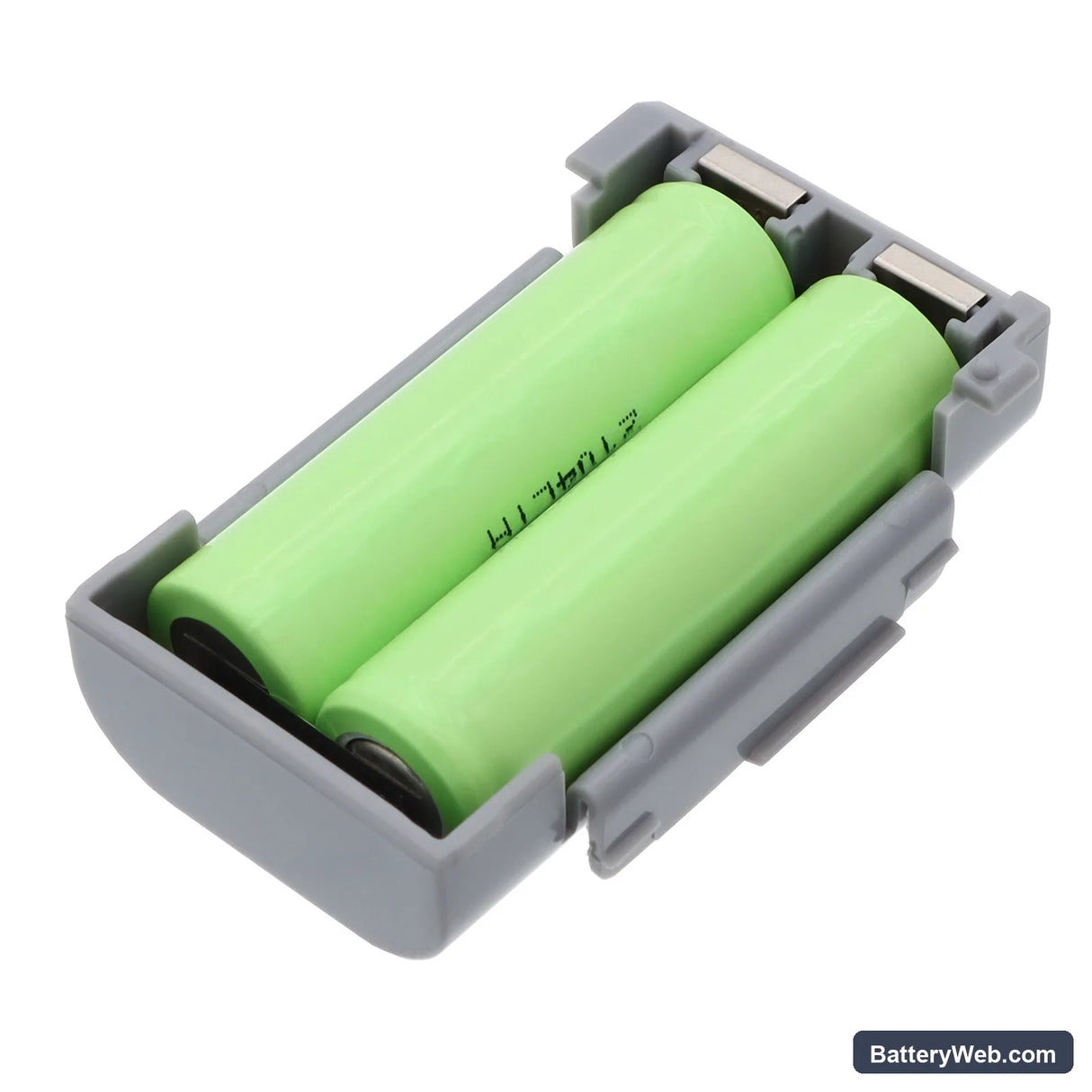

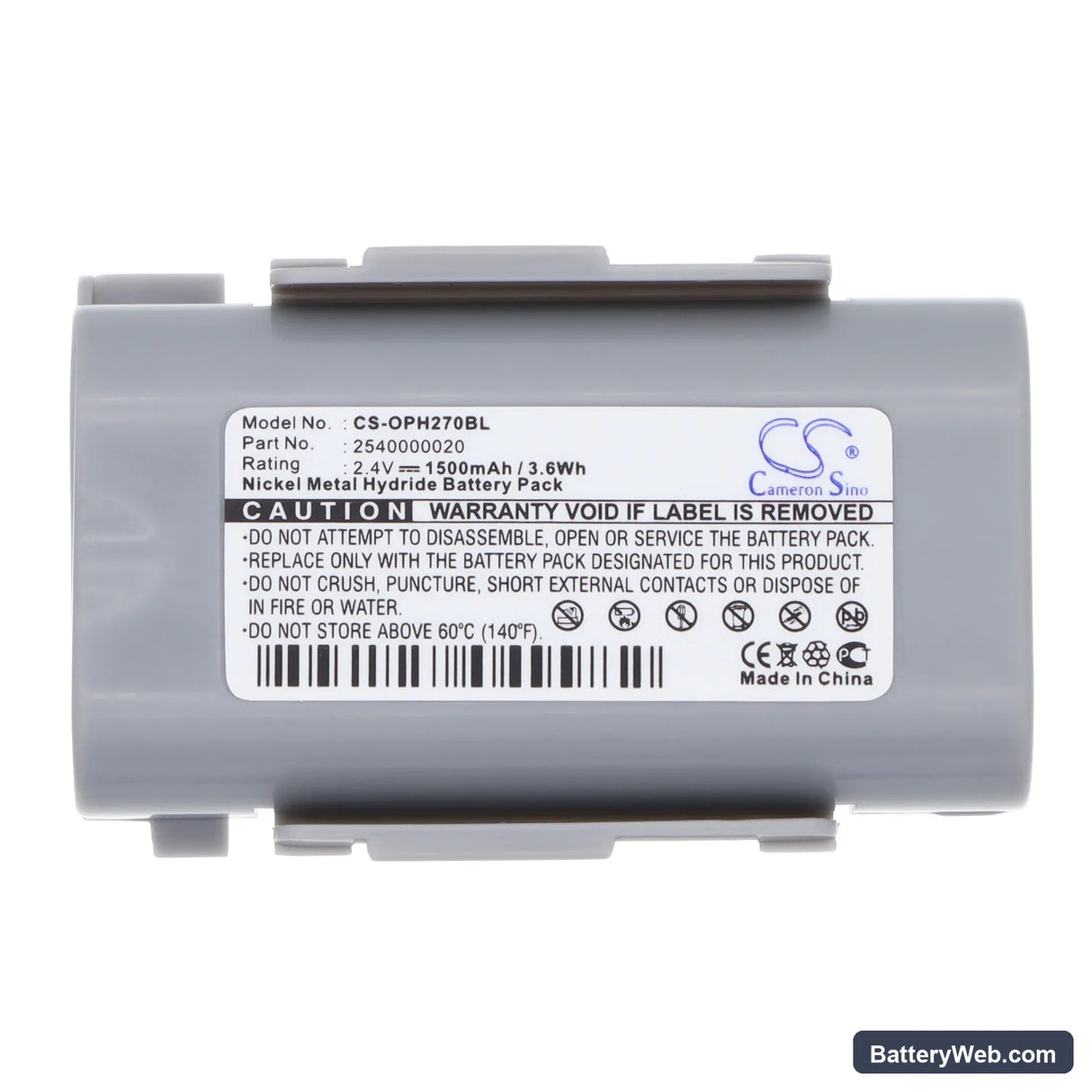

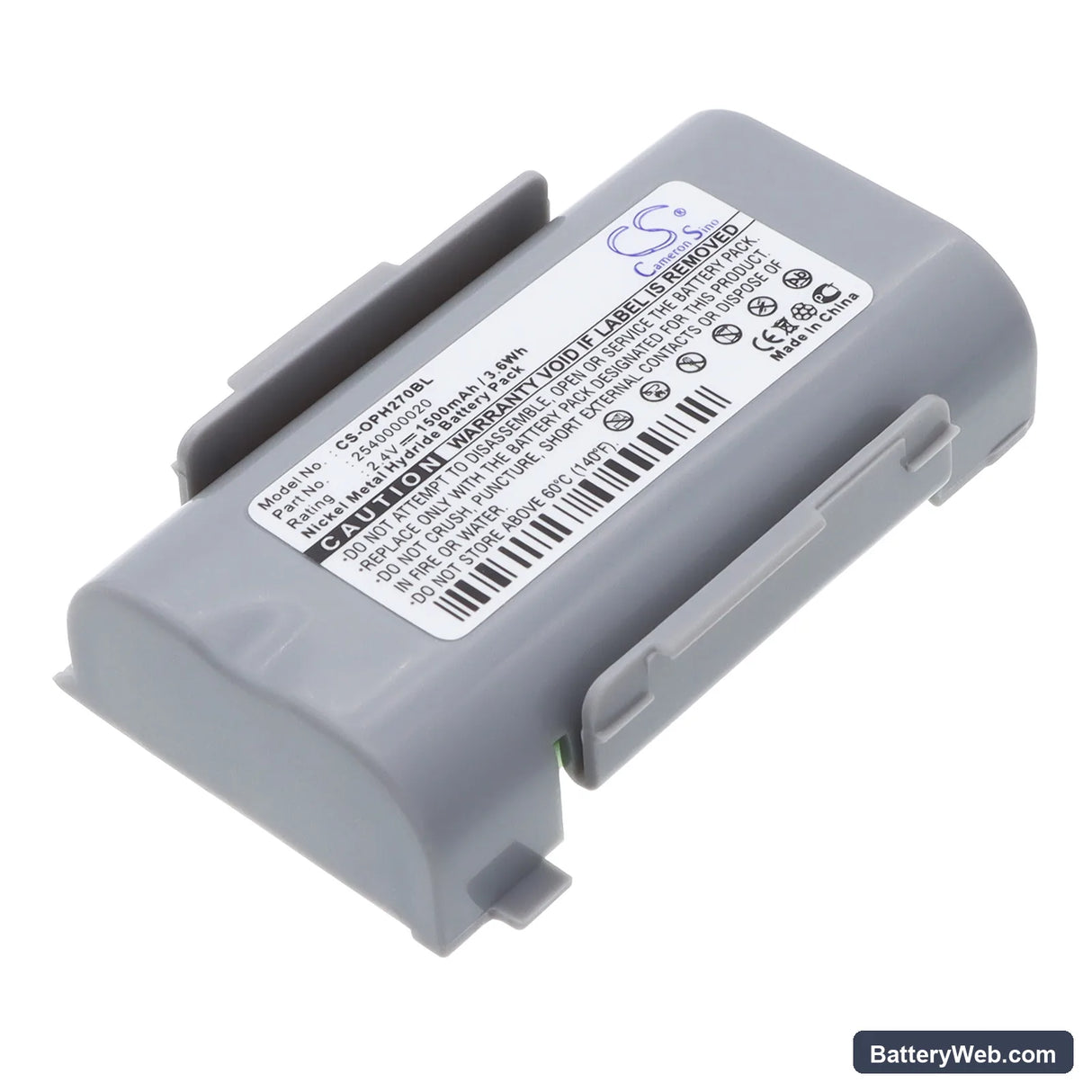

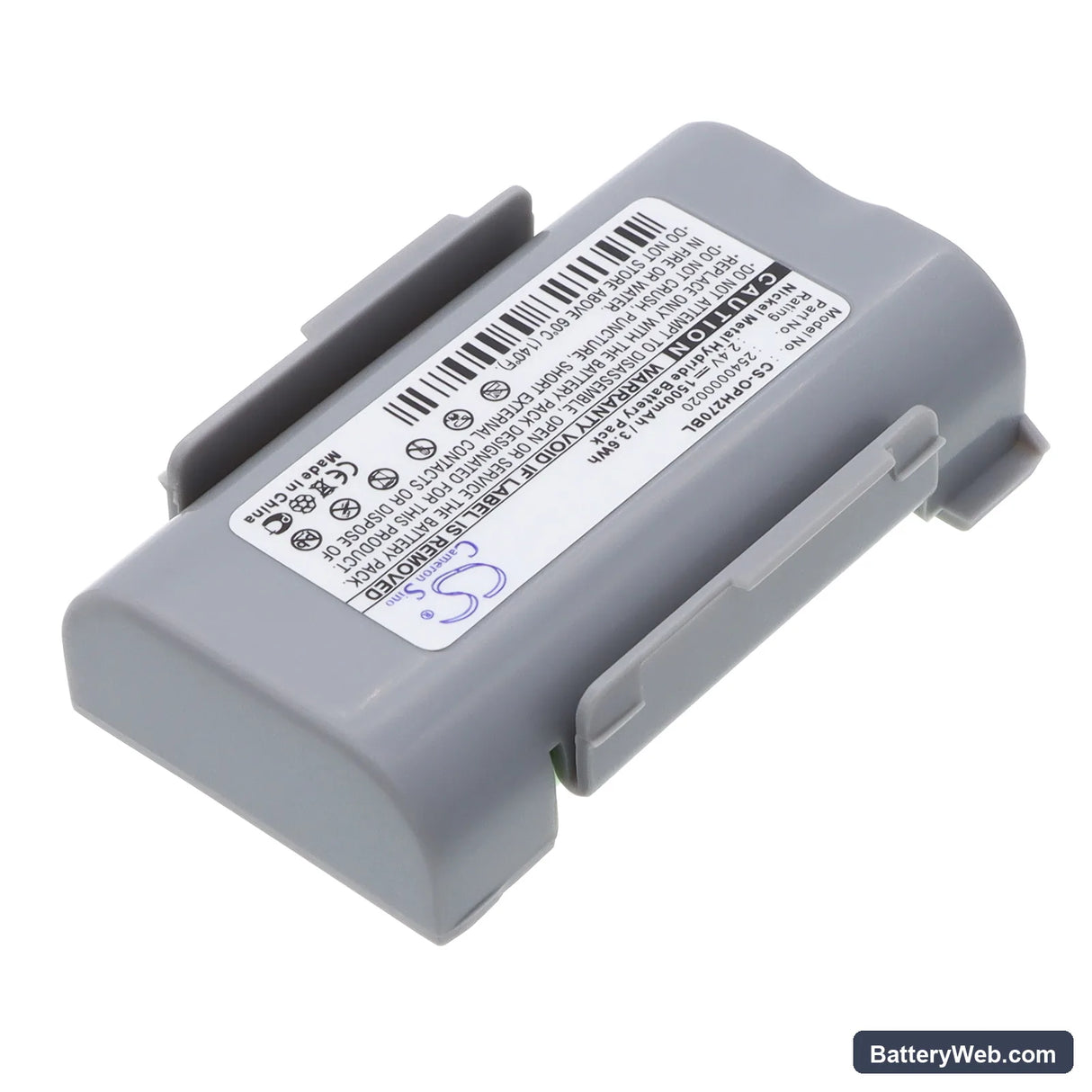

This is a 2.4V, 1500mAh Ni-MH replacement battery for the Opticon PHL-2700 and PHL-2700 RFID handheld barcode scanners. It matches OEM part number 2540000020 and slots directly into the battery compartment of both variants. Capacity is 3.6Wh — identical to the original pack.

• PHL-2700 and PHL-2700 RFID compatibility: Both models run the same 2.4V power rail and use the same physical form factor and connector. The RFID variant draws marginally more current during tag reads, but the cell chemistry and BMS handshake are identical across both — one pack covers either unit.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on the PHL-2700 platform. The BMS accepted the cell without fault codes, held voltage above the scanner's minimum operating threshold through repeated scan-trigger events, and returned a clean charge cycle in the cradle dock.
• First-shift preparation: After installing, seat the scanner in its cradle and run a full charge cycle before picking up the first shift. Scan-trigger inrush current is highest when the cell is near minimum — a fully charged pack prevents false BMS trips when the scanner goes straight into rapid-scan pick-and-pack work.

Cradle showing a charging error on a new pack

Ni-MH cells can ship with surface oxidation on the contact pads, and the PHL-2700 cradle is sensitive to contact resistance at the charge interface. A high-resistance connection causes the dock to misread the charge state and throw an error instead of beginning the charge cycle. Wipe the gold contacts on the battery pack and the cradle terminals with a dry lint-free cloth, then reseat the scanner firmly. If the error clears, the contact surface was the cause — not the pack or the charger.

Scanner dropping wireless connection during back-to-back scan bursts

Each scan trigger pulls a brief current spike, and if the radio is simultaneously polling the host system, the combined inrush can drag cell voltage below the scanner's radio module threshold. The PHL-2700 drops the wireless link first — before it drops scanning — because the radio is lower priority in the power management stack. This is most common mid-shift when the cell is between 30–40% state of charge. A replacement pack with full charge restores the voltage headroom; if dropouts return quickly, check that cradle charge time is completing fully before the unit goes back into use.
