Symbol PDT3500 Replacement Battery 6V 1600mAh 21-14969-02

Symbol PDT3500 / PDT3540 Series — 6V Ni-MH Replacement Battery (21-14969-02)

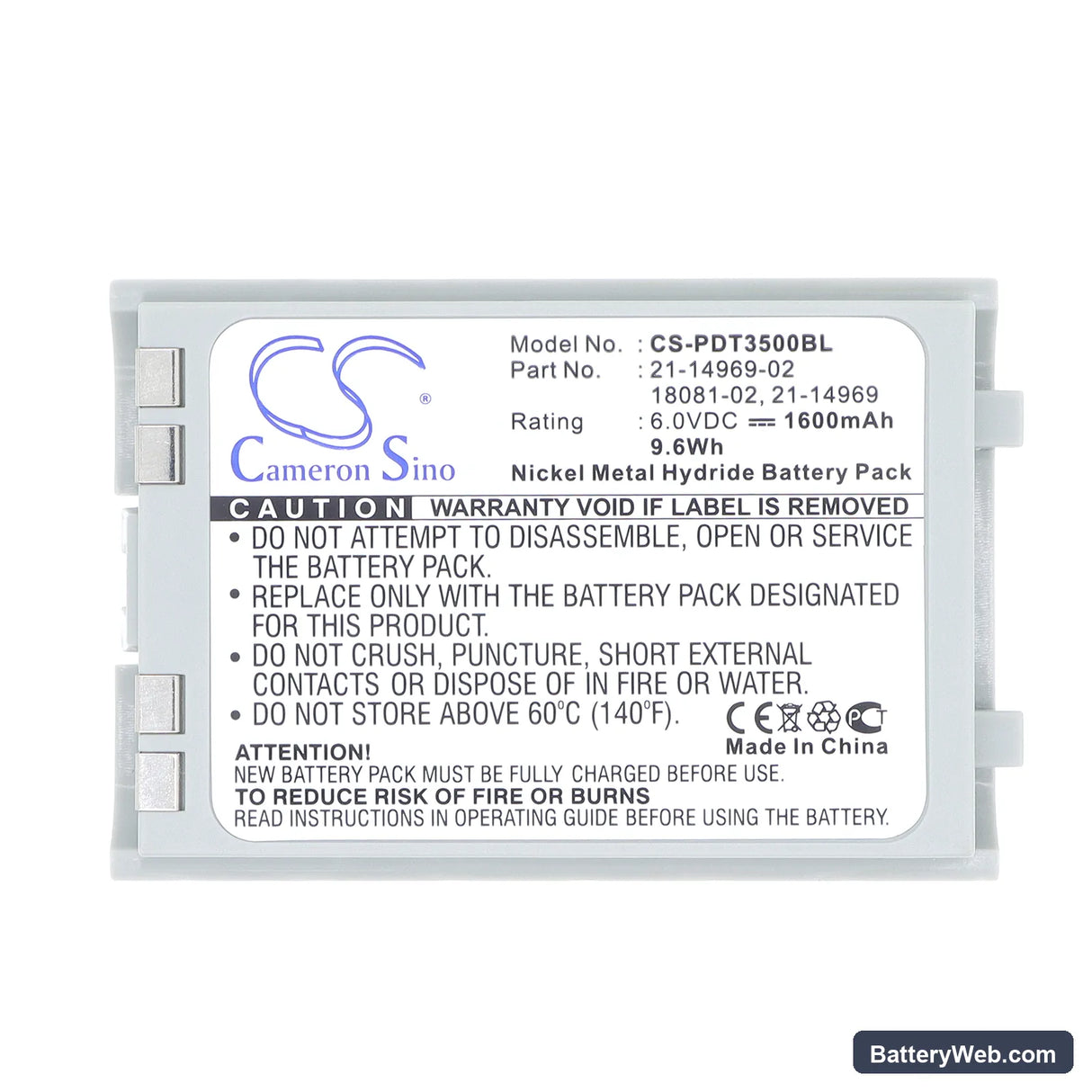

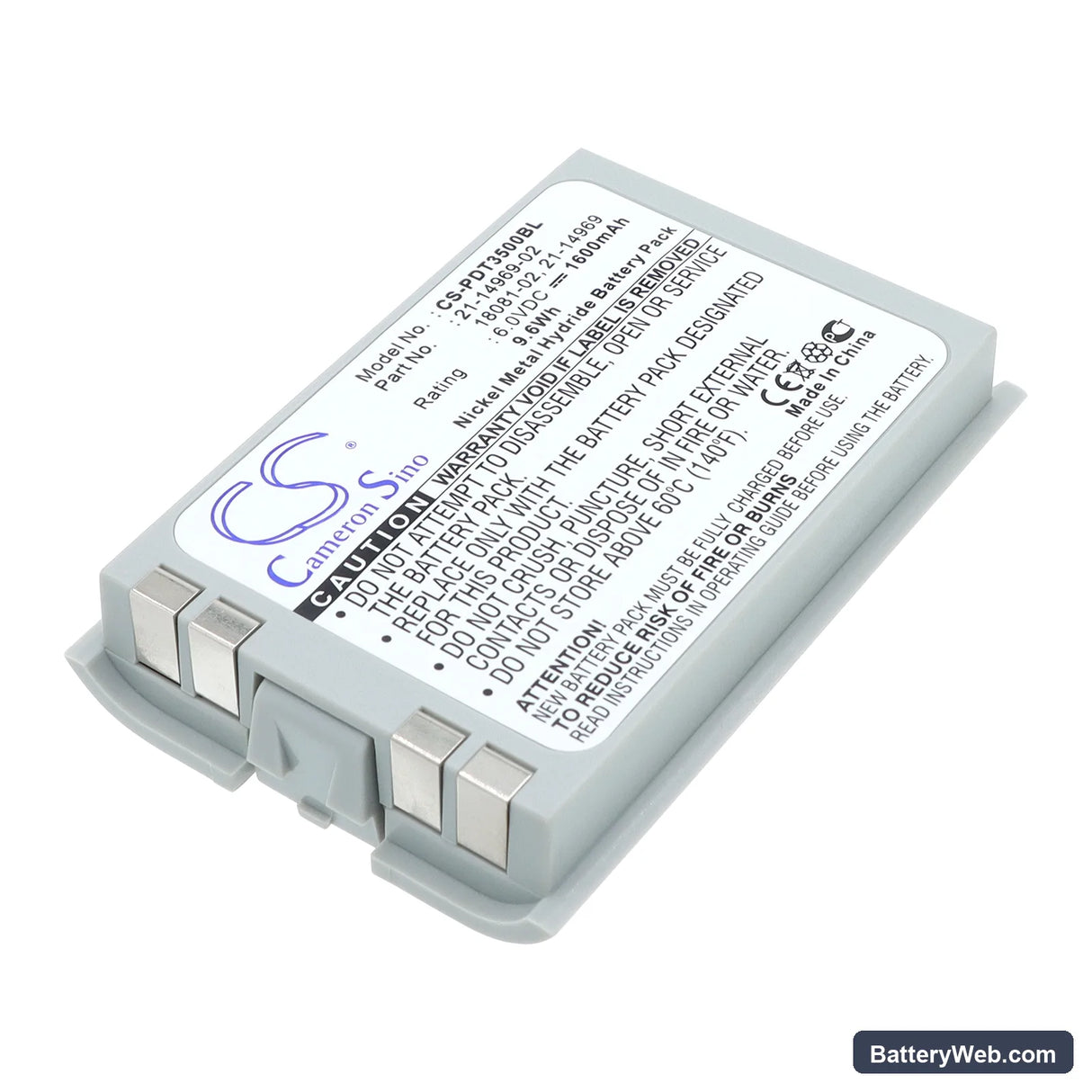

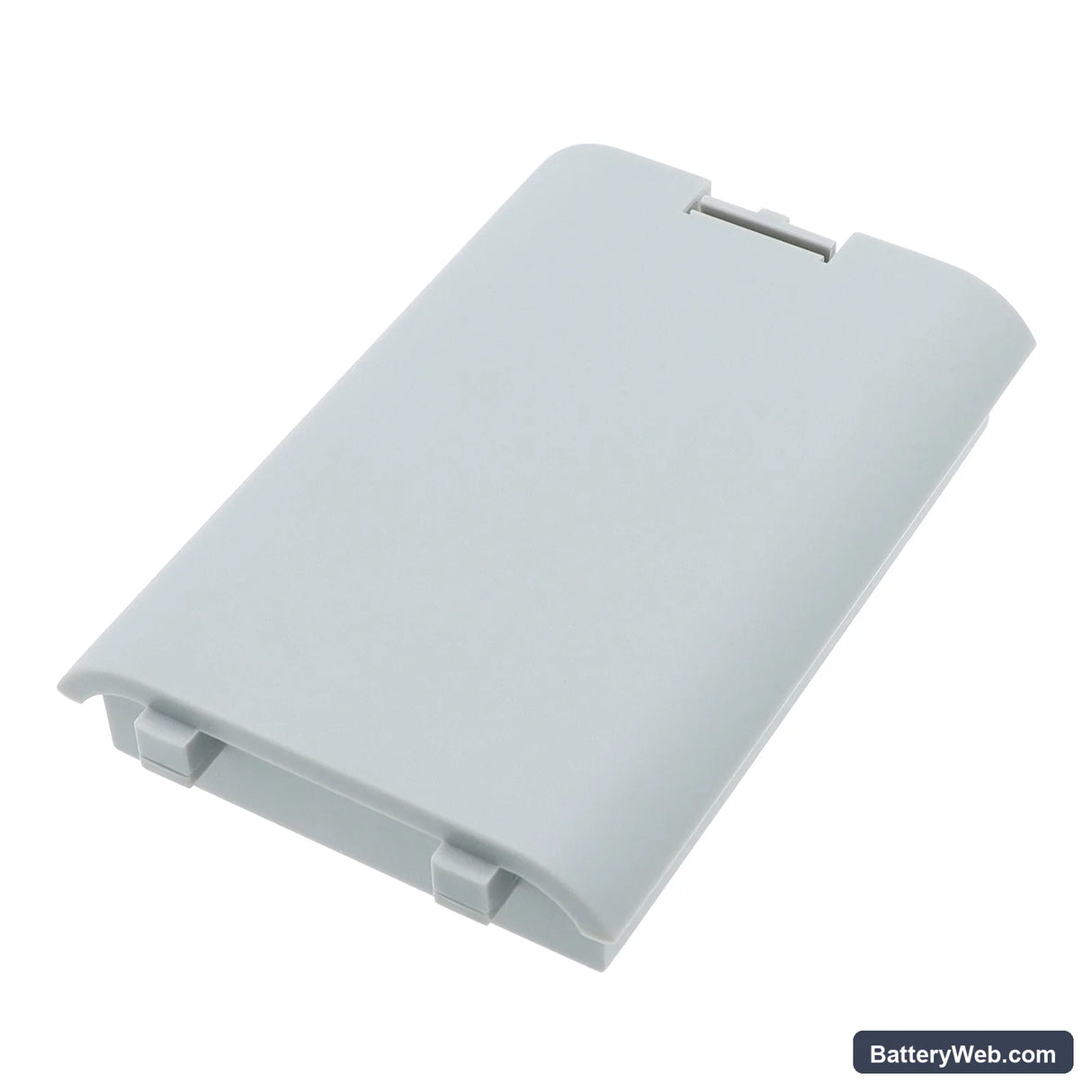

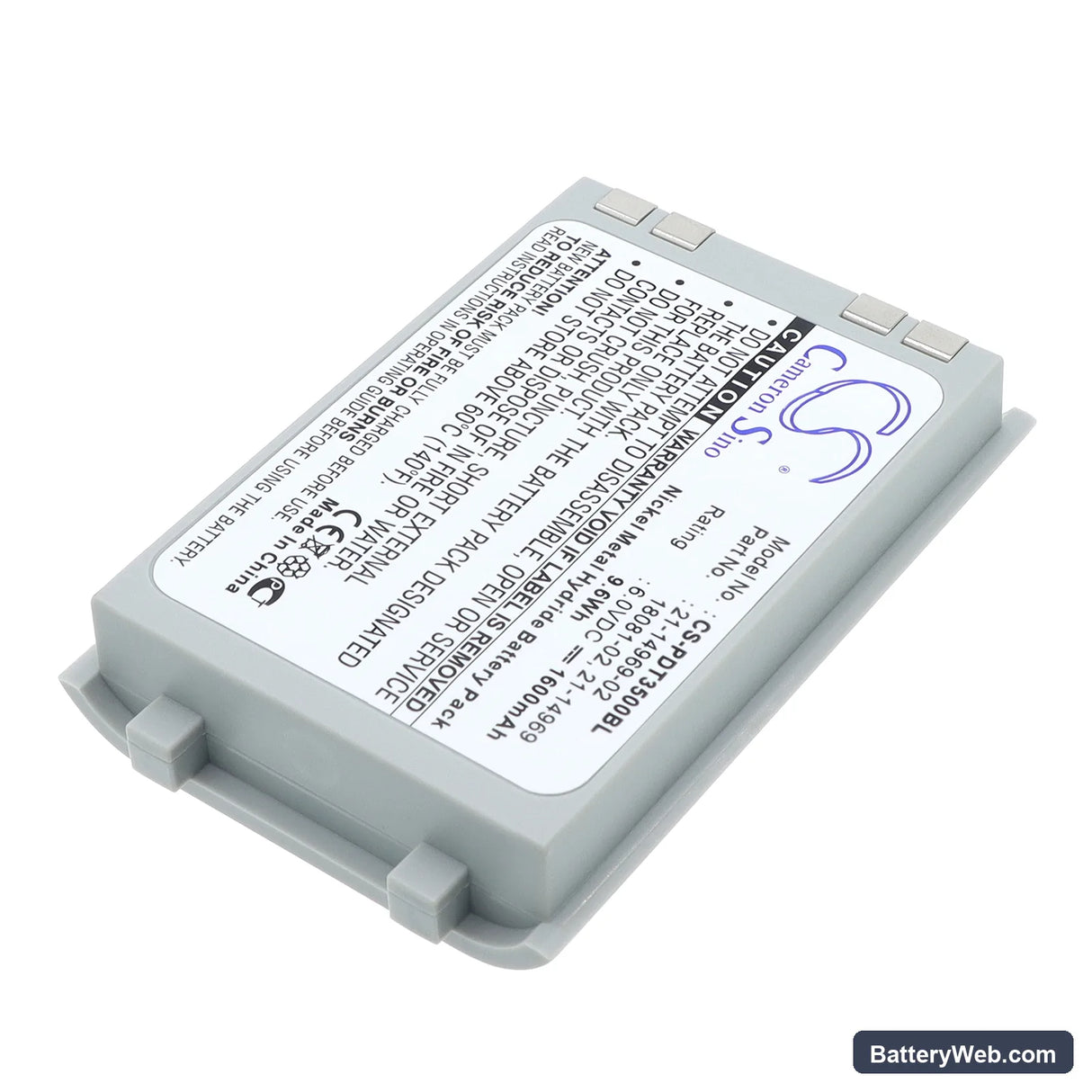

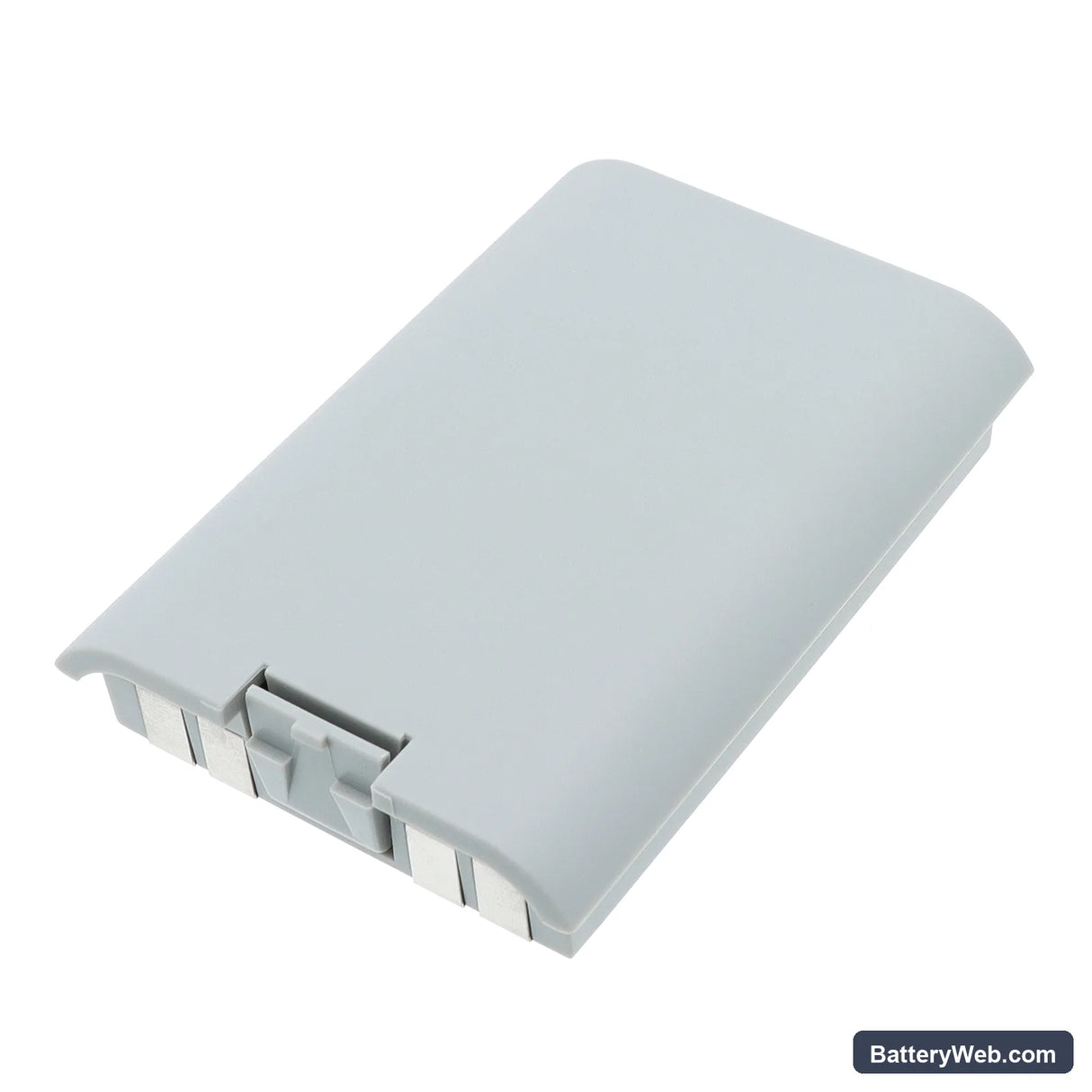

This is a 6V, 1600mAh Ni-MH replacement battery for the Symbol PDT3500, PDT3510, and PDT3540 handheld barcode scanners. It slots into the same battery bay as the original pack and uses the same connector and contact layout. Capacity matches the OEM spec at 1600mAh (9.6Wh).

• PDT3500, PDT3510, PDT3540 fitment: These three models share the same battery housing dimensions, contact pitch, and 6V power rail. The BMS on each expects a Ni-MH pack — a different chemistry will either fail to charge or trigger a fault on the dock.
• Bench tested on actual hardware: We cycled this pack through charge and discharge on a PDT3500-class unit. The BMS accepted the pack without a fault flag, contact resistance sat within spec, and cell voltage held steady across the full discharge curve.
• First-shift prep for pick-and-pack environments: Place the scanner in its cradle for a full charge cycle before the first shift. Scan trigger inrush current is highest when the cell is near minimum voltage, and a pre-charged pack prevents false BMS trips when the trigger is hammered at the start of a shift.

Cradle showing a charging error on a new pack

A new Ni-MH pack that ships at low state of charge can confuse some Symbol charging cradles into displaying a fault. The dock reads the initial cell voltage and, if it falls outside the expected window, it flags an error rather than starting a charge cycle. Wipe the gold contacts on both the pack and the cradle with a dry cloth, reseat the scanner firmly, and wait 60 seconds — the dock re-samples cell voltage after a short delay. If the fault clears and charging begins, the contacts were the issue; if not, check that the cradle firmware supports the PDT3500 series.

Scanner losing wireless connection during rapid scan bursts

During a fast scan sequence, the radio transmitter and the laser or imager fire almost simultaneously, creating a combined inrush draw that can drag cell voltage below the radio module's minimum threshold. When that happens, the wireless link drops mid-burst and the scanner has to re-associate — which operators see as a freeze or missed scan. This is more common with an aged pack but can also occur with a new cell that hasn't completed its first full charge cycle. Charge the pack fully before use and, if the drops persist, check that the cradle is delivering a complete charge and not cutting off early due to a contact issue.
