Elmeg FC1 Cordless Phone Replacement Battery 2.4V 600mAh

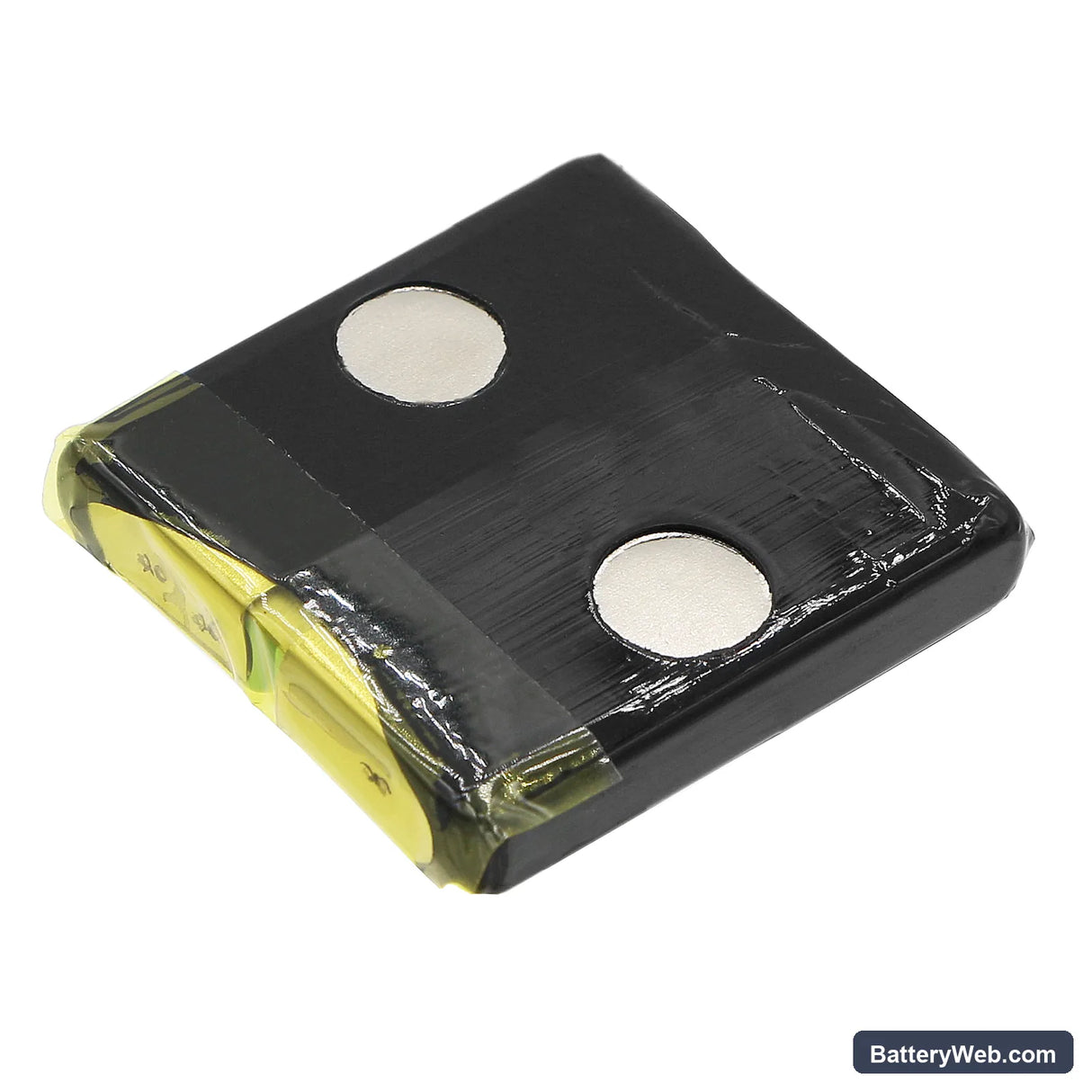

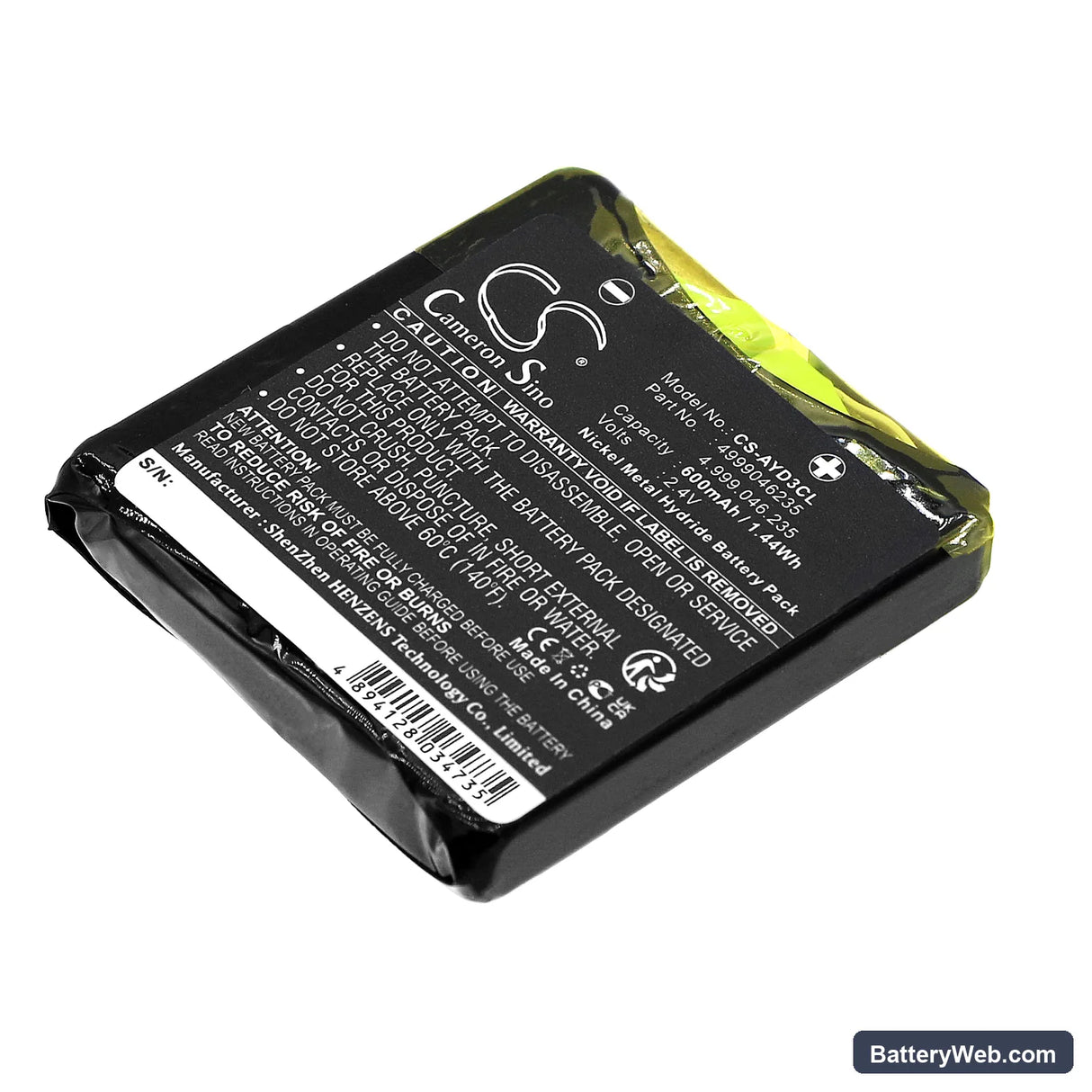

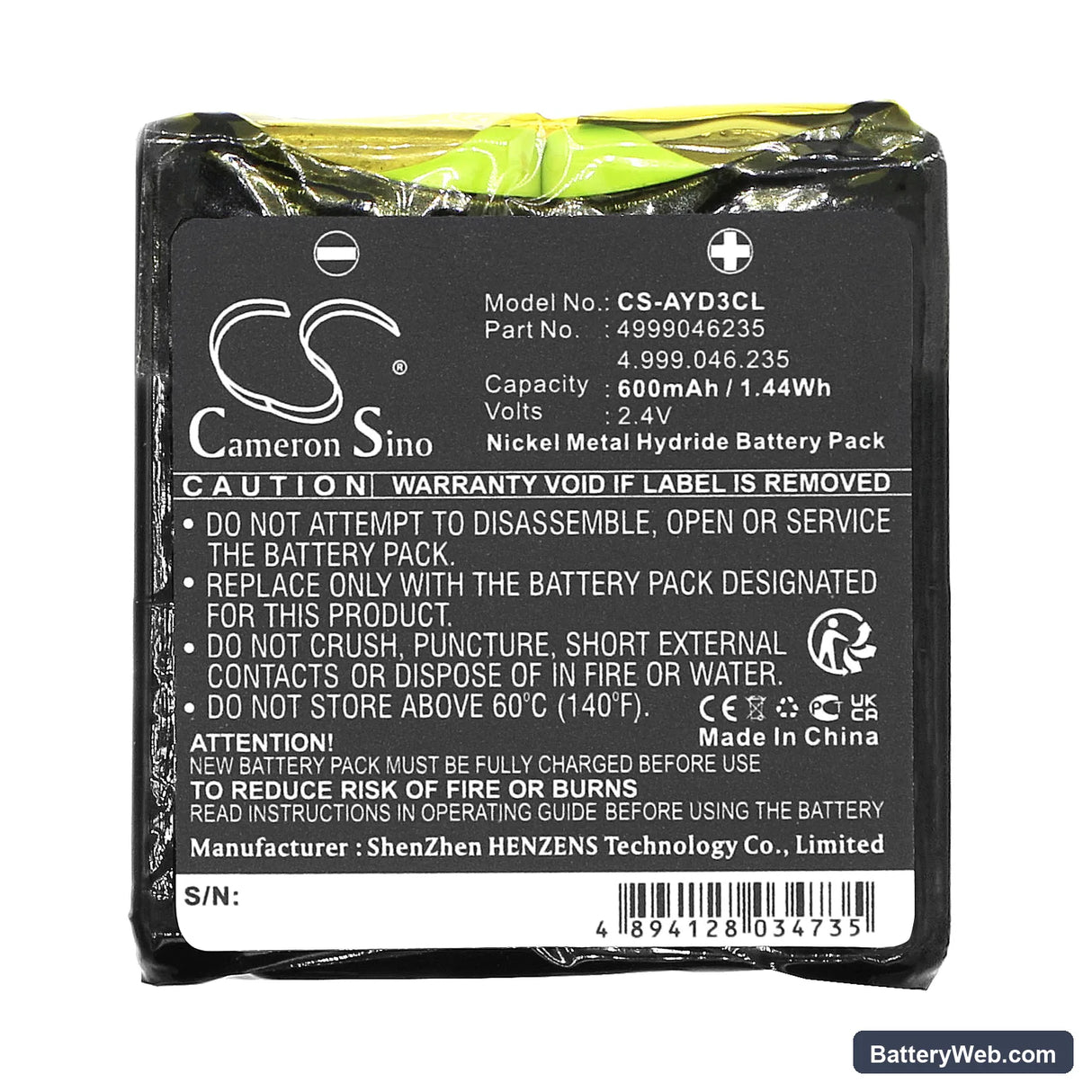

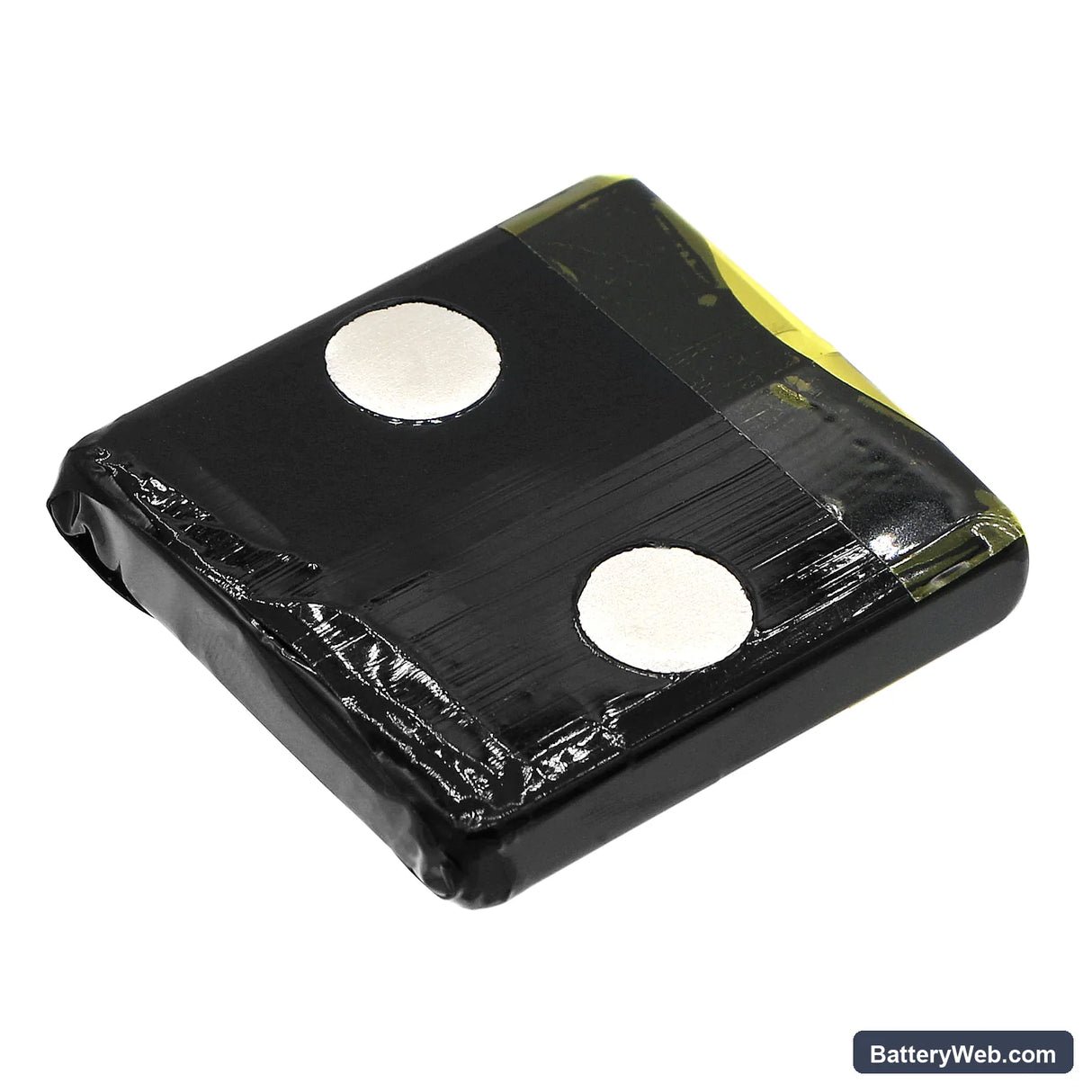

Elmeg FC1 — 2.4V Ni-MH Replacement Battery

This is a 2.4V, 600mAh Ni-MH battery for the Elmeg FC1 cordless phone handset. It replaces the original cell that powers the handset during calls and standby. When the original cell degrades, talk time drops sharply — this battery restores the handset to working condition.

• FC1 handset fit: The FC1 uses a compact 2.4V Ni-MH cell housed in a 35.80 × 33.50 × 7.00mm pack. The voltage rail and connector match the handset's charging circuit directly — no modification needed.
• Bench tested on actual hardware: We cycled the cell through charge and discharge on the FC1 platform. The BMS accepted charge from the base station without error, and voltage held stable across the RF transmit window.
• First-charge conditioning on Ni-MH cordless packs: After fitting, seat the handset in the base and leave it for a full 16 hours before first use. Ni-MH cells ship partially discharged — skipping this slow initial charge means the cell never reaches rated capacity.

Talk time shorter than the original battery after replacement

Ni-MH cells need three to five full charge-discharge cycles before they deliver rated capacity. Out of the box, the cell holds less charge than it will after conditioning — this is normal chemistry, not a fault. Each full cycle builds the electrochemical capacity incrementally. By cycle five, talk time should match the rated 600mAh output.

Base station showing no charge or error light after battery swap

If the FC1 base shows no charge indication after fitting a new battery, the cell voltage is likely below the base station's acceptance threshold from storage. Ni-MH cells can self-discharge during shipping and warehousing. Remove the handset, wait 30 seconds, reseat it firmly, and check that the handset makes solid contact with the base charging pins. If the light still doesn't activate, check pin voltage at the base contacts — it should read above 2.8V to trigger the charge circuit.
