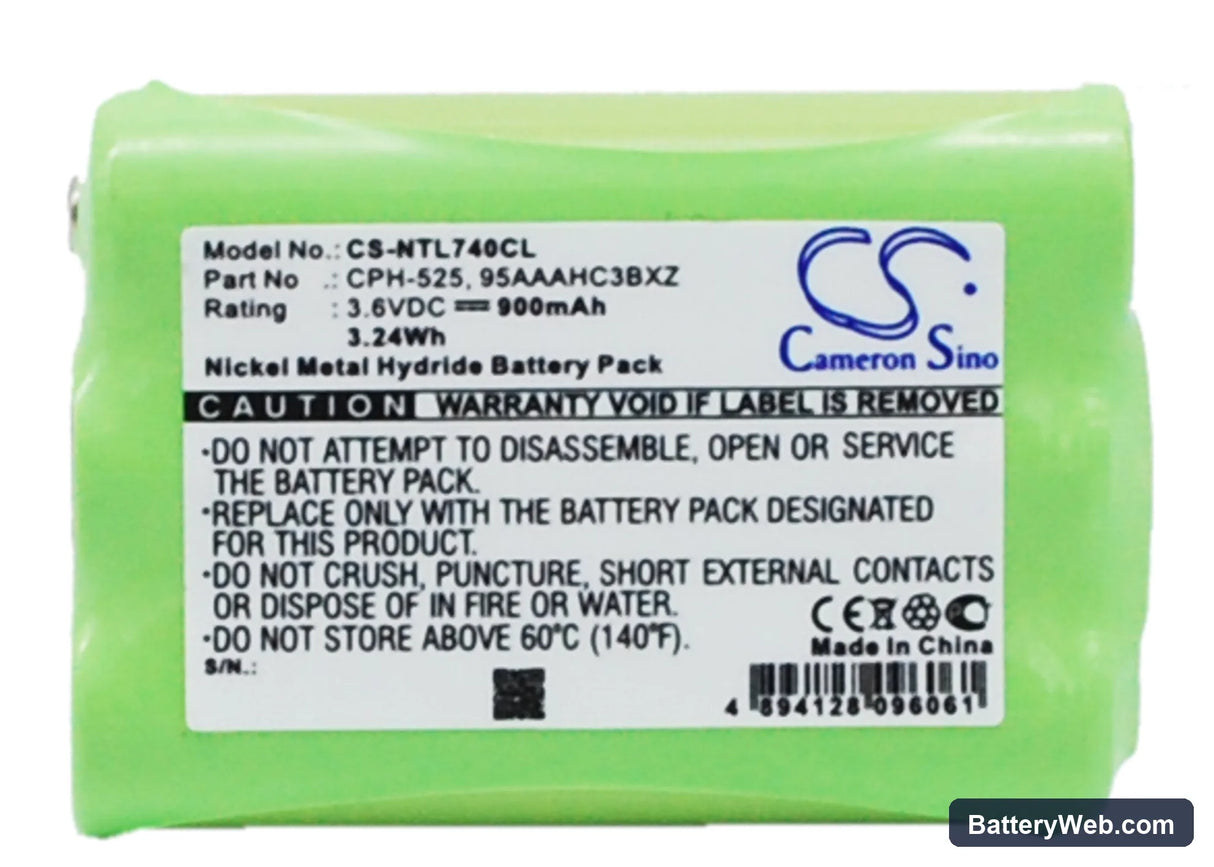

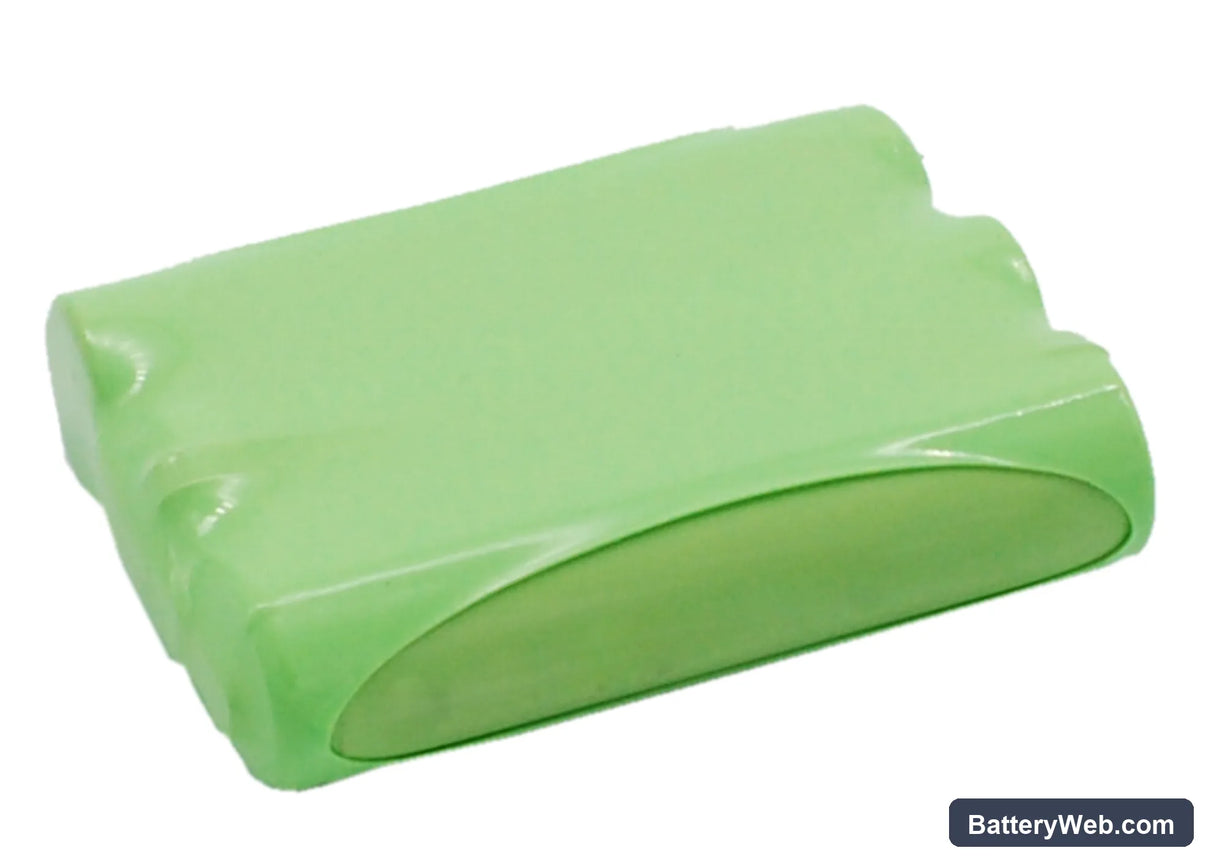

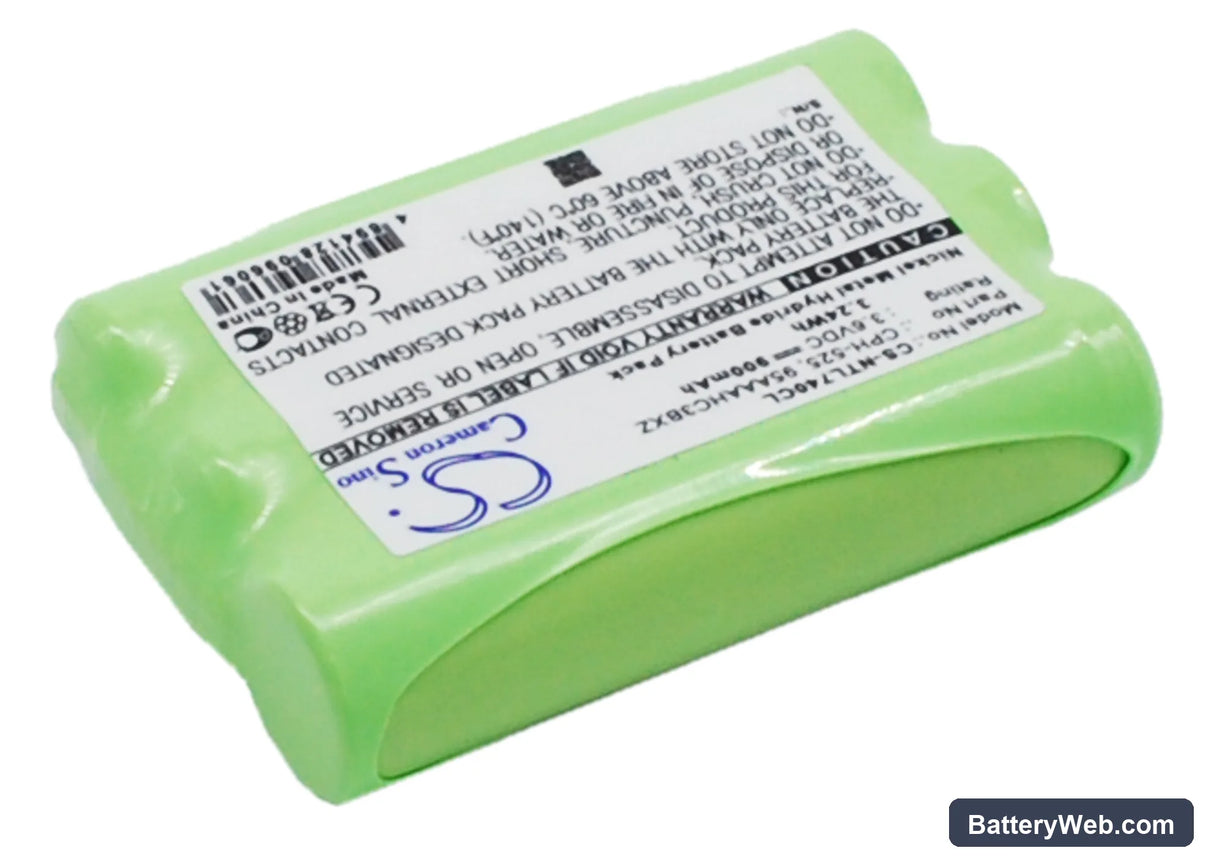

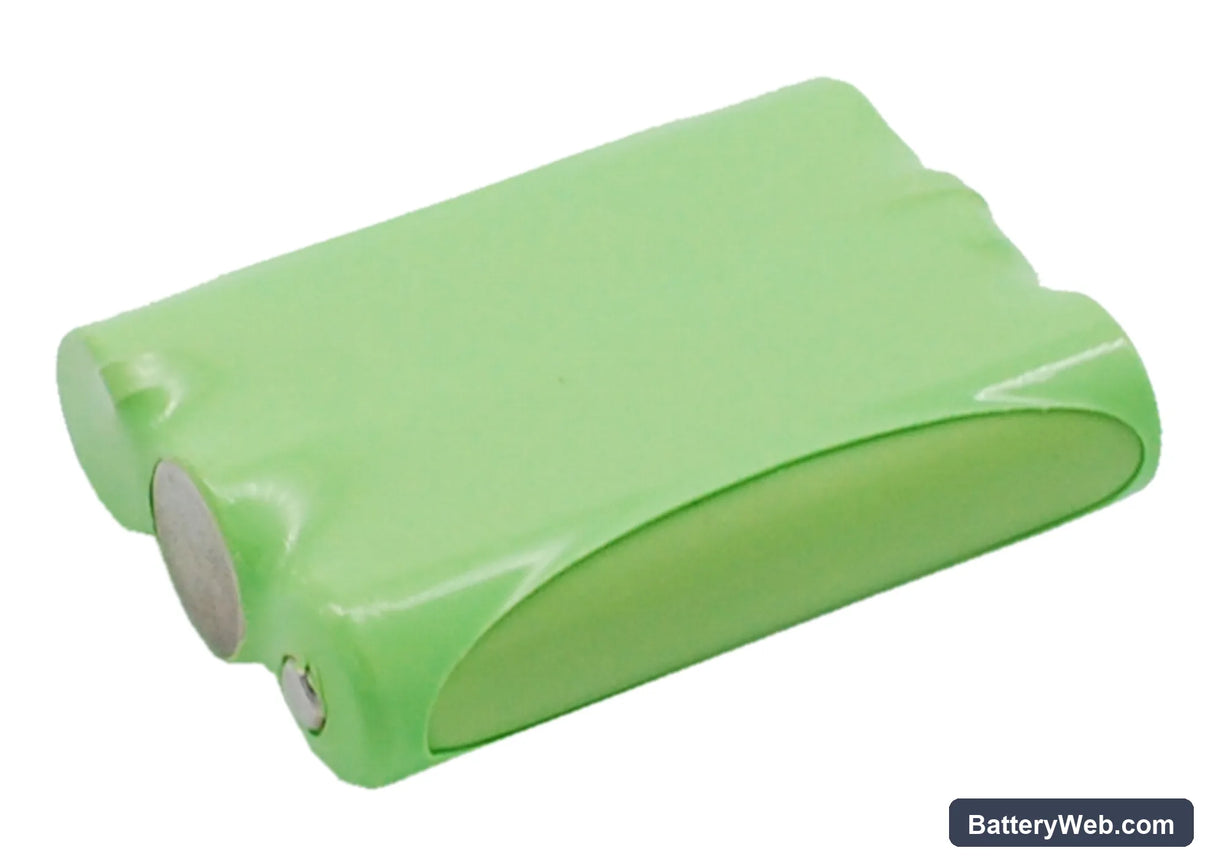

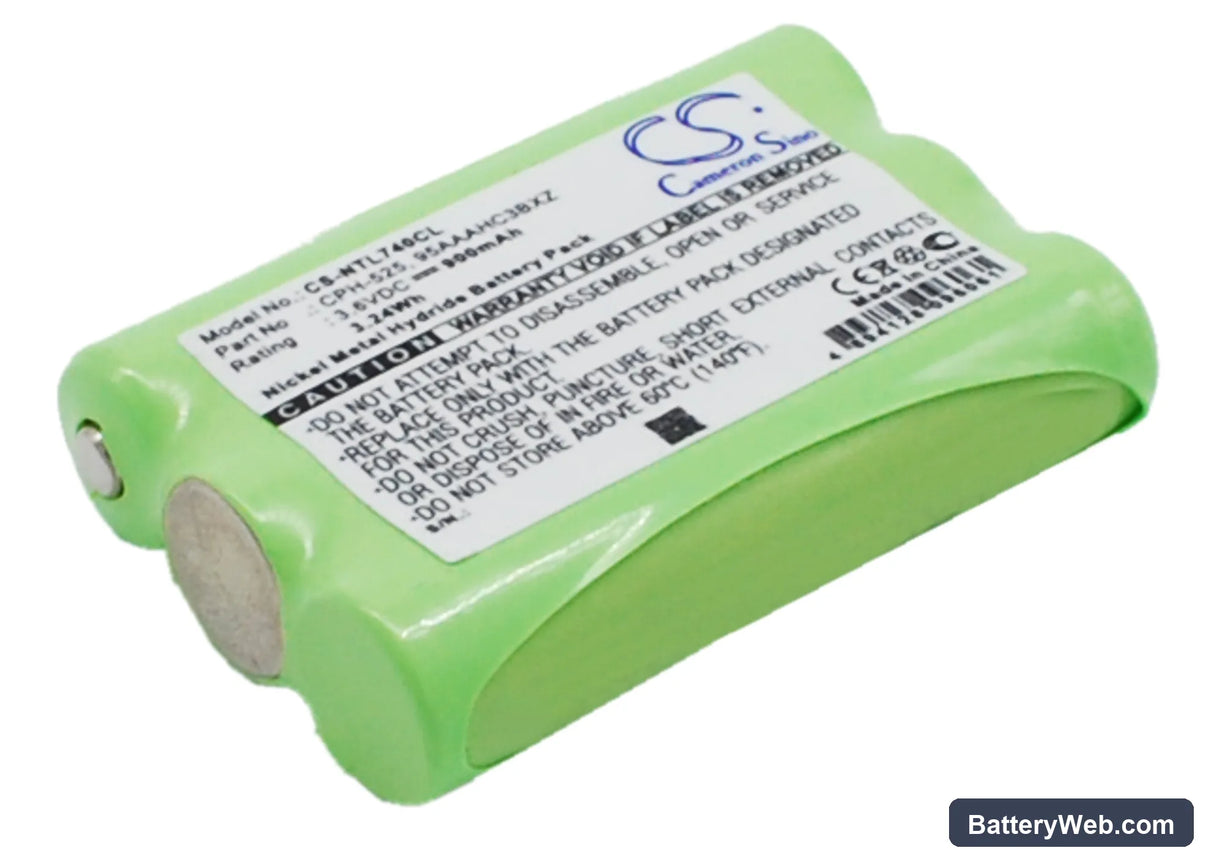

Nortel T7406E Replacement Battery 3.6V 900mAh NT8B45AH

Nortel T7406E / 81010 — 3.6V Ni-MH Replacement Battery (NT8B45AH)

This is a 3.6V, 900mAh Ni-MH battery pack for the Nortel T7406E and 81010 cordless phone handsets. It replaces OEM part NT8B45AH and compatible cross-references including CPH-525 and 95AAAHC3BX. When the original pack can no longer hold a charge through a normal call, this swap restores the handset to working condition.

• T7406E and 81010 fitment: Both models use the same 3.6V NiMH cell format, identical connector orientation, and the same base station charge circuit. One battery covers both handsets without any modification.
• Bench tested on actual hardware: We cycled this pack through the T7406E base station charge circuit and confirmed the NiMH voltage rises correctly through the trickle and top-up phases. The BMS in the base accepted the pack without triggering a charge fault.
• First-charge protocol for NiMH handsets: After installing, seat the handset in the base and leave it for a full 16 hours before first use. NiMH cells shipped in partial-discharge storage need a slow, uninterrupted first charge to reach rated 900mAh capacity — cutting it short locks in a lower ceiling for subsequent cycles.

Talk time shorter than the original battery after replacement

NiMH cells do not deliver full rated capacity on the first cycle out of the box. Storage causes partial self-discharge, and the cells need three to five full charge-discharge cycles before they reach 900mAh. If talk time is still noticeably short after five cycles, check that the handset is fully seated in the cradle — a tilted contact gives the base a false "charged" signal and cuts the charge phase early, leaving cells at around 3.3V instead of the full 3.6V.

Base station shows no charge light or error light on a new pack

Batteries sitting in warehouse storage can drop below 3.0V, which some T7406E base stations treat as an error condition rather than initiating a charge cycle. The base charge circuit expects a minimum voltage before it engages. Remove the handset, wait 30 seconds, then reseat it firmly — this resets the charge controller and usually triggers a fresh detection cycle. If the error persists, measure the battery terminals with a multimeter; a reading below 2.8V means the pack needs a slow external NiMH trickle charge at 90mA to bring it back above the base station's acceptance threshold before normal charging can begin.
