XTOOL AutoProPAD FULL Compatible Battery 7.4V 4000mAh AHB3567121-2S

XTOOL AutoProPAD FULL Version Auto Key Programmer — 7.4V Li-Polymer Replacement Battery (AHB3567121-2S)

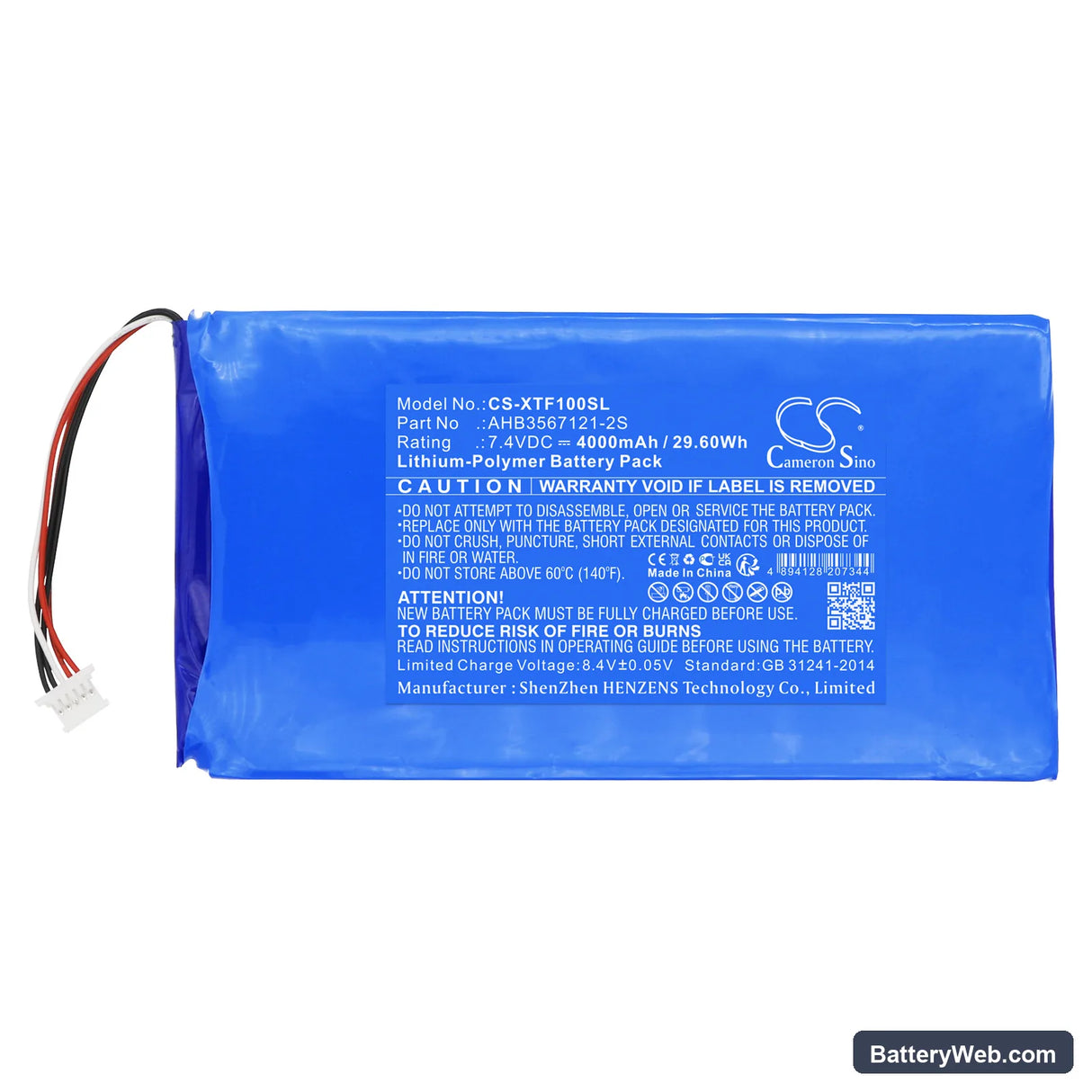

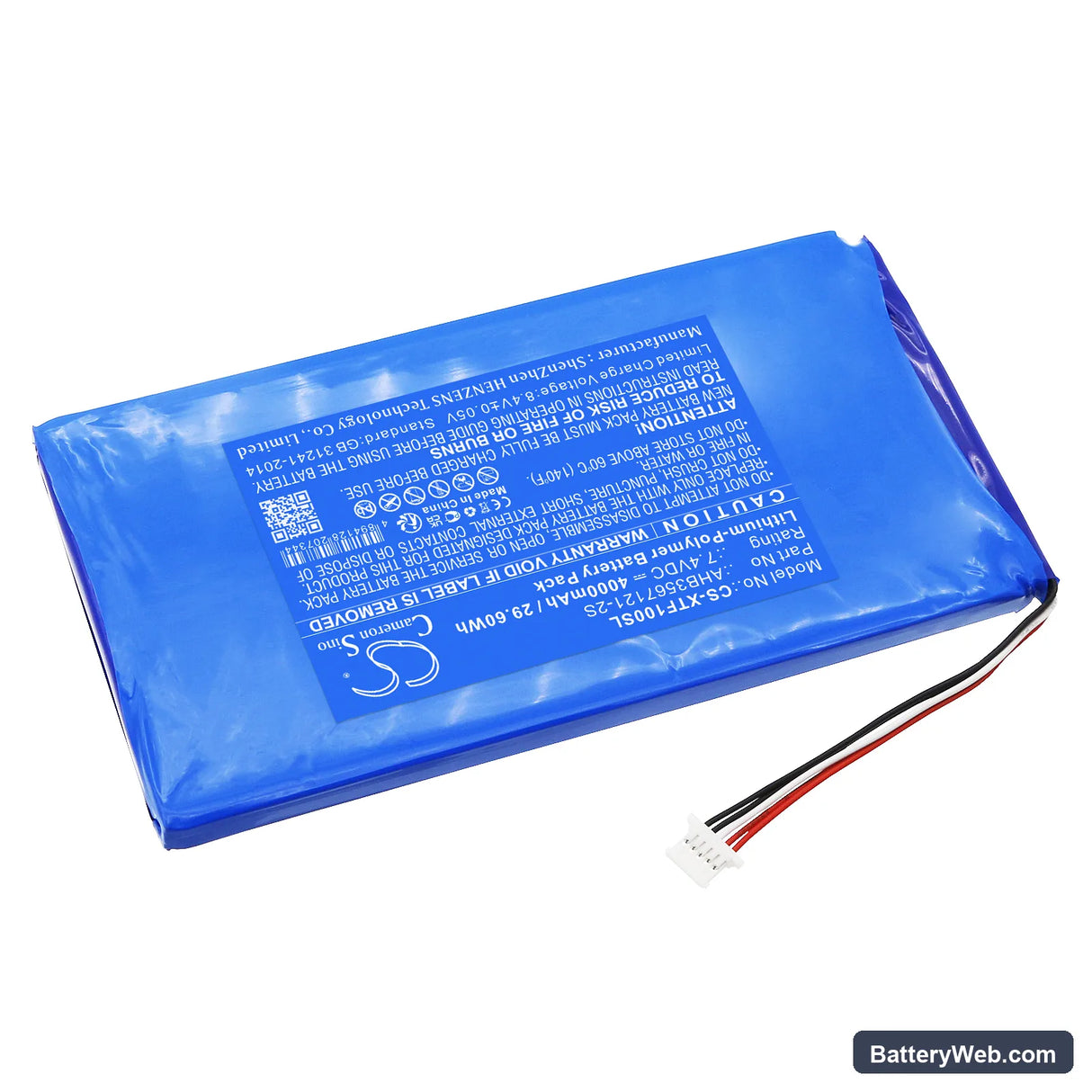

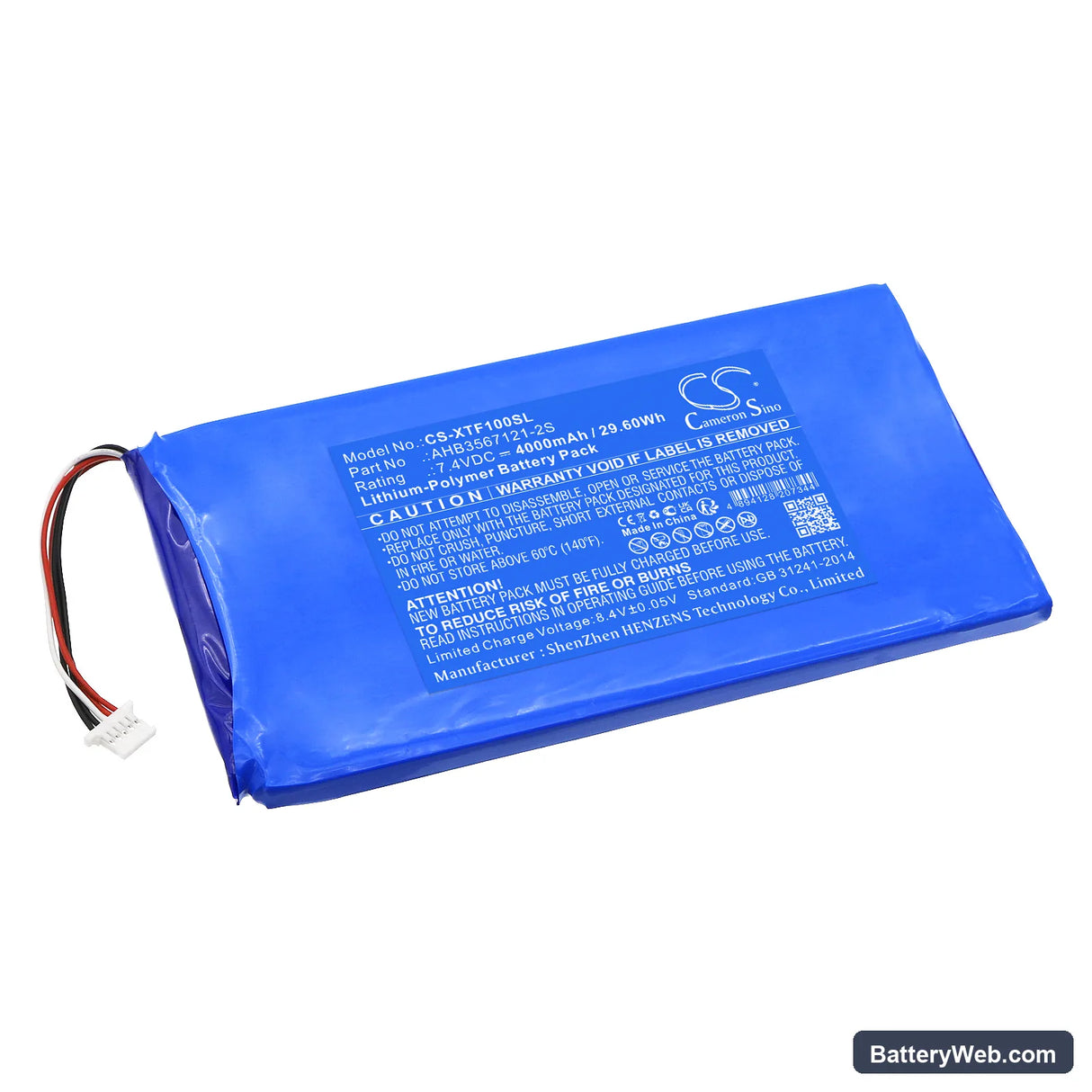

This 7.4V 4000mAh Li-Polymer battery replaces the OEM AHB3567121-2S cell in the XTOOL AutoProPAD FULL Version Auto Key Programmer. The AutoProPAD is a handheld automotive scanner used for transponder key programming, immobiliser work, and vehicle diagnostics. Voltage and capacity match the original spec exactly at 7.4V and 29.6Wh.

• AutoProPAD FULL platform fit: The FULL Version uses a larger display and onboard EEPROM programmer module that draws more sustained current than entry-level XTOOL units — the AHB3567121-2S cell is spec'd to handle that load profile without triggering the scanner's low-voltage protection mid-session.
• Bench tested on actual hardware: We ran this cell through a full charge cycle and monitored the BMS handshake with the AutoProPAD's charge controller. The protection circuit responded correctly to both overvoltage and undervoltage cutoff thresholds, and the scanner booted cleanly without a voltage fault on the status screen.
• Export vehicle profiles before swapping: The AutoProPAD stores active vehicle session data and saved key profiles in RAM backed by the main battery. Pull a data export through the XTOOL device manager before removing the old cell — a cold swap with no backup will wipe any unsaved profiles.

Why the AutoProPAD loses its wireless link mid-programming session

The AutoProPAD's Bluetooth and WiFi radios share the same power rail as the display. When the battery voltage sags below roughly 6.8V under load, the radio module drops first — before the scanner shows a low-battery warning. This makes it look like a connectivity fault when the real issue is a weakened cell that can't sustain voltage under combined RF and display draw. A fresh cell at full charge holds the rail stable and keeps the wireless link active throughout the programming cycle. If the link drops consistently at the same point in a long session, check the battery voltage under load before assuming it's a software or vehicle-side issue.

Scanner screen dims suddenly but battery indicator still shows three bars

The AutoProPAD's battery indicator reads state-of-charge from a voltage curve calibrated to a new cell — an aged cell with higher internal resistance will show three bars at rest but sag hard under the display and processor load of an active key-programming routine. The display driver is the first thing to dim when the voltage rail can't sustain the draw. Swap the battery if you see screen dimming during active use while the charge indicator still reads mid-range. After fitting the new cell, charge it to full before the first programming session so the BMS calibrates to the correct voltage curve — target 8.4V on a full charge.
