XTOOL H6 Pro Diagnostic Scanner Replacement Battery 3.8V 10000mAh

XTOOL H6 Pro / AutoProPAD G2 Turbo — 3.8V Li-Polymer Replacement Battery (AHB9858102)

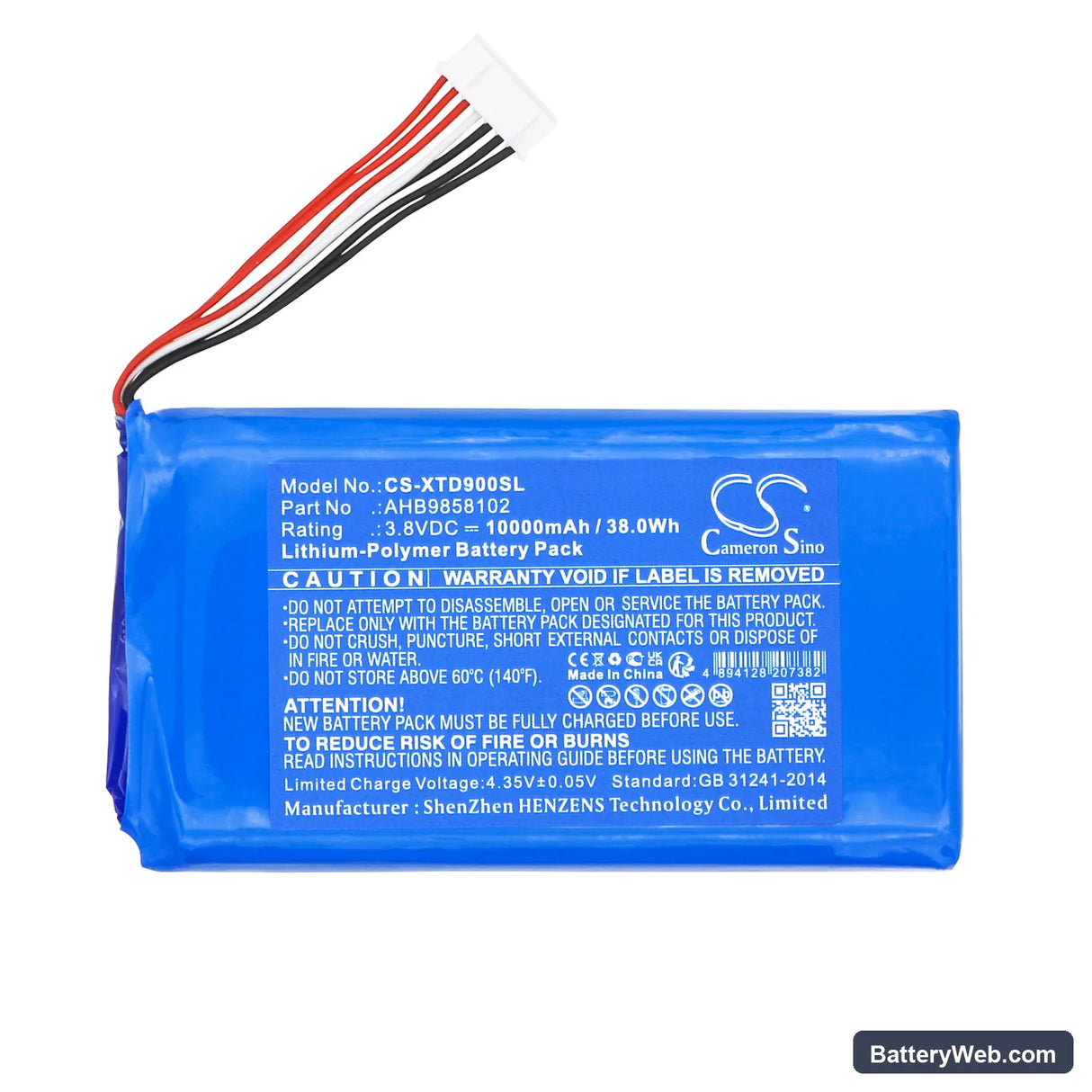

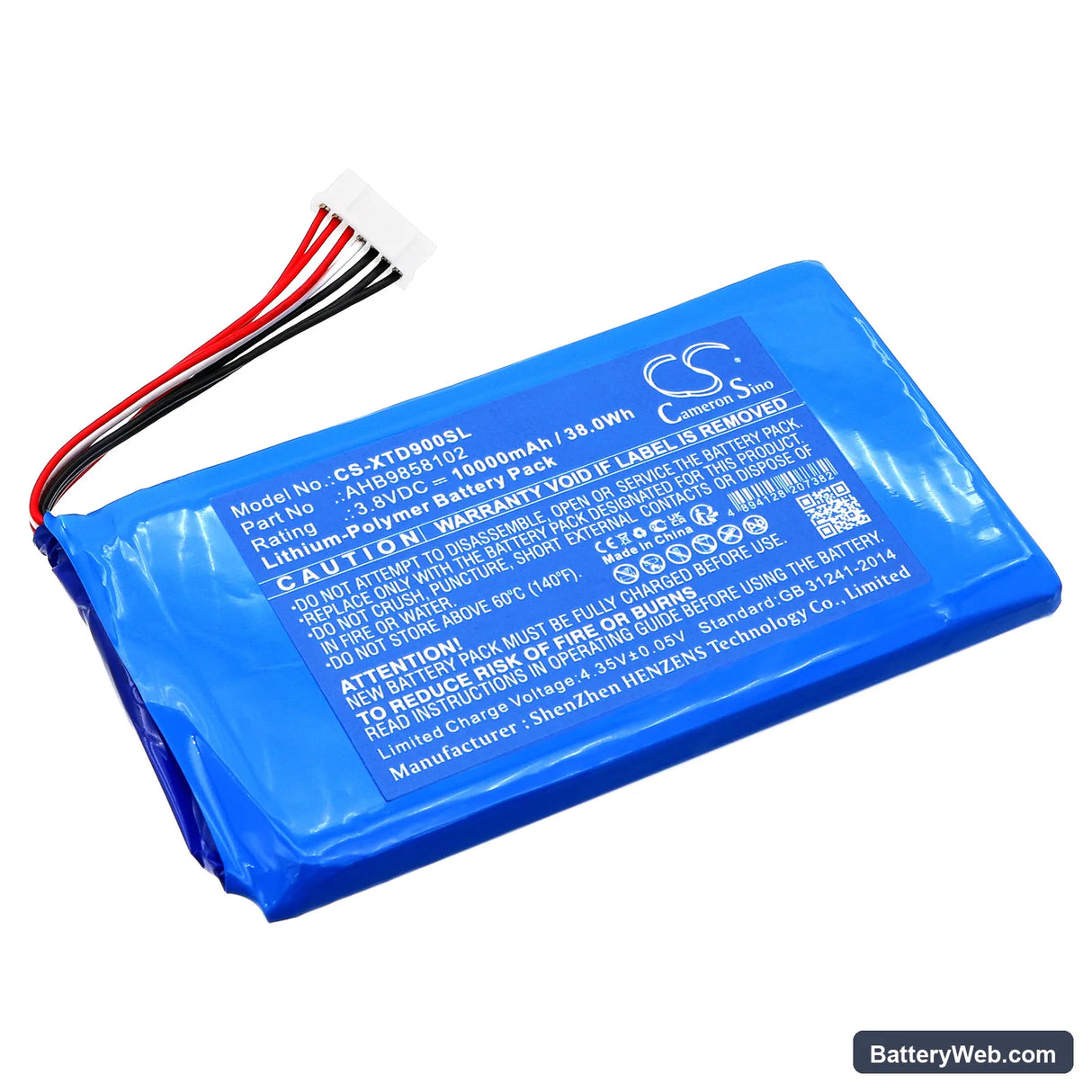

This 3.8V, 10000mAh Li-Polymer cell replaces the OEM battery in the XTOOL H6 Pro, H6 Pro Master, H6D Pro, and AutoProPAD G2 Turbo G2T diagnostic tools. It restores power to the main board and touchscreen so the scanner runs full vehicle diagnostic sessions away from a wall outlet. Dimensions are 105.60 × 58.00 × 10.00mm — measure your existing cell before fitting if you are unsure which variant you have.

• H6 Pro and AutoProPAD G2T platform fit: These models share the AHB9858102 cell because they run the same 3.8V main board architecture and use the same five-pin battery connector with integrated BMS handshake. A mismatch on connector pinout will prevent the scanner from reading state-of-charge correctly.
• Bench tested on actual hardware: We cycled this cell on the H6 Pro board and confirmed the BMS reports accurate charge percentage from first boot. The protection circuit tripped correctly at the low-voltage cutoff threshold, preventing cell damage during a simulated deep-discharge event.
• Pre-swap data export: Export all saved vehicle profiles and ECU data to an SD card or USB before removing the old battery. The H6 Pro stores session data in RAM backed by the main battery — pulling the cell without exporting first will erase unsaved vehicle records.

Why the H6 Pro loses its wireless link during live data streaming

The H6 Pro's Bluetooth and Wi-Fi radios draw a combined peak current that spikes sharply during live data streaming from the vehicle ECU. When the battery cell ages and its internal resistance rises, voltage sags under that combined load — the radio subsystem drops first because it sits on a lower-priority power rail than the display and processor. This appears as a sudden disconnect from the vehicle mid-session, even when the battery indicator still shows 30–40%. Replacing the cell with a fresh 10000mAh unit reduces internal resistance and eliminates the sag that triggers the dropout.

Scanner screen dims suddenly before the battery indicator shows low

The H6 Pro's display driver is voltage-sensitive and will throttle backlight output below approximately 3.5V per cell, which can happen under load before the fuel gauge algorithm catches up and flags a low-battery warning. Users see the screen go noticeably darker mid-session while the status bar still reads 20% or higher. This is a cell-voltage sag issue, not a display fault. Charge the replacement battery to full before the first diagnostic session and confirm the scanner boots with the battery indicator above 3.7V at rest.
