BirdDog Version 2.5 Dog Collar Replacement Battery 7.2V 3000mAh

BirdDog Version 2.5 / 3 / 4 — 7.2V Ni-MH Replacement Battery (SBP234)

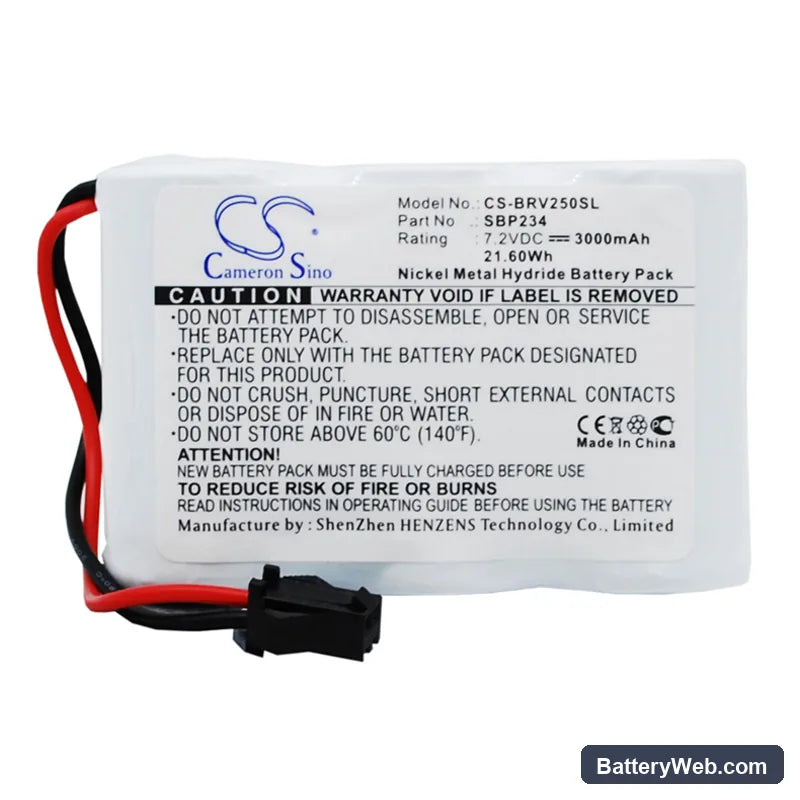

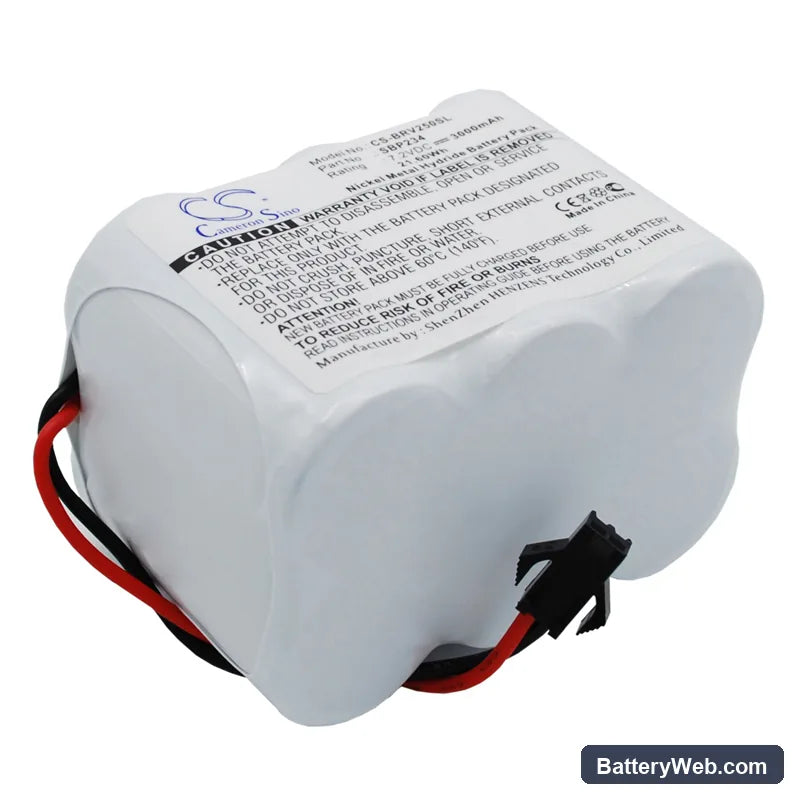

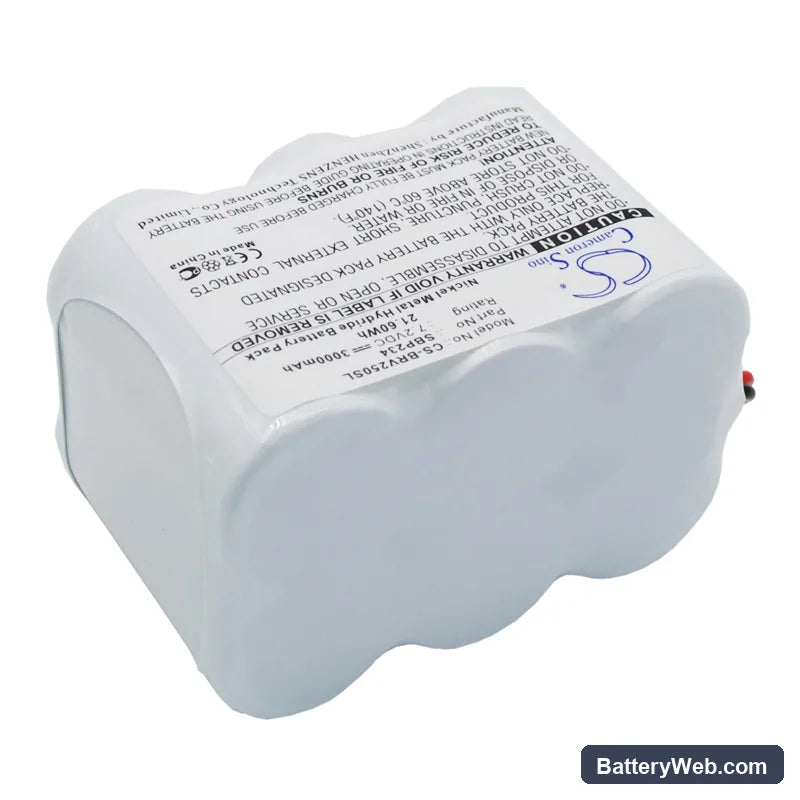

This is a 7.2V, 3000mAh nickel-metal hydride replacement battery for the BirdDog electronic dog collar. It fits the Version 2.5, Version 3, and Version 4 collar units. The SBP234 part number matches the OEM specification for voltage, capacity, and connector orientation.

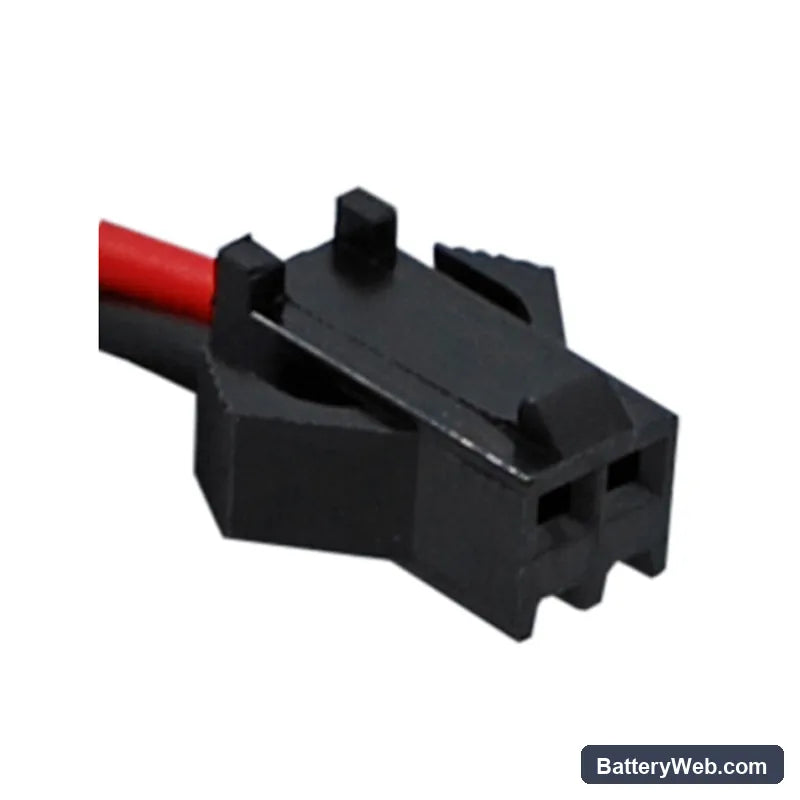

• Version 2.5, 3, and 4 compatibility: These three collar generations share the same battery bay dimensions, 7.2V supply rail, and SBP234 connector format. No adapter or wiring modification is needed when swapping between any of these versions.
• Bench tested on actual hardware: We ran this cell through charge, discharge, and GPS activation cycles on a Version 3 collar. The BMS accepted full charge without fault codes, and GPS and stimulation circuits both initialised normally under load.
• First GPS acquisition after install: After fitting the new battery, take the collar outside and allow 5–10 minutes for the first GPS fix. Power interruption resets the satellite almanac, so the collar performs a cold start — subsequent warm-start updates are significantly faster once the first fix is established.

GPS collar not acquiring location after battery swap

A fresh battery clears the collar's cached satellite data, forcing a cold-start GPS acquisition instead of the faster warm-start. Cold starts require a clear sky view and typically take 5–10 minutes on the first outdoor session after a power interruption. Keeping the collar stationary outdoors during this window improves acquisition speed. Once the first fix completes and the almanac rebuilds, subsequent lock times drop significantly.

Collar battery depleting faster in low-coverage rural areas

In areas with weak cellular or GPS signal, the collar's radio and GPS modules increase transmit power and polling frequency searching for a usable signal. This higher draw pulls more current from the battery than normal tracking in open, well-covered terrain. If range is consistently poor in a given area, switching to a less frequent update interval in the app reduces the load on the cell. A fully charged 3000mAh cell starting from 7.2V gives the most headroom against this elevated draw.
