18650 7.4V Flashlight Replacement Battery 5200mAh Li-ion

18650 18650x4 — 7.4V Li-ion Replacement Battery

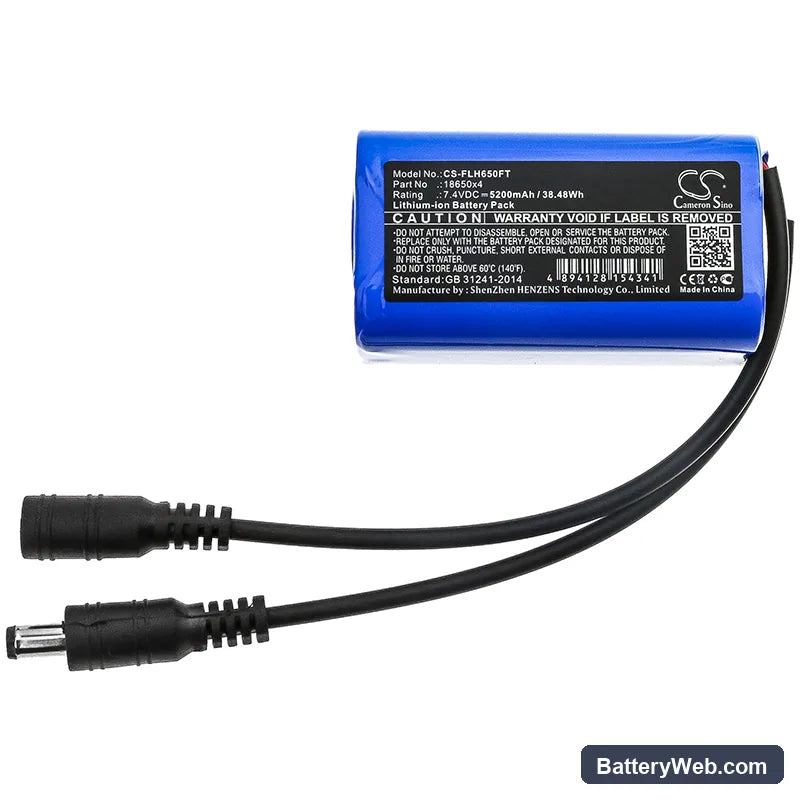

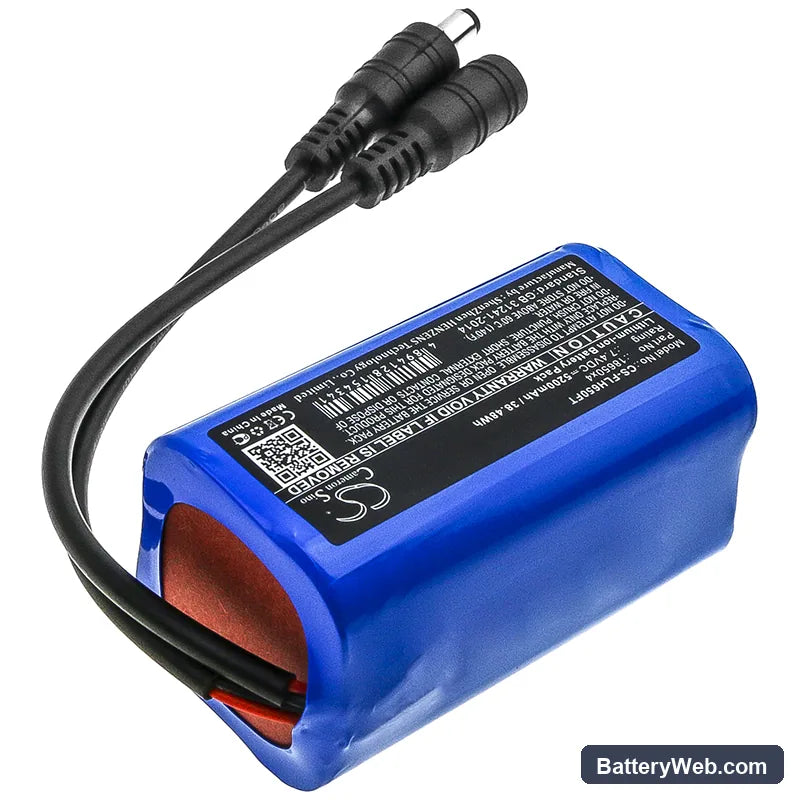

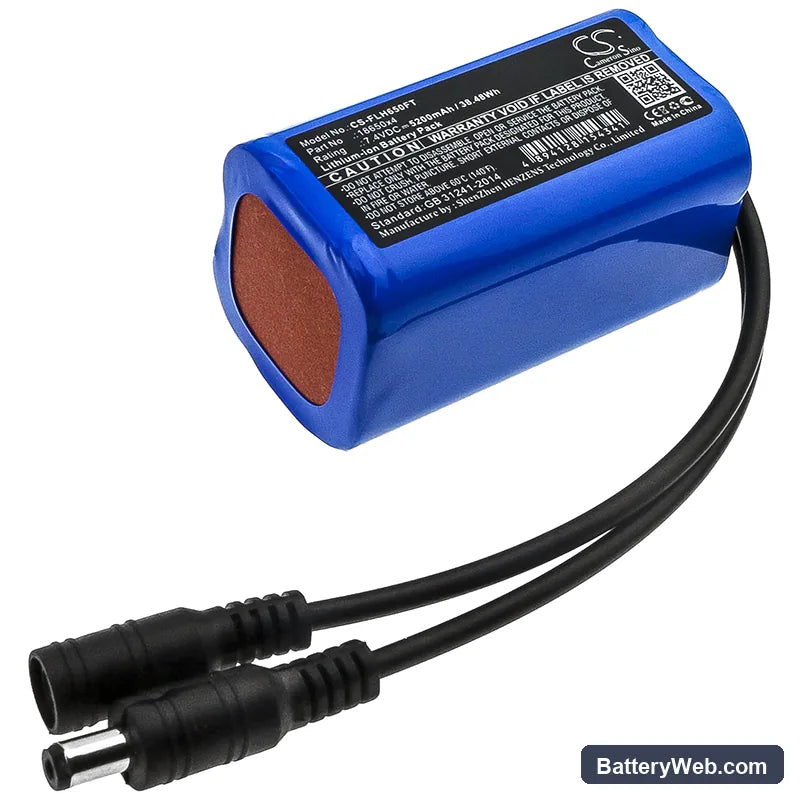

This is a four-cell 18650 Li-ion battery pack rated at 7.4V and 5200mAh (38.48Wh). It fits high-powered flashlights and torches that run a series-configured quad-cell pack at this voltage. Check your flashlight's original pack label or manual to confirm the 7.4V four-cell configuration before ordering.

• Quad-cell 7.4V configuration: Flashlights using this layout connect two pairs of 18650 cells in series to hit the 7.4V rail the driver expects. The BMS in this pack monitors each cell group individually, so a voltage mismatch between pairs triggers protection cutoff before the driver sees it as a low-battery event.
• Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on a 7.4V flashlight driver. The BMS held cell balance within 20mV across pairs under sustained high-current draw, and protection cutoff triggered cleanly at the expected low-voltage threshold without nuisance trips.
• Multi-cell replacement timing: Replace all four cells from this pack at the same time. Never mix this new pack with any remaining old cells from a previous installation. A weaker cell drains first under turbo-mode current draw, and the stronger cells then force-discharge it below safe voltage, which permanently degrades the weak cell.

Flashlight driver stepping down output before the battery indicator reads low

Most high-powered flashlight drivers use brownout protection that drops output levels before the battery indicator trips. The driver samples terminal voltage under load, and a pack with even slight cell imbalance shows a higher voltage sag than a balanced pack at the same state of charge. This causes the driver to step down from turbo to high, or high to medium, while the indicator still reads partial charge. A balanced, fresh pack holds terminal voltage above the driver's step-down threshold longer, keeping full output stable.

One side of the pack draining faster than the other

In a series quad-cell pack, the two cell groups do not always age at the same rate — especially if previous use was uneven or one group ran hotter. When one pair has lower capacity, it hits the BMS low-voltage cutoff first, leaving usable charge stranded in the stronger pair. The light shuts off even though the full pack voltage still reads above zero. If you see this with a new pack, check that the old pack was fully removed and no mixed cells are present — recheck terminal voltage on each pair with a multimeter; they should read within 0.05V of each other at rest.
