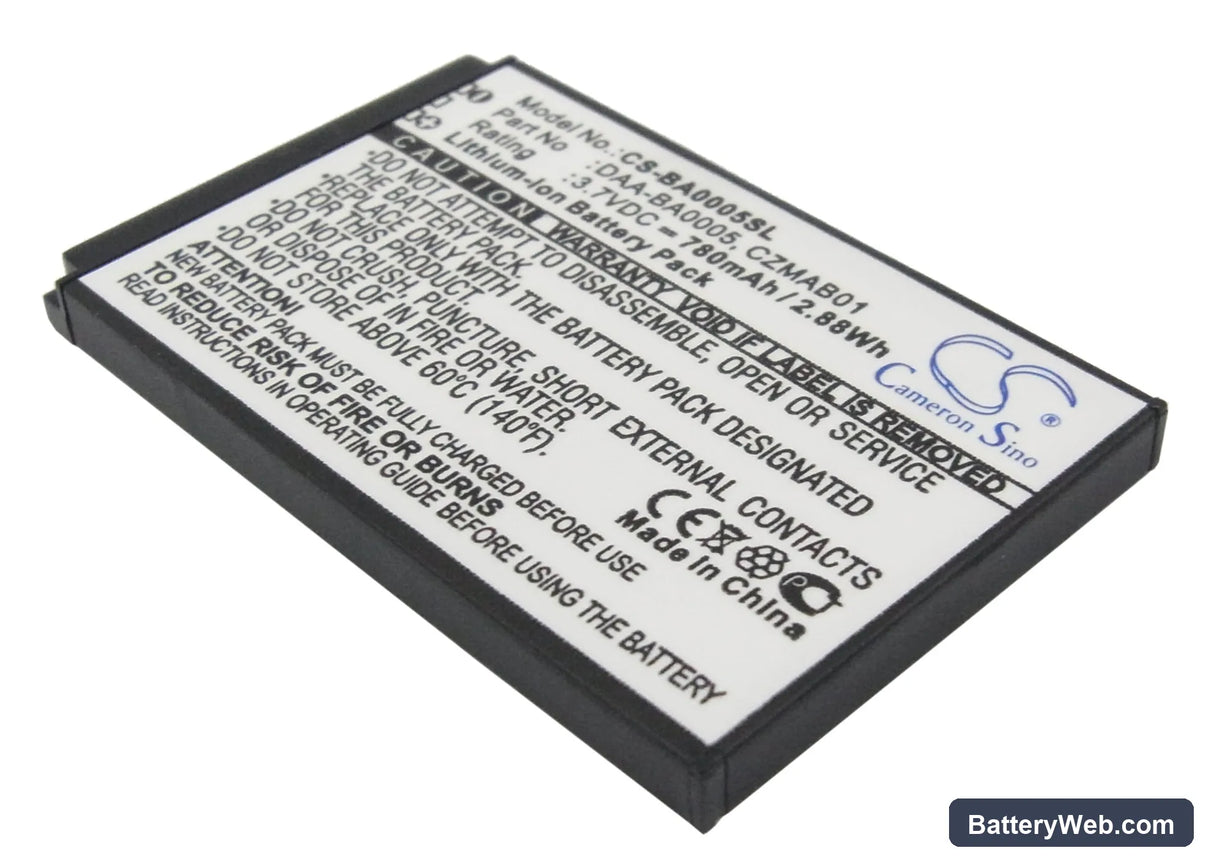

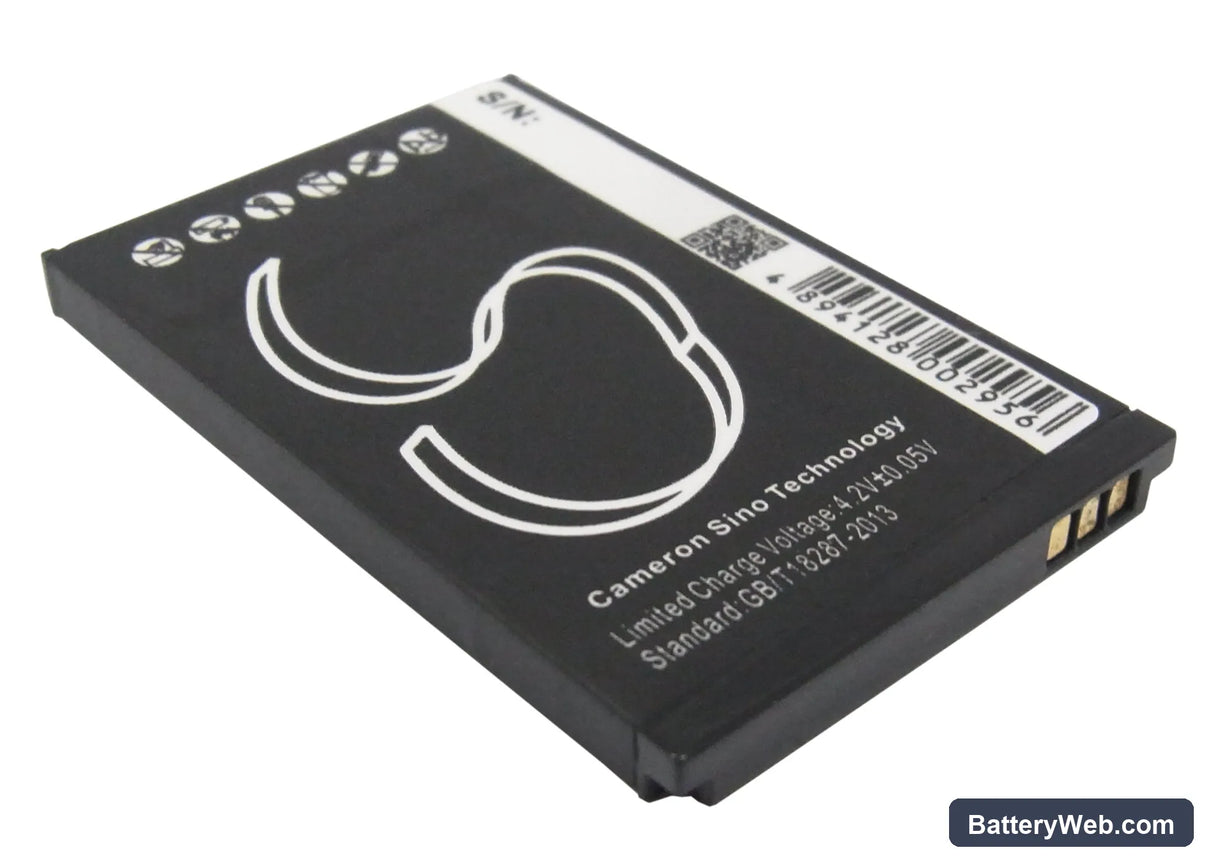

Creative Zen Micro Replacement Battery 3.7V 780mAh Li-ion

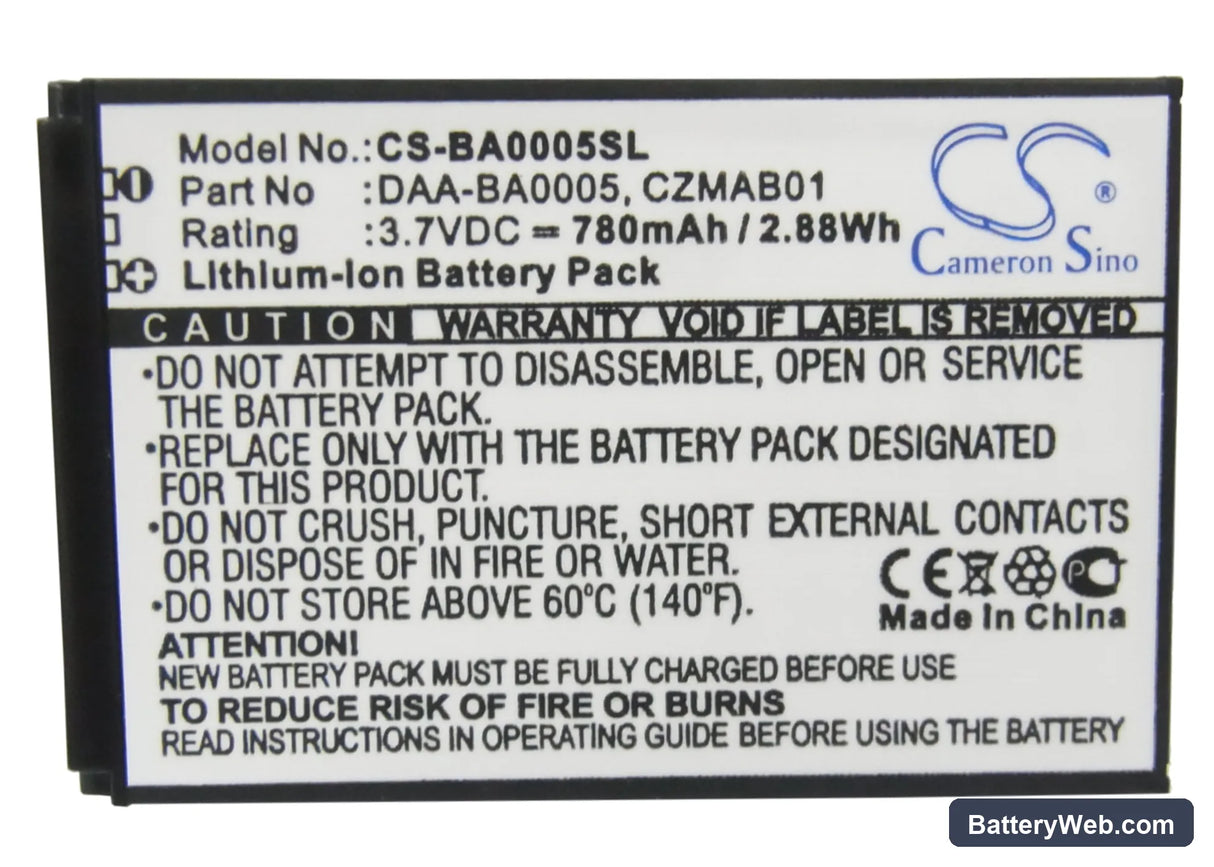

Creative Zen Micro Series — 3.7V Li-ion Replacement Battery (CZMAB01)

This 3.7V, 780mAh lithium-ion battery fits the Creative Zen Micro, Zen Micro 4GB, Zen Micro 5GB, and Zen Micro 6GB portable audio players. It replaces OEM part numbers 70PD000000039, BA20603R69900, CZMAB01, and DAA-BA0005. Install it when the original cell no longer holds a charge or the player won't power on past the boot screen.

• Zen Micro family compatibility: The 4GB, 5GB, and 6GB Zen Micro variants all share the same physical cell form factor, connector pinout, and BMS handshake protocol. Capacity differences between those models are handled by firmware — not by the battery hardware — so one cell fits the full range.
• Bench tested on actual hardware: We ran this cell in a Zen Micro unit on the bench. The BMS initialised cleanly on first connect, the device detected the cell within seconds, and charge current ramped to full without triggering an over-voltage fault.
• Post-swap charge cycle: After fitting a new cell, charge fully before first use. Zen Micro units that have been in storage often enter a deep-discharge protection state. The device may not respond to the power button until a slow trickle charge has run for 20–30 minutes and the cell voltage climbs above the BMS recovery threshold.

Battery percentage jumping after cell swap on Zen Micro

After fitting a replacement cell, the Zen Micro's on-screen battery indicator often reads erratically — jumping from 80% to 20% or displaying full charge immediately after a short top-up. The player's fuel gauge IC calibrates against a voltage-to-capacity lookup table tied to the original cell's discharge curve. A new cell with a slightly different internal resistance throws off that curve until the gauge recalibrates. Run two full charge and discharge cycles to let the firmware re-anchor its threshold readings to the new cell.

Playback cutting out before the battery indicator shows empty

On a degraded or deeply discharged cell, the audio amplifier inside the Zen Micro draws a short current spike at higher volumes. Near end-of-discharge, cell voltage sags enough during that spike to drop below the BMS cutoff threshold — even though the indicator still shows remaining charge. The player shuts down to protect the cell, not because it's truly empty. Replacing the cell resolves the sag; if cutouts persist on the new battery, lower playback volume by 10–15% and check whether the issue disappears at reduced amplifier draw.
