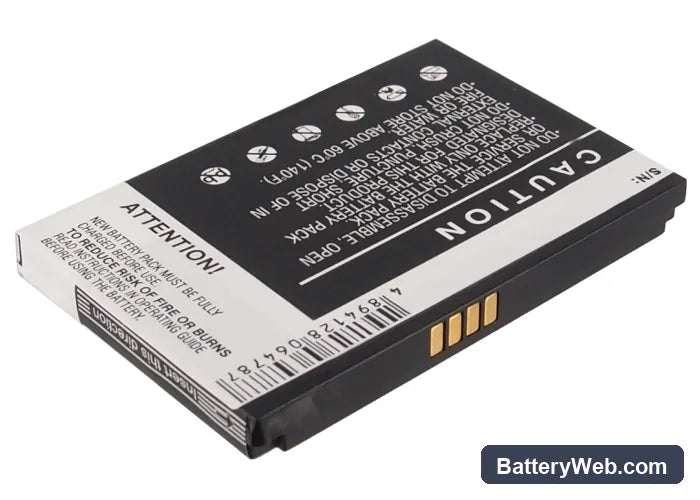

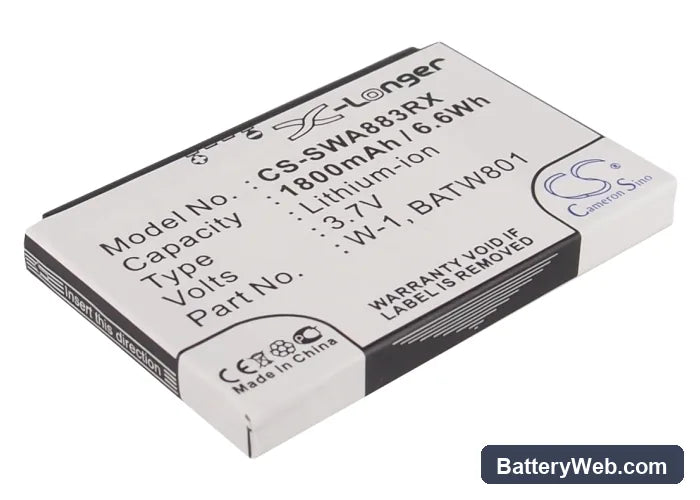

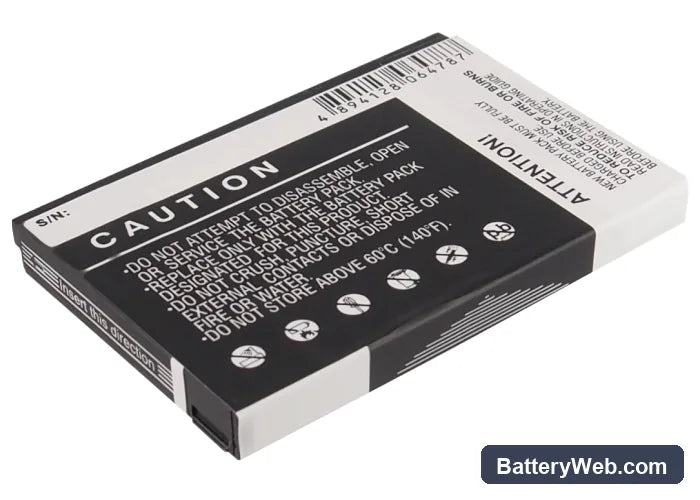

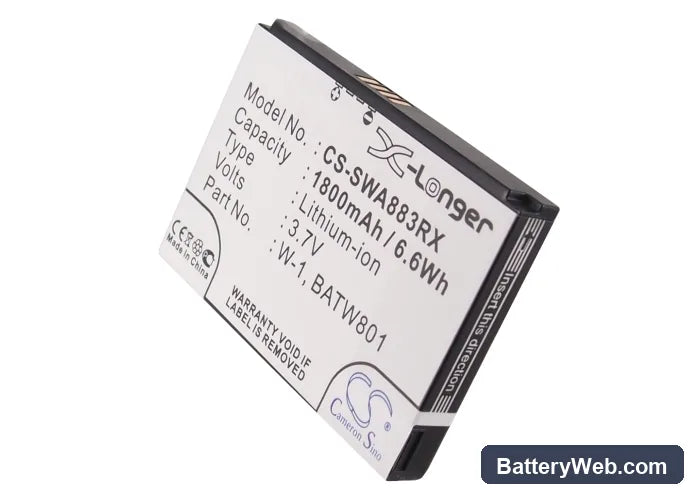

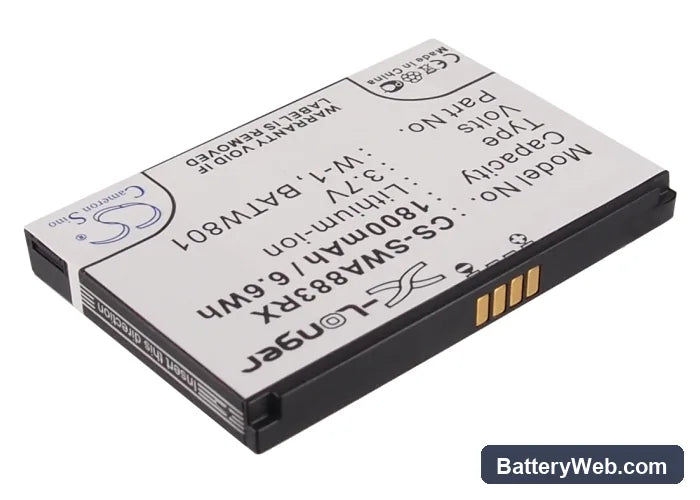

Netgear Mingle 3G Replacement Battery 3.7V 1800mAh

Netgear Mingle 3G / AirCard 778S — 3.7V Li-ion Replacement Battery

This 3.7V 1800mAh Li-ion battery replaces the original cell in the Netgear Mingle 3G, Mingle 4G, NTGR778AVB, and AirCard 778S mobile hotspots. It slots directly into the battery compartment and connects to the same BMS contacts as the factory unit. Use the capacity figure above — 1800mAh — as your reference for this cell.

• Mingle 3G / AirCard 778S platform: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The hotspot firmware reads state-of-charge data from the battery's protection circuit — a cell that matches the original voltage curve keeps that readout accurate.
• Bench tested on actual hardware: We cycled this cell under combined cellular modem and Wi-Fi load across multiple connected clients. The BMS held the low-voltage cutoff correctly and did not trip on cold-start draw from the modem radio.
• Ventilation during extended sessions: Keep the hotspot face-up on a hard, flat surface when running multiple connected devices. The cellular radio increases transmit power in weak signal areas, and that extra heat accumulates against the battery if the device is pocketed or covered.

Mobile hotspot disconnecting users mid-session on a new battery

When the Mingle 3G runs at maximum client connections, the modem and Wi-Fi radio draw current simultaneously. If the cell's internal resistance is elevated — common in aged or over-discharged batteries — voltage sags under that combined load and the BMS trips the output as a protection measure. This appears to users as a sudden hotspot drop even though the battery indicator still shows charge. A fresh cell with lower internal resistance handles the combined load without tripping. After fitting this replacement, allow one full charge cycle before running at maximum client count.

Hotspot shows solid power LED but won't boot after weeks in storage

Li-ion cells self-discharge during storage at roughly 2–3% per month, but the Mingle's standby circuit adds a small continuous drain on top of that. After several weeks unpowered, the cell can drop below the minimum boot voltage — typically around 3.0V — and the BMS locks out discharge entirely to prevent damage. Plugging into the charger with the unit powered off is the correct first step; the charger bypasses the BMS lockout and trickle-charges the cell back above the recovery threshold. Once the LED changes from amber to solid, the battery is above 3.4V and will power the device normally.
