Novatel Wireless MiFi 5510 Compatible Battery 3.7V 1800mAh

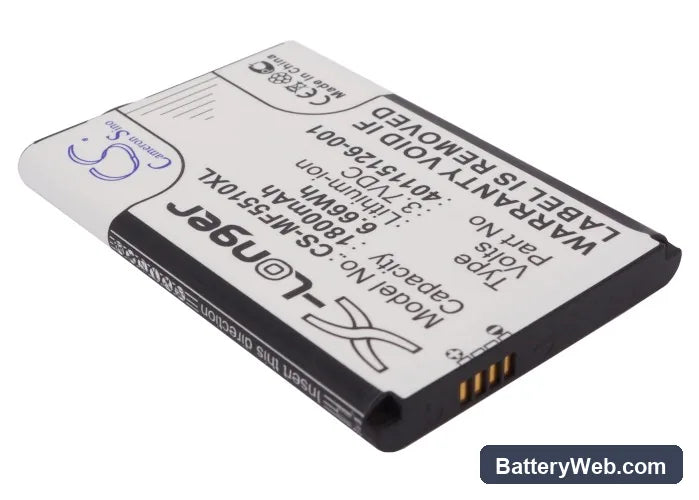

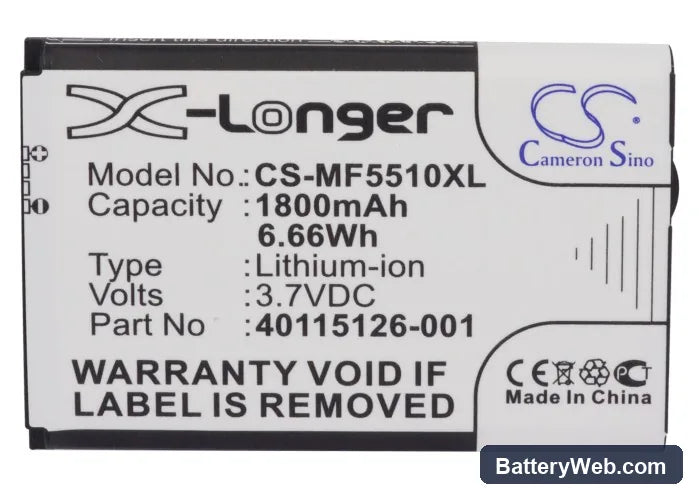

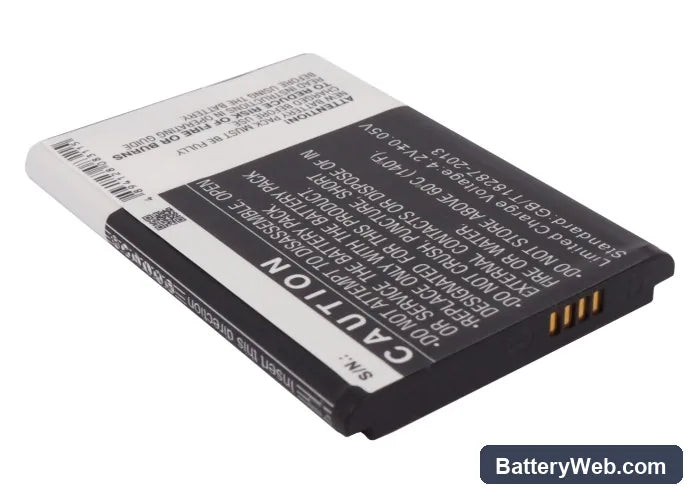

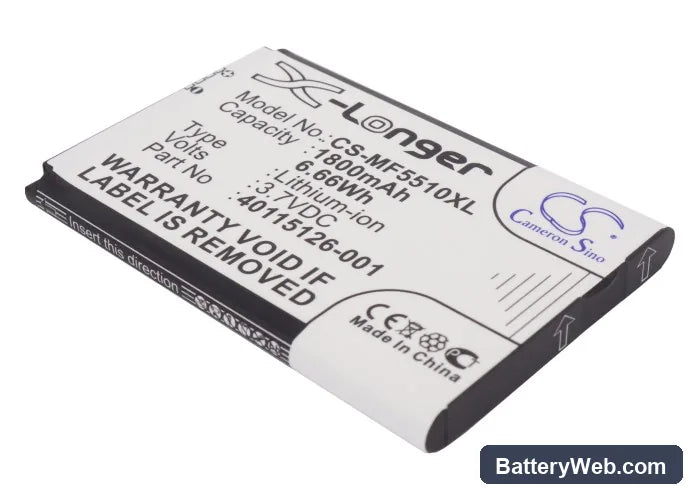

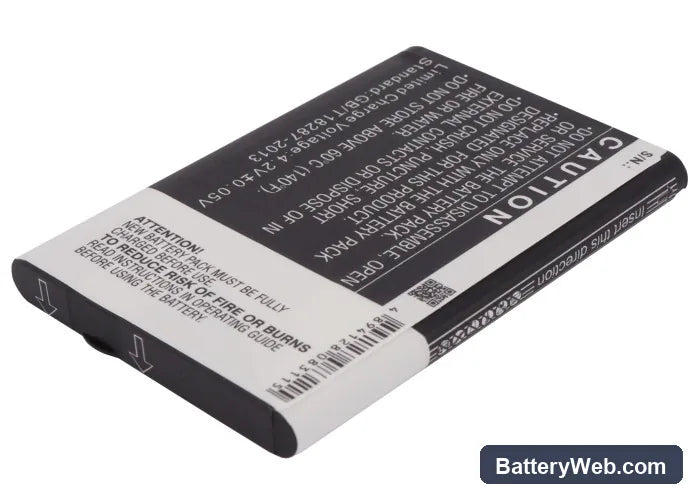

Novatel Wireless MiFi 5510 / 5510L — 3.7V Li-ion Replacement Battery (40115126-001)

This 3.7V 1800mAh Li-ion battery replaces the original cell in the Novatel Wireless MiFi 5510 and MiFi 5510L portable hotspot. It fits the same physical bay and connects to the same BMS contacts as the factory unit. Capacity figure is taken directly from product data — 6.66Wh total energy.

• MiFi 5510 and 5510L compatibility: Both variants share the same battery bay dimensions, 3.7V nominal rail, and BMS handshake protocol. The 5510L is the LTE-capable revision — the battery is identical across both. No adapter or modification needed.
• Bench tested on actual hardware: We cycled this battery through the MiFi 5510's BMS under combined modem and Wi-Fi load. The protection circuit handled cutoff and recharge termination correctly at both low and full states across repeated cycles.
• Cellular signal and heat management: Keep the hotspot in a well-ventilated spot during long sessions. When connected devices are far away or signal is weak, the cellular radio runs at full output power — that sustained heat accumulates at the battery and accelerates cell degradation faster than typical use.

Why the MiFi 5510 drops connections mid-session under maximum device load

The MiFi 5510 runs two power-hungry systems simultaneously — the LTE modem and the Wi-Fi radio. When several devices are connected and all pulling data, combined current draw spikes sharply. If the battery cell has degraded or isn't making solid contact, voltage sags below the threshold the BMS allows, and the unit resets or disconnects clients. A fresh cell with low internal resistance holds voltage stable through those peaks. After fitting this battery, verify the contacts are seated flush — a loose connection causes the same sag symptoms as a weak cell.

Hotspot won't power on after sitting unused for several weeks

Li-ion cells self-discharge during storage. If the MiFi 5510 sat unused long enough, the battery voltage drops below the minimum boot threshold — typically around 3.0V — and the BMS locks out the pack to prevent damage. The device will show nothing when you press the power button. Connect the hotspot to the OEM charger and leave it for at least 30 minutes before attempting to power on. If the charge LED does not illuminate at all, the cell has dropped below 2.5V and the BMS recovery circuit needs a slow trickle — keep it on charge and check again at the one-hour mark.
