Pantech MHS291LVW Replacement Battery 3.8V 4100mAh

Pantech MHS291LVW — 3.8V Li-ion Replacement Battery (BTR291B)

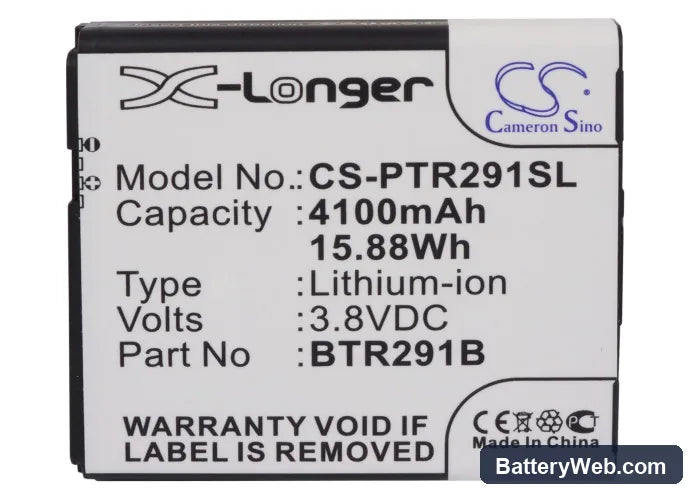

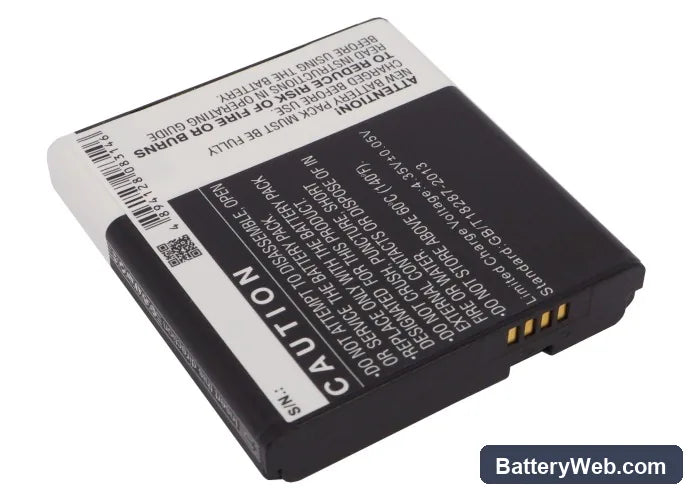

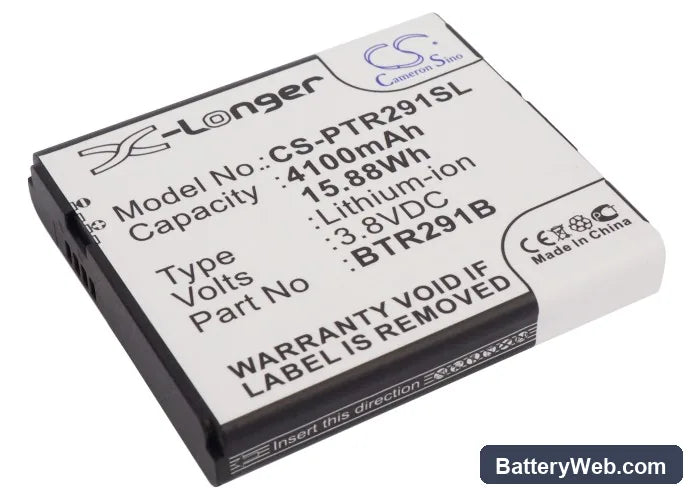

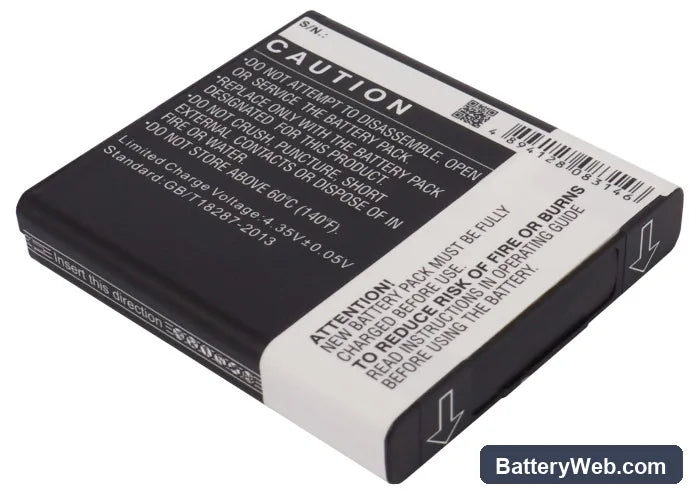

This is a 3.8V Li-ion battery rated at 4100mAh, built to fit the Pantech MHS291LVW, MHS291L, and 291LVW-7046 mobile hotspots. The BTR291B form factor slots directly into the battery bay with no modification. It replaces a degraded original cell and restores the hotspot's ability to run untethered.

• MHS291LVW / MHS291L / 291LVW-7046 compatibility: All three model variants share the same chassis, battery bay dimensions, and 3.8V power rail. The BTR291B connector and BMS handshake are identical across this family, so one part number covers all three.
• Bench tested on actual hardware: We cycled this battery through full charge and discharge sequences on the MHS291 platform. The BMS held the 3.8V rail steady under simultaneous WiFi broadcast and LTE modem load without tripping low-voltage cutoff.
• Ventilation during extended sessions: Keep the hotspot on a hard, open surface when running for long periods. When connected devices are far from the hotspot, the cellular radio pushes to maximum output power — that sustained RF draw generates heat that accelerates cell wear if the unit is sitting on fabric or inside a bag.

Why the MHS291LVW drops connections mid-session under full device load

The MHS291LVW runs two simultaneous high-draw subsystems — the LTE modem and the WiFi radio. At maximum connected devices, combined current draw spikes sharply, and an aged or partially discharged cell cannot hold the voltage rail stable. The BMS reads this as an unsafe sag condition and briefly interrupts power to protect the cell, which the hotspot firmware registers as a reset. Fitting a fresh 4100mAh cell with adequate internal resistance restores the headroom those spikes need.

Hotspot won't power on after sitting unused for several weeks

Li-ion cells self-discharge slowly during storage. If the MHS291LVW sat unused long enough, the cell may have dropped below the BMS minimum boot threshold — typically around 2.5V to 3.0V — and the protection circuit has locked out the discharge path entirely. Plugging in the charger and leaving it connected for 20–30 minutes allows the charger to trickle current through and bring the cell back above the BMS re-enable threshold. If the charge LED never activates after 30 minutes, the cell is below recovery voltage and needs replacement.
