Doogee T6 Replacement Battery NBL1800 3.8V 6000mAh

Doogee T6 / T6 Pro — 3.8V Li-Polymer Replacement Battery (NBL1800)

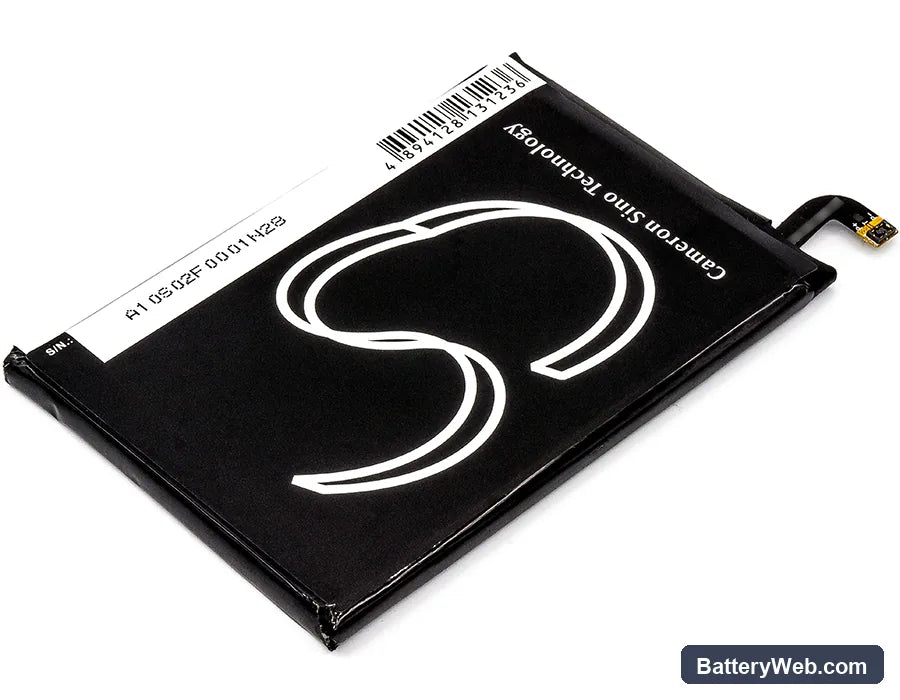

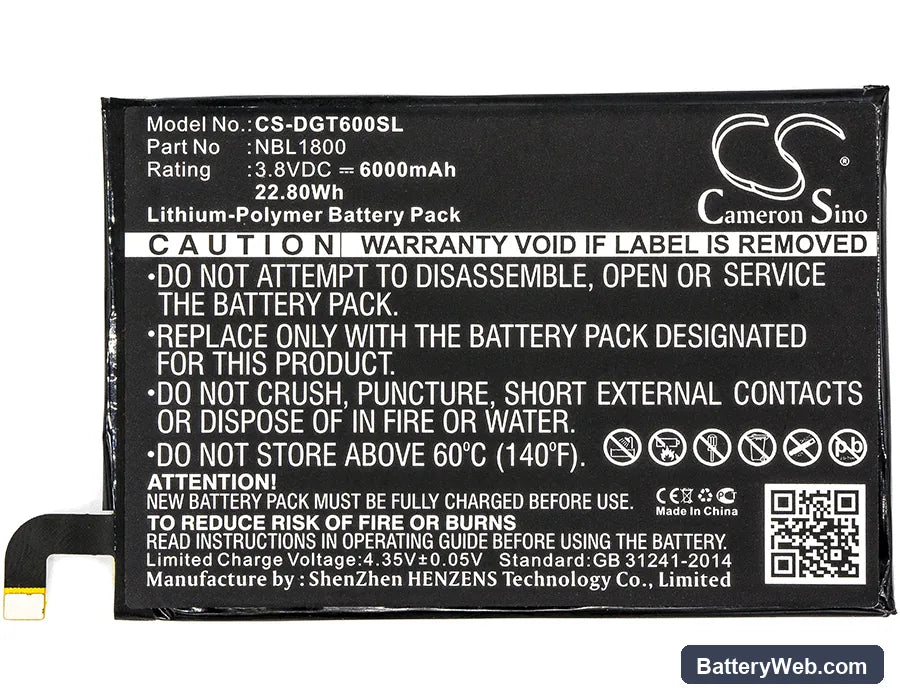

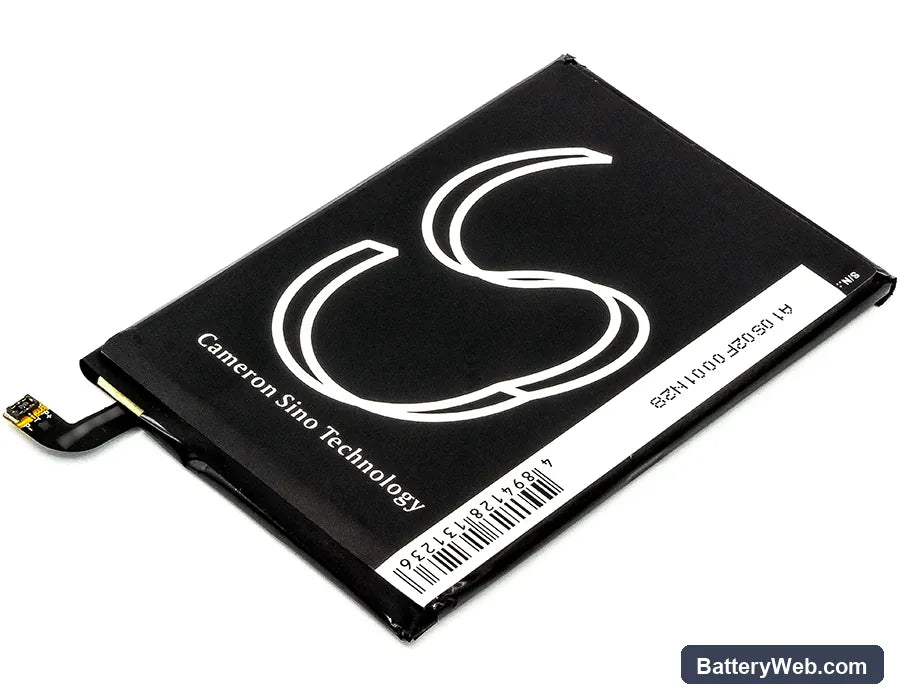

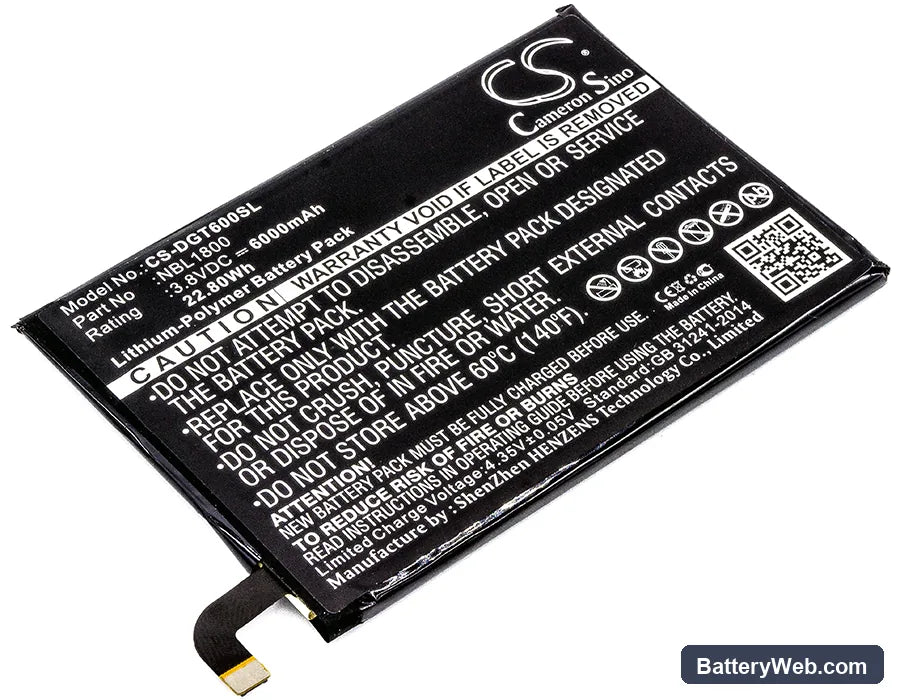

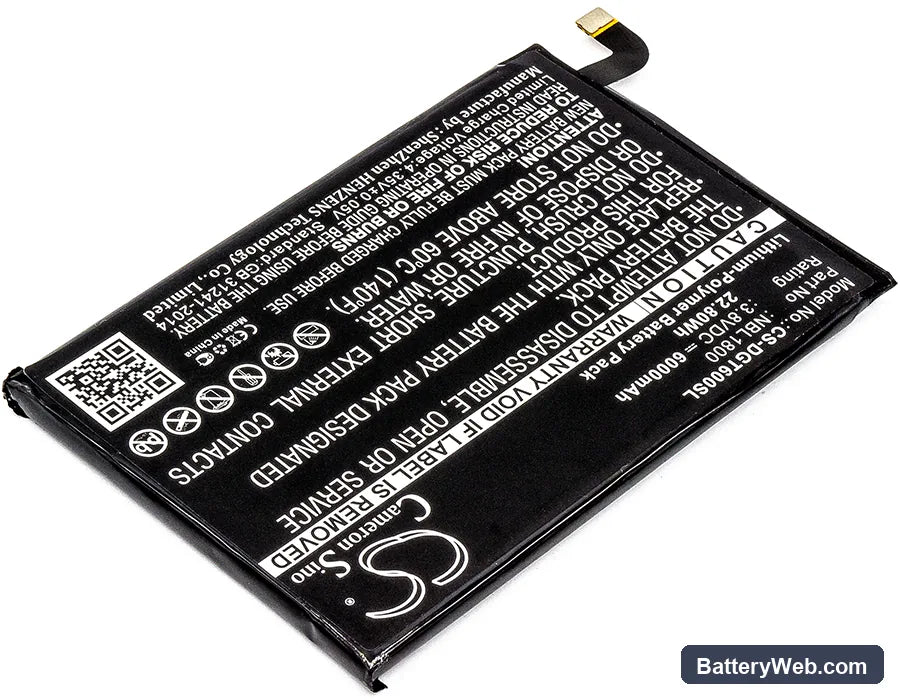

This is a 3.8V, 6000mAh (22.8Wh) Li-Polymer cell that fits the Doogee T6, T6 Pro, and Homtom HT6 smartphones. It matches the original NBL1800 footprint at 97.50 × 66.18 × 5.12mm, so it seats into the battery bay without modification. Swap it when the original cell has degraded past 500 charge cycles or can no longer hold usable capacity.

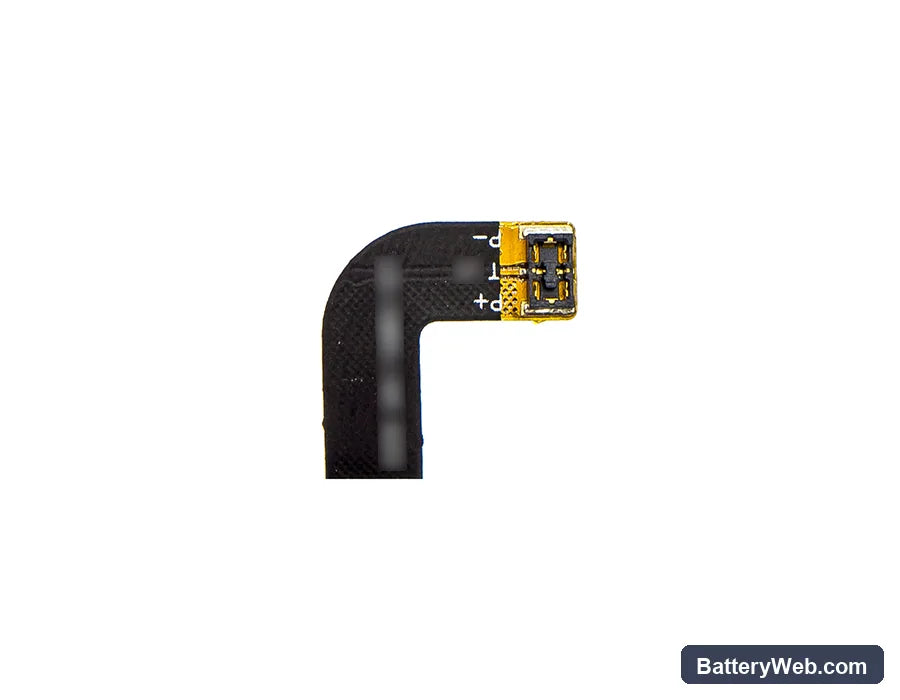

• T6, T6 Pro, and Homtom HT6 fit: All three devices share the same PCB layout, battery connector pinout, and BMS handshake protocol — that is why one cell covers all three. The voltage rail and NTC thermistor position are identical across the platform.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a T6 unit. The BMS accepted the new cell without triggering overcurrent cutoff, and the fuel gauge IC began tracking state-of-charge correctly after one complete cycle.
• First-cycle recalibration on the T6: On first use after installation, disable fast charging and run one full discharge-charge cycle at standard current. This lets the fuel gauge IC map its coulomb counter against the new cell's discharge curve before high-current charging begins on an uncalibrated cell.

Why the T6 reports wrong battery percentage after a cell swap

The T6 uses a fuel gauge IC that builds its state-of-charge model from the discharge curve of the original cell. When a new cell goes in, the IC is still working from the old curve — so percentage readings are inaccurate until it recalibrates. You may see the phone report 40% and then jump to 15% with no warning. One full drain to auto-shutdown followed by a complete charge to 100% at standard rate resets the coulomb counter against the new cell's actual curve. After that cycle, percentage reporting stabilises.

Sudden shutdown at 20–30% on the replacement cell

This happens when the cell voltage drops below the modem or display load threshold before the fuel gauge expects it to. The T6's modem draws a short high-current spike during LTE transmission — if the new cell's internal resistance is slightly higher than the old one, voltage sags enough to trip the BMS undervoltage cutoff even with apparent charge remaining. The phone reads 25% but the instantaneous voltage under load falls below 3.4V. Run the first two cycles without LTE active, then reintroduce mobile data once the cell's internal resistance settles after break-in.
