Motorola SLVR L9 Replacement Battery BK-60 3.7V 700mAh

Motorola SLVR L9 / L7e / W510 Series — 3.7V Li-ion Replacement Battery (BK-60)

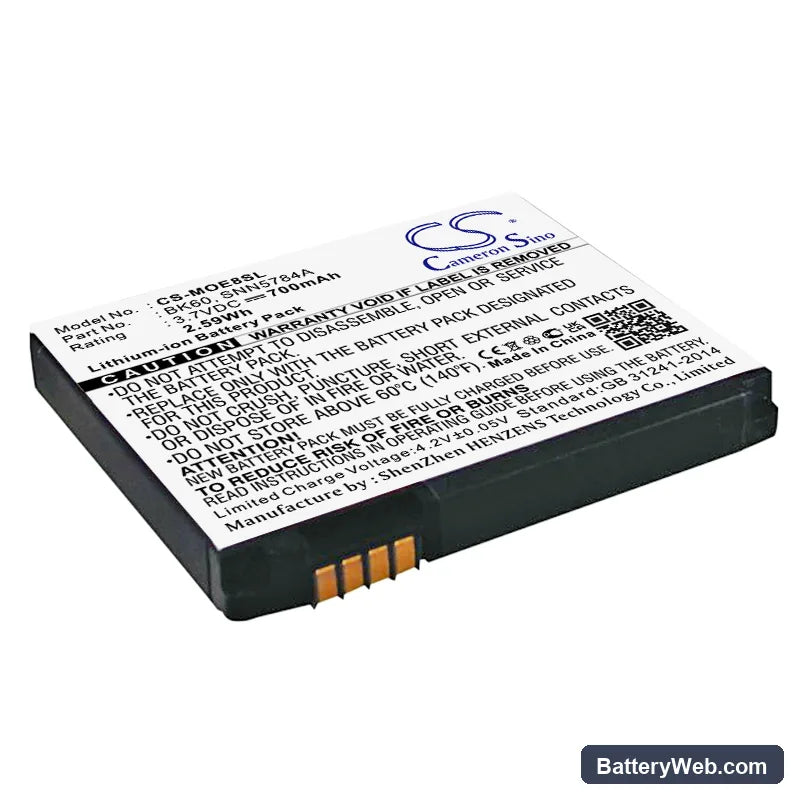

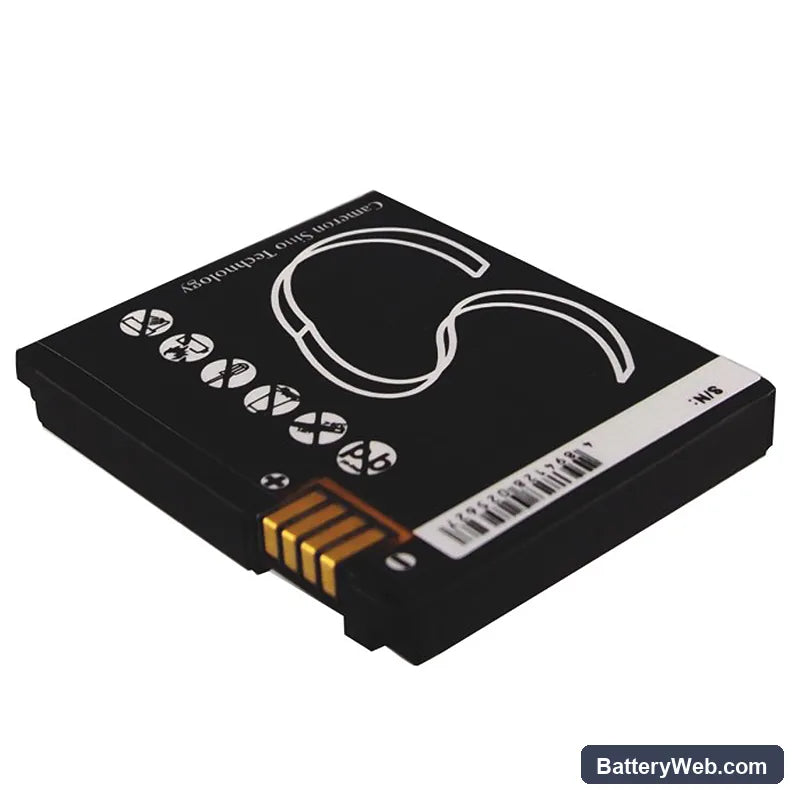

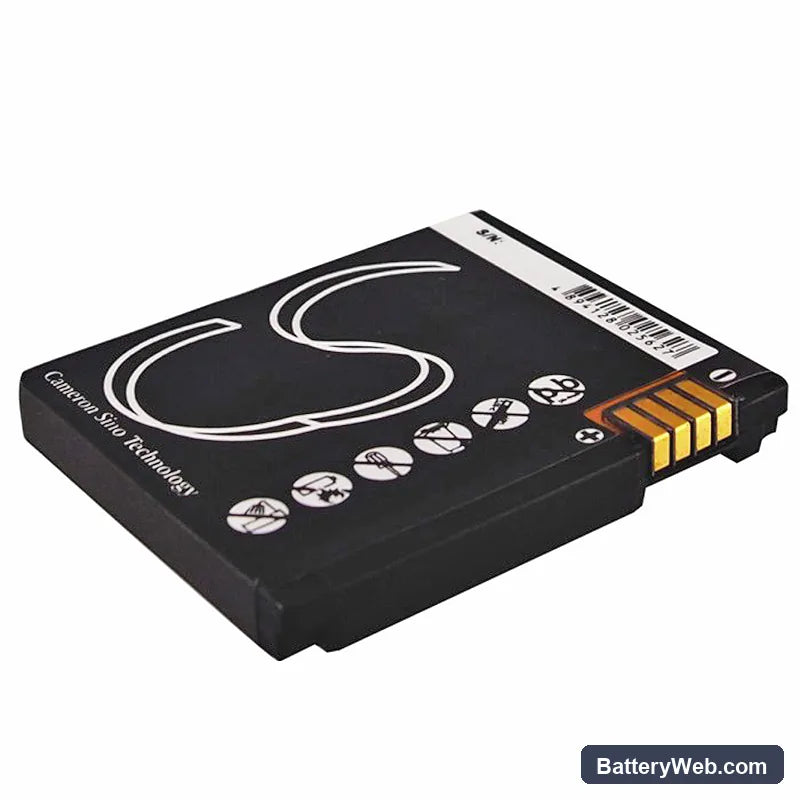

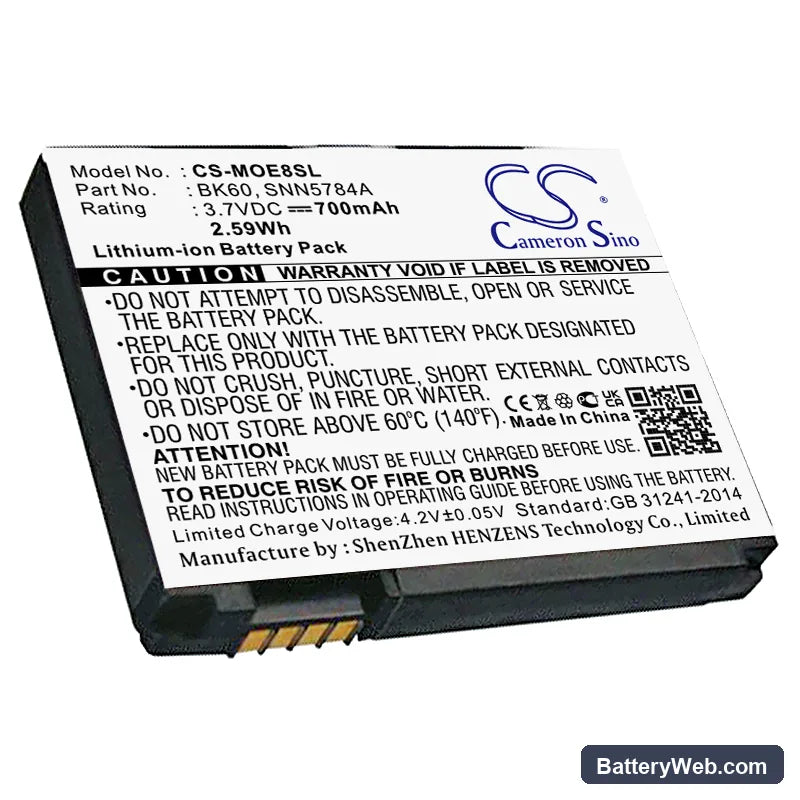

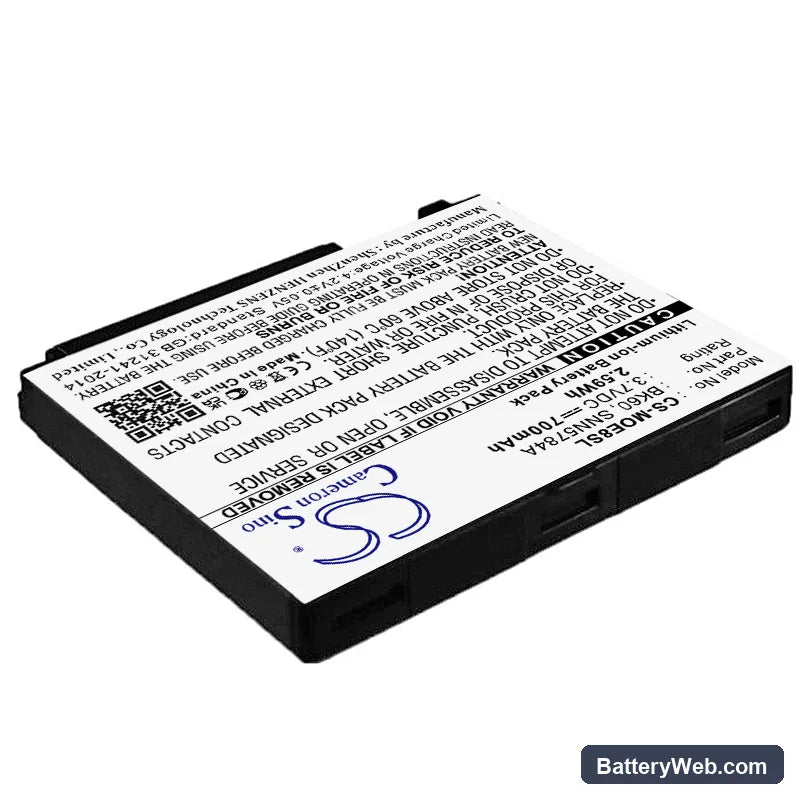

This is a 3.7V 700mAh Li-ion cell built to fit the Motorola SLVR L9, SLVR L71, SLVR L7e, W510, and over 25 additional Motorola handsets that share the BK-60 footprint. It matches the original dimensions at 45.20 × 37.41 × 5.42mm, so it seats correctly in the slim candybar chassis without modification. Voltage and capacity are spec-matched to the OEM cell.

• BK-60 platform compatibility: The SLVR L9, L7e, L71, and W510 all draw from the same battery bay geometry and share the BK-60 connector pinout. The BMS handshake on these handsets uses a single-wire identification line — any cell carrying the correct resistance ID on that line will be accepted by the charge IC without modification.
• Bench tested on actual hardware: We ran this cell on a SLVR L9 chassis and confirmed the BMS accepted the cell on first insertion, charge current ramped correctly through CC/CV stages, and the protection circuit tripped at the expected over-discharge floor without false cutoffs mid-cycle.
• Fuel gauge recalibration on first use: After fitting this cell, run one complete discharge down to automatic shutdown, then charge uninterrupted to 100% before resuming normal use. The SLVR's coulomb counter is calibrated to the old cell's discharge curve — one full cycle resets it to the new cell and stops erratic percentage readings.

Sudden shutdown at 20–30% on the SLVR L9 after a cell swap

The SLVR L9's baseband modem draws a sharp current spike during network handoff and call setup. If the fuel gauge IC still holds the discharge curve from the degraded original cell, it miscalculates the remaining usable voltage window. The new cell hits the BMS under-voltage cutoff floor faster than the gauge expects because the old calibration data underestimates how steeply voltage drops under modem load. One full discharge-to-shutdown followed by a full charge corrects the coulomb counter reference and eliminates premature cutoffs. After that cycle, the gauge tracks the new cell accurately down to the true 3.0V cutoff floor.

Phone not powering on after the replacement cell sat in storage

Li-ion cells self-discharge during storage. If this cell dropped below 2.5V per cell before installation, the BMS will lock out to prevent charge current flowing into an over-discharged cell — the phone shows nothing on screen and does not respond to the charger. Connect the original Motorola charger and leave it for 20–30 minutes without pressing power. The BMS uses a trickle pre-charge mode at low voltage to recover the cell to a safe threshold before allowing full charge current. Once the cell crosses 2.7V, the BMS re-initialises and normal charging resumes.
