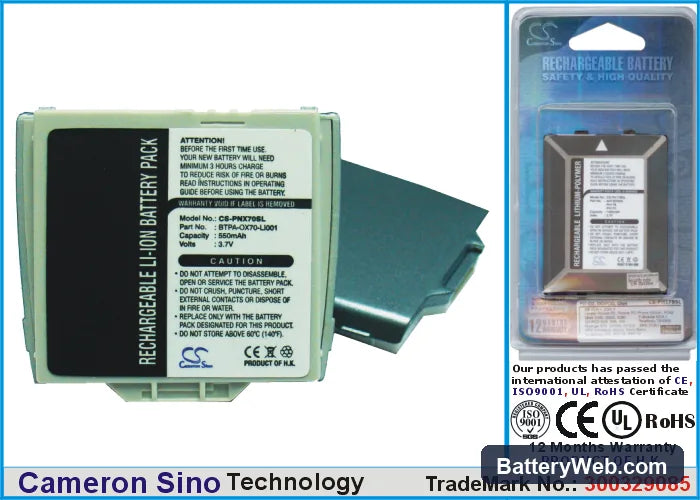

Panasonic EB-BSX70 X70 Compatible Battery 3.7V 550mAh

Panasonic X70 — 3.7V Li-ion Replacement Battery (EB-BSX70)

This is a 3.7V, 550mAh Li-ion cell replacing the original EB-BSX70 battery in the Panasonic X70, X88, and X11BTPA-0X70-LI001. It fits the same battery bay with the same connector, pulling directly into the board's charge circuit. Capacity matches the OEM spec at 2.04Wh.

• X70, X88, and X11BTPA-0X70-LI001 compatibility: These three models share the same battery footprint, connector pinout, and BMS handshake protocol — all drawing from a 3.7V rail with identical charge termination logic. One cell covers all three.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on the X70 platform. The BMS accepted charge termination cleanly, and the protection circuit tripped correctly at low-voltage cutoff without requiring a forced reset.
• Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging if your device supports it and run one complete discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before it begins reporting percentage to the OS — skipping this step causes erratic percentage readings in early use.

Sudden shutdown at 20–30% on the X70 after a cell swap

This happens when the fuel gauge IC is still calibrated to the old cell's impedance curve. A new cell has different internal resistance, so the reported state-of-charge no longer matches the actual voltage under load. When the modem or display draws a current spike, the real cell voltage drops below the protection threshold — even though the OS shows 20–30% remaining. One full discharge to auto-off followed by a full charge resets the coulomb counter and resolves the mismatch. After that cycle, shutdowns at false-high percentages stop.

X70 not powering on after the replacement battery sat in storage

Li-ion cells self-discharge during storage. If the replacement cell dropped below approximately 2.5V per cell before installation, the BMS enters lockout to prevent damage — and the phone will not respond to a normal charge attempt. Connect the phone to a low-current USB source (a PC port, not a fast charger) and leave it for 15–20 minutes before pressing power. This trickle current is enough to bring the cell above the BMS re-initialisation threshold, typically around 2.8V, at which point normal charging resumes.
