Vivo Y71 Replacement Battery BK-B-E1 3.85V 3300mAh

Vivo Y71 Series — 3.85V Li-Polymer Replacement Battery (BK-B-E1)

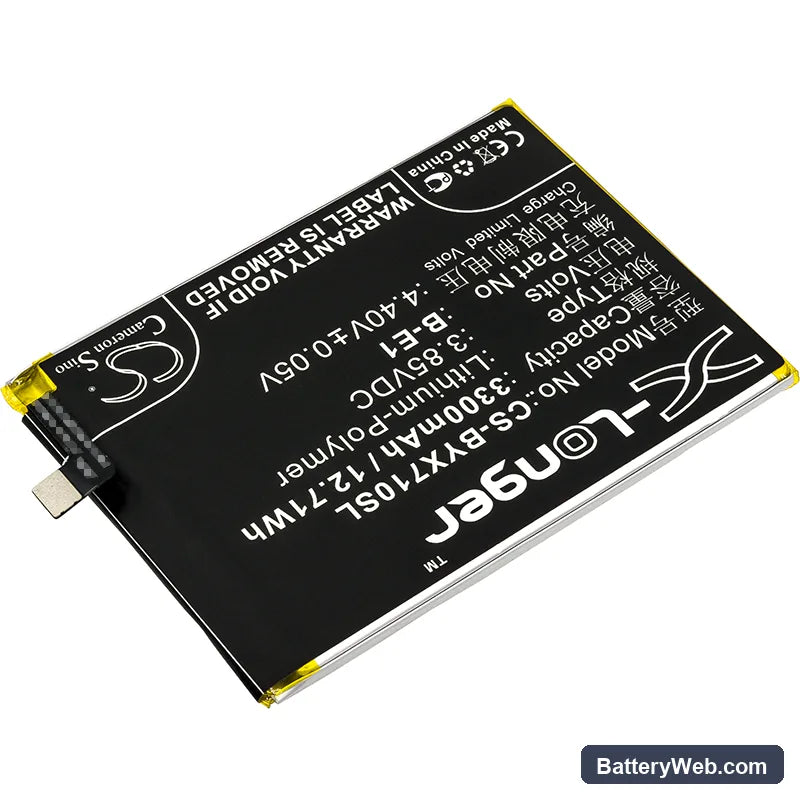

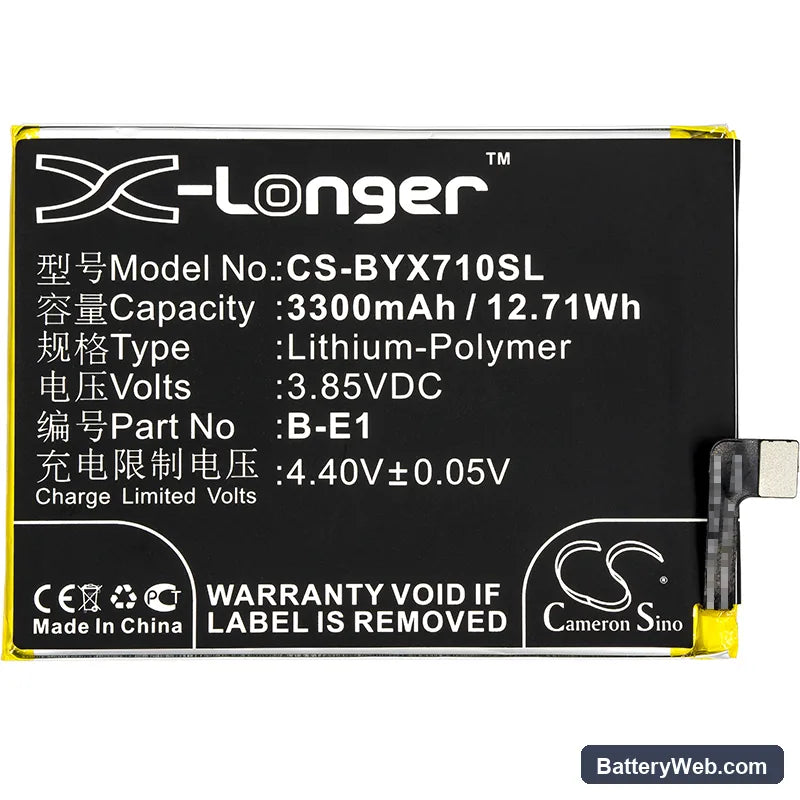

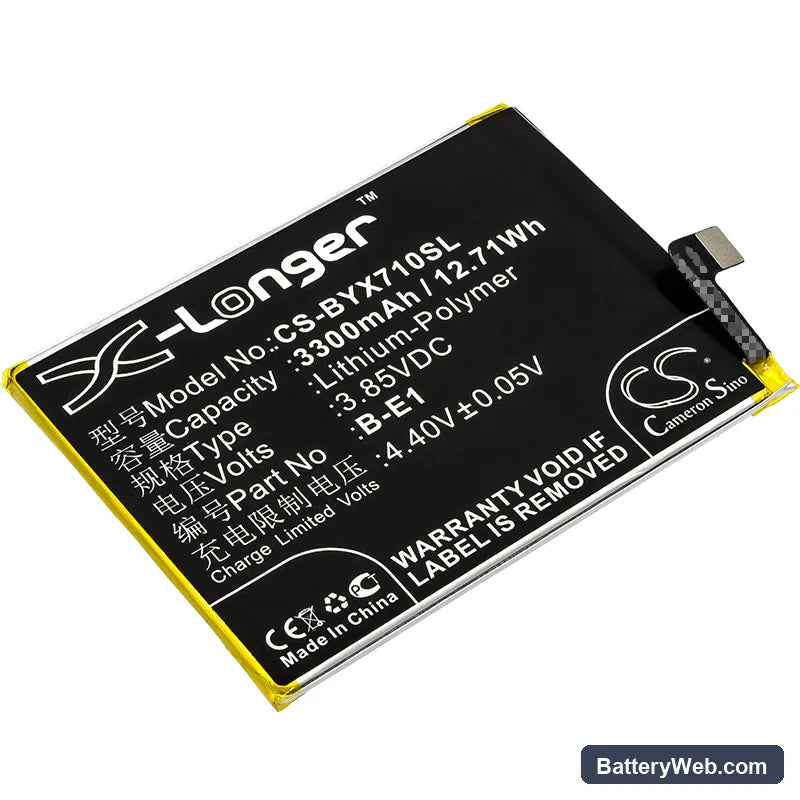

This is a 3300mAh (12.71Wh) Li-Polymer cell rated at 3.85V, built to replace the original BK-B-E1 battery in the Vivo Y71. It fits the standard Y71, Y71 Dual SIM, and Y71 Dual SIM TD-LTE variants. Swap it in when the original cell can no longer hold a usable charge through a normal day.

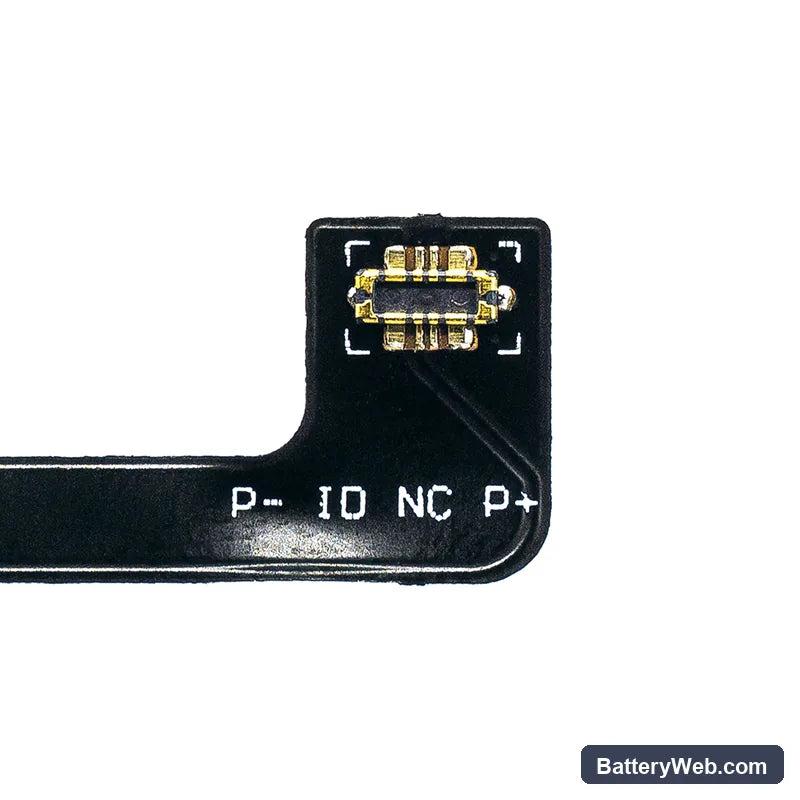

• Y71 variant coverage: The standard Y71, Dual SIM, and Dual SIM TD-LTE share the same physical battery bay dimensions, voltage rail, and BMS connector pinout — one cell covers all three without modification.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on a Y71 unit. The BMS accepted the charge handshake without fault codes, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle at standard rate. This gives the fuel gauge IC time to map the new cell's discharge curve before high-current charging begins against an uncalibrated reference.

Why the Y71 reports wrong battery percentage after a cell swap

The Y71 uses a coulomb counter IC that builds its charge model against the original cell's discharge curve over hundreds of cycles. When a new cell goes in, that learned curve no longer matches the actual cell chemistry and capacity. The gauge then reports percentages based on stale data — often reading 100% early into a charge or dropping suddenly under moderate load. One full discharge below 10% followed by a complete uninterrupted charge resets the counter's reference points against the new cell.

Sudden shutdown at 20–30% on the replacement cell

This happens when the cell voltage drops sharply under screen or modem load — a voltage cliff the fuel gauge did not predict because it was still using the old cell's model. The phone's protection threshold triggers a shutdown before the displayed percentage reaches zero. It is not a faulty cell — it is a calibration gap. After two or three full discharge-charge cycles, the gauge tightens its curve and the shutdowns stop. If they persist past three cycles, check that resting cell voltage sits at or above 3.85V with a multimeter after a full charge.
