BBK VIVO Y71 Replacement Battery BK-B-E1 3.85V 3300mAh

BBK VIVO Y71 Series — 3.85V Li-Polymer Replacement Battery (BK-B-E1)

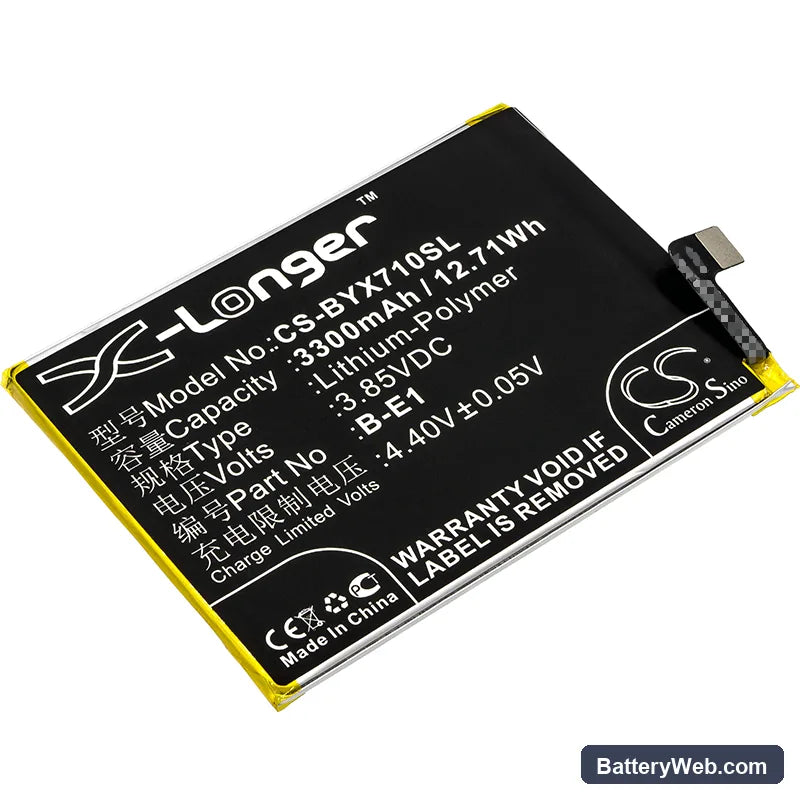

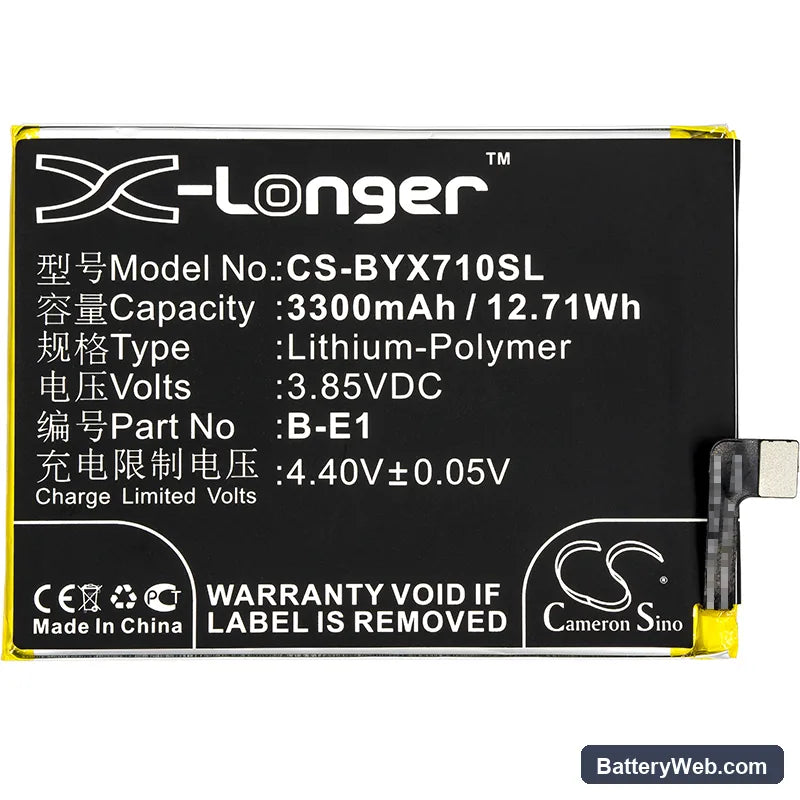

This is a 3.85V, 3300mAh (12.71Wh) Li-Polymer replacement battery for the VIVO Y71, Y71 Dual SIM, and Y71 Dual SIM TD-LTE smartphones. It uses OEM part numbers BK-B-E1 and B-E1. The cell dimensions are 85.32 x 62.80 x 3.40mm — verify clearance before fitting.

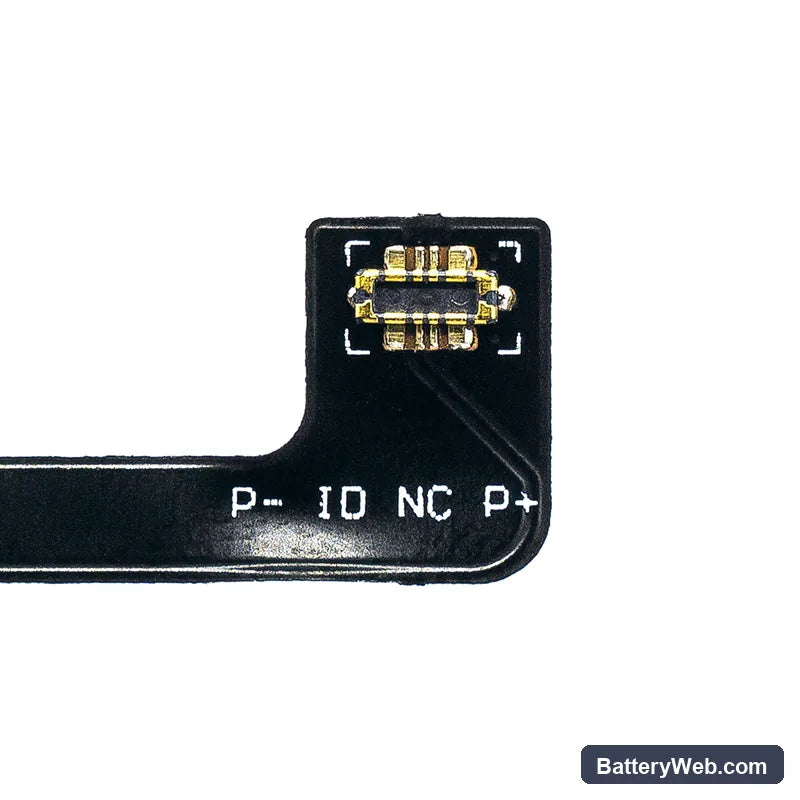

• Y71 and Y71 Dual SIM variants: All three models — Y71, Y71 Dual SIM, and Y71 Dual SIM TD-LTE — share the same battery bay geometry, voltage rail, and connector pinout. The BMS handshake is identical across the range, so a single cell covers all three SKUs without modification.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on a Y71 unit. The BMS accepted the charge IC handshake on the first connect, held 3.85V nominal across the draw curve, and cutoff cleanly at the low-voltage threshold without triggering spurious shutdown warnings.
• Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-charge cycle before re-enabling it. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated state — which causes erratic percentage readings and early-shutdown errors.

Sudden shutdown at 20–30% on the replacement cell

This is a voltage cliff problem, not a capacity problem. Under peak load — modem handoff, screen brightness spike, or background sync — the cell voltage drops faster than the fuel gauge IC expects. The IC was calibrated to the old cell's internal resistance curve, so it misreads remaining charge. The phone shuts down to protect the BMS before the percentage counter reaches zero. One full discharge-to-shutdown cycle followed by an uninterrupted charge to 100% resets the coulomb counter reference point and stops premature shutdowns. After that cycle, fast charging can be re-enabled.

Phone not powering on after the battery sat discharged in storage

If a Li-Polymer cell drops below approximately 2.5V during storage, the BMS locks out to prevent charging a critically depleted cell. The phone shows nothing — no charging animation, no boot screen. Connect the phone to a wall adapter (not a PC USB port, which limits current) and leave it untouched for 15–20 minutes. The charge IC trickle-charges the cell above the BMS unlock threshold before switching to standard charge current. If the screen shows a charging indicator after that window, the BMS has re-initialised — leave it on charge until it reaches 3.85V nominal.
