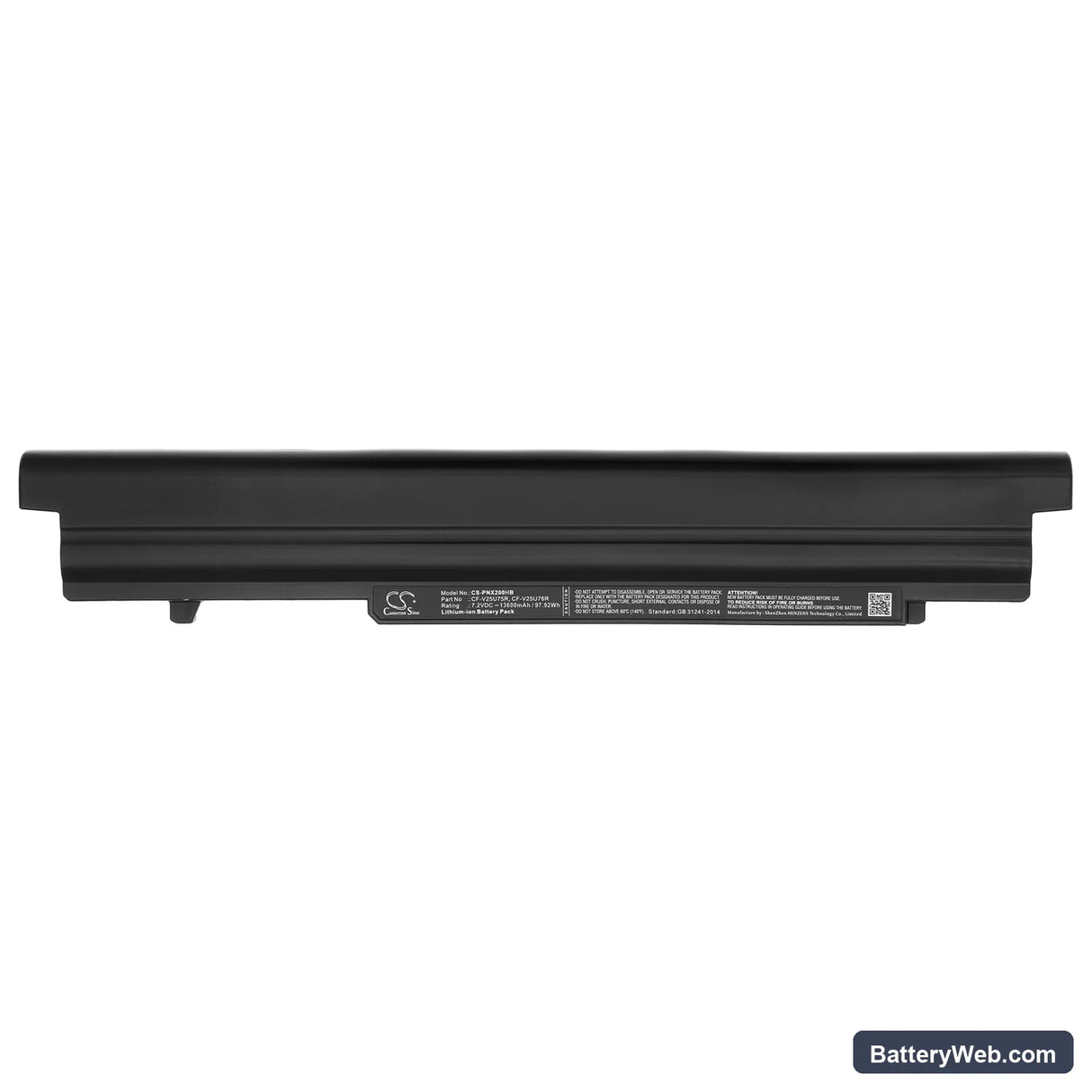

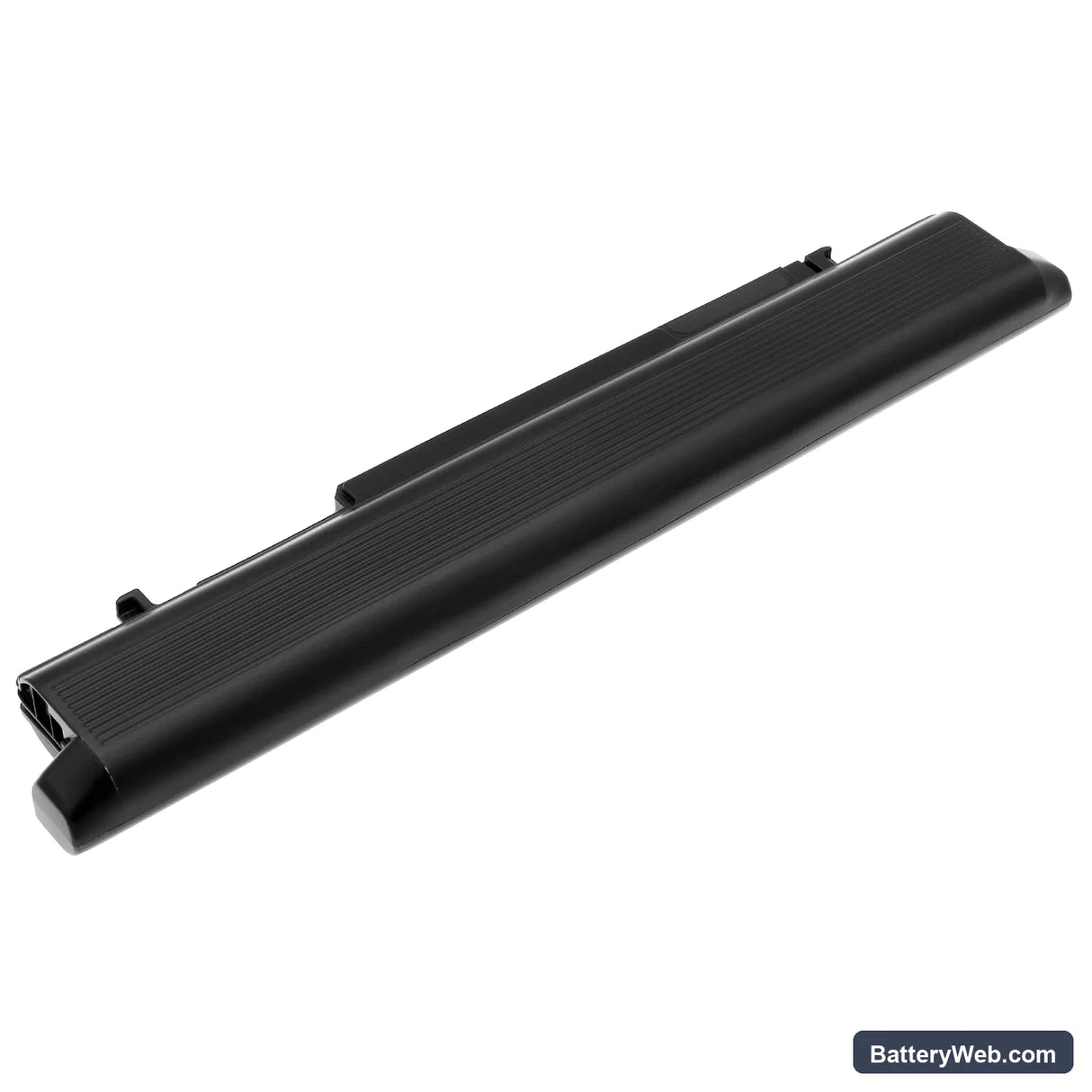

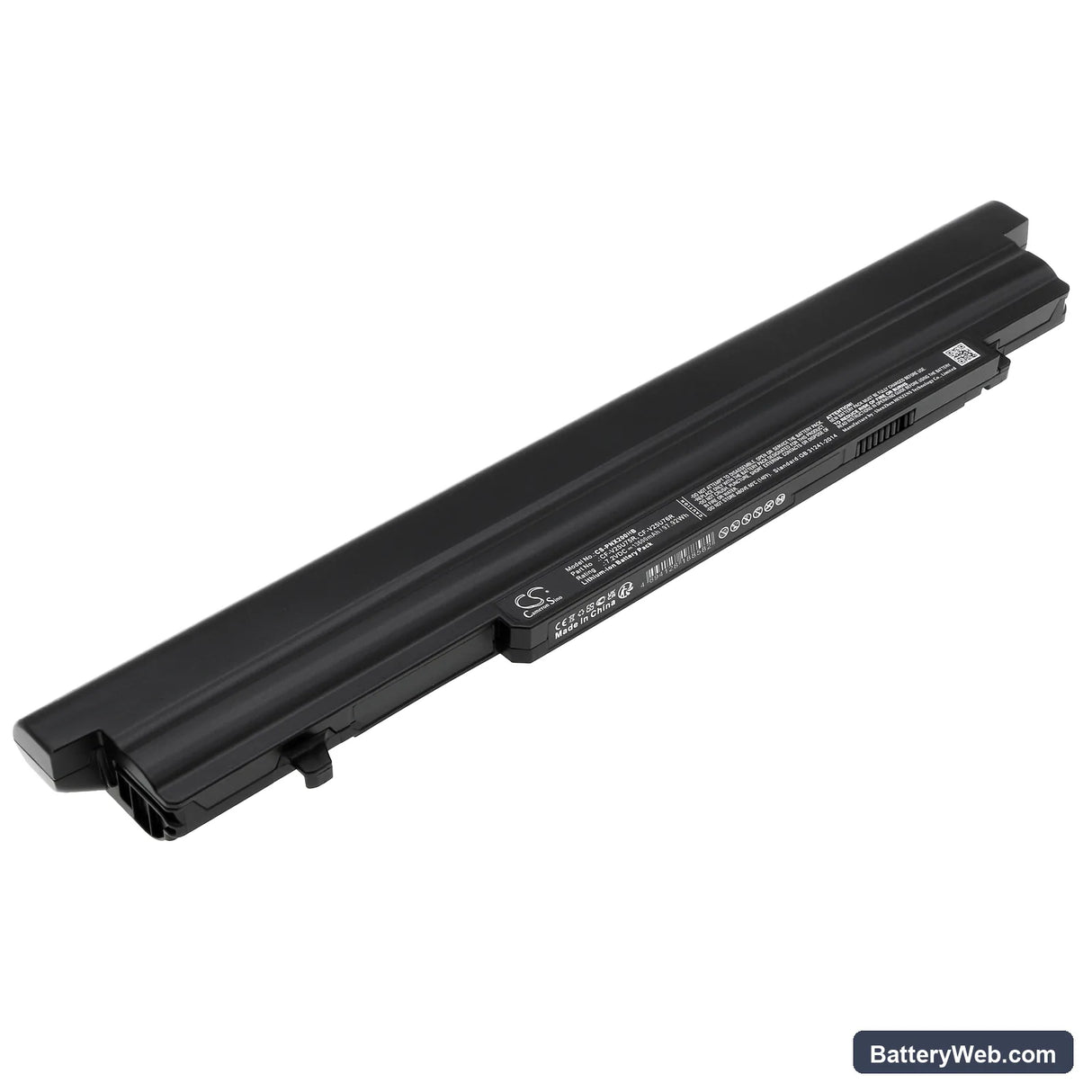

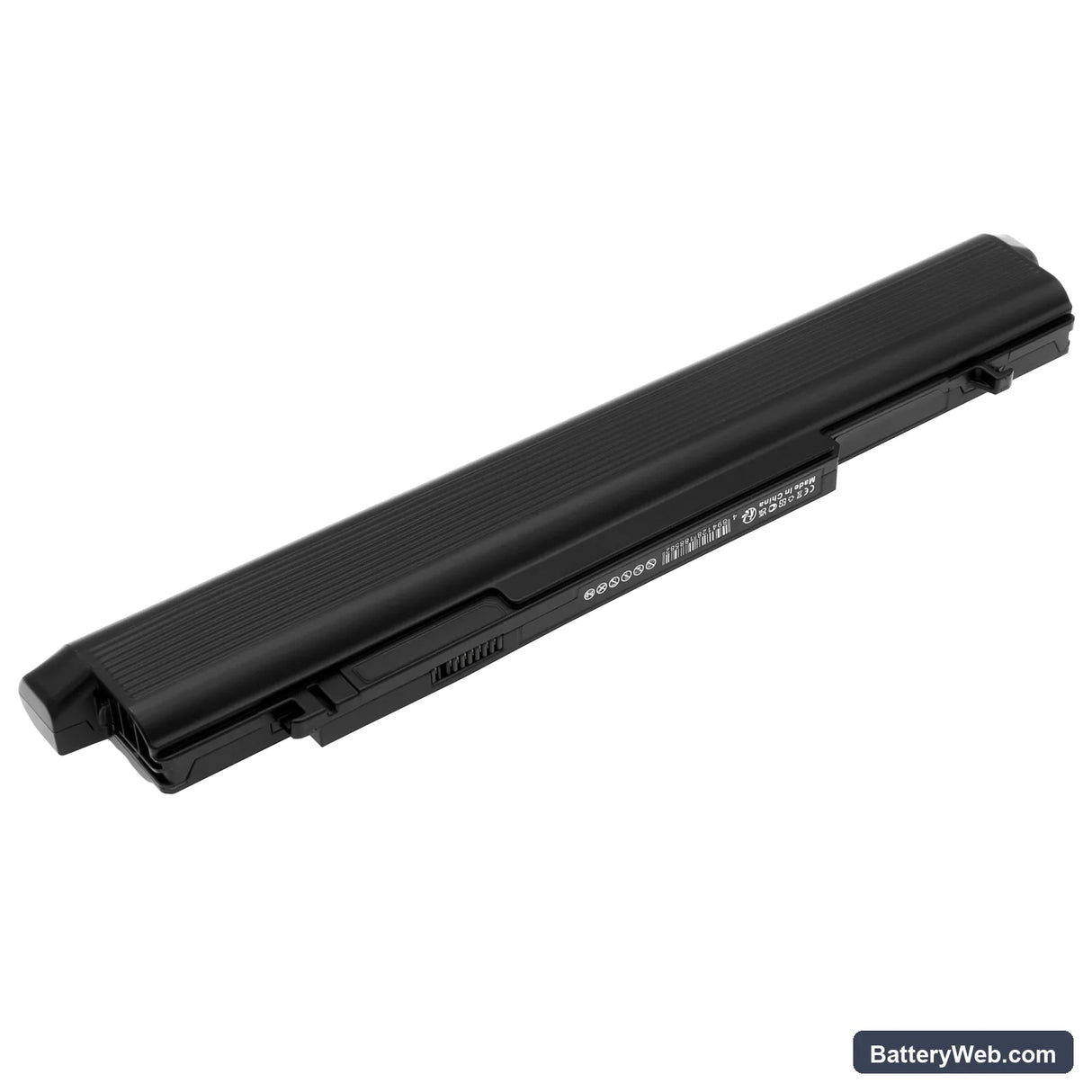

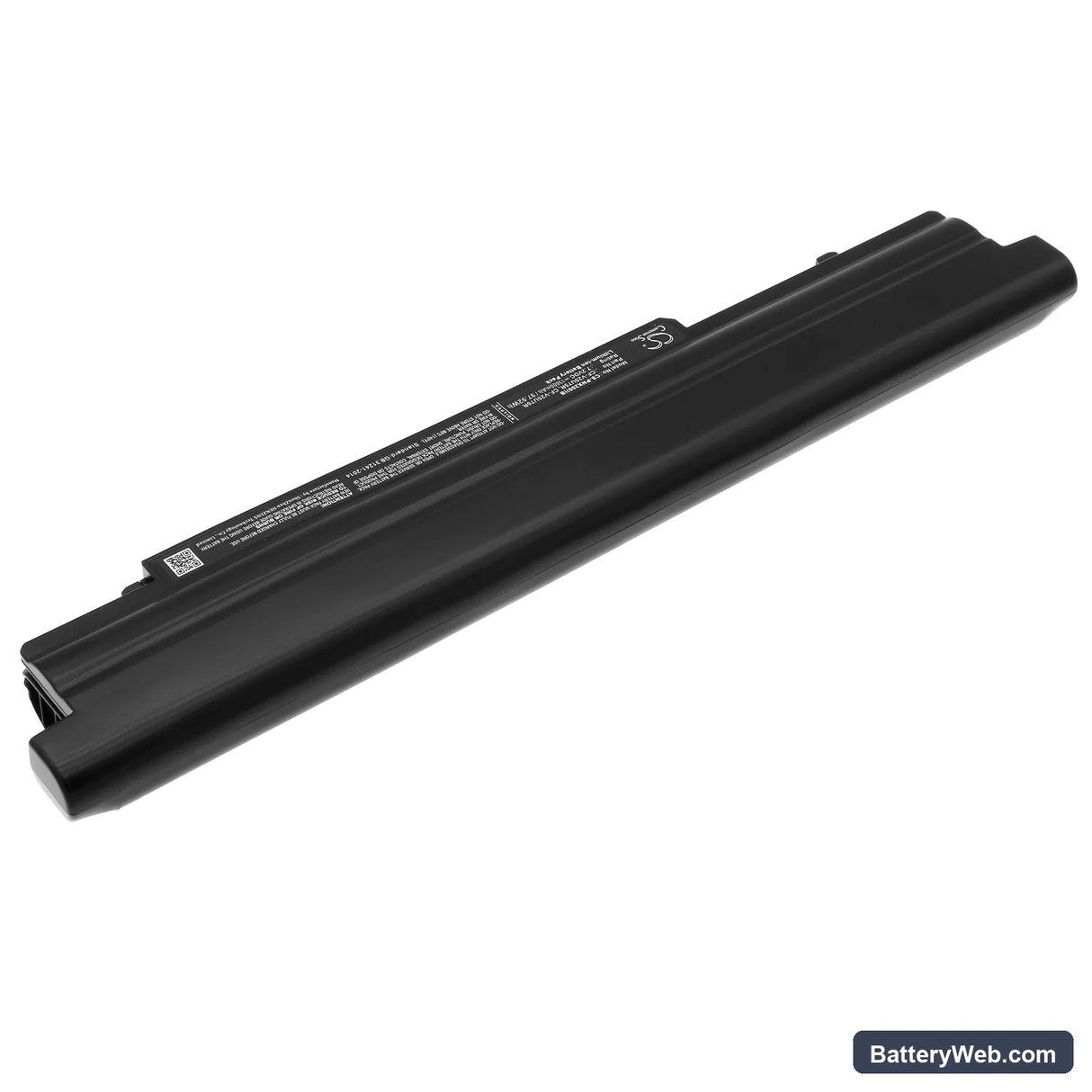

Panasonic CF-V25U75R Toughbook Replacement Battery 7.2V 13600mAh

Panasonic CF-SX2 / CF-SX3 / CF-NX4 Series — 7.2V Li-ion Replacement Battery (CF-VZSU75R)

This is a 7.2V, 13600mAh (97.92Wh) Li-ion battery for the Panasonic Toughbook CF-SX2JDT2FW and related CF-SX3, CF-NX4, and CF-SX4 rugged laptops. It matches the OEM voltage rail and connector used across this Toughbook sub-series. Replaces part numbers CF-VZSU75R, CF-VZSU76R, CF-VZSU78R, CF-VZSU79R, and several JS and RR variants.

• CF-SX and CF-NX compatibility: These models share the same 7.2V battery bay, BMS handshake protocol, and slide-lock connector. A single cell platform covers the CF-SX2, CF-SX3, CF-NX4, and CF-SX4 without hardware modification.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on CF-SX series hardware. The BMS communicated correctly with the BIOS — no unknown device flags, no charge refusal, and the fuel gauge IC accepted the new cell data after two calibration cycles.
• First-use calibration on Toughbook: After fitting, run the laptop on battery until it hibernates from low charge — then charge uninterrupted to 100% without using the machine. This resets the BIOS battery learn cycle and clears the degraded-health warning that appears in Panasonic's battery reporting tool after any cell swap.

BIOS Reporting Poor Health or Unknown Status After Installing a New Cell

The CF-SX BIOS reads health data from EEPROM registers inside the battery controller, not from raw voltage alone. When a new cell goes in, those registers don't yet match the laptop's learned charge profile, so the system flags the battery as degraded or unknown. This is a calibration state, not a fault. Running one full discharge-to-hibernate cycle followed by an uninterrupted charge to 100% gives the fuel gauge IC enough data to update its internal model. After two full cycles, BIOS health status on the CF-SX2 and CF-SX3 typically returns to normal.

Toughbook Shuts Down at 20–30% Charge Shown on Screen

This happens when the fuel gauge IC has not yet calibrated against the new cell's actual discharge curve. The reported percentage doesn't reflect the true voltage — the cell hits its low-voltage cutoff before the gauge reaches zero. Under combined CPU and display load, the voltage cliff arrives faster than the estimate predicts, triggering an abrupt shutdown. Run two full discharge-to-hibernate cycles then charge to 100% each time — by the second cycle, the gauge IC recalculates the curve and shutdown at falsely high percentages stops.
