TSC Alpha 4L Replacement Battery 7.4V 5200mAh A4L-52052002

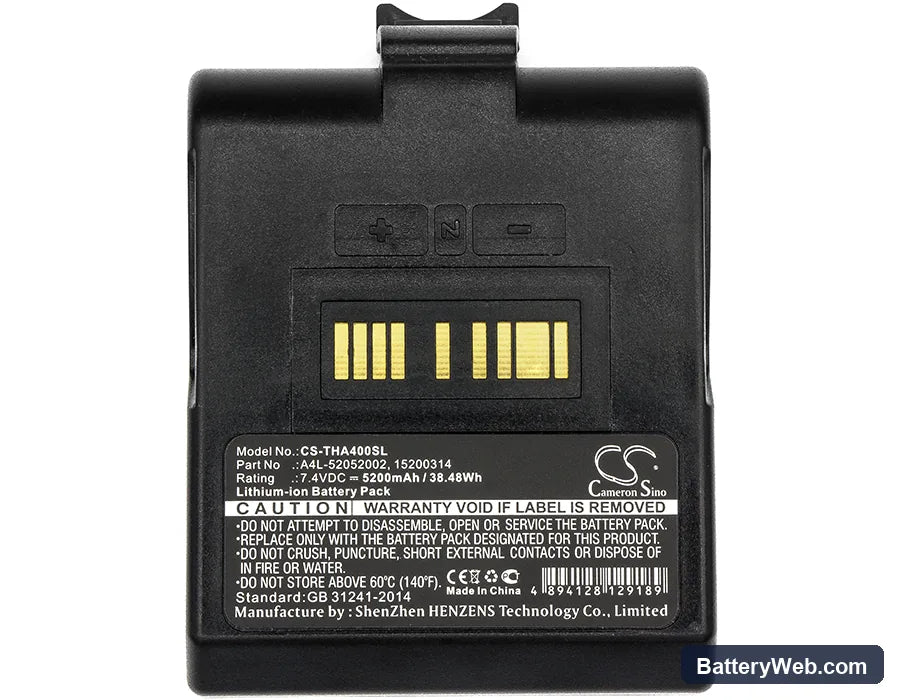

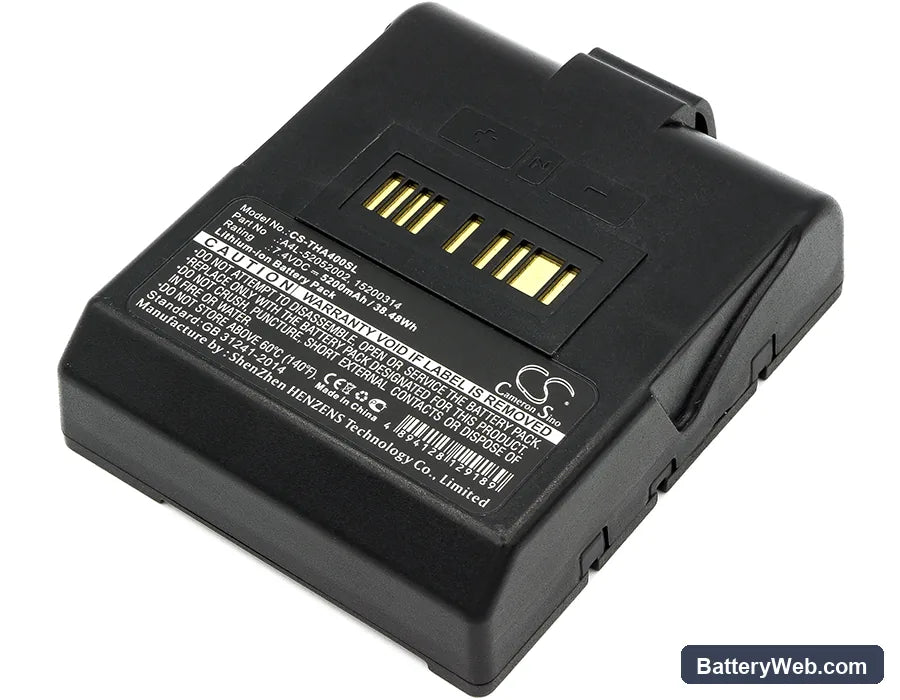

TSC Alpha 4L — 7.4V Li-ion Replacement Battery (A4L-52052002)

This 7.4V 5200mAh (38.48Wh) lithium-ion battery replaces the OEM pack in the TSC Alpha 4L portable thermal printer. It fits the Alpha 4L used in retail, logistics, and field service label and receipt printing. Cell chemistry and BMS voltage thresholds match the original factory specification.

• Alpha 4L battery platform: The Alpha 4L draws sustained current through both the thermal print head and the paper feed motor simultaneously. This pack runs at 7.4V nominal with a BMS cutoff calibrated to that dual-load profile — swapping in a generic cell pack risks nuisance trips when both loads fire at once.
• Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the Alpha 4L bench unit. The BMS held stable across print head heat cycles, paper feed motor start surges, and Bluetooth radio bursts without triggering a protection cutoff.
• First-deploy print sequence: After installing, charge to 100% and run five consecutive label print jobs before putting the unit into service. The Alpha 4L's BMS uses those initial load cycles to establish the current draw baseline — skipping this step can cause the printer to report low battery prematurely on early shifts.

Why the Alpha 4L paper feed jams after a battery swap

The Alpha 4L feed motor relies on consistent voltage to maintain the torque required to pull label stock through the mechanism. When battery voltage sags below approximately 6.8V — either on a depleted old pack or a new pack that hasn't completed its initial charge — motor torque drops and the feed roller loses grip on thicker label media. The printer reports a jam, but the root cause is voltage, not a mechanical fault. Charge the new pack fully before the first print run and the jam condition clears without any mechanical intervention.

Faded or uneven print on a freshly installed battery

The thermal print head in the Alpha 4L regulates heat output based on the voltage it receives from the battery. A new cell pack that hasn't been conditioned through a full charge cycle can deliver slightly inconsistent voltage during the first few print jobs, causing the head temperature to vary mid-print. The result is banding — alternating light and dark lines across the label or receipt. This isn't a head fault. Charge the pack fully, print five test labels, and head temperature stabilises at the correct operating point, restoring clean output.
