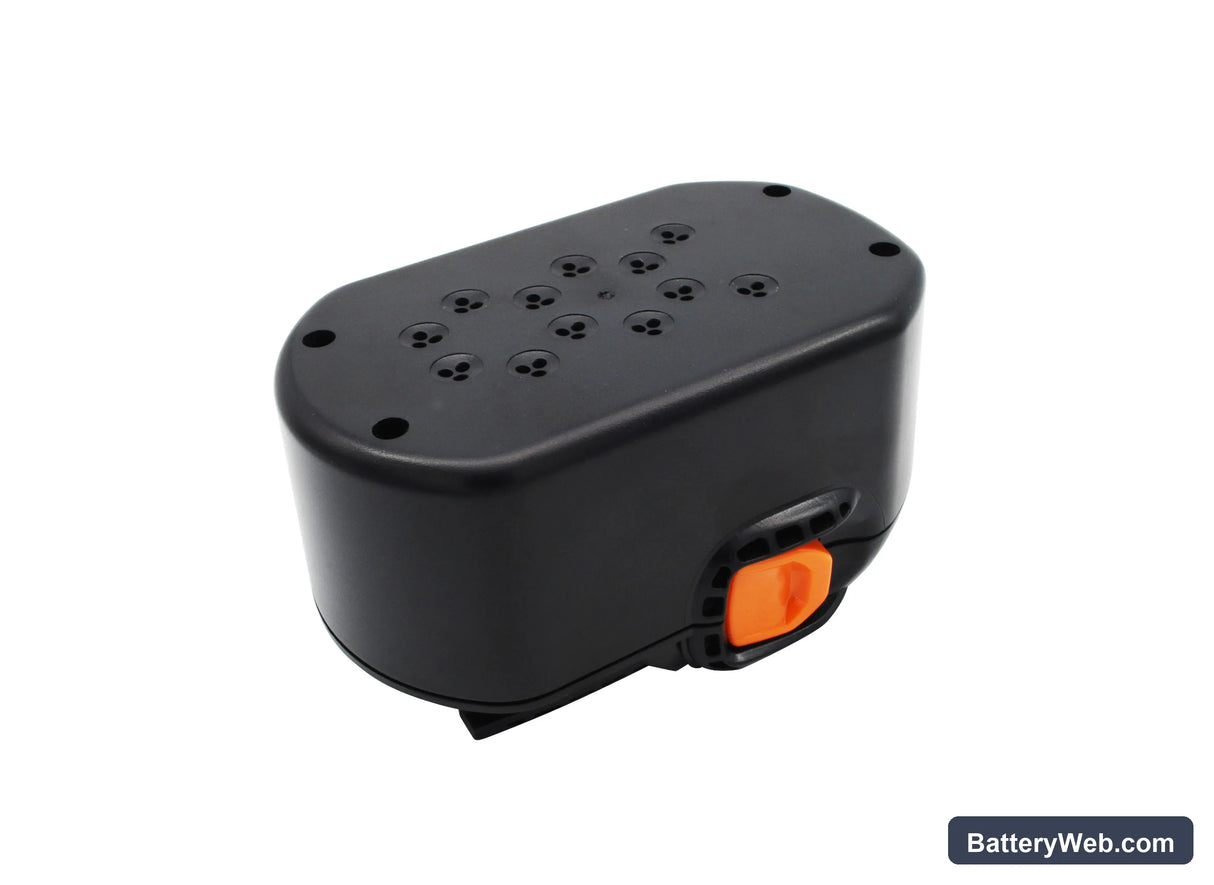

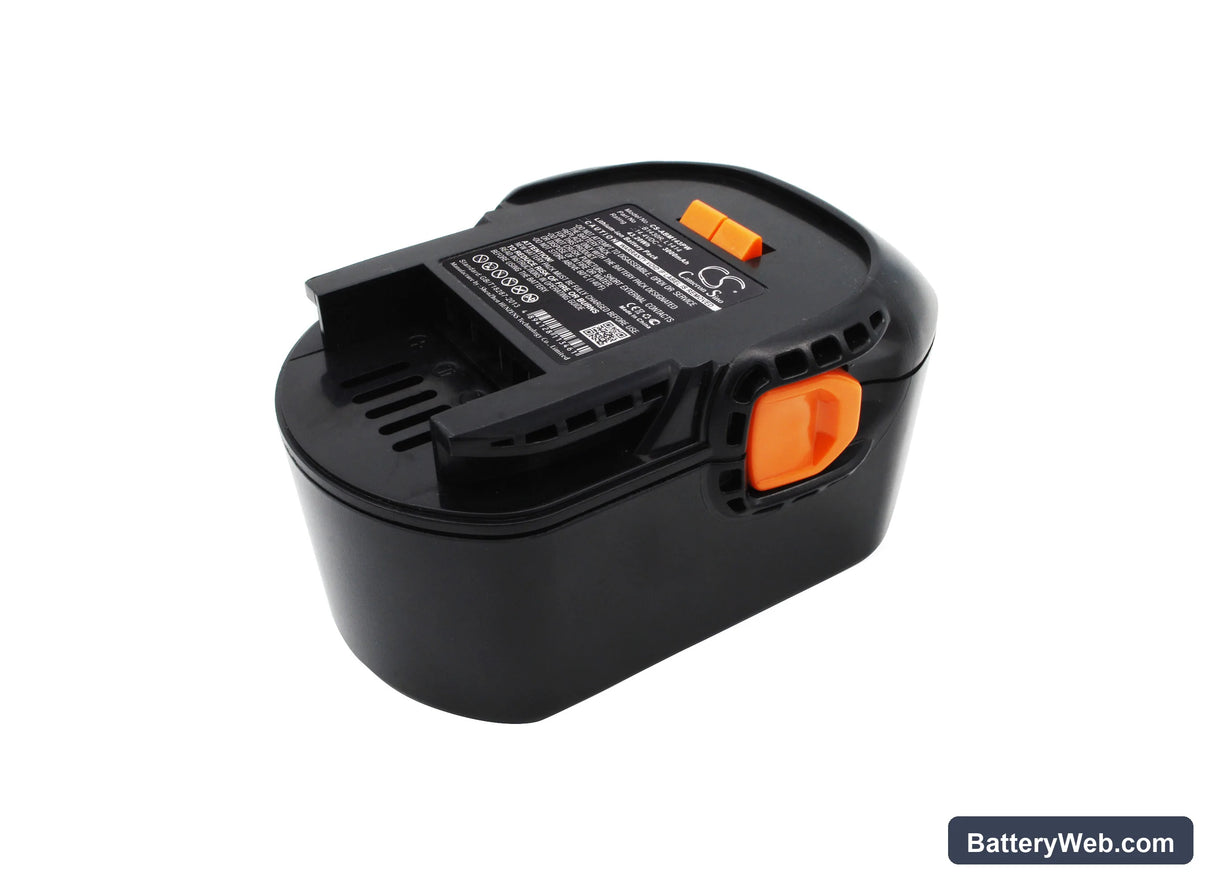

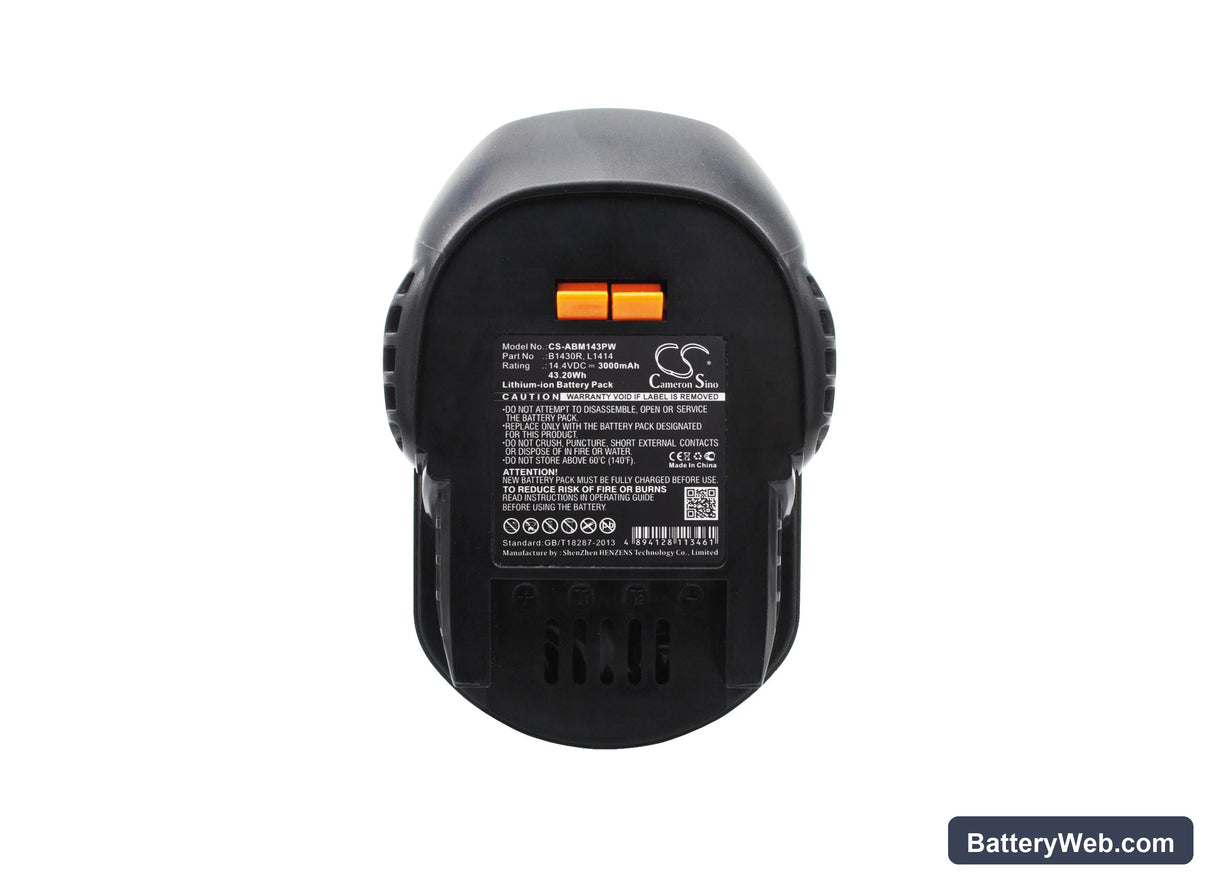

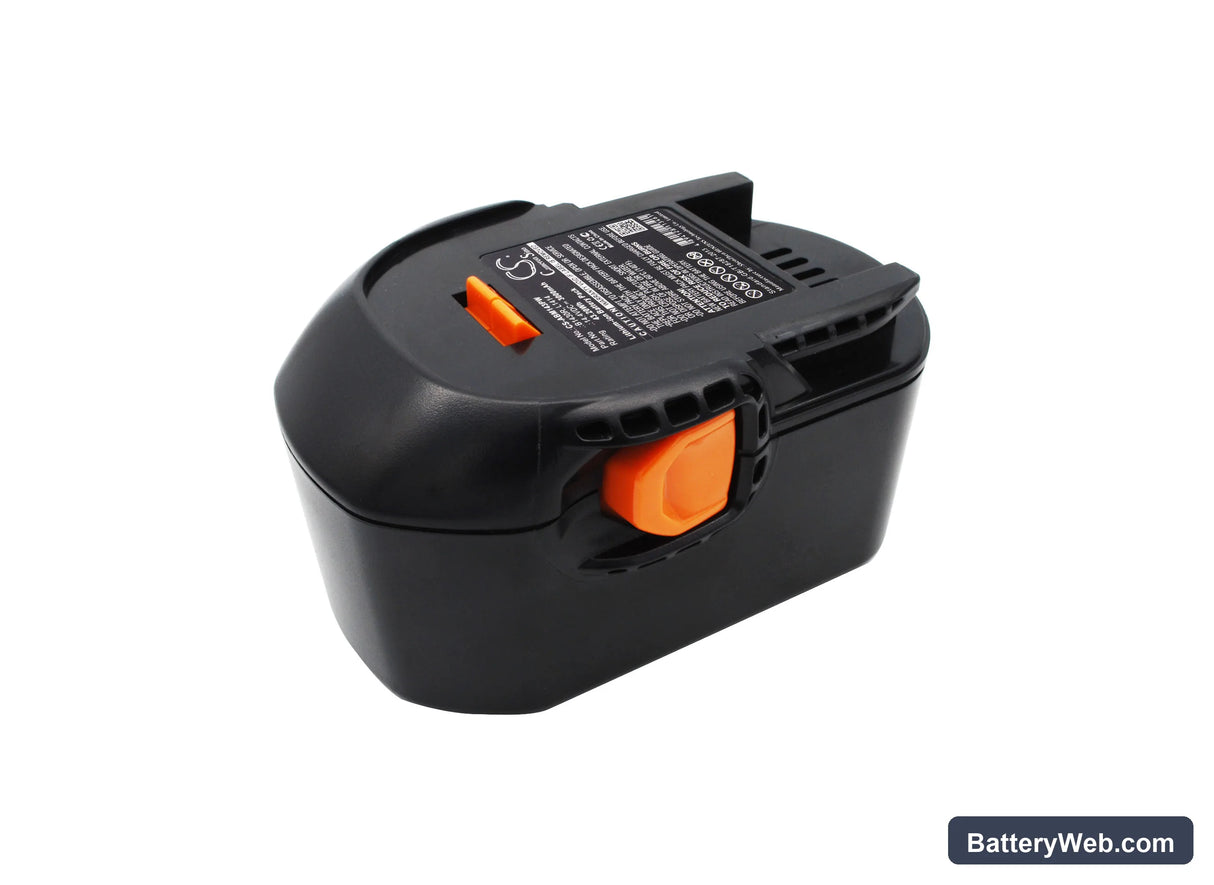

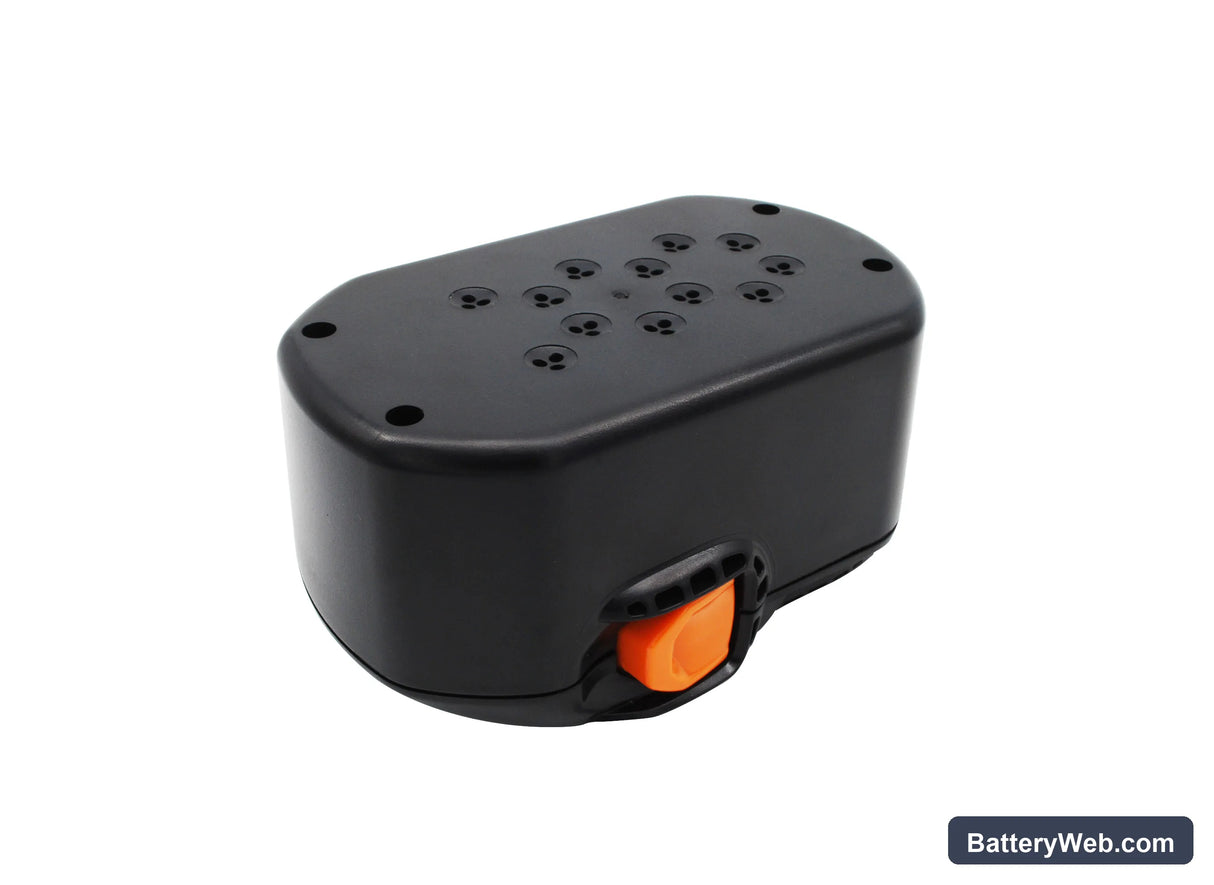

AEG B1430R 14.4V Cordless Drill Compatible Battery 3000mAh

AEG BBM 14 STX-R — 14.4V Li-ion Replacement Battery (B1430R)

This 14.4V 3000mAh Li-ion battery replaces the AEG B1430R and fits a broad range of AEG 14.4V cordless drills and drivers, including the BBM 14 STX-R, BSB 14 STX-R, BSB 14 G, and BSB 14 STX. The pack slots into the original slide-rail mount and communicates with the tool's BMS over the same data line as the factory cell.

• BBM and BSB 14.4V platform compatibility: All listed models share AEG's 14.4V slide-rail format and the same three-terminal connector — power, ground, and BMS data. Any pack with a matched BMS handshake will seat and communicate correctly across the range.
• Bench tested on actual hardware: We ran the pack through full charge-discharge cycles on a 14.4V AEG drill platform. The BMS responded correctly to motor-start inrush events and held rail voltage without triggering overcurrent shutdown under sustained torque loads.
• Motor inrush conditioning on first use: On the first two cycles, run the drill at half load — no high-torque fastening or large-diameter bits. This lets the BMS log the inrush current signature from your specific motor before locking its overcurrent threshold.

BMS cutoff on motor-start inrush surge in the BBM 14 STX-R

When you pull the trigger on an AEG 14.4V drill, the motor draws a spike — often three to five times the running current — in the first 20–50 milliseconds. A new pack's BMS has not yet profiled that spike for your specific motor and may read it as a fault, cutting power instantly. This is not a defective battery; it is the overcurrent protection firing before threshold calibration. Run two moderate-load cycles first and the BMS will adjust its trip point to match your motor's inrush profile.

Charger shows blinking red and never accepts the pack after storage

AEG 14.4V chargers reject packs where any cell has dropped below approximately 2.5V — the charger's acceptance voltage floor. A pack stored for several months in a discharged state can fall into this range, and the charger will blink red rather than begin a charge cycle. Place the pack in the charger and hold it there for 10–15 minutes anyway; many AEG chargers will attempt a low-current recovery pulse if the cell voltage is above 1.5V per cell. If the charger still rejects it after that window, check rail contact resistance with a multimeter — a reading above 0.5Ω at the terminal suggests a dirty connector, not a dead pack.
