Parkside PAP 20 A1 Replacement Battery 20V 4000mAh Li-ion

Parkside PSBSA 20-Li-C3 Series — 20V Li-ion Replacement Battery (PAP 20 A1)

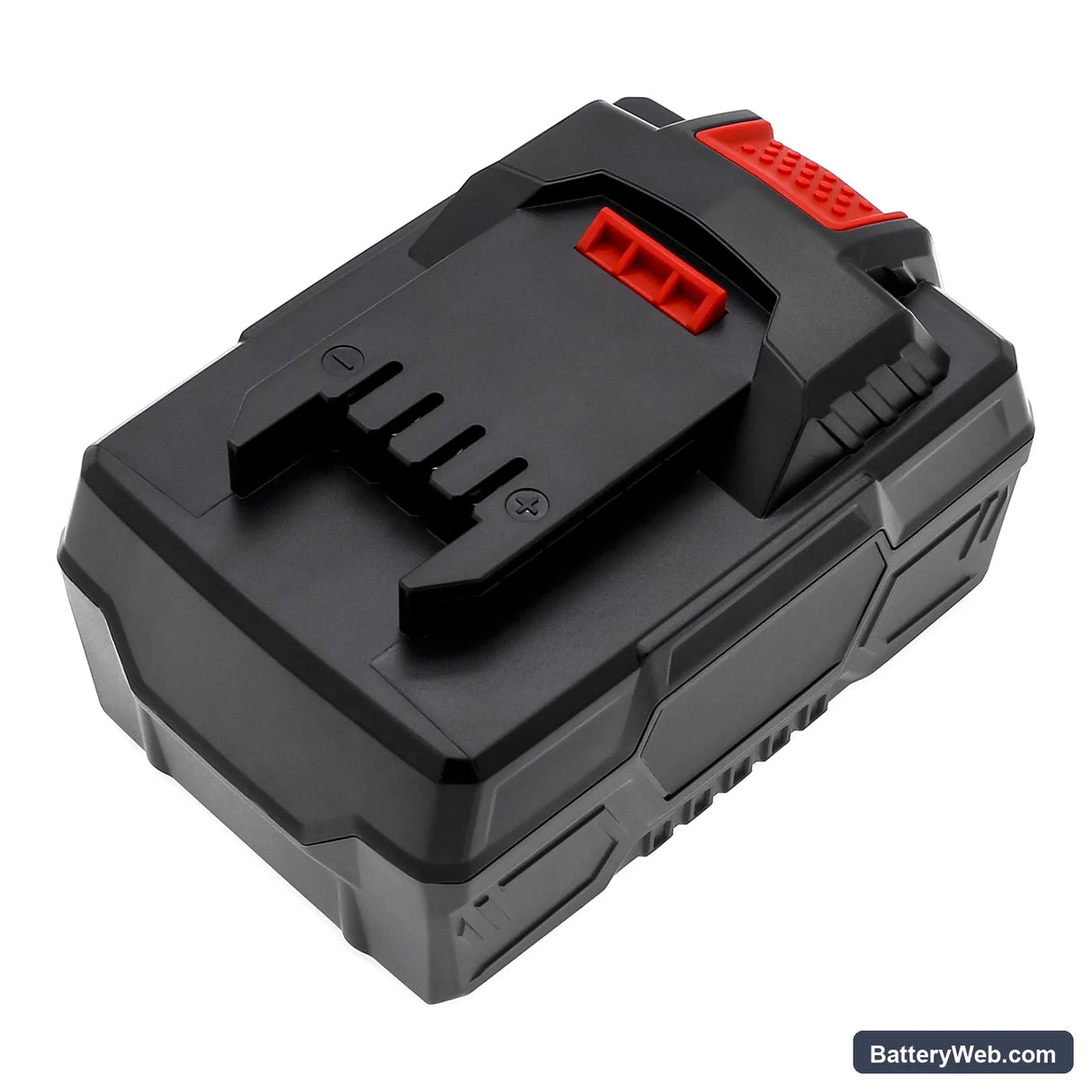

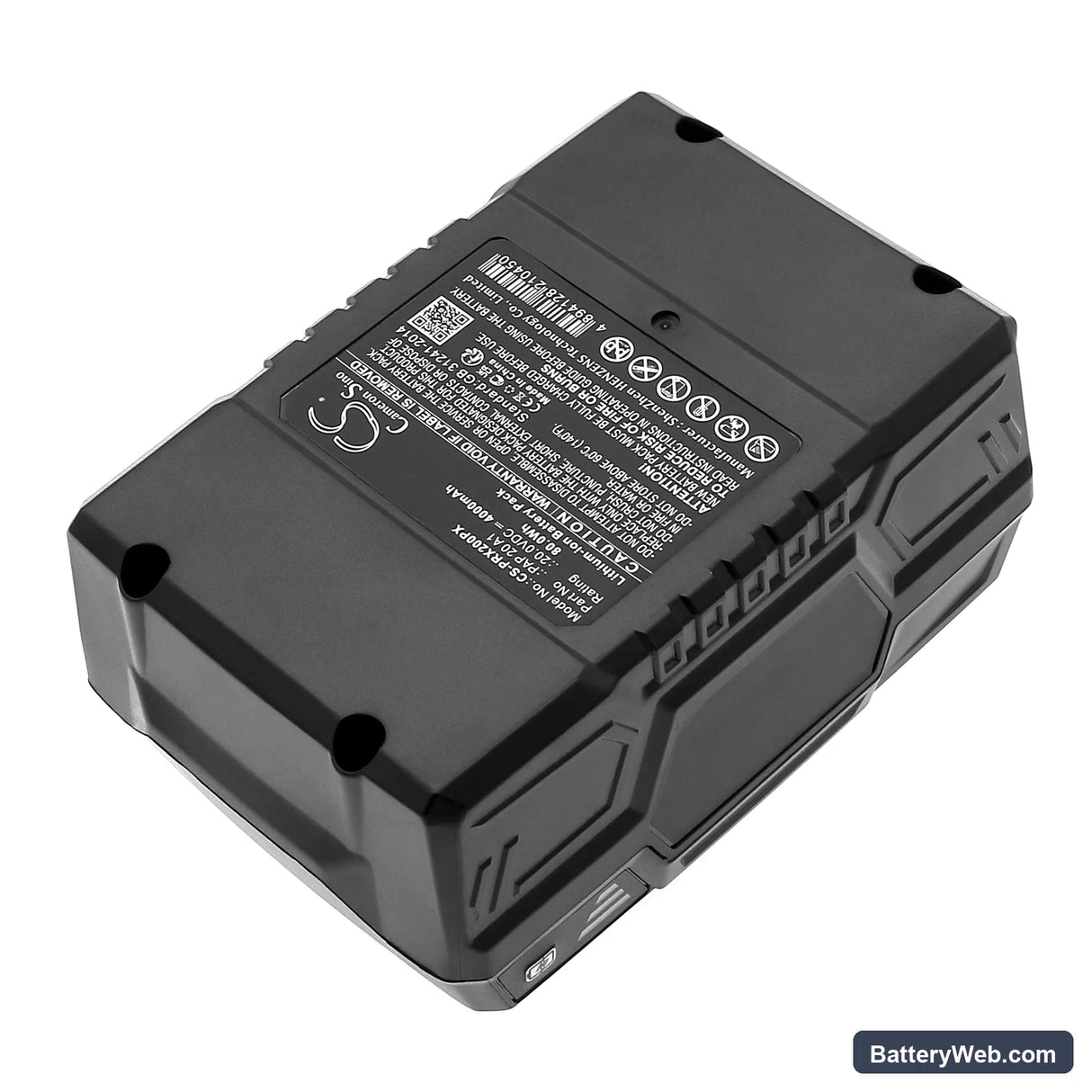

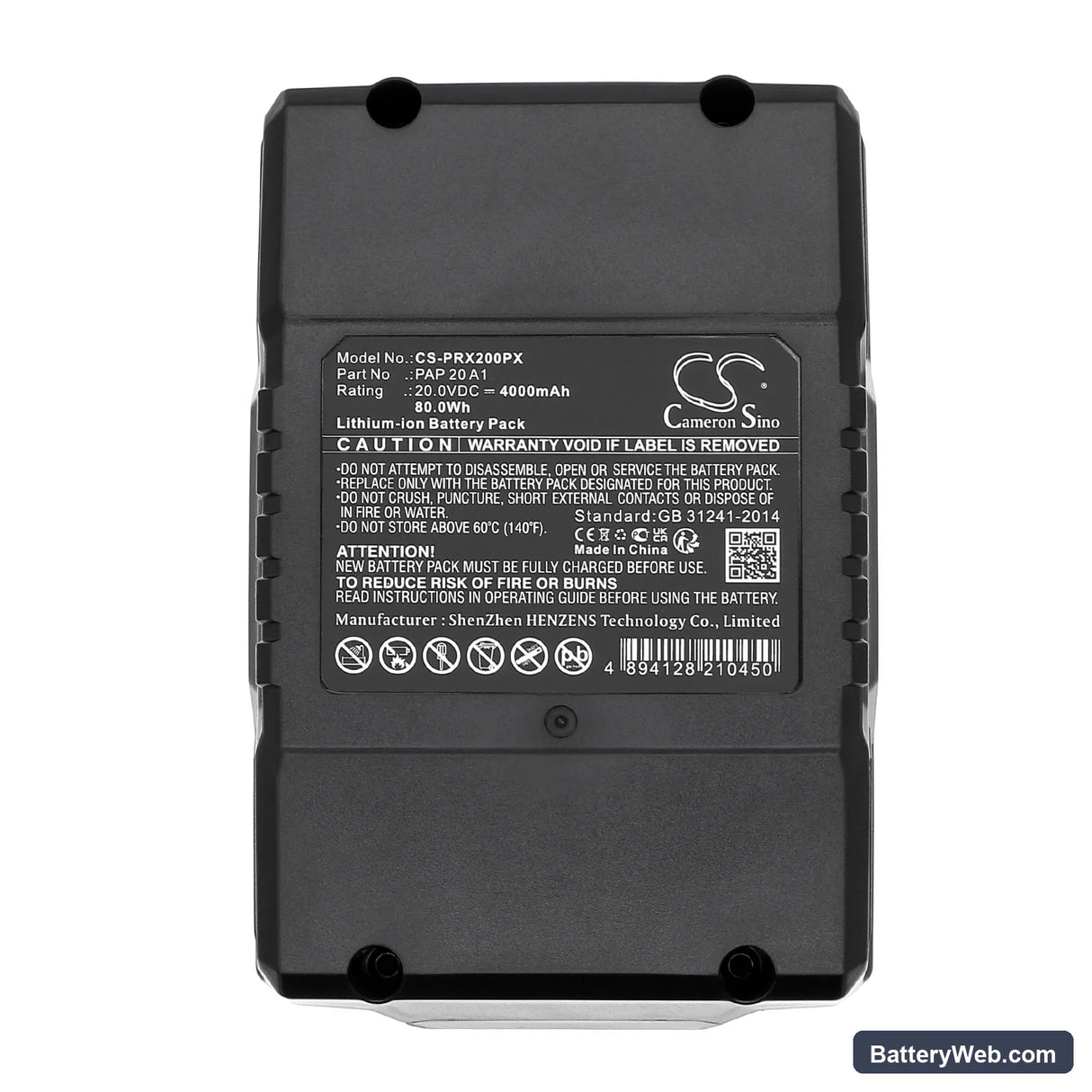

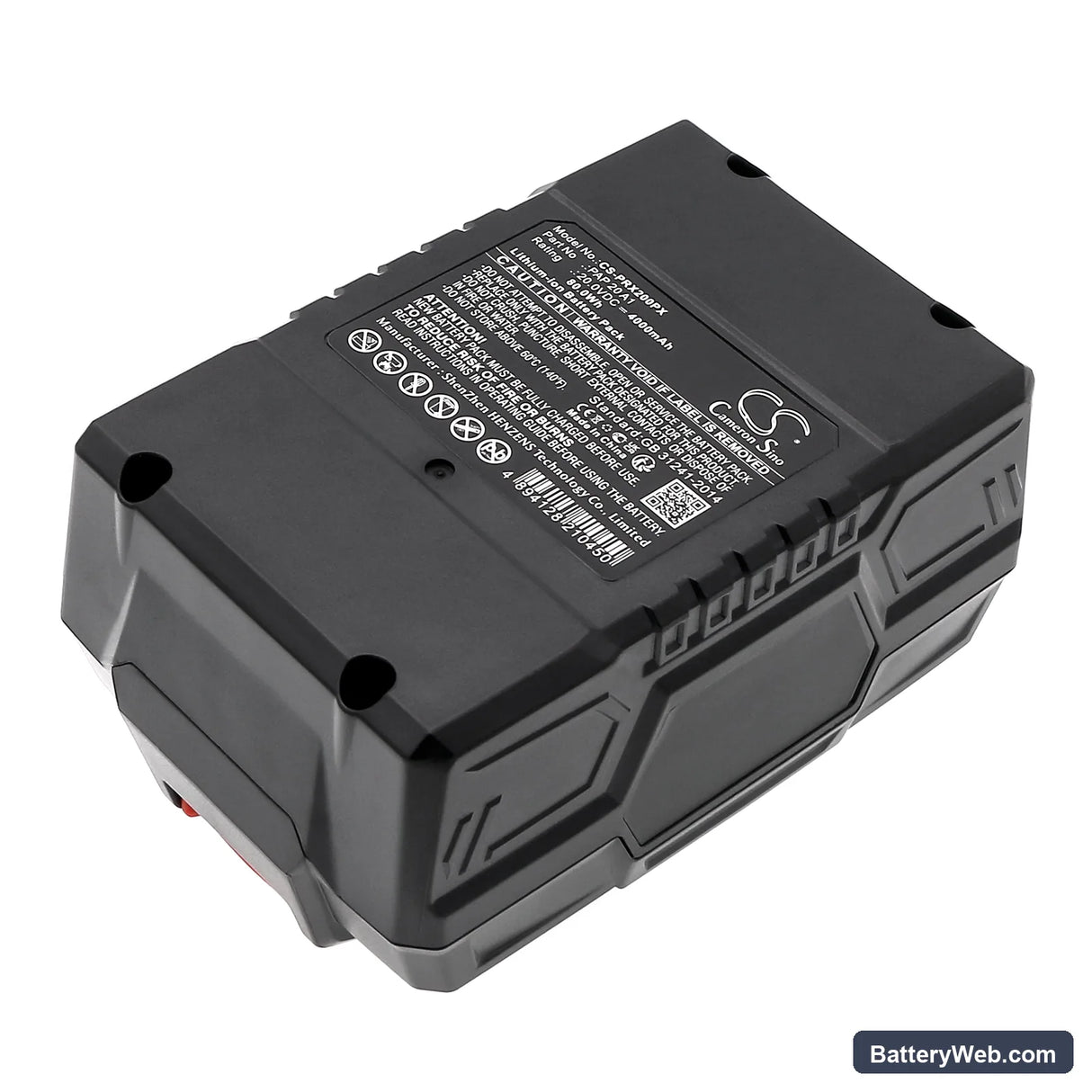

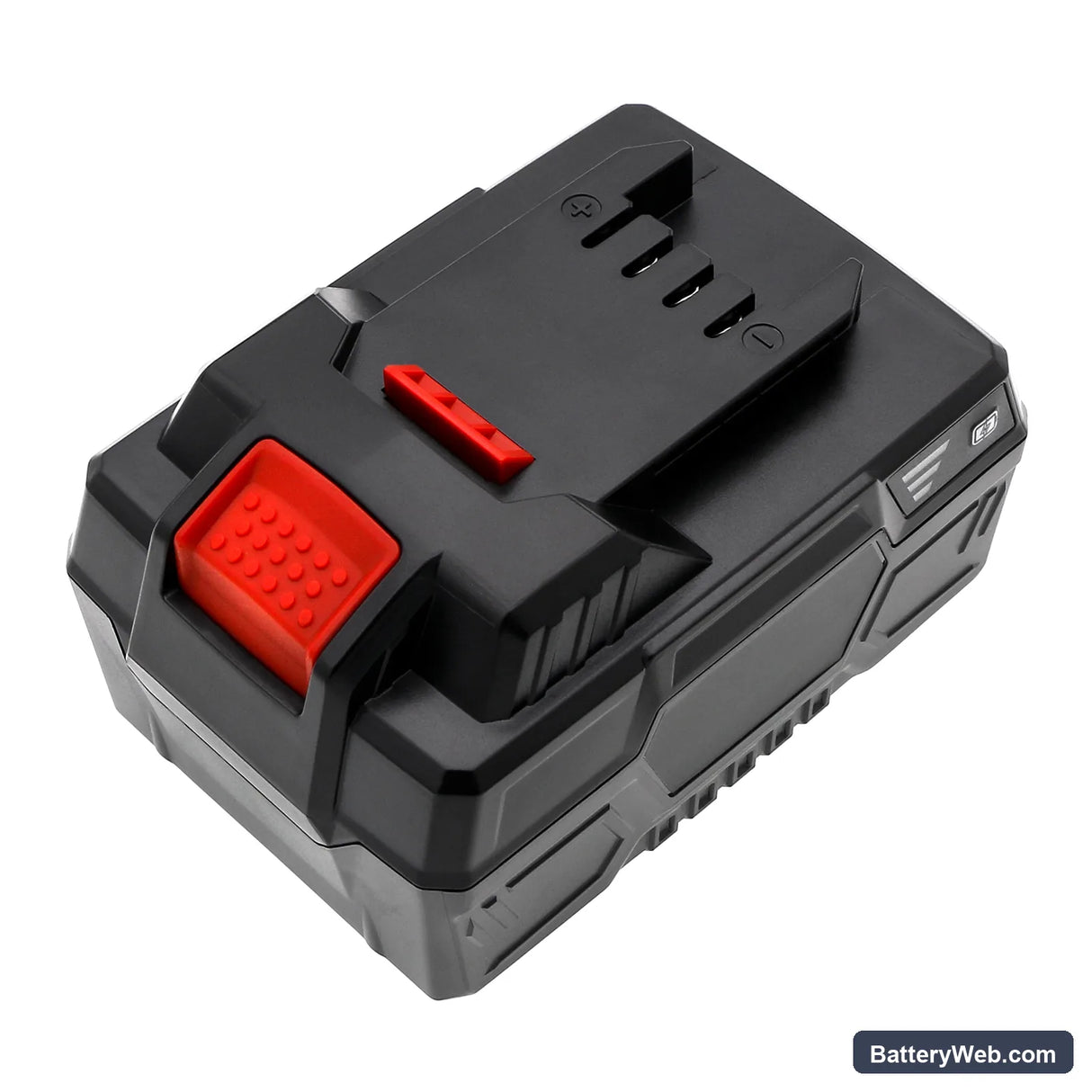

This is a 20V, 4000mAh (80Wh) Li-ion replacement battery for Parkside's 20V cordless tool range. It fits the PSBSA 20-Li-C3, PSBSA 20-Li A1, PSBSA 20-Li B2, and the 20V 3-in-1 Cordless Impact Drill, among others. The OEM part numbers it replaces are PAP 20 A1 and PAP 20 B3.

• 20V platform compatibility: These Parkside models share the same 20V rail, battery connector format, and BMS communication protocol. Swapping between drills, impact drivers, and saws on this platform works because the pack handshake is identical across the range — no firmware mismatch.
• Bench tested on actual hardware: We cycled this pack through drill and saw loads to confirm BMS response. The protection circuit handled motor-start inrush correctly and did not false-trip under normal trigger pulls at rated voltage.
• First-use load conditioning: On first use, run the tool at half load for two cycles before applying maximum torque. This allows the BMS to profile the motor inrush current draw before locking in overcurrent protection thresholds — reducing nuisance trips on high-demand tools like circular saws.

BMS cutoff on motor-start inrush surge in Parkside 20V tools

When a drill or saw motor starts from rest, it pulls a current spike well above its running draw — sometimes three to five times higher for a fraction of a second. If the BMS hasn't profiled the motor's inrush signature, it can read that spike as a fault and cut the pack. This is more common on circular saws and impact drivers than on drills. Running two half-load cycles first gives the BMS enough data to distinguish a normal start surge from a real overcurrent event.

Charger blinking red on a new 20V pack after storage

Li-ion packs in storage self-discharge over time, and if a cell group drops below roughly 2.5V per cell, most chargers refuse to begin a charge cycle — the red blink is the charger's under-voltage rejection. This isn't a dead battery; it means the pack needs a recovery cycle. Some Parkside chargers include a recovery mode — check the charger manual for a dedicated button or hold the charge trigger for five seconds. If no recovery mode exists, a compatible Li-ion charger with a boost or wake function will bring the cells back above the 3.0V acceptance threshold.
