Paslode BID-143 14.4V Li-ion Replacement Battery 2200mAh

Paslode BID-143 Series — 14.4V Li-ion Replacement Battery (B-1430L)

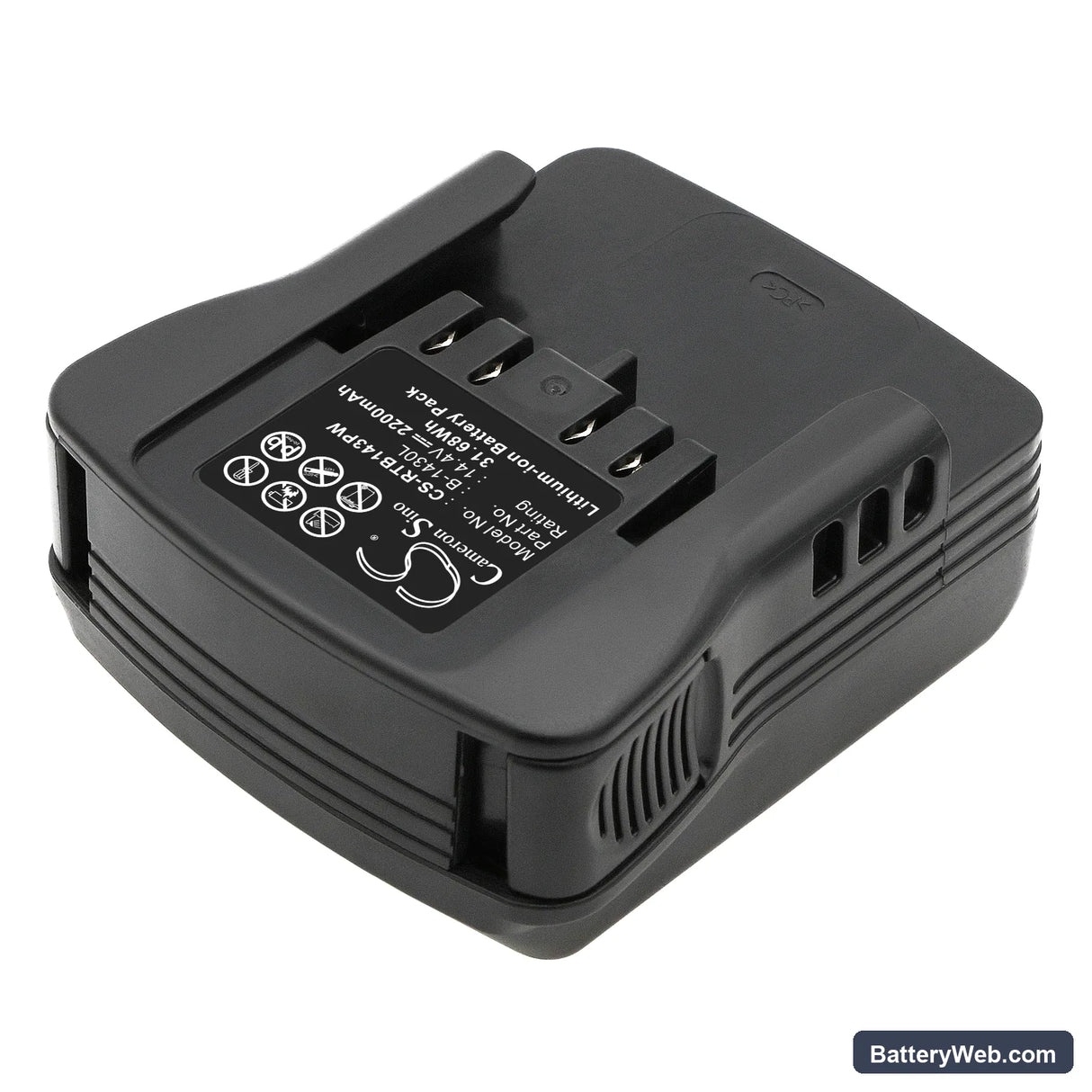

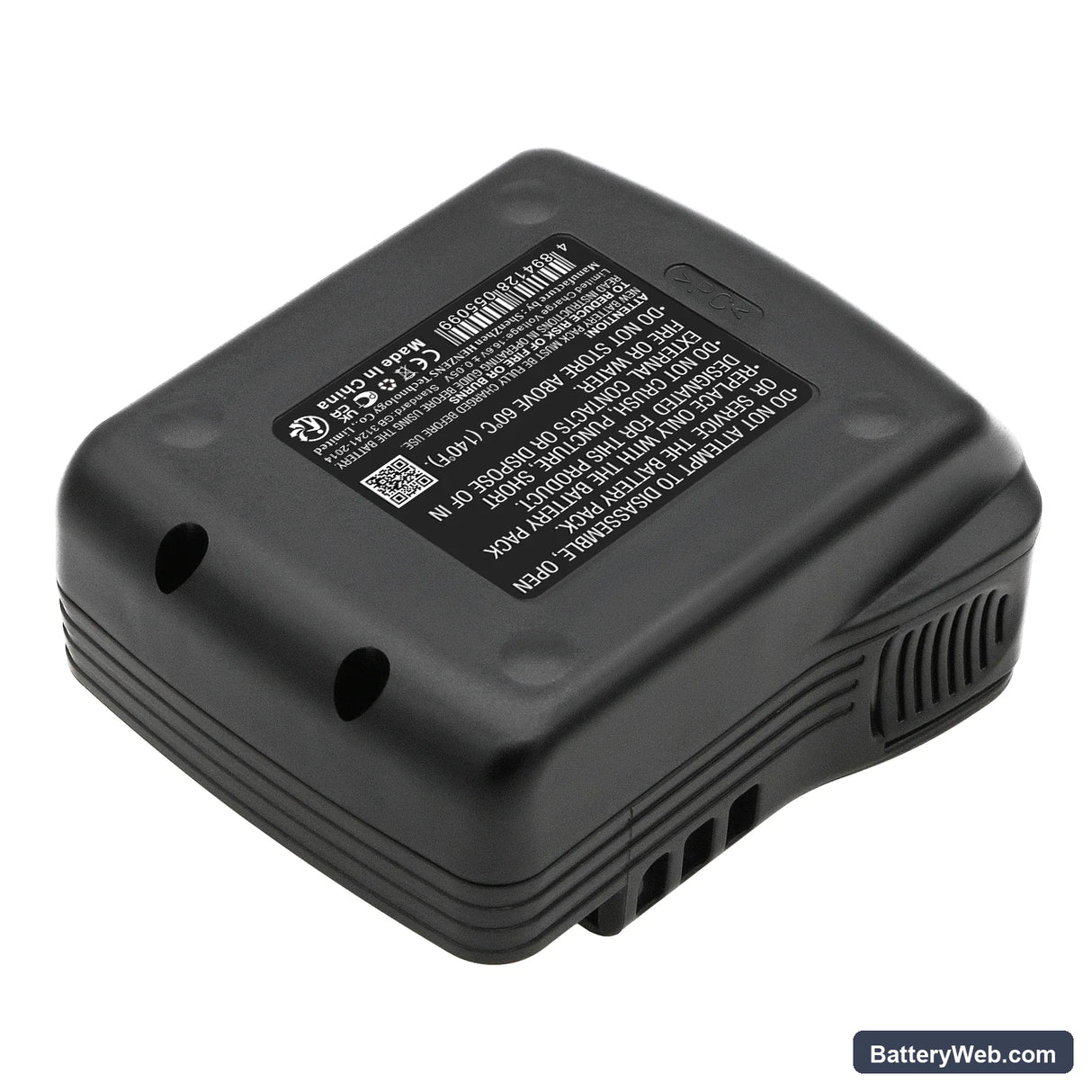

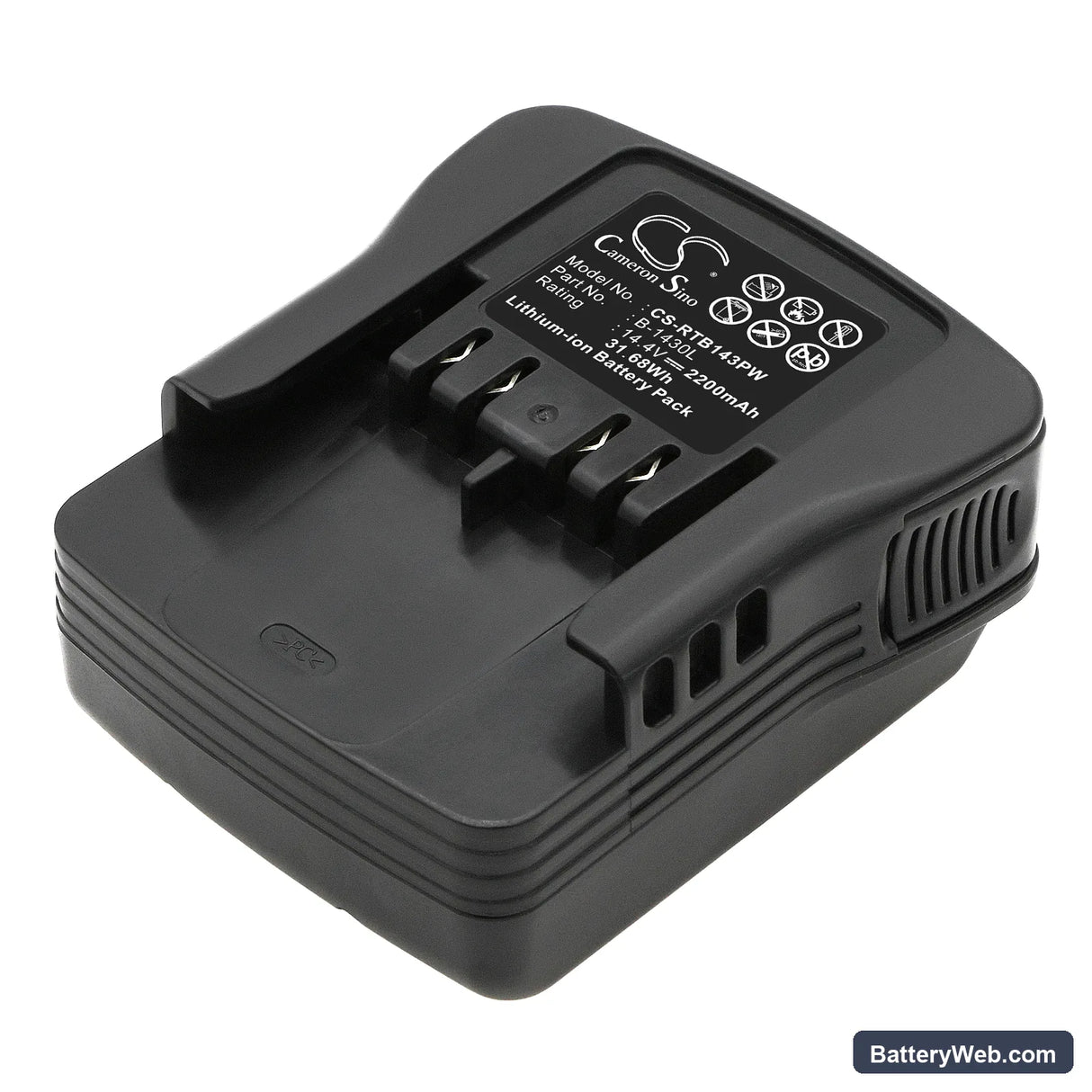

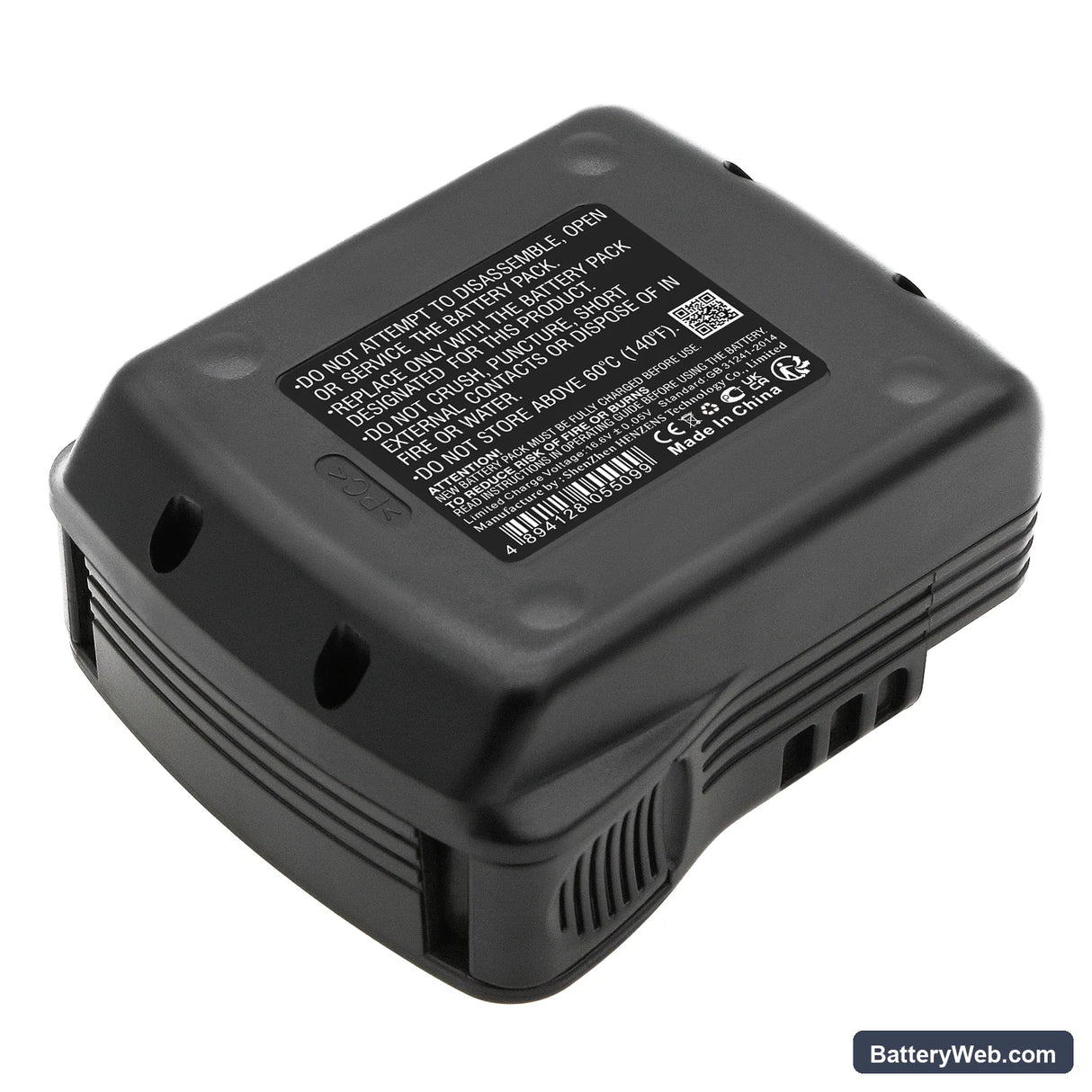

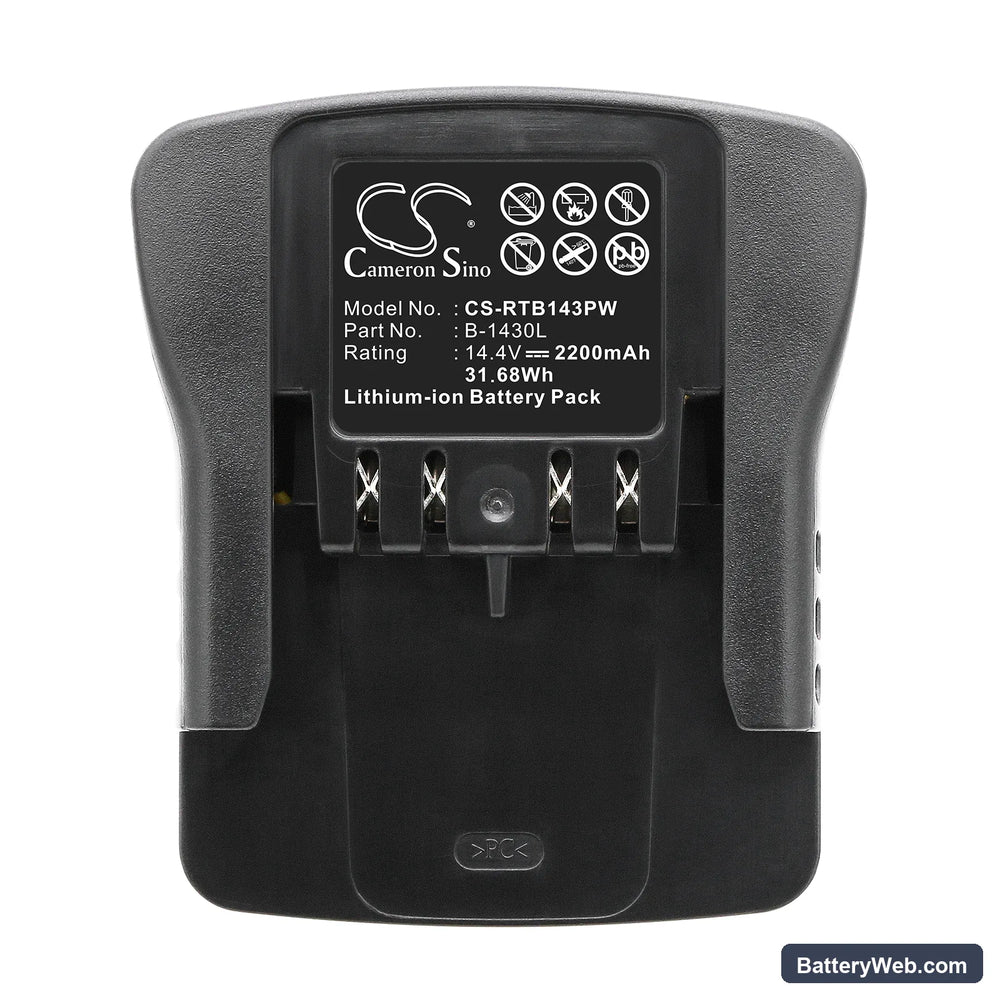

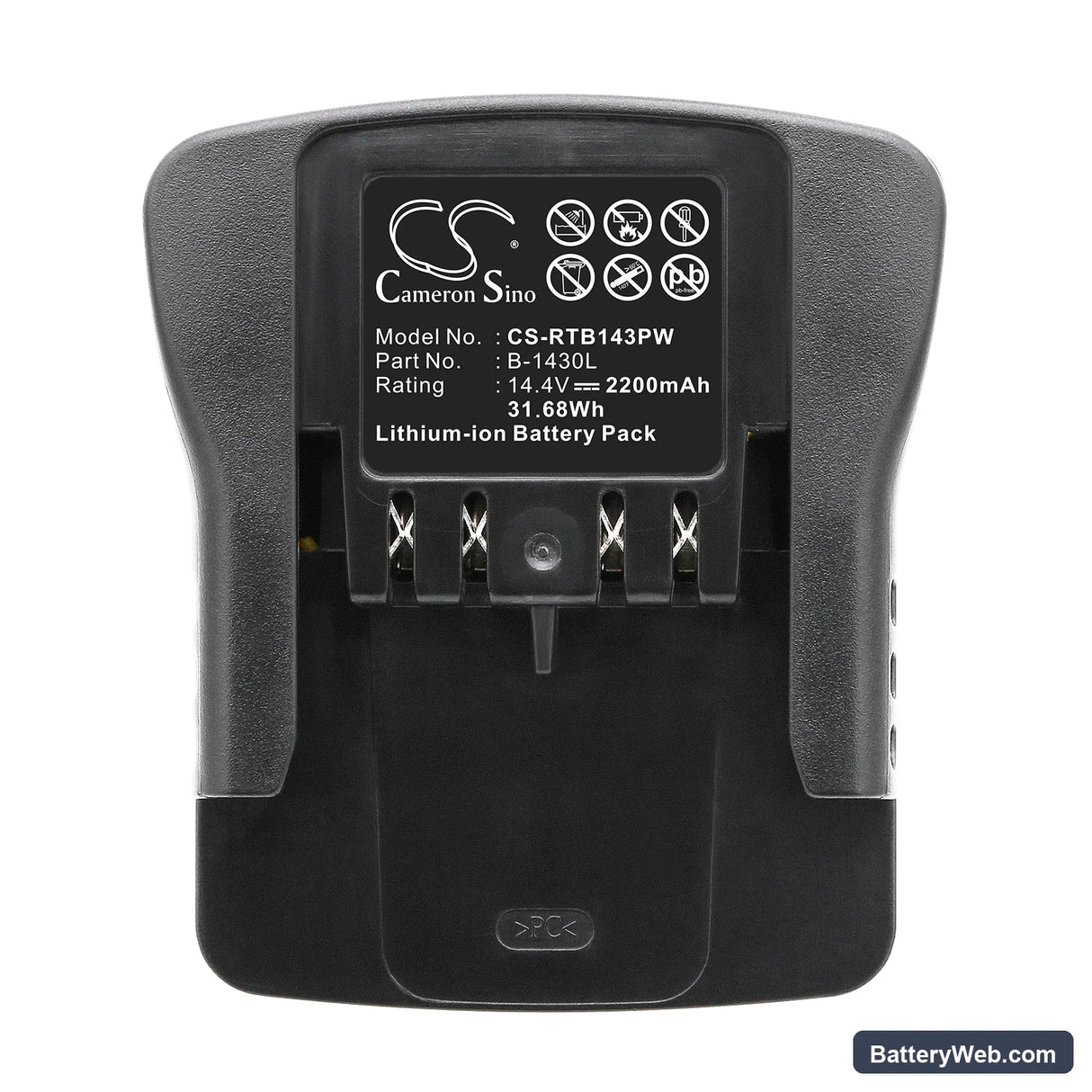

This is a 14.4V Li-ion battery rated at 2200mAh (31.68Wh), built to fit the Paslode BID-143 and related cordless impact driver models including the BID-1440, BID-142, and BID-140. It replaces OEM part numbers B-1430L, B-1425L, and B-1415L. The pack slots into any compatible Paslode 14.4V impact driver and communicates with the tool's BMS over the same data line as the original.

• BID-143 series compatibility: The BID-143, BID-1440, BID-142, and BID-140 share the same 14.4V battery rail, connector format, and BMS communication protocol. One pack covers the full platform — no adapter needed.
• Bench tested on actual hardware: We ran the pack on a BID-143 under repeated fastening cycles and monitored BMS response through motor-start inrush. Overcurrent protection thresholds held correctly and the pack did not trip during normal trigger cycling.
• Break-in on the BID-143: Run the driver at half torque for the first two charge cycles before applying maximum clutch settings. This lets the BMS log the motor's inrush current signature and set accurate overcurrent thresholds before you drive it hard.

BMS overcurrent trip on impact driver motor-start inrush

When you pull the trigger on a Paslode impact driver, the motor draws a surge of current that can briefly spike three to five times the running draw. A new pack with a freshly calibrated BMS may interpret that spike as a fault and cut out before the motor reaches speed. This is more likely if the pack came from storage or was first charged without a prior discharge cycle. Running two break-in cycles at reduced torque trains the BMS to distinguish normal inrush from a genuine overcurrent event.

Charger not recognising the pack after it sat in storage

If a Li-ion pack drops below roughly 2.5V per cell during storage, most Paslode chargers will refuse to begin a charge cycle — the LED blinks or stays solid red with no progress. The charger's acceptance threshold requires the pack to sit above that floor before it will handshake. Place the pack in the charger, remove it after 30 seconds, and reinsert it two or three times — this can nudge the BMS into a wake state if cells are marginal. If the pack still won't accept charge after several attempts, check individual cell voltage with a multimeter; any cell below 2.0V will need replacement.
