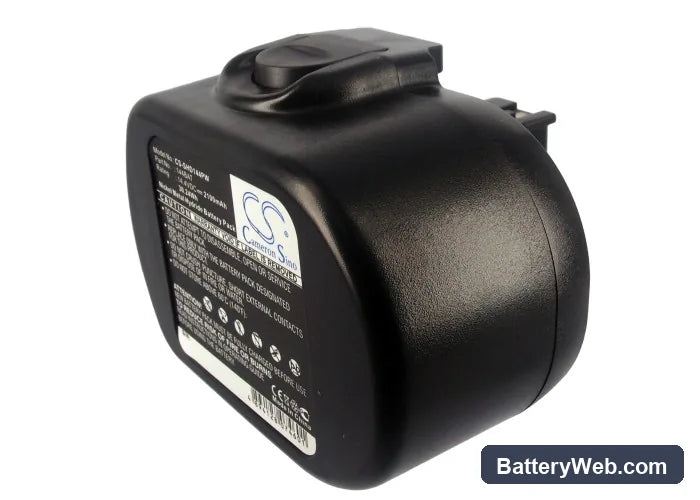

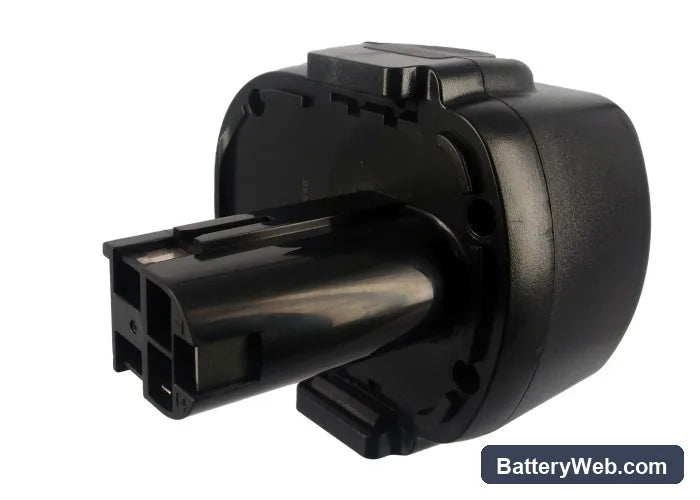

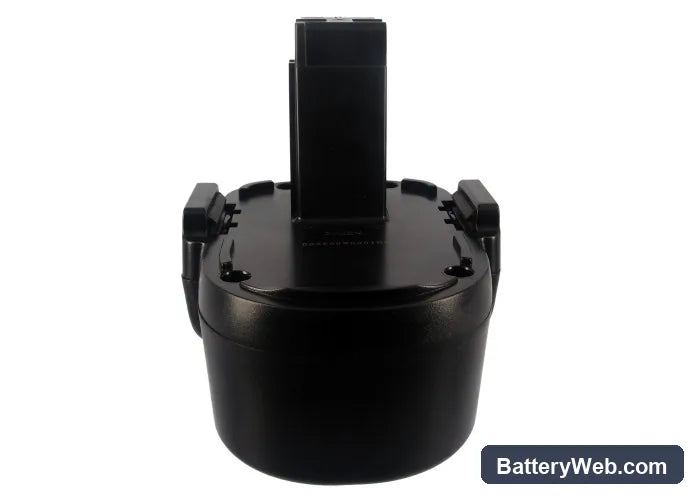

Skil 144BAT 14.4V Cordless Drill Replacement Battery 2100mAh

Skil 2566 Series — 14.4V Ni-MH Replacement Battery (144BAT)

This is a 14.4V Ni-MH battery rated at 2100mAh (30.24Wh), built to fit the Skil 2566, 2565, 2567, 2568, and compatible models in that cordless tool range. It slots into the original battery bay and communicates with the stock Skil charger. Use it with cordless drills, drivers, and saws that accept the 144BAT pack.

• 2565–2568 platform fit: These models share the same 14.4V battery bay, connector pinout, and charge termination protocol. One pack covers the full range without adapters or wiring changes.
• Bench tested on actual hardware: We cycled this pack on a 2566 drill through repeated trigger pulls and timed load runs. The BMS held cutoff thresholds correctly and the charger completed a full delta-V termination without fault codes.
• Ni-MH break-in on first use: On the first two cycles, run the tool at moderate load rather than full torque. Ni-MH cells need a couple of full charge-discharge cycles to reach rated capacity — driving at maximum torque before that can cause early delta-V termination and a short first cycle.

BMS cutoff on trigger-pull inrush with the 2566 drill

The 2566 motor draws a spike of current the instant the trigger engages — this inrush can briefly exceed the BMS overcurrent threshold on a cold or freshly installed pack. The BMS trips to protect the cells, and the tool stops immediately after a single pull. Warming the pack to room temperature before use lowers cell internal resistance enough to reduce inrush voltage sag. If cutouts persist after the pack is warm, check the battery bay contacts for oxidation — poor contact raises rail resistance and amplifies the voltage drop.

Charger blinking red and refusing to accept the pack after storage

A Ni-MH pack that has sat unused for several months can self-discharge below the charger's acceptance voltage floor. The Skil charger reads the low cell voltage as a fault and blinks red rather than starting a charge cycle. To recover it, apply a short trickle charge using a compatible Ni-MH charger set to its conditioning or recovery mode — this brings cells above the acceptance threshold. Once the pack reaches approximately 10.8V resting voltage, the standard charger will accept it and run a normal charge cycle.
