Audio Pro Addon T3 Compatible Battery 14.8V 3400mAh

Audio Pro Addon T3 / T9 / T10 — 14.8V Li-ion Replacement Battery (TF18650-2200-1S4PB)

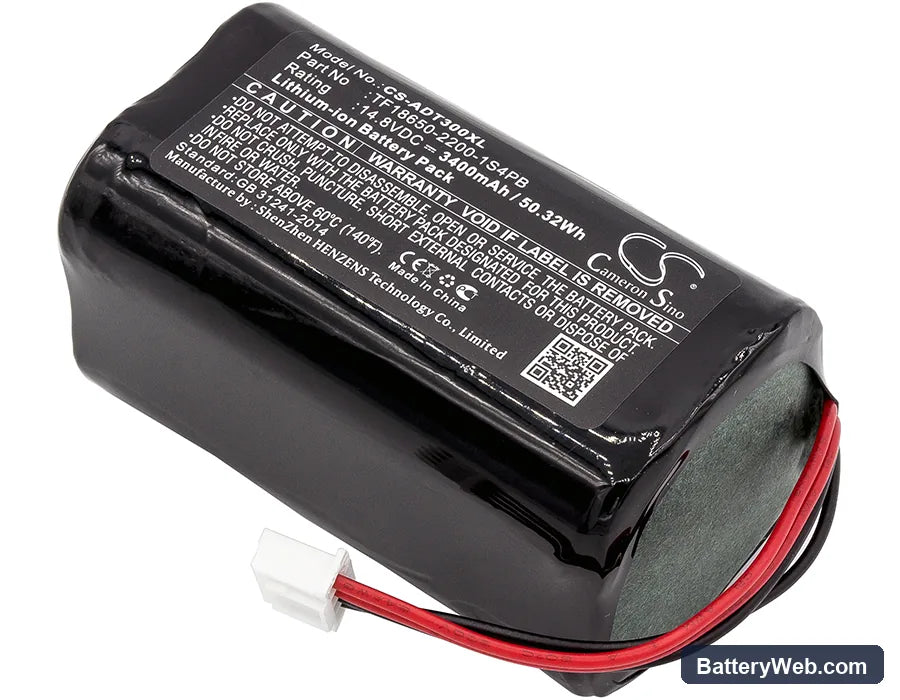

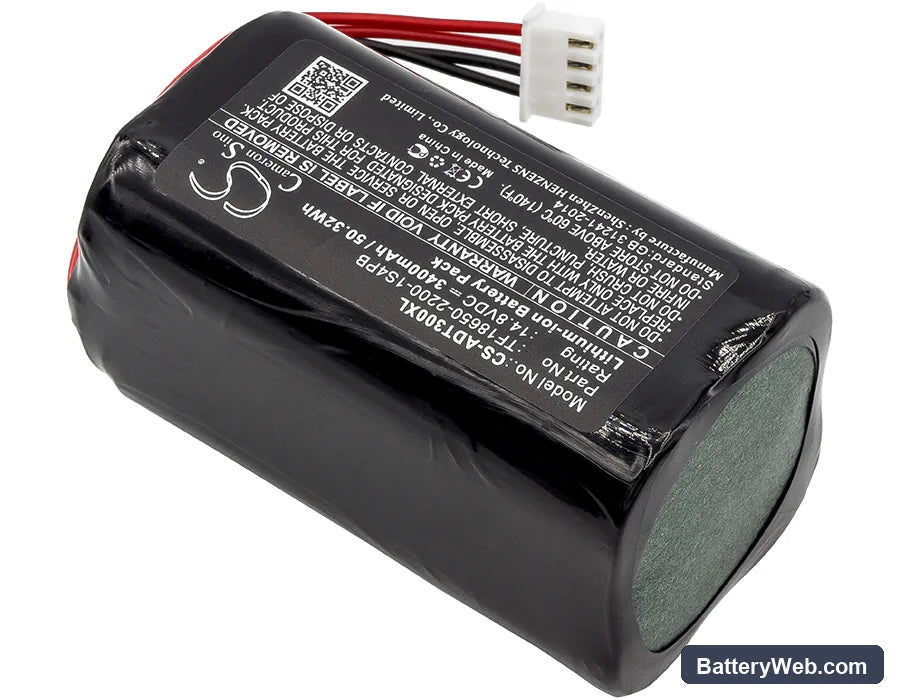

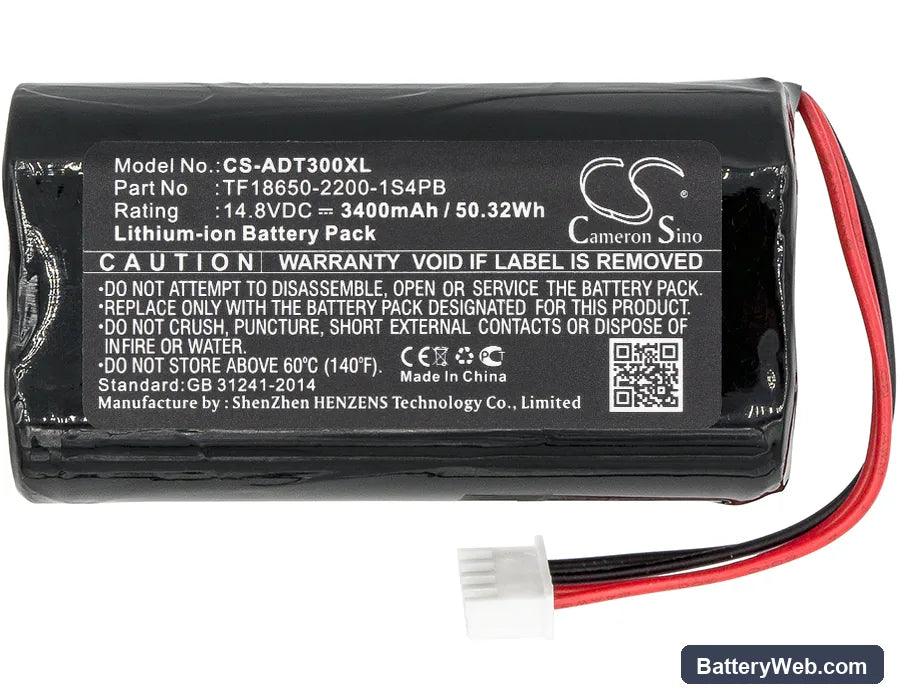

This is a 14.8V, 3400mAh (50.32Wh) lithium-ion battery pack for the Audio Pro Addon T3, T9, and T10 portable speakers. It replaces part number TF18650-2200-1S4PB. If your Addon T3 series speaker won't hold a charge or dies mid-session, this is the direct swap.

• Addon T3, T9, and T10 platform fit: These three speakers share the same 14.8V four-cell Li-ion pack architecture, connector pinout, and BMS communication protocol — that's why one battery number covers all three. Swapping between models is not supported; only install this pack in the confirmed Addon T3 series units.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the Addon T3 platform. The BMS handshake completed cleanly, cell balancing activated on the first full charge, and the protection circuit tripped correctly at the low-voltage cutoff threshold without requiring a manual reset.
• Monthly full-discharge cycle on desk speakers: Speakers used daily and topped off constantly never reach a full discharge. Let the Addon T3 run down below 20% at least once a month before recharging — this corrects fuel gauge drift and slows capacity fade in the Li-ion cells caused by shallow cycling.

Audio clipping on the Addon T3 before the battery indicator reaches empty

The Addon T3 amplifier draws a sharp current spike at higher volumes. When the battery pack is aged or partially discharged, internal cell resistance rises and pack voltage sags under that spike. The amplifier clips because it's not getting enough voltage headroom — even if the battery gauge still shows 30–40% remaining. A fresh pack with low internal resistance keeps voltage stable above the amplifier's minimum rail, eliminating the clipping before the gauge hits zero.

Addon T3 not responding to USB charging after sitting unused for months

Li-ion cells left uncharged for extended periods drop below the minimum acceptance voltage for USB Power Delivery handshake — typically under 2.5V per cell, or around 10V at pack level for this 4S configuration. At that point the charger sees no valid PD response and stops delivering current. To recover, apply a regulated low-current charge at 14.8V directly to the pack terminals for 10–15 minutes to bring cells above the PD threshold, then reconnect via USB. If the pack does not respond above 12V after that step, cell reversal has likely occurred and the pack should be replaced.
