JBL Link 20 Compatible Battery 3.7V 6000mAh Li-Polymer P763098

JBL Link 20 — 3.7V Li-Polymer Replacement Battery (P763098 01A)

This is a 3.7V 6000mAh Li-Polymer battery for the JBL Link 20 smart Wi-Fi speaker. It replaces part number P763098 01A and restores portable power to the speaker when the original cell has degraded. Voltage and capacity match the stock cell exactly at 3.7V and 22.2Wh.

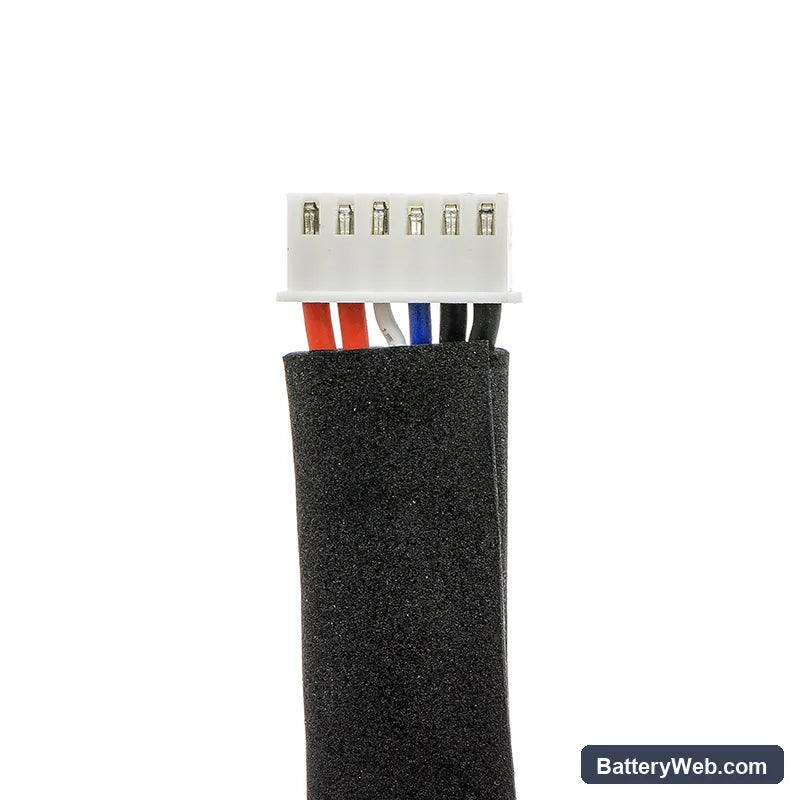

• Link 20 pack fitment: The Link 20 uses a single Li-Polymer pouch cell with a specific connector pinout that feeds the speaker's onboard power management IC. This replacement matches that pinout and the BMS handshake the board expects on reconnection.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Link 20 mainboard. The BMS accepted the pack without fault codes, and the power management IC reported correct state-of-charge readings across the full charge range.
• Monthly discharge cycle for the Link 20: The Link 20 typically sits on a desk or kitchen counter and gets topped off before it drops below 50%. Run the speaker down past 20% at least once a month before recharging — the fuel gauge IC recalibrates on a full cycle and prevents false full-charge readings.

Capacity fade from constant top-off charging on the Link 20

Li-Polymer cells cycled repeatedly between 50% and 100% lose capacity faster than cells that complete full discharge cycles. The Link 20's fuel gauge IC tracks charge in and out, but without a full discharge reference point it gradually loses calibration. Over months of shallow cycling, the speaker reports full charge while actual usable capacity has dropped significantly. Running the battery down past 20% once a month gives the IC a hard lower reference and resets the gauge accuracy.

Audio distorting before the battery indicator reaches empty

As the Li-Polymer cell discharges toward its lower cutoff voltage, the amplifier's supply rail sags. The Link 20's amplifier pulls higher instantaneous current during loud passages, and a weakened or aged cell cannot hold voltage under that load. The result is audible clipping or distortion while the battery indicator still shows one or two bars. This happens because the indicator reflects average voltage, not the cell's ability to handle the amplifier's peak current demand. Replacing the cell restores the voltage headroom the amplifier needs to drive cleanly at full output.
