Marshall Kilburn 14.4V Portable Speaker Replacement Battery 3400mAh

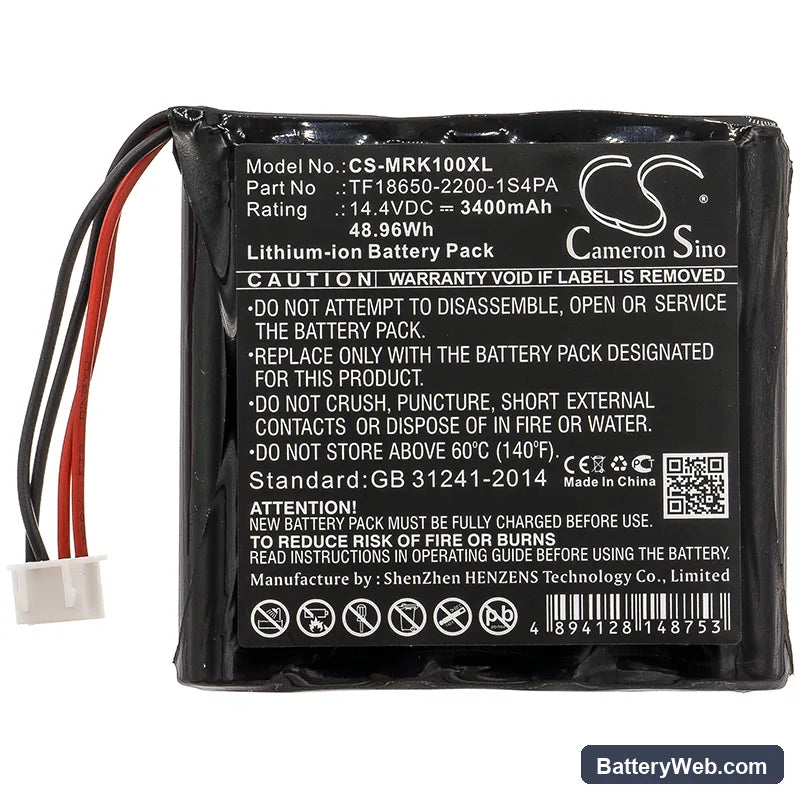

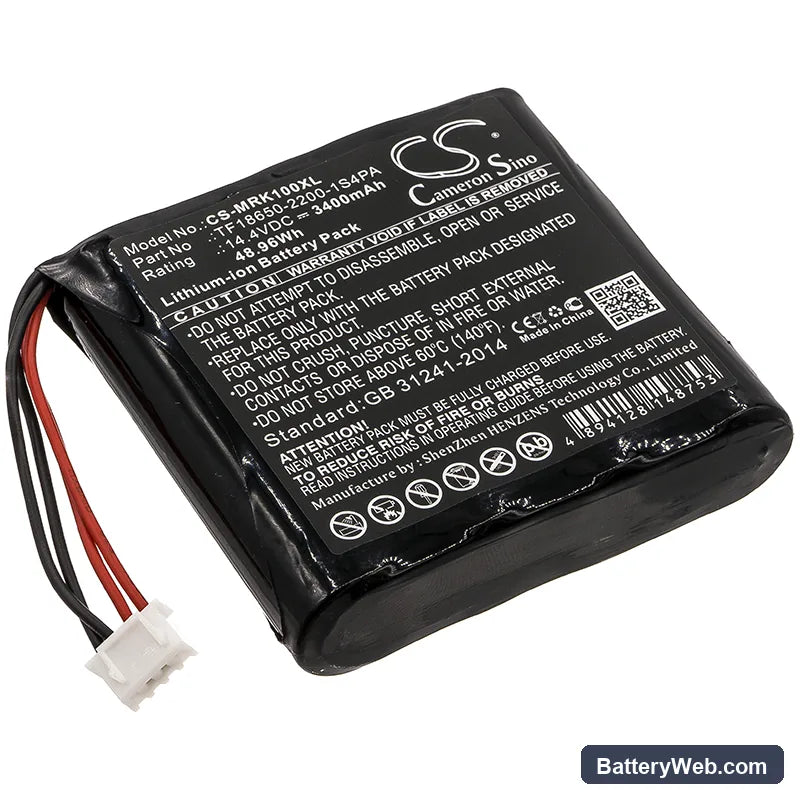

Marshall Kilburn — 14.4V Li-ion Replacement Battery (TF18650-2200-1S4PA)

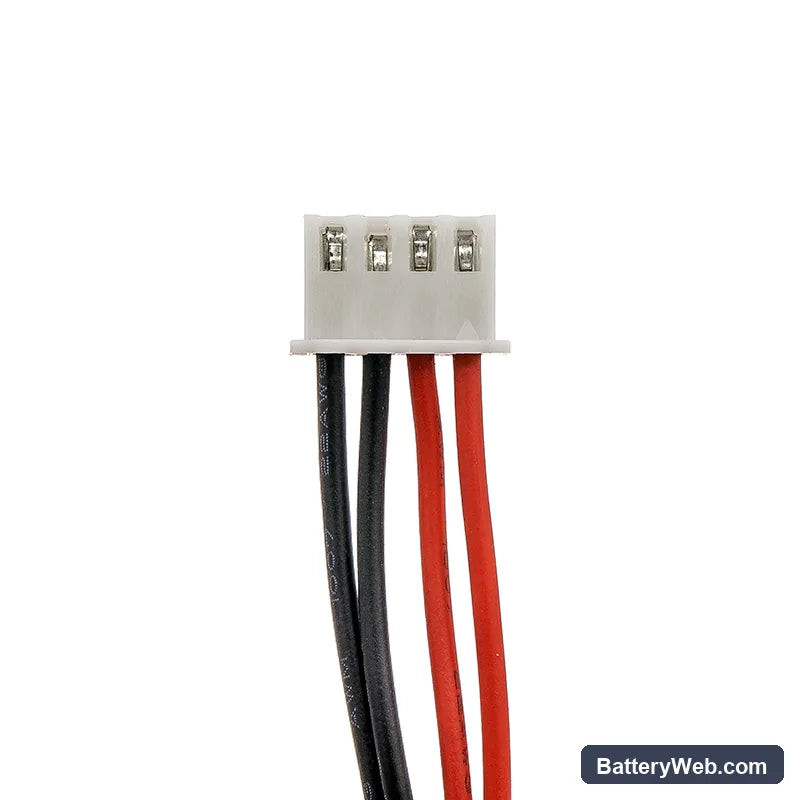

This is a 14.4V, 3400mAh (48.96Wh) Li-ion battery for the Marshall Kilburn portable Bluetooth speaker. It replaces the original pack when the cell degrades and the speaker no longer holds a useful charge. Direct swap — same voltage, same OEM part number, same connector orientation.

• Kilburn platform fit: The Kilburn runs a 4S Li-ion configuration at 14.4V nominal to power both the Class D amplifier and the Bluetooth radio simultaneously. This pack matches that voltage rail exactly, so the internal BMS sees no deviation on startup or during high-draw audio peaks.
• Bench tested on actual hardware: We cycled this pack through full charge and discharge on the Kilburn platform. The BMS balanced all four cells correctly, and the protection circuit tripped cleanly at the low-voltage threshold without causing a hard reset on the speaker's control board.
• Monthly discharge routine for the Kilburn: The Kilburn is frequently left on a desk and topped off before it drops below 50%. Run it down below 20% at least once a month before recharging — without a periodic full discharge, the fuel gauge drifts and the speaker shuts down before the indicator shows low battery.

Audio distortion before the Kilburn battery indicator reaches empty

As a Li-ion cell ages, its internal resistance rises. Under the combined current draw of the amplifier and Bluetooth radio at high volume, the pack voltage sags below what the amplifier stage needs to operate cleanly — even if the indicator still shows charge remaining. The amplifier clips before the BMS cutoff triggers. A fresh pack at full rated capacity eliminates the sag, and the distortion disappears at the same volume levels where the old pack struggled.

Kilburn not responding to USB charge after sitting unused for months

Li-ion cells left discharged for extended periods self-discharge below the minimum voltage the USB-C power delivery circuit will accept — typically under 2.5V per cell, or around 10V across the 4S pack. At that point the charger sees no handshake and the speaker appears completely dead. Some packs recover with a slow pre-charge trickle, but cells that have sat deeply discharged for more than a few weeks often cannot hold a stable voltage again. If the Kilburn shows no response after 30 minutes on charge, check the pack voltage directly — below 8V across the terminals, replacement is the correct path.
