Sonel WAAKU11 PQM-711 Replacement Battery 3.7V 5200mAh

Sonel PQM-711 / PQM-710 Series — 3.7V Li-ion Replacement Battery (WAAKU11)

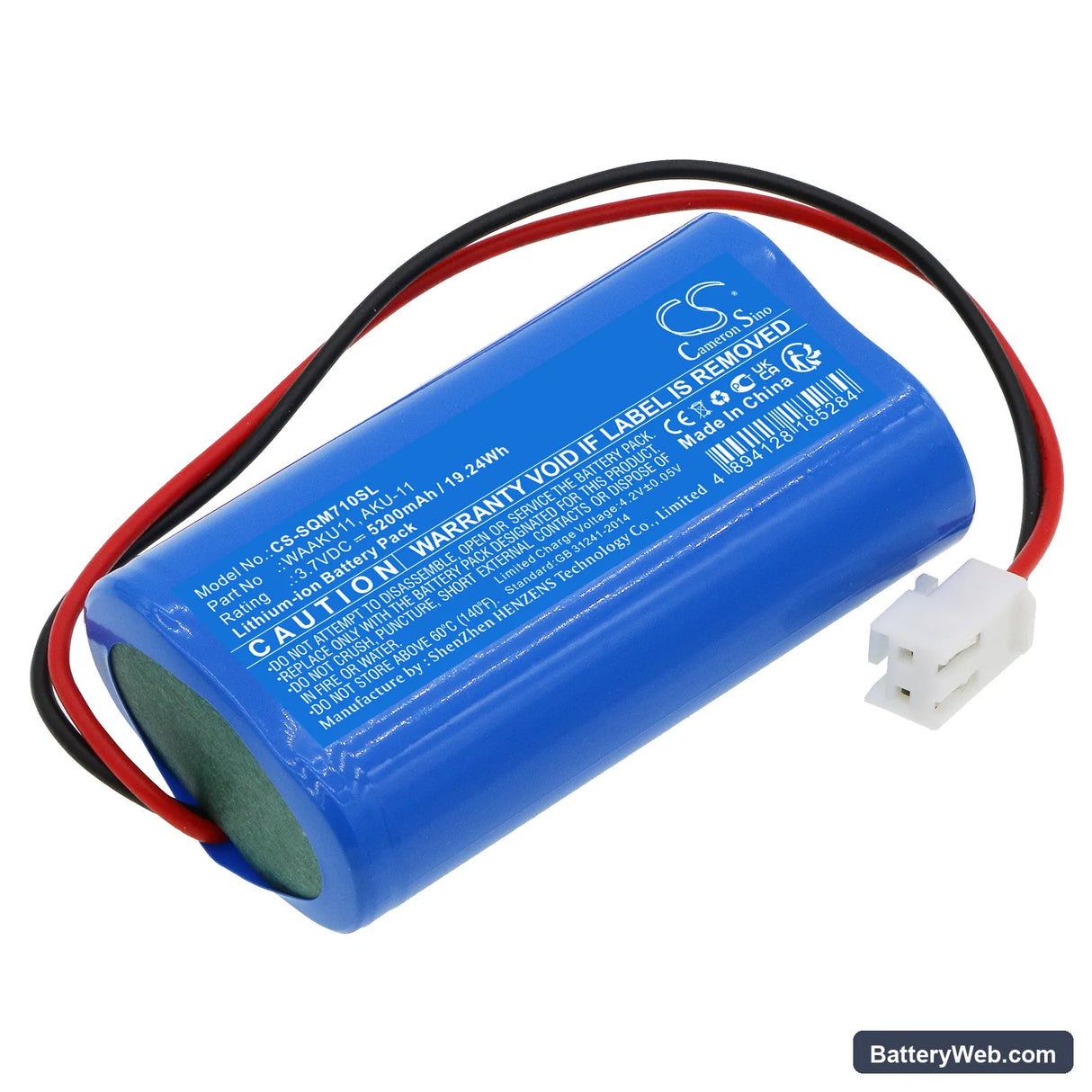

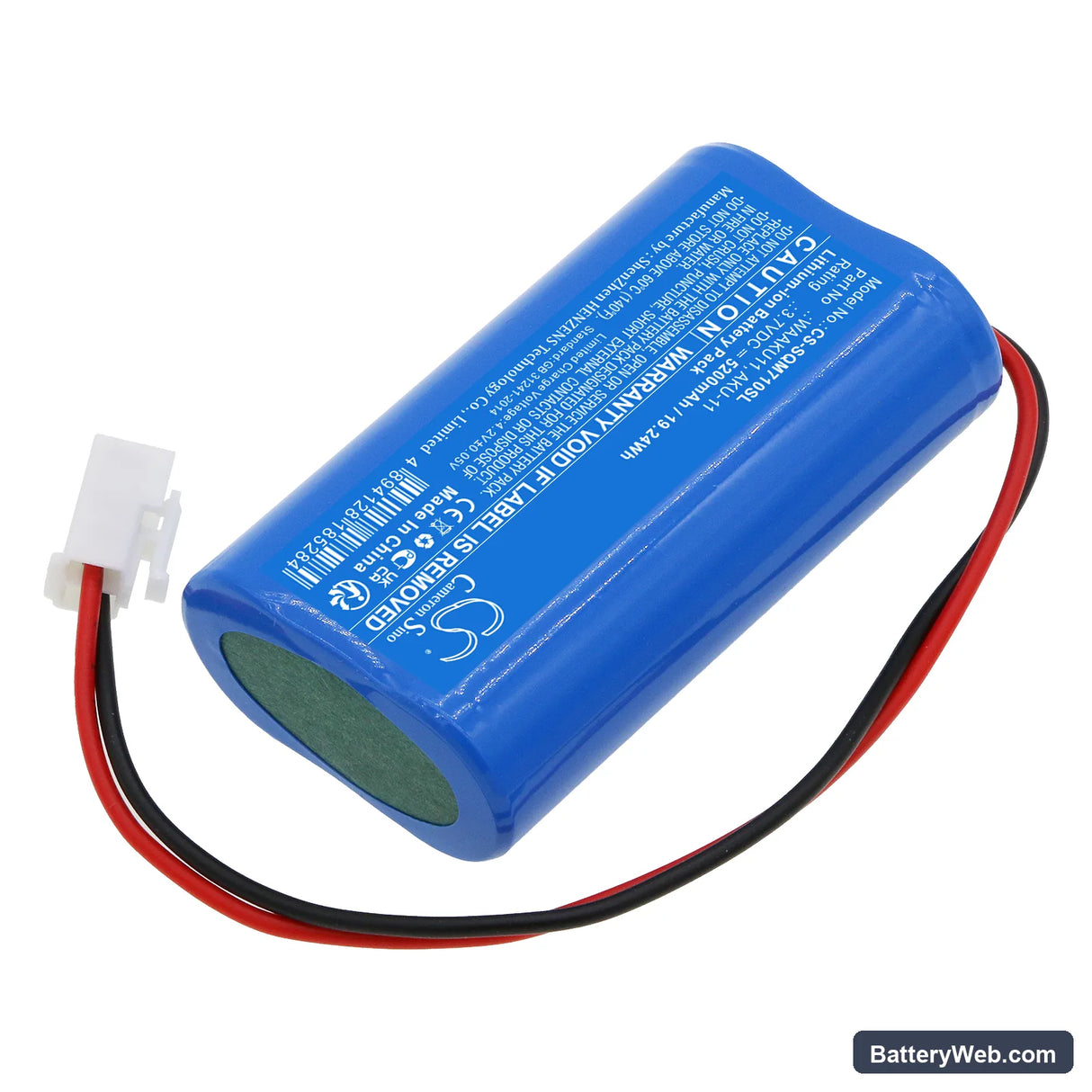

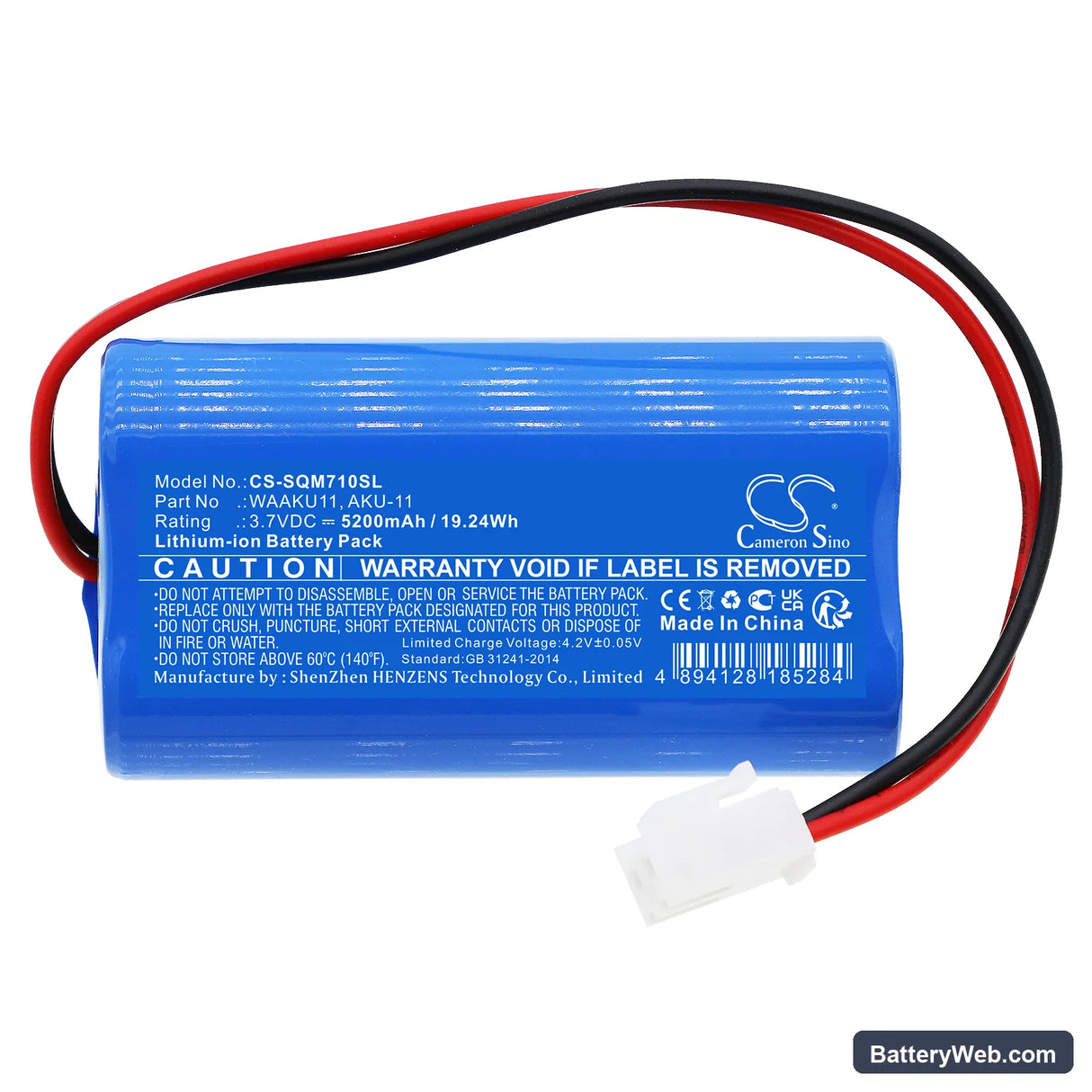

This 3.7V 5200mAh Li-ion pack replaces the original WAAKU11 / AKU-11 battery in the Sonel PQM-711, PQM-710, PQM-703, and PQM-702 power quality analyzers. These instruments are used by electrical contractors and technicians for on-site measurements of voltage, current, harmonics, and power factor in industrial and commercial installations. Capacity is taken directly from product data at 19.24Wh.

• PQM-700 series compatibility: The PQM-702, PQM-703, PQM-710, and PQM-711 share the same battery bay dimensions, connector pinout, and BMS handshake protocol — which is why a single pack covers all four models. Swapping between units in the field carries no electrical risk if the housing seats fully.
• Bench tested on actual hardware: We cycled this pack through probe module initialisation and sustained logging loads on the PQM-711. The BMS held voltage within spec across the full measurement session and did not trip during the current spike at sensor power-up.
• Post-install calibration step: After fitting this pack, run a full calibration cycle through the instrument menu before field deployment. The PQM-711 maps battery state during calibration — skipping this causes premature low-battery warnings to appear during your first measurement session, even with a fully charged pack.

BMS lockout after the PQM-711 sat unused in a carry case for months

Li-ion cells in low-draw instruments self-discharge slowly during storage. If the pack voltage drops below approximately 2.5V per cell, the BMS enters a protective lockout state and the instrument will not power on — even when placed on charge. The charger sees no valid handshake and either shows no indicator or a fault light. To recover the pack, apply a low-current pre-charge using a compatible bench charger that supports trickle mode until cell voltage climbs above 3.0V, at which point the BMS resets and normal charging resumes.

Voltage dropout causing readings to reset or drift mid-logging session

During sustained multi-channel logging — particularly when current probes and voltage inputs are all active — the PQM-711 draws a combined load that can pull cell voltage below the BMS discharge threshold momentarily. The instrument interprets this as a low-battery event, interrupts the logging session, and in some cases resets the display or loses the current measurement record. This is not a firmware fault. Check that the pack is fully charged before a long session and that all probe connectors are fully seated — a loose connection adds resistive load that worsens voltage sag under peak draw.
