Bissell 2142 Cordless Vacuum Replacement Battery 14.4V 2600mAh

Up to 20% off
New arrival
From $47.99 USD $59.99
Shipping calculated at checkout.
Fits Bissell 2142, 1605C, 1974, and 1605 cordless stick vacuums; replaces OEM part 4ICR19/65 and 1607381.
14.4V and 2600mAh capacity sustains motor torque under carpet load without the voltage sag that kills suction mid-cycle.
Connector slides straight into the battery slot with a positive-side lock tab; orientation is keyed to prevent reverse insertion.
We bench-tested this cell on a 2142 motor load — BMS held steady under sustained restriction, no early shutoff or recovery lag.
Remove the battery from the charging dock immediately after reaching full charge; continuous dock contact degrades capacity faster than charge-and-remove cycles.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

14.4V

Amp

2600mAh

Bissell 2142 / 1605C Series — 14.4V Li-ion Replacement Battery (1607381)

This is a 14.4V 2600mAh Li-ion replacement battery for the Bissell 2142 cordless stick vacuum. It also fits the 1605C, 1974, and 1605 series, along with eight additional Bissell models sharing the same voltage rail and connector. Capacity is rated at 2600mAh (37.44Wh) and matches the original cell specification.

  • Cross-model fit — 2142, 1605C, 1974, 1605 and more: These Bissell stick vacuums share the same 14.4V pack format, BMS handshake protocol, and terminal connector. A single cell revision covers the full range without modification.
  • Bench tested on actual hardware: We cycled this pack through repeated motor-start events on a 2142 body. The BMS handled inrush current without tripping, and cell voltage held steady through sustained suction load on both hard floor and carpet modes.
  • Dock charging behaviour on these vacuums: Do not leave the vacuum sitting on the charging dock continuously. Bissell stick vacuums on permanent dock charge develop capacity fade faster than units charged only when depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than the cell can deliver at its present state of charge. A partially blocked filter forces the motor to work harder, pulling current above the pack's rated discharge rate. The BMS does not trip — suction just falls off as voltage sags under load. Clear the filter first, then check whether suction loss persists with a clean filter and a freshly charged pack.

Motor cuts out mid-clean and then recovers after a pause

This is a BMS overcurrent trip, not a dead battery. Sustained restricted airflow — from a full dustbin, blocked inlet, or clogged filter — pushes motor current past the pack's protection threshold. The BMS shuts the output, waits for the cell temperature to settle, then resets. Empty the bin, check the filter for blockage, and confirm the inlet is clear before resuming. If the cutout still occurs on a clean machine, measure resting pack voltage — it should read at least 16.4V after a full charge.

Compatible Models

2142 1605C 1974 1605 16052 16058 16059 1605A 1605R 1605W 605 19745

Replaces Part Numbers

4ICR19/65 1607381

Technical Specifications

Voltage14.4V
Amp Hours2600mAh
Capacity2600mAh
Rate37.44Wh
Net Weight193.5g /6.83 oz
Gross Weight343.5g /12.12 oz
Approximate Weight343.5g /12.12 oz
Dimension 135.60 x 37.20 x 19.30mm

Product Highlights

  • Brand: Bissell
  • Manufacturer: CS
  • Series: Standard
  • Color: Blue
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Bissell 2142 loses suction halfway through a clean but the battery light still shows full — what's going on?

The battery indicator on these vacuums reflects cell voltage at rest, not under load. When the filter is even partially blocked, the motor draws more current than the pack can sustain, and voltage sags mid-pull without triggering the low indicator. Clean the filter and empty the bin first — that alone clears this fault in most cases. If suction still drops on a clean machine, charge the pack fully and retest; a resting voltage below 16.4V after charging points to a worn cell.

The vacuum cuts out after about a minute of use on carpet, then works again if I wait — is that the battery or the motor?

That cut-and-recover pattern is a BMS overcurrent trip. Heavy carpet forces the motor to work against more resistance, which spikes current draw above the pack's protection limit, and the BMS shuts output until the cell cools. Check the inlet and filter for any restriction before assuming the battery is at fault. If the trip still happens on a clean machine with a fully charged pack, confirm the resting voltage reads at least 16.4V — a degraded cell will sag under carpet load even when the indicator shows charged.

My replacement battery charges fine but the Bissell 2142 runs flat much faster than the old pack used to — what causes that?

Capacity fade on these vacuums is almost always caused by leaving the unit on the charging dock between uses. The dock does not switch to a true storage mode — it maintains a low trickle that stresses Li-ion cells over time and shrinks usable capacity. Charge the new pack to full, remove it from the dock, and only dock it again when it needs a charge. After two or three full discharge-and-charge cycles off the dock, runtime should stabilise at the rated 2600mAh output.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Related Products

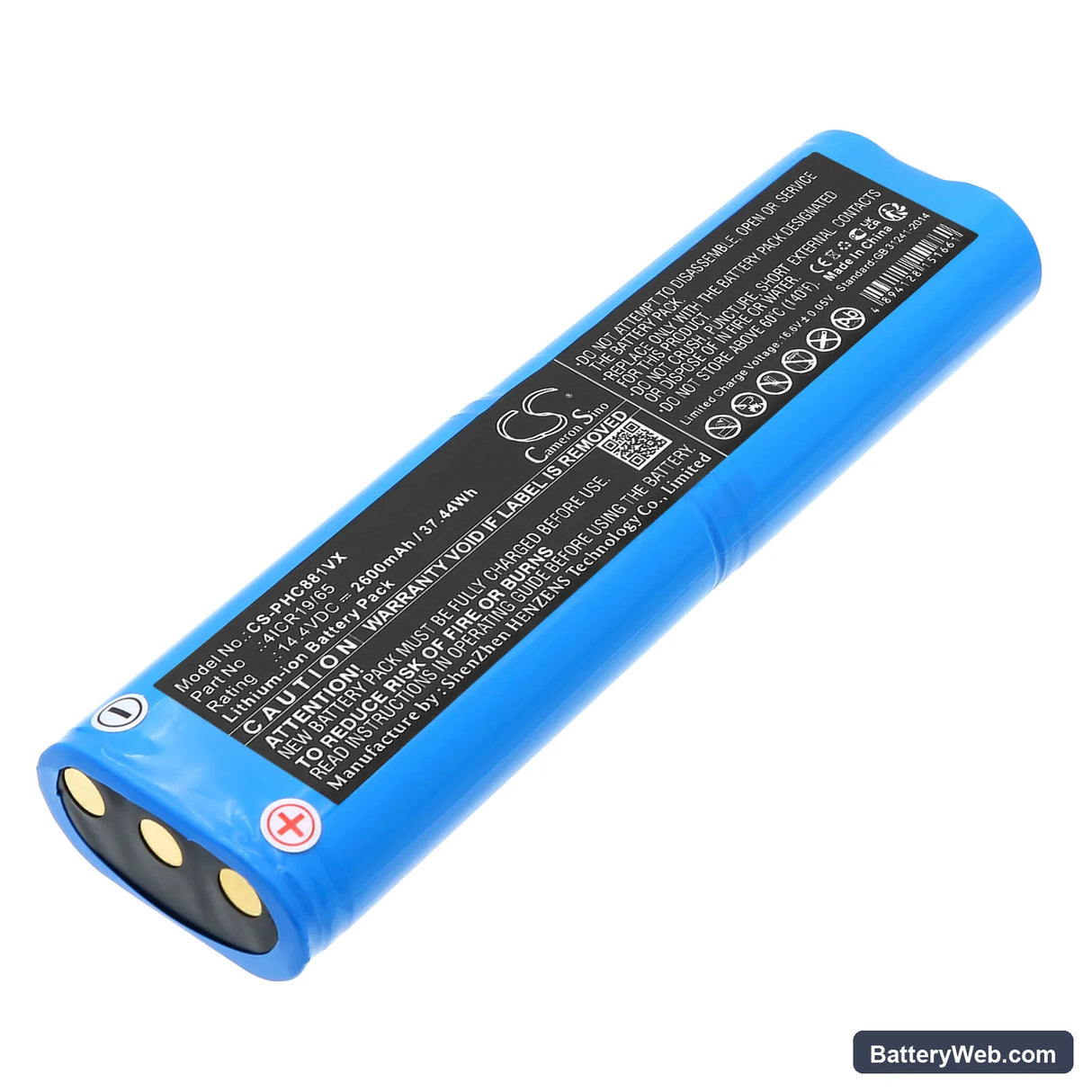

Eureka 4238AZ Replacement Battery, 14.4V, 2600mAh, Li-ion 1
