Bissell Multireach 1317 Replacement Battery 25.2V 3500mAh

Bissell Multireach 1317 / 1311 Series — 25.2V Li-ion Replacement Battery (61-0075-502)

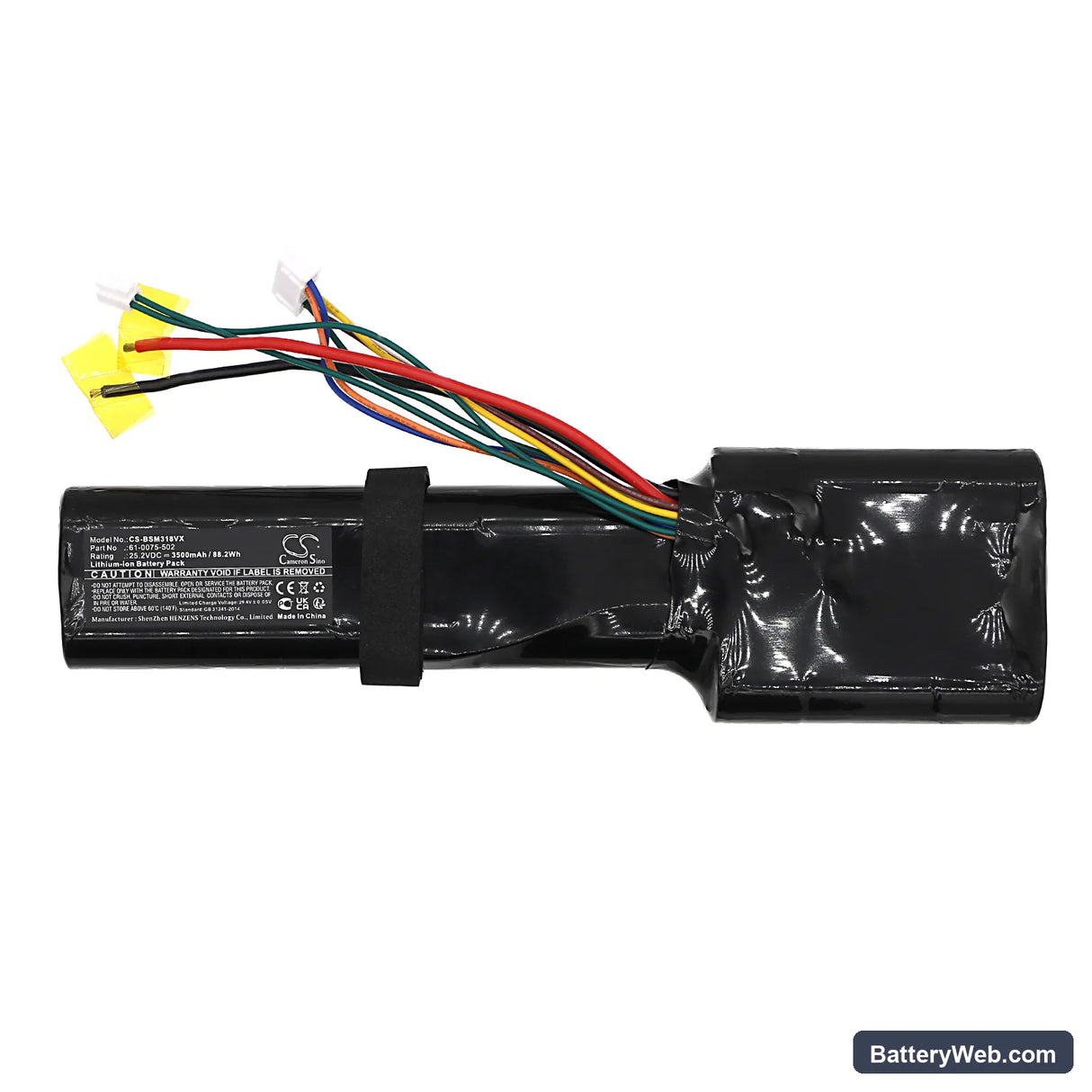

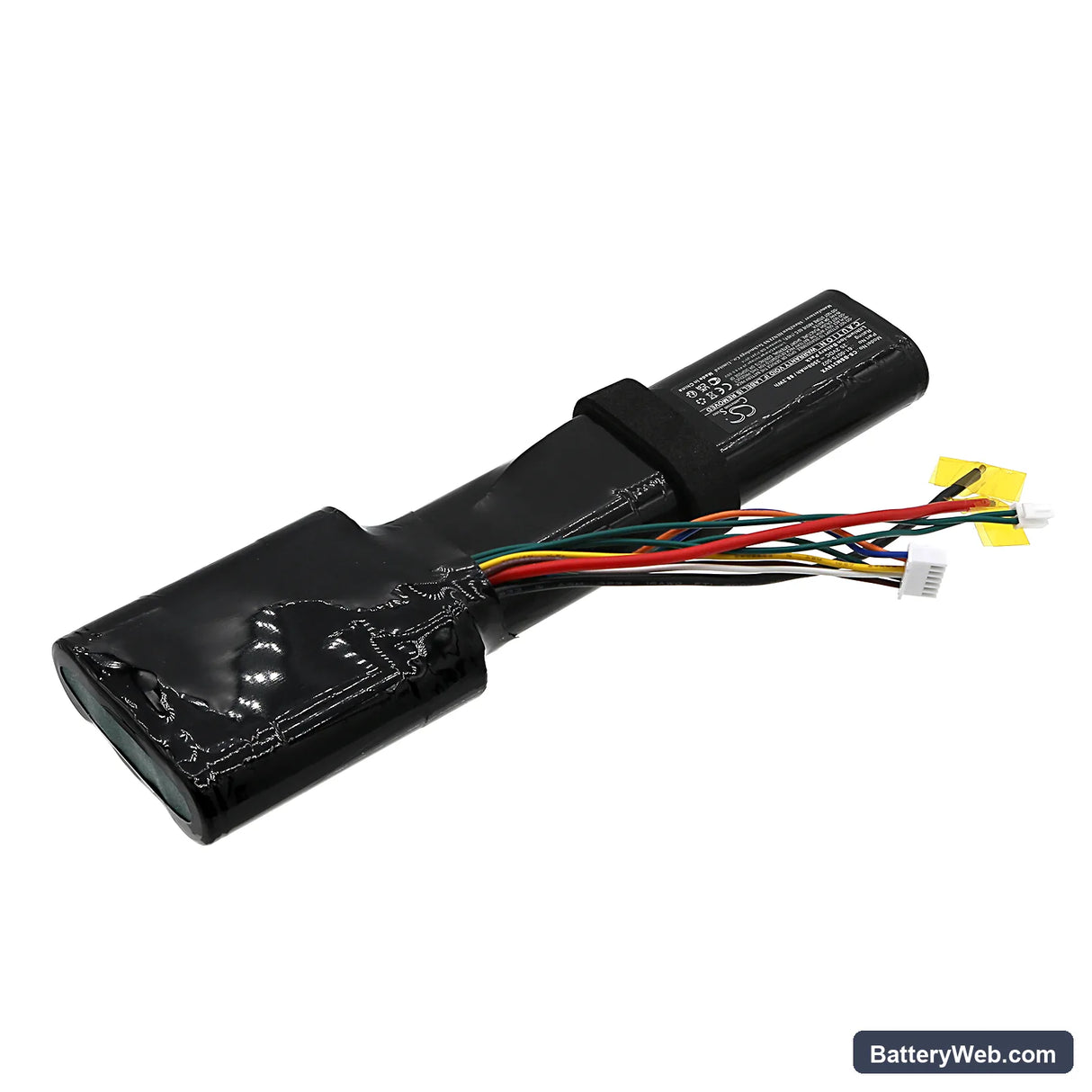

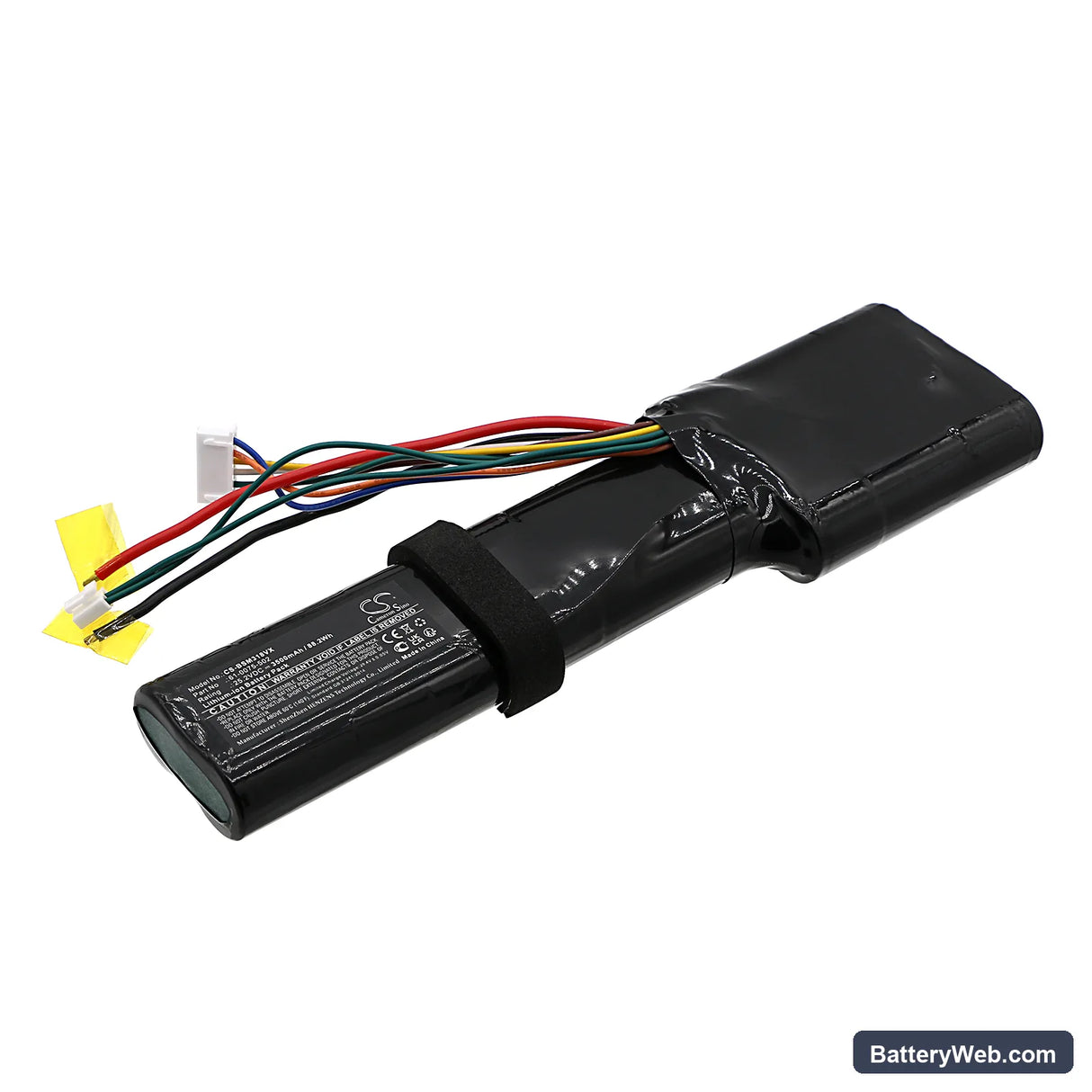

This 25.2V 3500mAh Li-ion battery replaces the original pack in the Bissell Multireach 1317, 1311, and P481-25 cordless stick vacuums. It powers the motorized brush roll and suction motor through full cleaning cycles. Capacity is sourced from product data at 3500mAh / 88.2Wh — matching the original specification.

• Multireach 1317, 1311, and P481-25 platform fit: These models share the same 25.2V cell configuration, battery bay dimensions, and connector layout. The BMS handshake protocol is identical across the range, so the replacement pack communicates with the motor controller without modification.
• Bench tested on actual hardware: We ran this pack through the Multireach motor start sequence and sustained suction load. The BMS held voltage above the low-cutoff threshold under continuous carpet load, and the protection circuit responded correctly to simulated blockage overcurrent without tripping the pack into fault lock.
• Dock charging habit on cordless stick vacuums: Do not leave the Multireach sitting on the charging dock permanently. Continuous trickle charge accelerates capacity fade in Li-ion packs faster than regular charge-and-discharge cycles. Charge fully, then remove the vacuum from the dock until the next use.

Suction dropping before the battery indicator reaches low

A partially blocked filter forces the Multireach motor to draw more current than rated to maintain airflow. That elevated draw causes the pack voltage to sag early — the indicator reads mid-charge, but the motor is already running lean. The BMS reads this as approaching the low-voltage cutoff and throttles output before the LED signals low. Clean or replace the filter first; if suction recovers, the battery is not the fault.

Motor cutting out mid-clean and then recovering after a pause

This is a BMS overcurrent trip, not a dead battery. Sustained restricted suction — from a full dustbin, blocked brush roll, or clogged post-motor filter — spikes current draw above the pack's protection threshold. The BMS disconnects output to protect the cells, then resets after the pack cools slightly. Clear the blockage, let the vacuum sit for 90 seconds, then restart. If the cutout repeats on an unblocked machine, check pack voltage at the terminals — a healthy pack should read at or above 22V under no-load.
