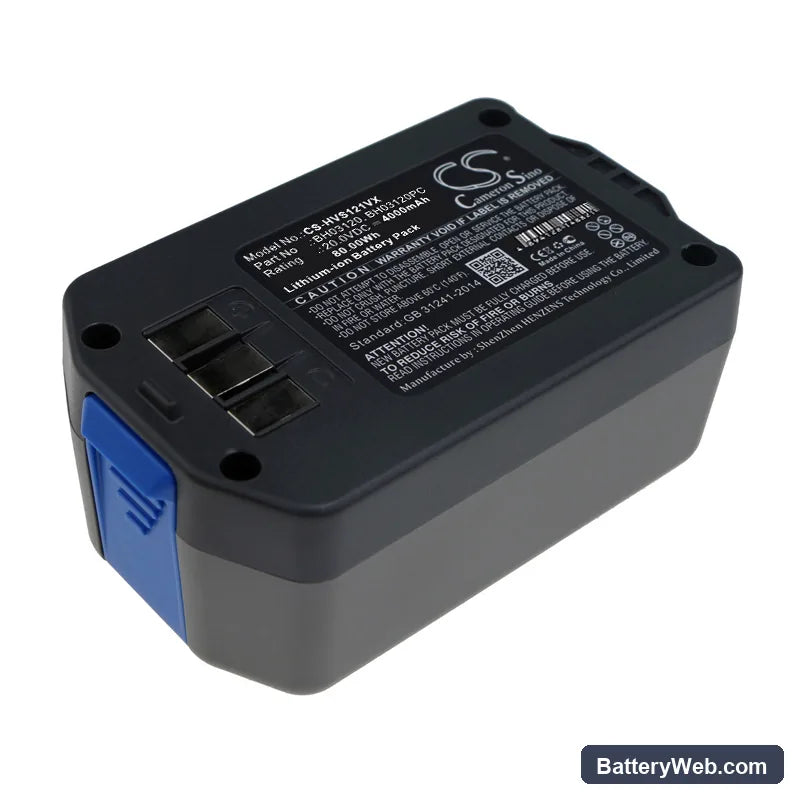

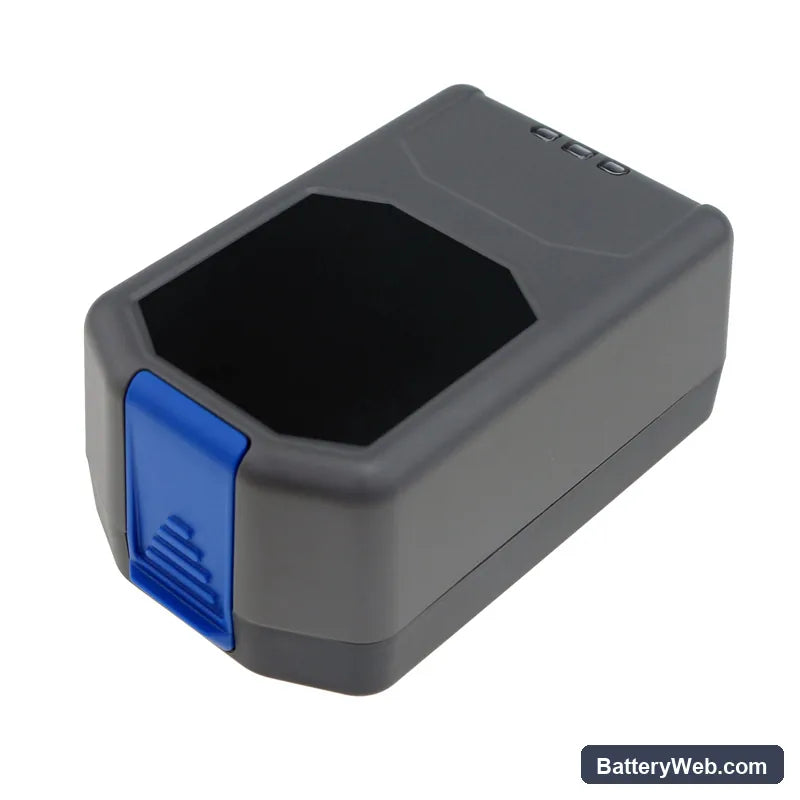

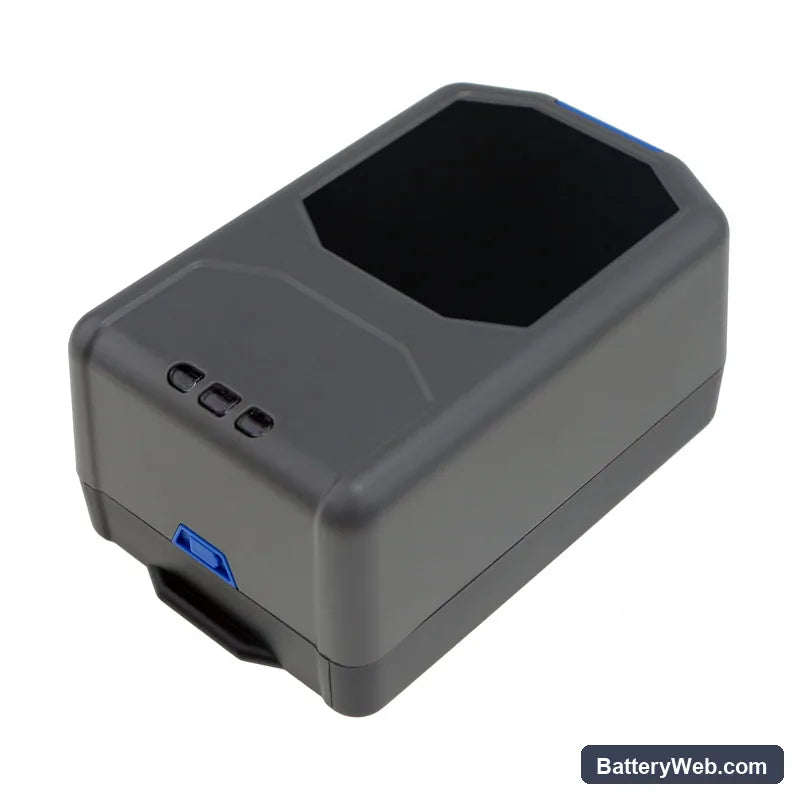

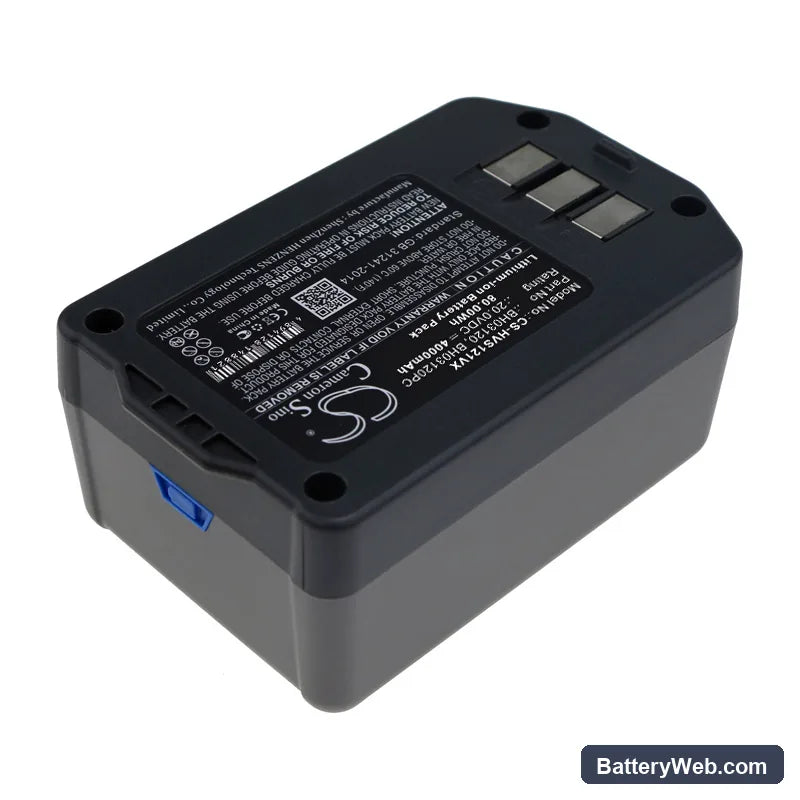

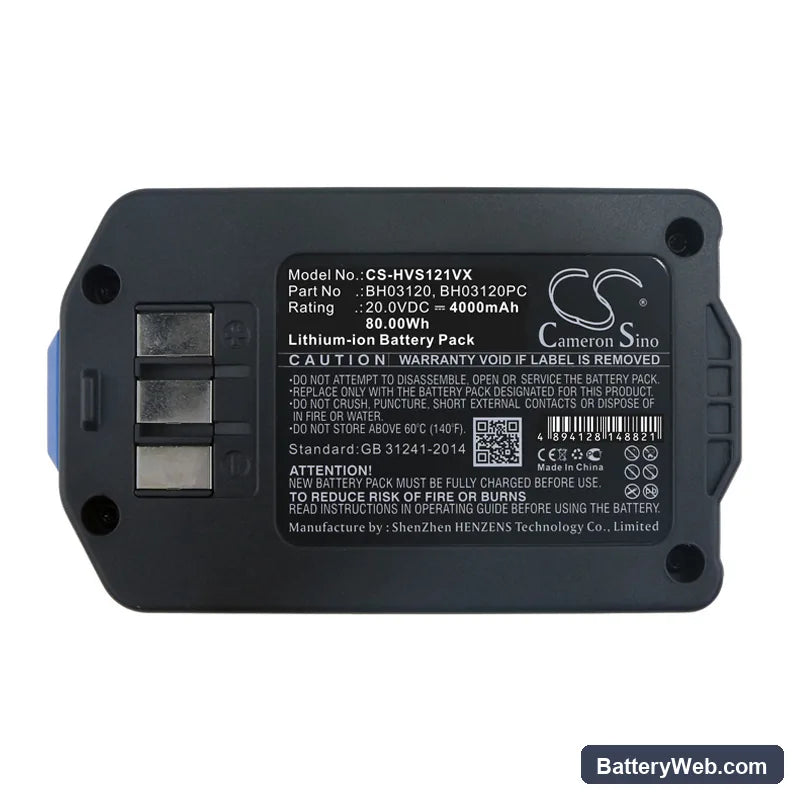

Hoover BH03120 20V Cordless Vacuum Replacement Battery 4000mAh

Hoover Air Cordless 2-in-1 Deluxe Stick — 20V Li-ion Replacement Battery (BH03120)

This 20V 4000mAh (80Wh) Li-ion battery replaces the original pack in the Hoover Air Cordless 2-in-1 Deluxe Stick vacuum cleaner. It fits BH03120, BH03120PC, BH52120PC, BH50140, and over 26 additional models in the Air Cordless range. Capacity figure is taken directly from product specifications — 4000mAh at 20V nominal.

• Air Cordless BH-series compatibility: These models share a common 20V battery architecture, the same connector housing, and a BMS handshake protocol tied to the BH03120 OEM part number. Swapping between BH03120 and BH03120PC variants does not change the electrical interface — the BMS communicates the same state-of-charge data to the vacuum's motor controller either way.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the BH52120PC platform. The BMS correctly signalled low-voltage cutoff at the expected threshold, and the motor controller accepted the pack without fault codes or reduced-power lockout.
• Dock charging behaviour on the BH-series: Remove the vacuum from the charging dock once the indicator shows full. The BH-series dock does not cut trickle charge automatically. Leaving the pack on permanent dock charge accelerates capacity fade faster than normal cycling does.

Suction dropping before the battery indicator reaches low

This is a voltage sag problem, not a capacity problem. When the filter is partially blocked, the motor draws above its rated current to maintain airflow. That elevated draw pulls cell voltage down faster than the indicator expects, so the vacuum loses suction while the gauge still shows charge remaining. Clean or replace the filter first — if suction recovers and the indicator reading stabilises, the battery is not the fault. If sag persists on a clean filter, measure pack voltage under load: a healthy 20V Li-ion cell should hold above 18V during normal motor operation.

Motor cutting out mid-clean and then recovering after a few seconds

This is a BMS overcurrent trip, not a wiring fault. Sustained restricted suction — from a clogged filter or blocked nozzle — forces the motor to draw current beyond the BMS protection threshold. The BMS interrupts the circuit to protect the cells, then resets once current demand drops. The fix is to clear the restriction: check the filter, the nozzle, and the brush roll for blockage. If the motor cuts out on a fully clear airpath, check resting pack voltage — if it reads below 18V after a full charge cycle, the cells are fatigued and replacement is warranted.
