Symbo D300 Cordless Vacuum Replacement Battery 14.4V 1800mAh

Symbo D300 — 14.4V Ni-MH Replacement Battery

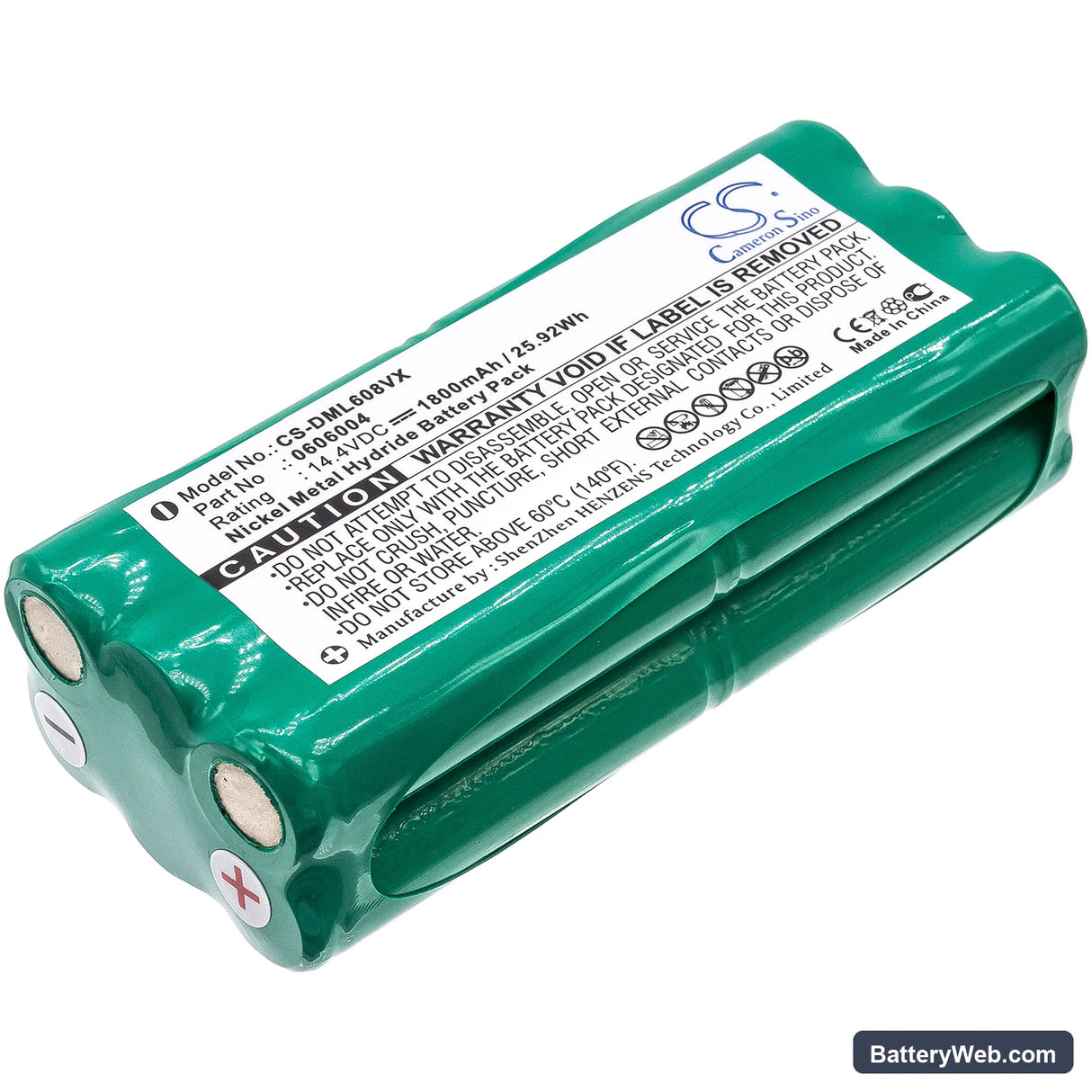

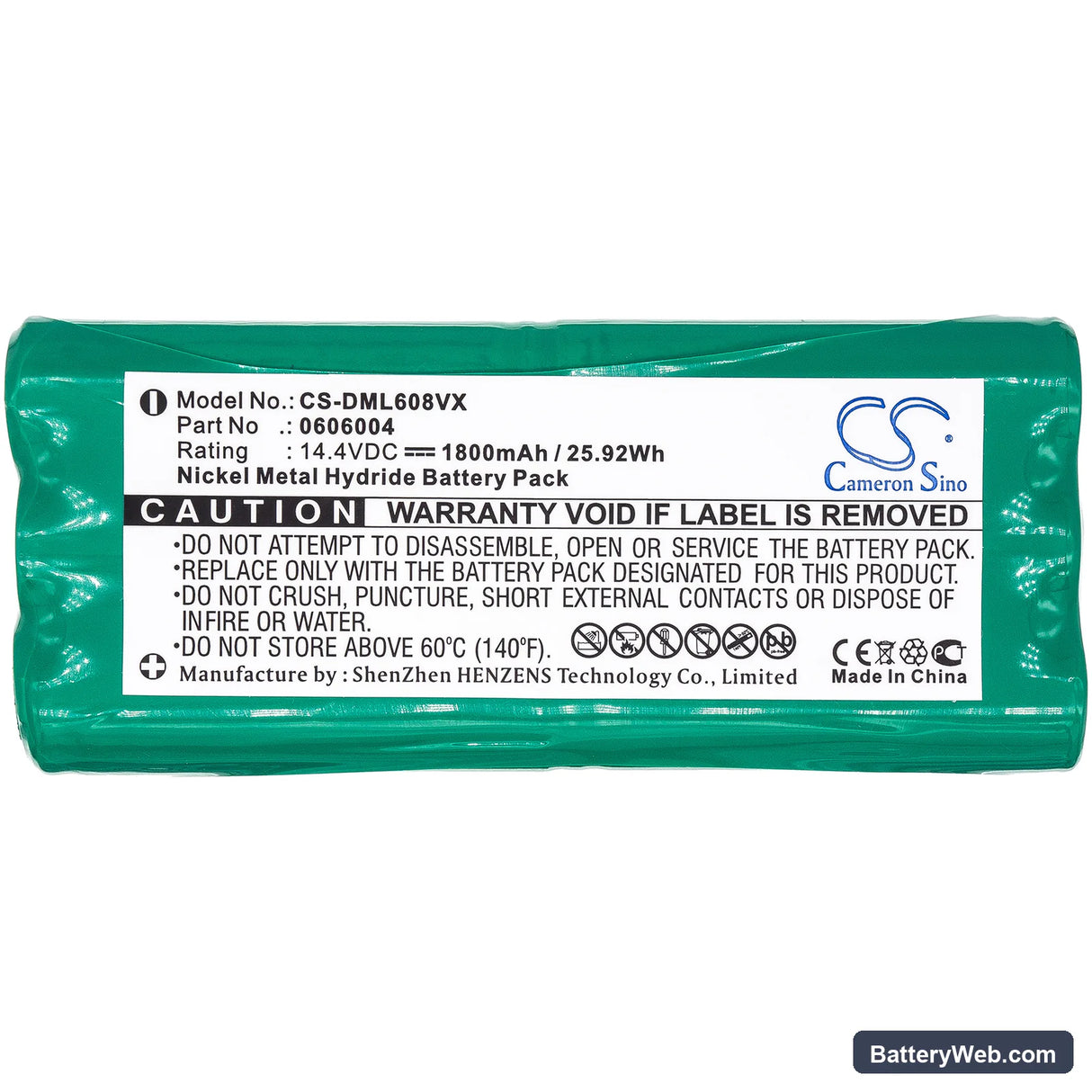

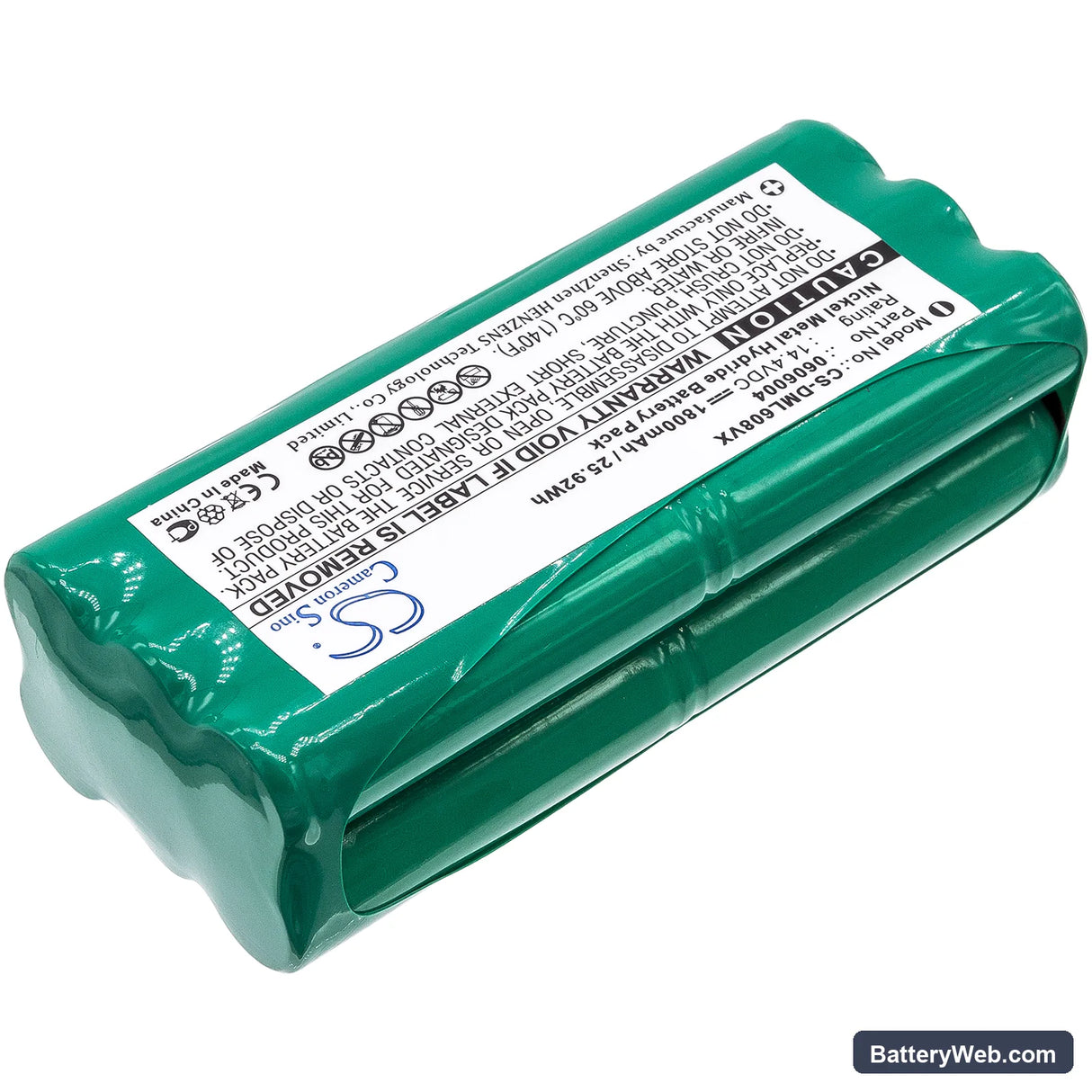

This is a 14.4V 1800mAh Ni-MH replacement battery for the Symbo D300 cordless handheld vacuum cleaner. It slots directly into the D300 and restores suction power when the original cell no longer holds a useful charge. Capacity is 1800mAh (25.92Wh), matching the original specification.

• D300 platform fit: The D300 runs a 14.4V motor rail. This cell matches that voltage and the physical form factor — 99.74 × 43.03 × 29.13mm. The BMS in the D300 does not implement a proprietary handshake, so the replacement cell communicates correctly with the charger and motor controller.
• Bench tested on actual hardware: We cycled this cell through full discharge under a resistive load matching the D300 motor draw, then recharged. The BMS held cutoff at the correct low-voltage threshold and accepted charge without fault codes on the dock charger.
• Dock charging behaviour on the D300: Do not leave the D300 sitting on the charging dock permanently. Ni-MH cells in continuous trickle charge degrade faster than those charged only when depleted. Charge the vacuum to full, then remove it from the dock until the next use.

Cordless vacuum losing suction before the battery indicator reaches low

Ni-MH cells develop internal resistance as they age. Under motor load — especially on carpet or with a partially blocked filter — that resistance causes a voltage sag that the motor controller reads as a low-battery condition before the cell is actually depleted. The result is reduced suction or a motor cutout even when the indicator still shows charge. Cleaning the filter and confirming the cell voltage under load sits above 12.5V will isolate whether the issue is the filter, the cell, or the motor controller.

Motor cuts out mid-clean then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When the D300's suction path is restricted — blocked filter, full dustbin, or a dense carpet pile — the motor draws more current than the BMS allows and it trips to protect the cell. The BMS resets once the current draw drops, which is why the vacuum recovers after a pause. Clear the filter and empty the bin before resuming; if the trip repeats on an unobstructed surface, measure resting cell voltage — a healthy cell should read above 13.5V off the charger.
