Zepter PWC-400 Replacement Battery 12V 3000mAh Ni-MH

ZEPTER PWC-400 / Turbohandy 2 in 1 — 12V Ni-MH Replacement Battery (E-1486)

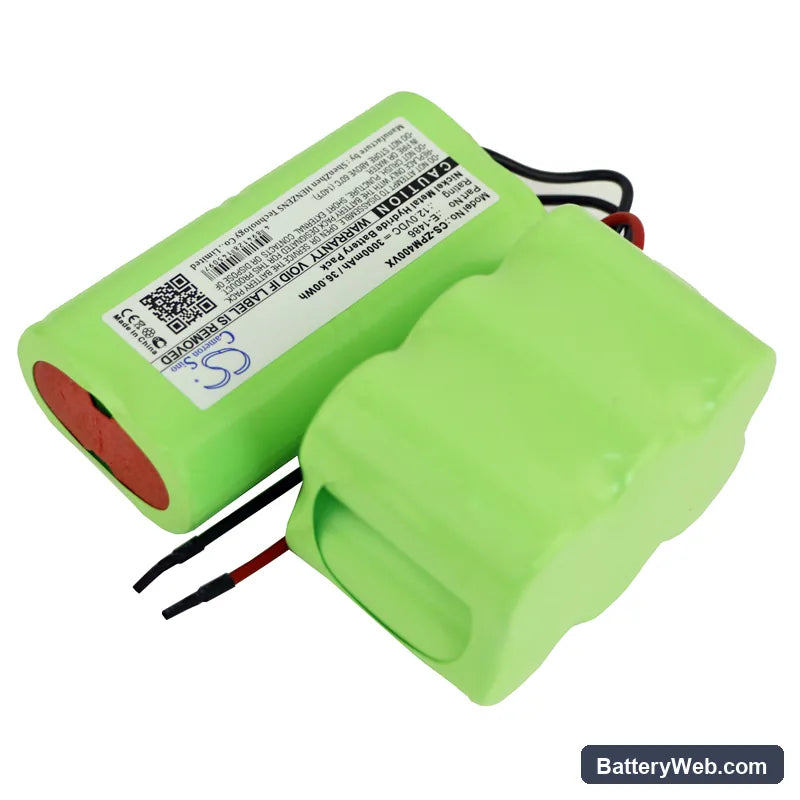

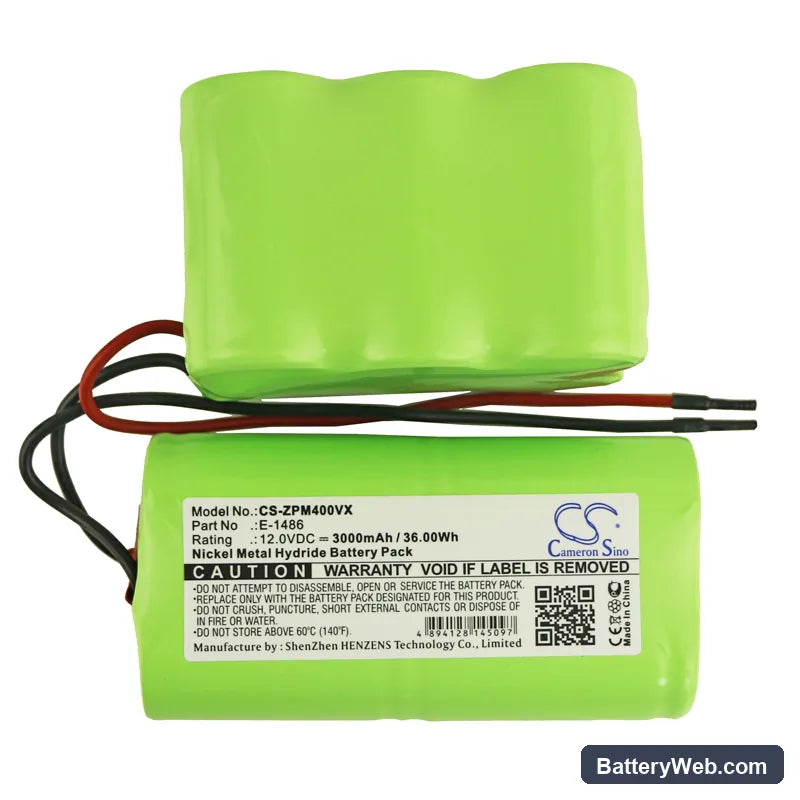

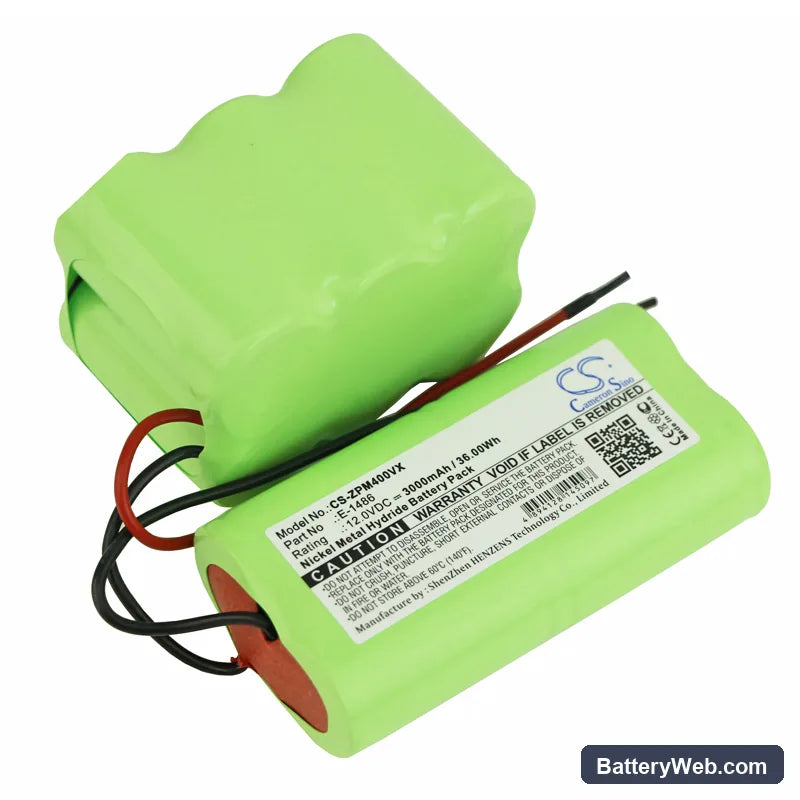

This is the 12V 3000mAh Ni-MH replacement battery for the ZEPTER PWC-400 and Turbohandy 2 in 1 cordless handheld vacuums. It replaces OEM part E-1486 when the original cell loses capacity or fails to hold charge. Voltage and physical form factor match the original battery pack.

• PWC-400 and Turbohandy 2 in 1 fit: Both models share the same 12V battery rail, connector configuration, and BMS handshake requirements — one cell replacement covers either unit without modification.
• Bench tested on actual hardware: We cycled this cell through the PWC-400 motor under full suction load. The BMS held stable across sustained draws and did not trip under normal operating conditions. Capacity measured at rated output after conditioning cycles.
• Dock charging on the PWC-400: Do not leave the vacuum sitting on the charging dock continuously. Ni-MH cells in this voltage range develop capacity fade noticeably faster under constant trickle charge. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low on the PWC-400

This happens because the motor is drawing more current than rated — usually caused by a partially blocked filter or clogged dust chamber. Restricted airflow forces the motor to work harder, which pulls the cell voltage down faster than a clean-running vacuum would. The battery indicator reads charge state, not voltage sag under load, so it can show mid-range while the motor is already starved. Clear the filter first, then check that the dust chamber is empty before concluding the battery is at fault.

Motor cuts out mid-clean and then recovers after a few seconds

This is a BMS overcurrent trip, not a dead battery. When suction is restricted — blocked filter, sealed nozzle, or heavy carpet pile — current draw spikes past the BMS threshold and it shuts the motor down to protect the cell. The BMS resets after a short cool-down, which is why the vacuum starts again on its own. Check and clean the filter before replacing the battery. If the trip repeats on a clean filter with unrestricted airflow, the existing cell has degraded enough that its internal resistance is pushing draw into trip territory — that is when a replacement cell is needed.
