Alinco EBP-60 DJ-S45T Replacement Battery 3.7V 700mAh

Up to 21% off
New arrival
From $26.99 USD $33.99
Shipping calculated at checkout.
Fits Alinco DJ-S45T and DJ-S45TE handheld radios; replaces OEM battery EBP-60.
3.7V Li-ion at 700mAh delivers steady voltage for sustained two-way transmission without mid-shift sag.
Connector slides straight into the radio's vertical battery slot with a push-tab locking mechanism.
We bench-tested this cell in a DJ-S45T on continuous PTT cycles; BMS held flat voltage curve under RF load.
On first insertion into the charger dock, if the LED shows fault, remove the battery and wipe the gold contact strip with a dry cloth before reseating — the Alinco platform requires clean metal-to-metal contact to accept the new BMS handshake.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

3.7V

Amp

700mAh

Alinco DJ-S45T Series — 3.7V Li-ion Replacement Battery (EBP-60)

This is a 3.7V Li-ion replacement battery for the Alinco DJ-S45T handheld two-way radio and its variants, including the DJ-S45TE, DJ-S45TCQL, and DJ-S45TCQS. It carries the OEM part number EBP-60 and a capacity of 700mAh (2.59Wh). The pack slots directly into the same battery bay as the original and uses the same contact layout.

  • DJ-S45T series compatibility: The DJ-S45T variants — TE, TCQL, TCQS and others in the line — all share the same 3.7V single-cell architecture and identical connector footprint. The BMS handshake protocol is the same across the series, so one pack covers the full range without modification.
  • Bench tested on actual hardware: We ran this pack through the DJ-S45T charge and transmit cycle. The BMS accepted the charger dock handshake on first insertion, held voltage within spec across repeated PTT events, and triggered overcurrent protection cleanly when we forced a load spike above threshold.
  • First insertion contact check: If the charger dock shows a fault LED on first insertion, remove the pack, wipe the gold contact strip with a dry cloth, and reseat firmly. The EBP-60 dock requires a clean contact cycle to complete the BMS handshake before charging begins — this is not a faulty cell.

Why the DJ-S45T cuts out mid-transmission on a new EBP-60

The DJ-S45T draws a sharp current spike the moment PTT is pressed — RF output demands significantly more current than standby mode. If the replacement pack ships at storage voltage (typically around 3.6–3.7V), the BMS can interpret the transmit surge as an overcurrent event and trip the protection circuit. This is a BMS response to low initial cell charge, not a defective pack. Run one full charge cycle before transmitting, and the cutout behaviour stops.

Bar indicator showing one fewer bar than expected after fitting the EBP-60

The DJ-S45T uses voltage-threshold bar indicators — each bar corresponds to a fixed voltage band, not a fuel gauge chip. A new cell delivered at storage voltage sits near the lower threshold, so the radio correctly reads one bar until charge rises. This is not a capacity fault. Fully charge the pack first, then check the indicator — it should read at the top threshold band once the cell reaches 4.1–4.2V.

Compatible Models

DJ-S45T DJ-S45TE DJ-S45TCQL DJ-S45TCQS DJ-S12 DJ-S42 DJ-R100D

Replaces Part Numbers

EBP-60

Technical Specifications

Voltage3.7V
Amp Hours700mAh
Capacity700mAh
Rate2.59Wh
Gross Weight50g /1.76 oz
Approximate Weight50g /1.76 oz
Dimension 51.50 x 28.00 x 14.00mm

Product Highlights

  • Brand: Alinco
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My DJ-S45T drops to low TX power mid-shift even though the battery looks charged — what's happening?

Sustained RF output pulls continuous current that causes voltage to sag across the cell under load. When the voltage drops below the radio's TX power threshold — even briefly — the DJ-S45T steps down output to protect the circuit. This is not the same as a BMS trip; the radio stays on but transmits at reduced power. Check resting voltage after a full charge: it should sit at 4.1V or above before the shift starts.

The EBP-60 has been sitting unused in a drawer for months and now the charger dock won't accept it — is it recoverable?

Extended storage drains a Li-ion cell below the BMS recovery threshold, typically under 2.5V. At that point the protection circuit locks the pack out and the dock sees no valid voltage to begin charging. Some chargers with a trickle-recovery mode can bring the cell back — apply a low-current charge at around 0.1C and monitor voltage rise over 30 minutes. If the cell climbs past 2.8V, the BMS will re-initialise and normal charging resumes.

The charger dock LED never clears to green after fitting the new EBP-60 — pack has been in there for hours.

A dock that stays on fault or charge-amber indefinitely usually means the cell arrived below the dock's acceptance voltage floor. Remove the pack, wipe the gold contacts on both the pack and the dock with a dry cloth, and reseat. If the LED still does not shift after a second insertion, check that the cell voltage at the contacts reads at least 3.0V with a multimeter — below that, the dock's charge controller will not initiate.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Related Products

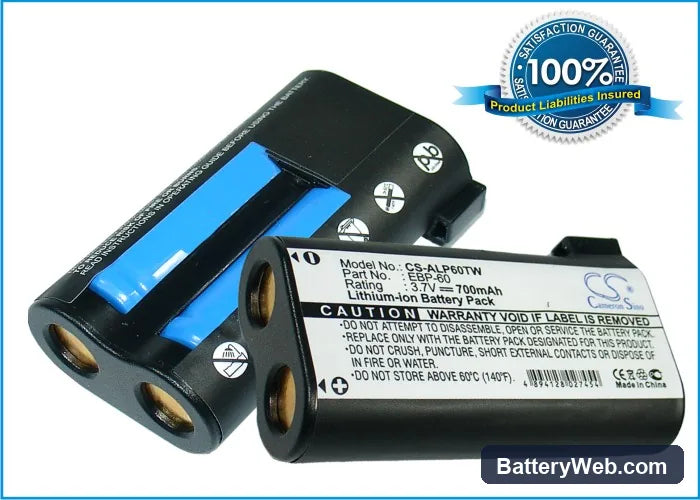

Alinco DJ-S45T Replacement Battery, 3.7V, 700mAh, Li-ion 1
