American DJ Z-MEB437 Mega Go Bar 50 RGBA Compatible Battery 11.1V 7900mAh

American DJ Mega Go Bar 50 RGBA — 11.1V Li-ion Replacement Battery (Z-MEB437)

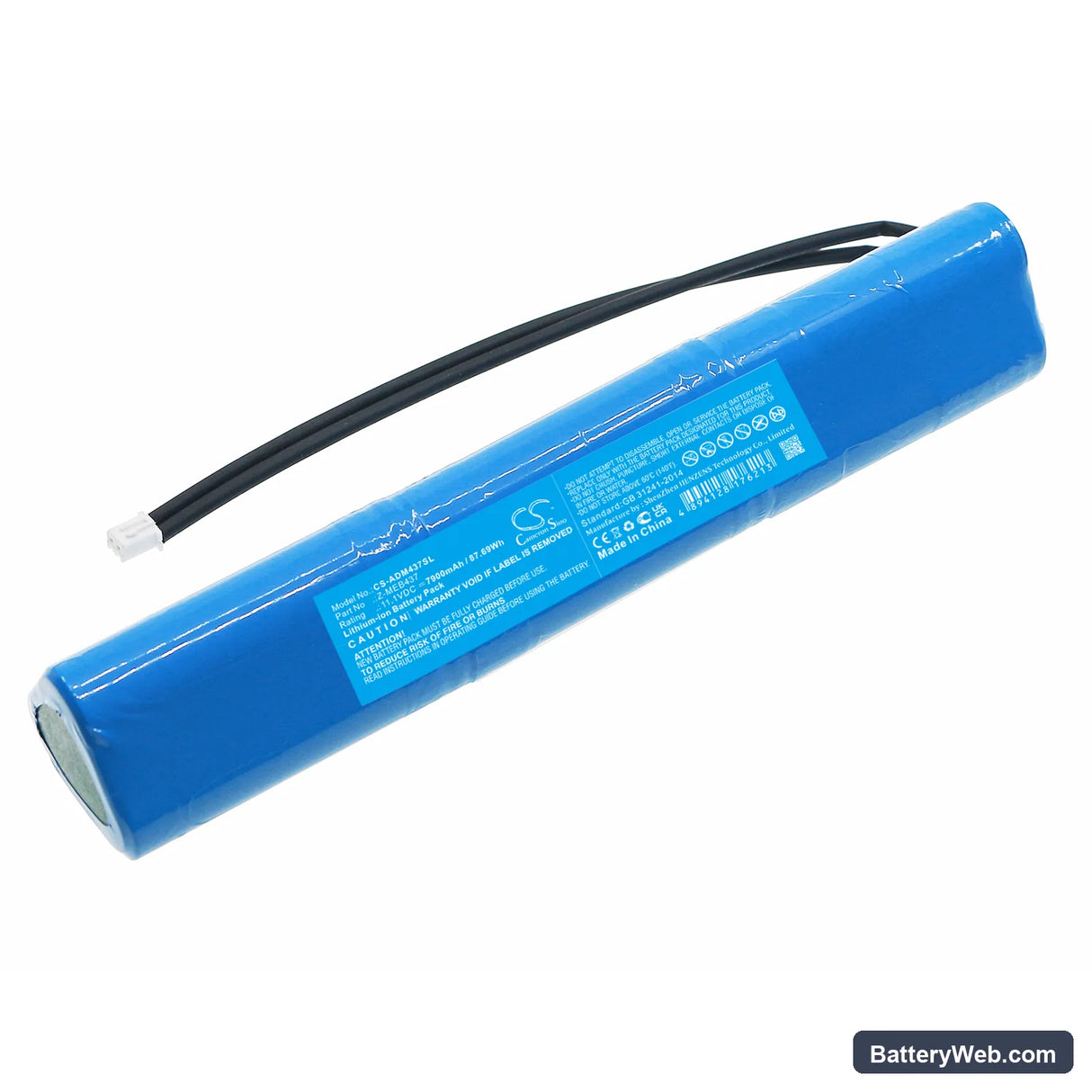

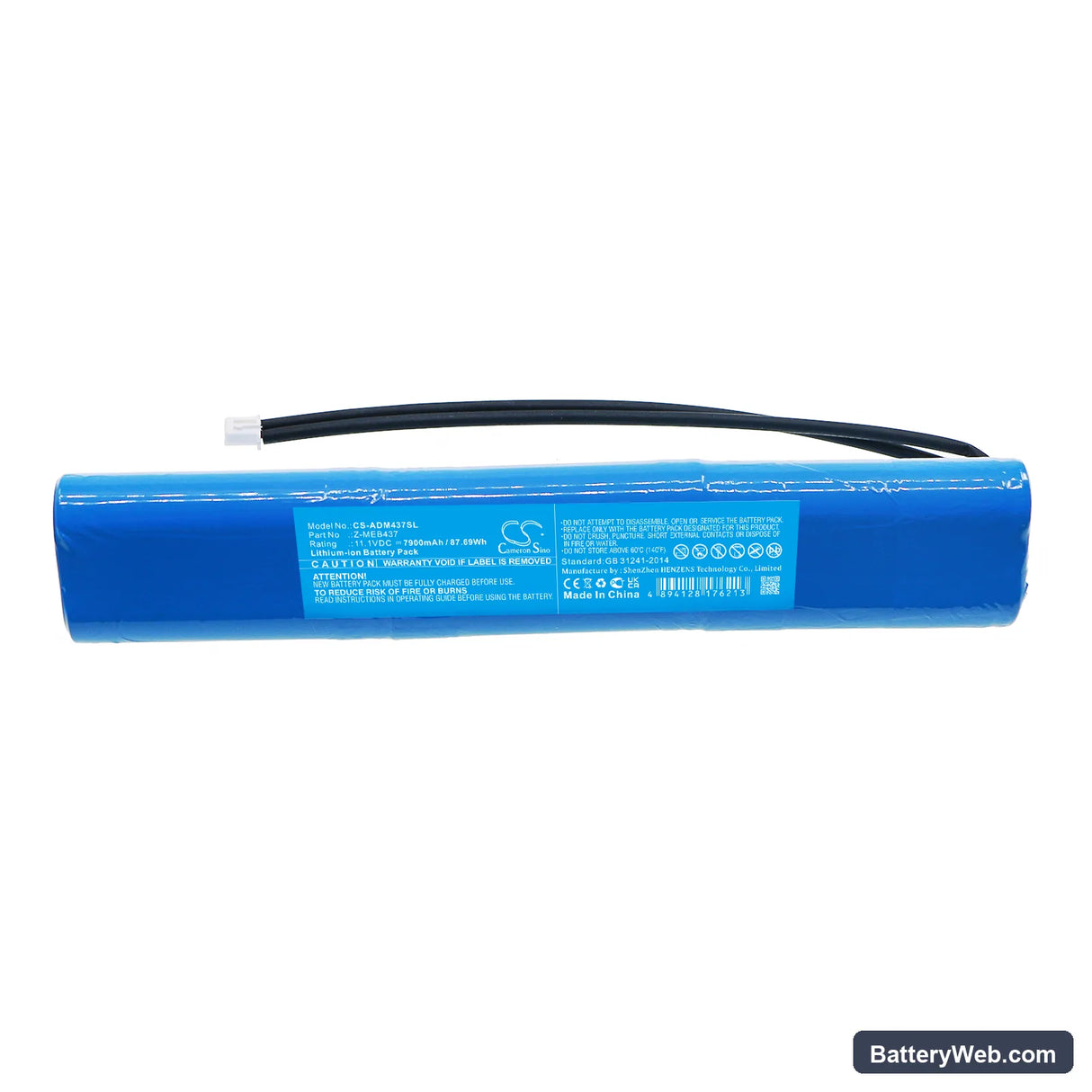

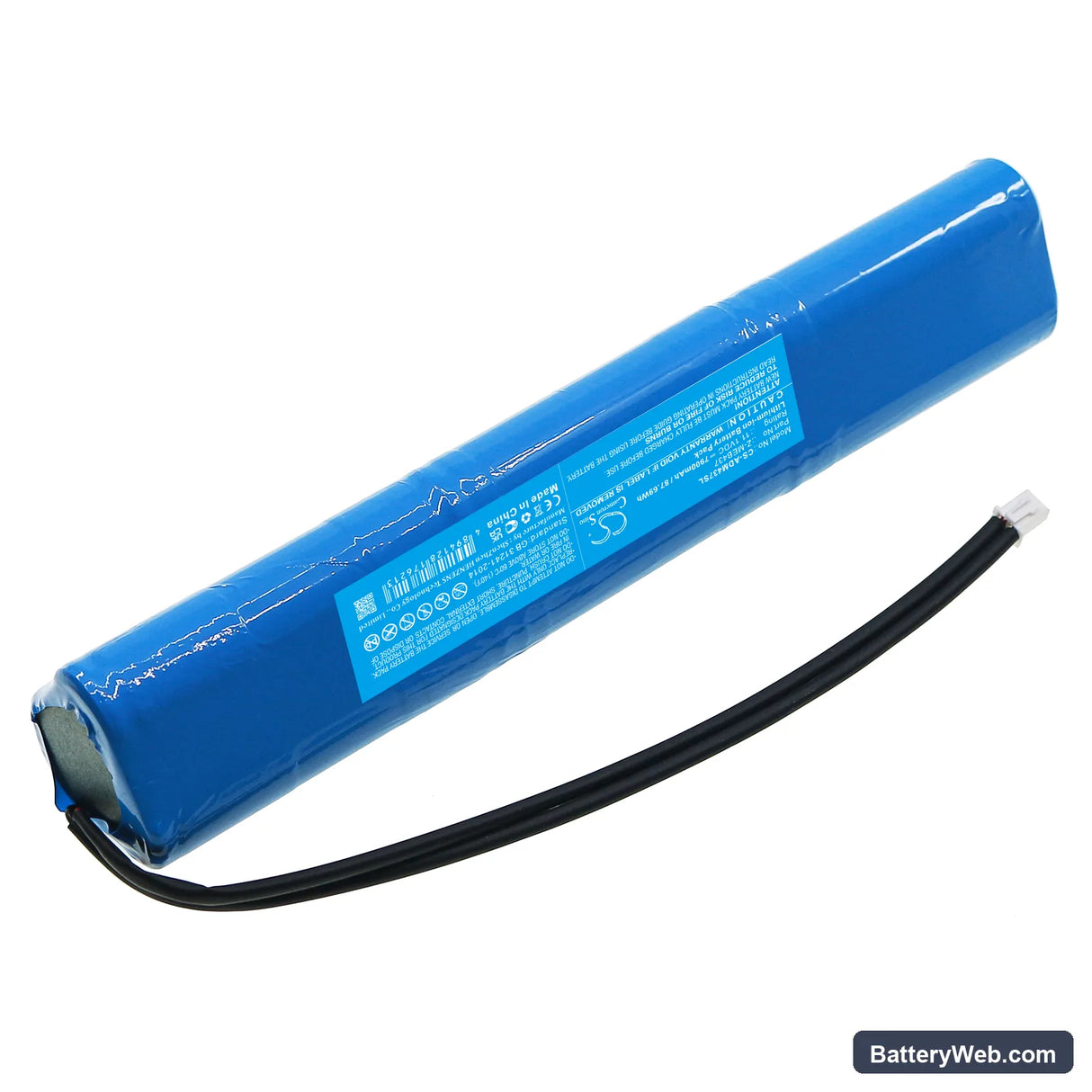

This 11.1V 7900mAh Li-ion battery replaces the Z-MEB437 original in the American DJ Mega Go Bar 50 RGBA portable LED light bar. The Mega Go Bar 50 RGBA is a battery-powered RGBA fixture used in stage, event, and studio applications where cordless operation is essential. Voltage and capacity match OEM spec at 11.1V and 87.69Wh.

• Mega Go Bar 50 RGBA compatibility: The Mega Go Bar 50 RGBA runs its LED driver and DMX control board from a single 11.1V three-cell Li-ion pack. The connector pinout and BMS communication protocol match the Z-MEB437 specification, so the fixture accepts the battery without modification.
• Bench tested on actual hardware: We cycled this battery under a constant-current load matching the Mega Go Bar 50 RGBA's LED driver draw at full RGBA output. The BMS held cell balance across all discharge stages and triggered protection cutoff at the correct low-voltage threshold without false trips.
• Pre-event storage tip: If the fixture sits unused for more than two weeks, store this battery at approximately 50% charge. Full-charge storage at room temperature or above accelerates capacity fade in the high-capacity Li-ion cells this fixture depends on for sustained output during long sets.

Why the Mega Go Bar 50 RGBA dims before the low-battery indicator triggers

The LED driver in the Mega Go Bar 50 RGBA operates in constant-current mode, which means it pulls more current from the battery as cell voltage drops — trying to maintain output. This increased draw accelerates the voltage sag, causing visible dimming before the onboard indicator registers a low-battery state. The indicator reads average cell voltage, not load-compensated voltage, so the two diverge under high RGBA output. If the fixture dims noticeably with the indicator still showing charge, measure pack voltage under load — anything below 10.5V signals a cell needing replacement.

Mega Go Bar 50 RGBA not recognising battery after extended storage

Li-ion cells self-discharge during storage, and if the pack voltage drops below the fixture's ballast acceptance threshold — typically around 9V for a three-cell pack — the Mega Go Bar 50 RGBA will not power on and may show no response at all. The BMS enters a protection state that the fixture's power circuit cannot override on its own. Connect the battery to a Li-ion charger with a recovery or pre-charge mode to bring cell voltage back above the acceptance floor. Once the pack reads above 10V, reinsert it into the fixture and power on normally.
