Anbernic RG353P FL535284 Replacement Battery 3.8V 3800mAh

Anbernic RG353P Retro — 3.8V Li-Polymer Replacement Battery (FL535284)

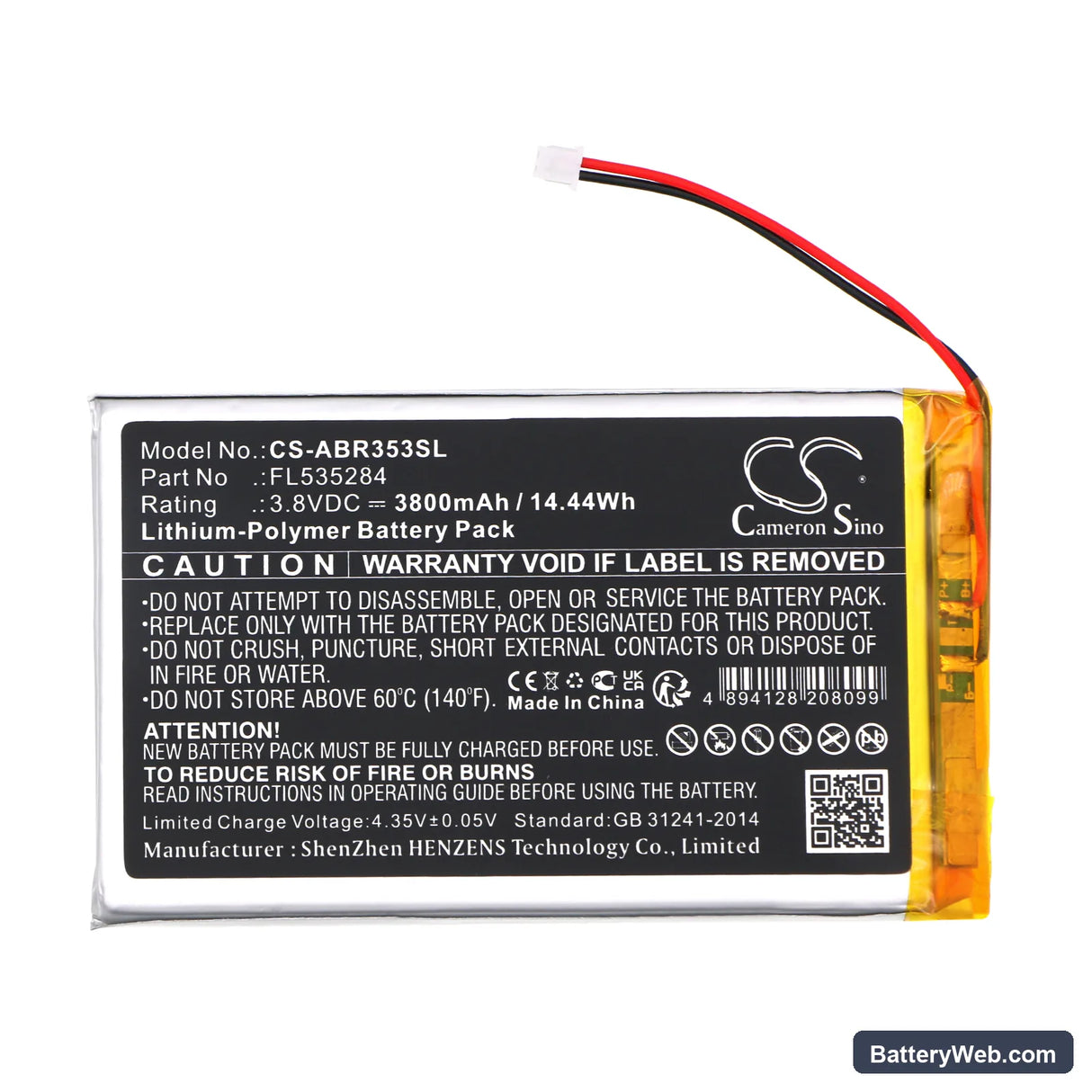

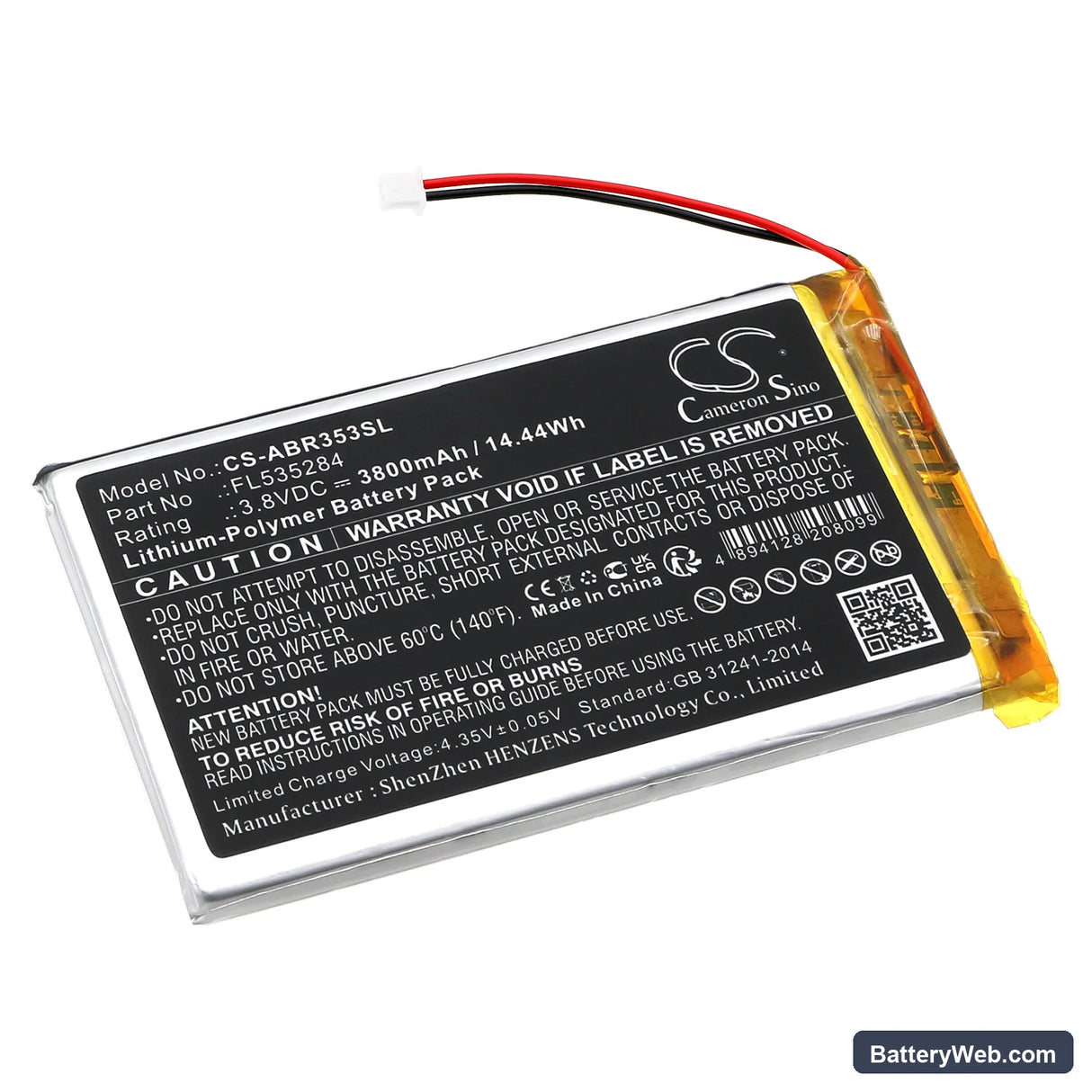

This 3.8V, 3800mAh lithium-polymer cell replaces the original FL535284 battery in the Anbernic RG353P Retro handheld game console. It matches the stock cell's dimensions at 84.20 x 50.30 x 5.30mm and drops into the same battery bay without modification. Voltage and capacity come from the product data — 3800mAh, 14.44Wh.

• RG353P platform fit: The RG353P runs a 3.8V nominal rail tied directly to the PMIC. Any cell outside that voltage spec forces the PMIC into a protective hold. This replacement matches that rail, so the charge controller handshake proceeds normally on first connect.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the RG353P platform and logged the BMS charge-termination voltage. The protection circuit cut in at the correct threshold — no runaway, no premature cutoff at the top of charge.
• Fuel gauge calibration on first install: After fitting this cell, run one complete play session to automatic shutoff before recharging. The RG353P's fuel gauge IC sets its empty reference point against the first full discharge. Skipping this step causes the percentage indicator to jump erratically for several sessions.

Handheld console fuel gauge jumping after cell swap

The RG353P uses a coulomb-counting fuel gauge IC that learns the cell's discharge curve over the first few cycles. When a new cell goes in, the IC's stored curve no longer matches the actual cell chemistry, so the percentage reading skips — often dropping 20–30% in a single jump. This is not a faulty battery. The IC recalibrates itself across three to five full discharge-and-charge cycles, after which the displayed percentage tracks the true state of charge accurately. Force the first calibration by letting the console run to automatic cutoff rather than manually switching it off.

Console not charging the replacement cell at full rate

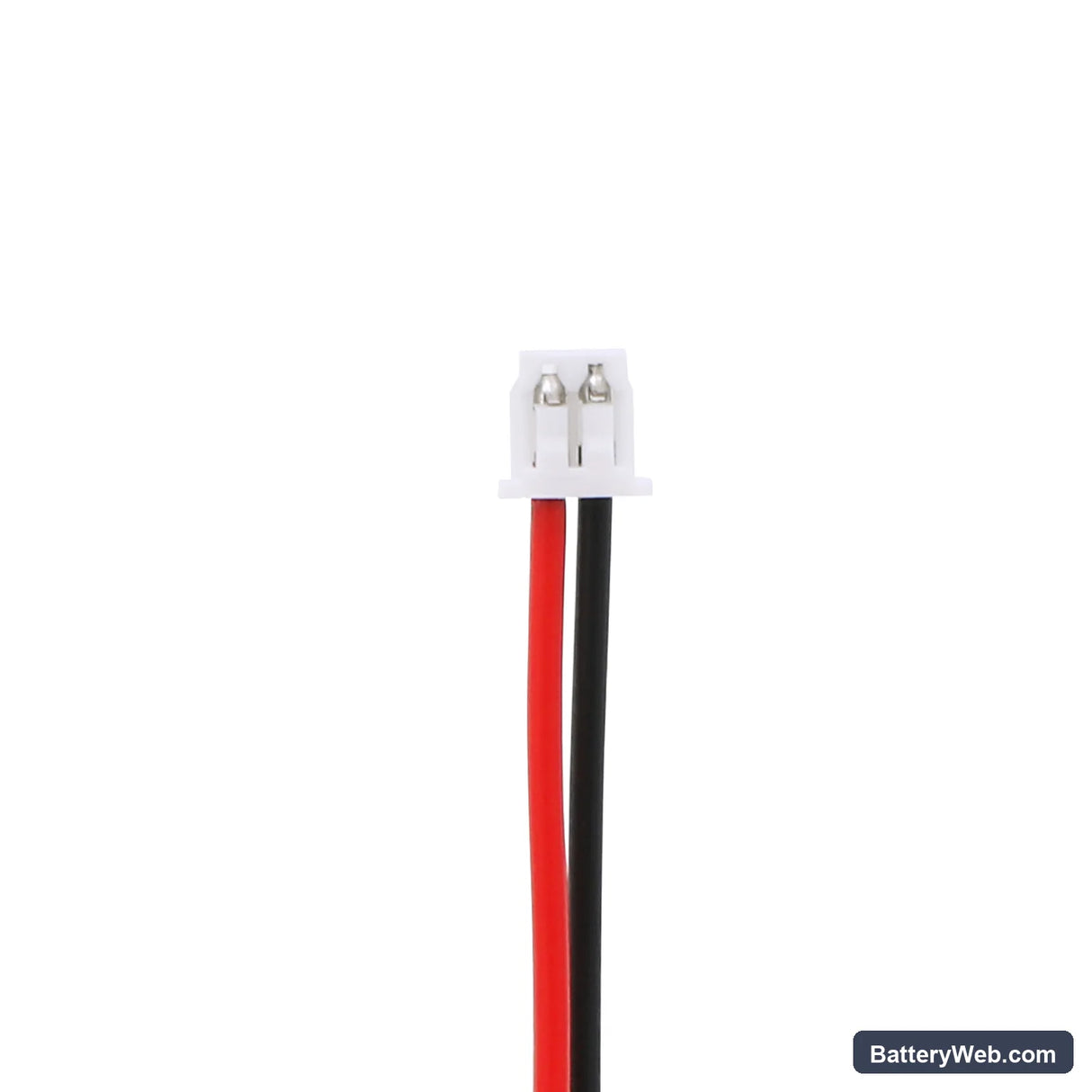

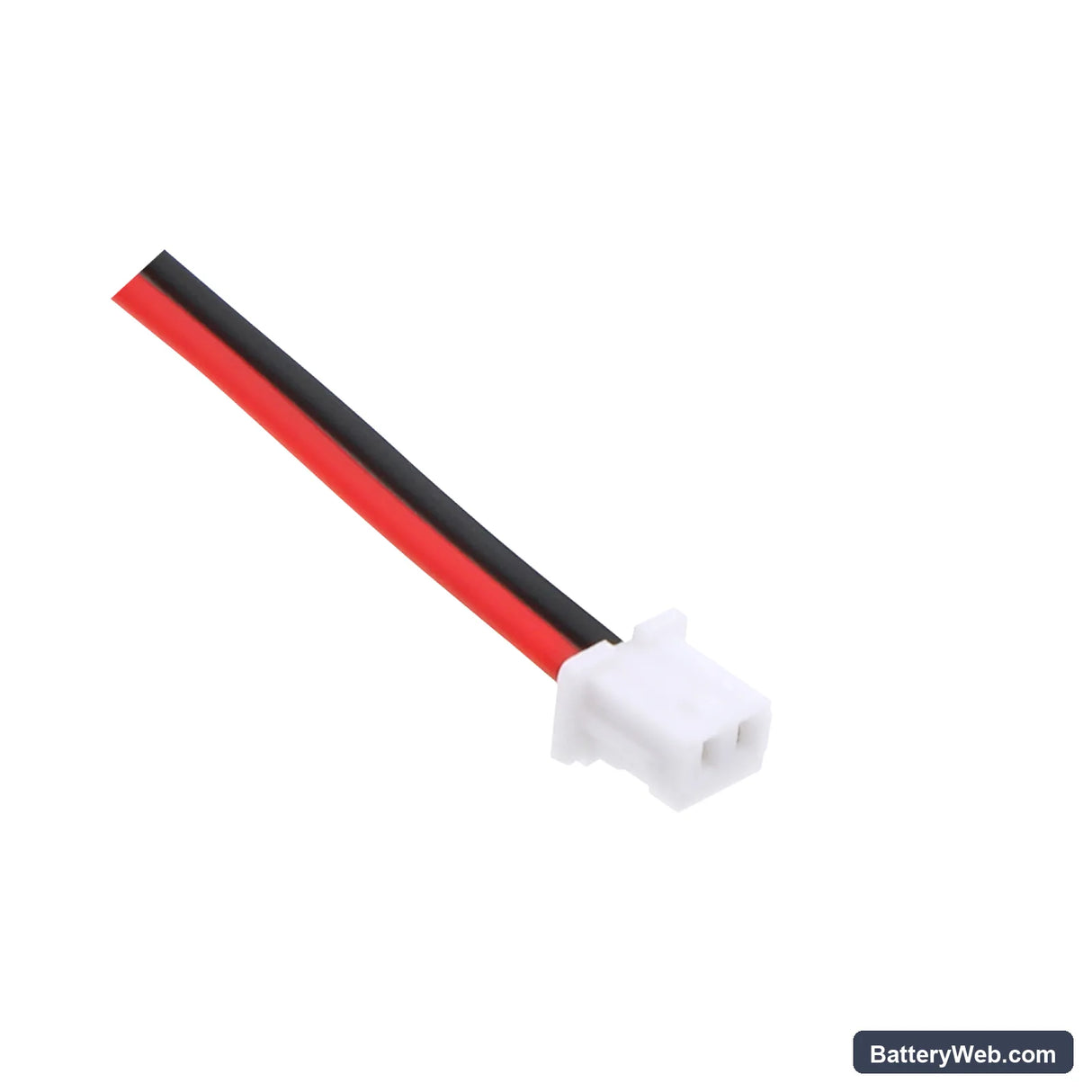

Some RG353P units apply a reduced charge current on the first cycle with a new cell — this is the charge IC running a conservative pre-charge phase before it confirms the cell is accepting charge normally. The charge LED may stay on longer than expected, and the console may feel warm near the charge port. This clears after one full charge cycle. If the cell is still pulling reduced current after three charge attempts, check that the connector is fully seated and the contact pins are not bent — a partial connection reads as a high-impedance cell to the charge IC, keeping it in pre-charge mode indefinitely. Reseat the connector and restart charging from 3.8V.
