Bea-fon AL560 Replacement Battery 3.7V 1600mAh

Bea-fon AL560 — 3.7V Li-Polymer Replacement Battery (AL560)

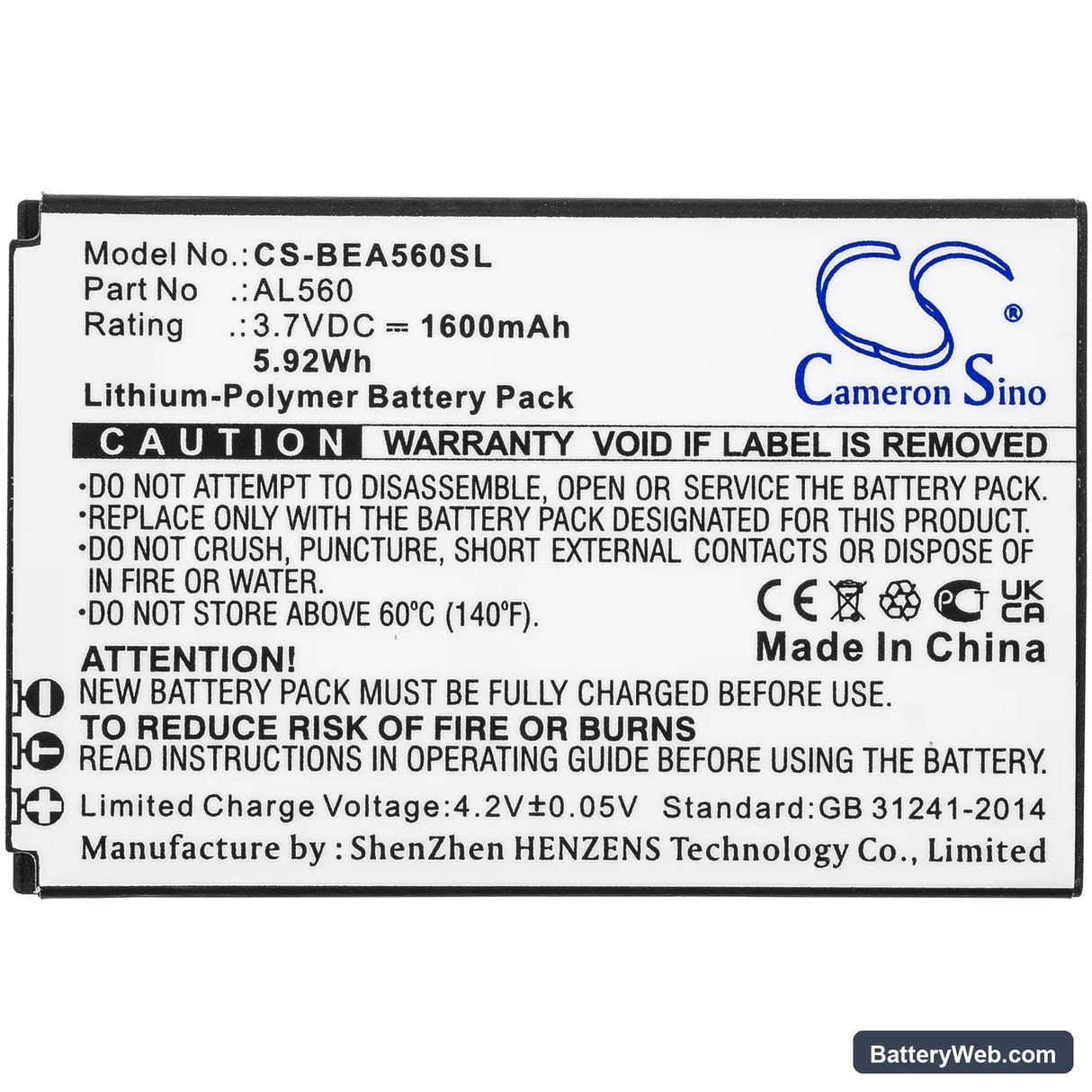

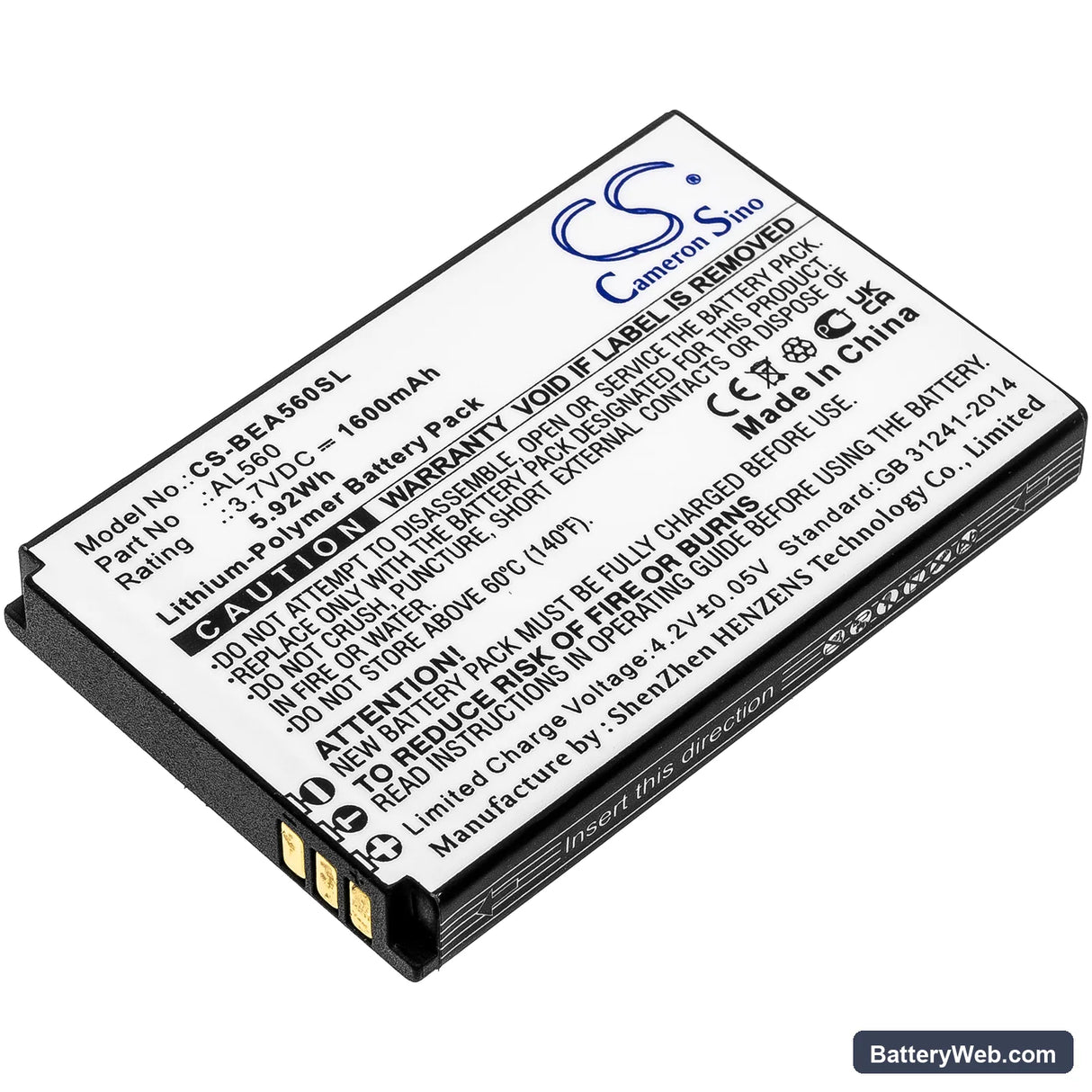

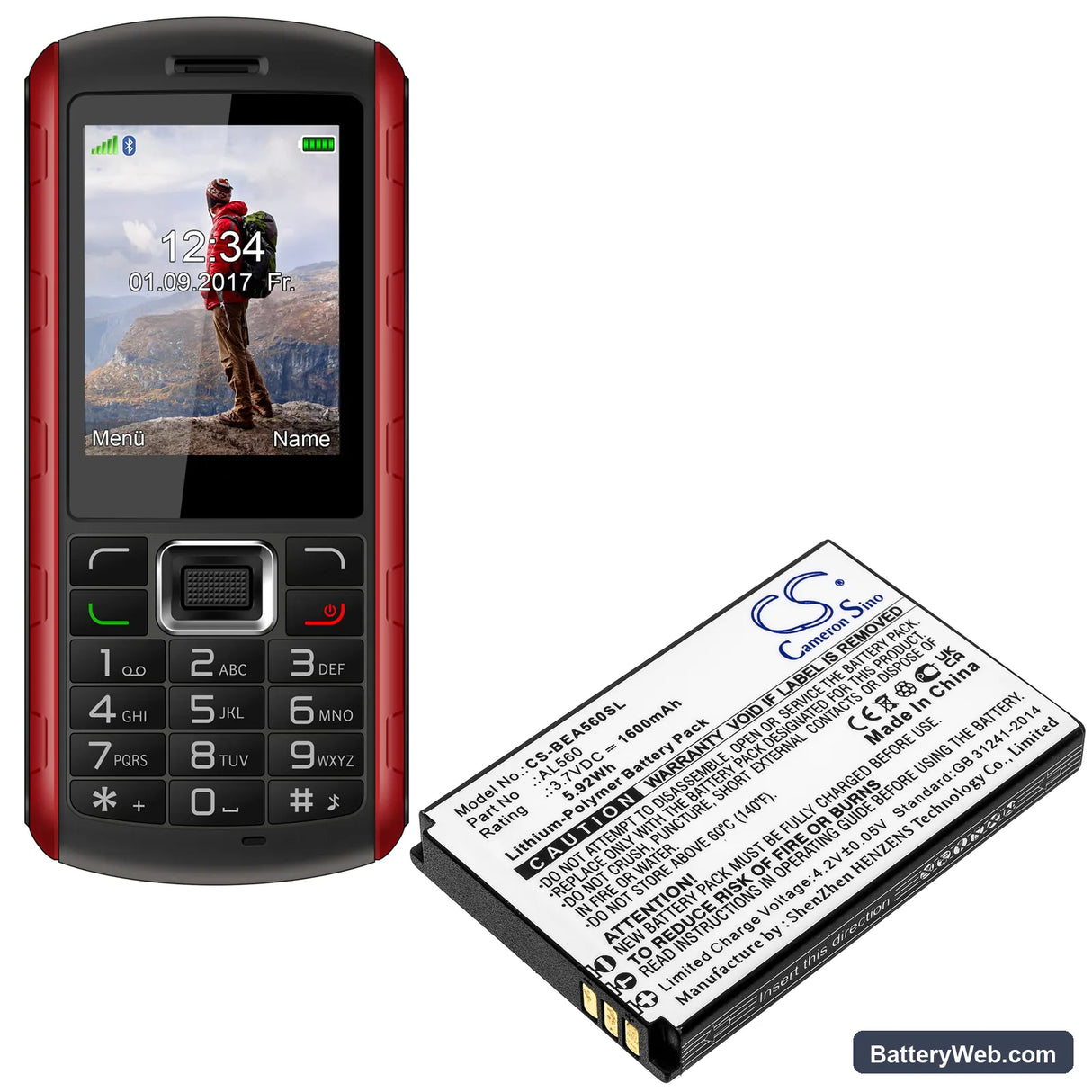

This 3.7V, 1600mAh Li-Polymer battery replaces the original cell in the Bea-fon AL560 mobile phone. It fits the AL560 directly, matching the original connector and physical dimensions of 59.60 × 38.80 × 7.50mm. Capacity is rated at 5.92Wh, consistent with the factory specification for this handset.

• AL560 fit: The AL560 uses a single Li-Polymer cell at 3.7V nominal. The BMS handshake on this phone is straightforward — no proprietary authentication chip — so the replacement cell communicates cleanly with the charge IC provided the connector seats fully.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the AL560 platform. The BMS accepted the cell on first contact, charge IC ramped normally through CC/CV stages, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
• Fuel gauge recalibration on first cycle: After fitting this replacement, run one complete discharge to phone-off, then charge uninterrupted to 100% before normal use. The AL560 fuel gauge IC carries the old cell's discharge curve in memory — this first full cycle overwrites it and stops the percentage counter from drifting mid-day.

Sudden shutdown at 20–30% on the AL560 after a cell swap

This is a voltage cliff issue, not a capacity defect. The AL560's fuel gauge IC was calibrated to the discharge curve of the original, degraded cell — which sagged at different voltage points than a fresh cell. When the modem transmits or the backlight fires at high brightness, current draw spikes and the new cell's voltage briefly drops below the emergency cutoff threshold, even though the reported percentage looks healthy. The fix is one complete discharge-to-shutdown followed by an uninterrupted full charge. After that single recalibration cycle, the fuel gauge re-maps the voltage-to-percentage curve against the new cell and the shutdowns stop. Confirm the recalibration worked by checking that the phone reaches 3.7V resting voltage at the 50% mark.

AL560 not powering on after the replacement battery sat in storage

Li-Polymer cells self-discharge in storage, and if the voltage drops below approximately 2.5V per cell, the BMS locks out to prevent damage — the phone will show nothing on screen and may not respond to the charger immediately. Plug the AL560 into a wall charger (not a PC USB port, which may not supply enough current to wake a locked-out BMS) and leave it for 15–20 minutes without pressing any button. The charge IC will trickle current into the cell at a low rate until the BMS re-initialises, after which normal charging begins. If the phone still shows no response after 30 minutes on a wall charger, check that the battery connector is fully seated — an unseated connector is the most common cause after a fresh install.
