Black+Decker HSVB42OJ Replacement Battery 14.4V 2500mAh

Black+Decker HSVB42OJ — 14.4V Li-ion Replacement Battery (INR18650-4S1P-25)

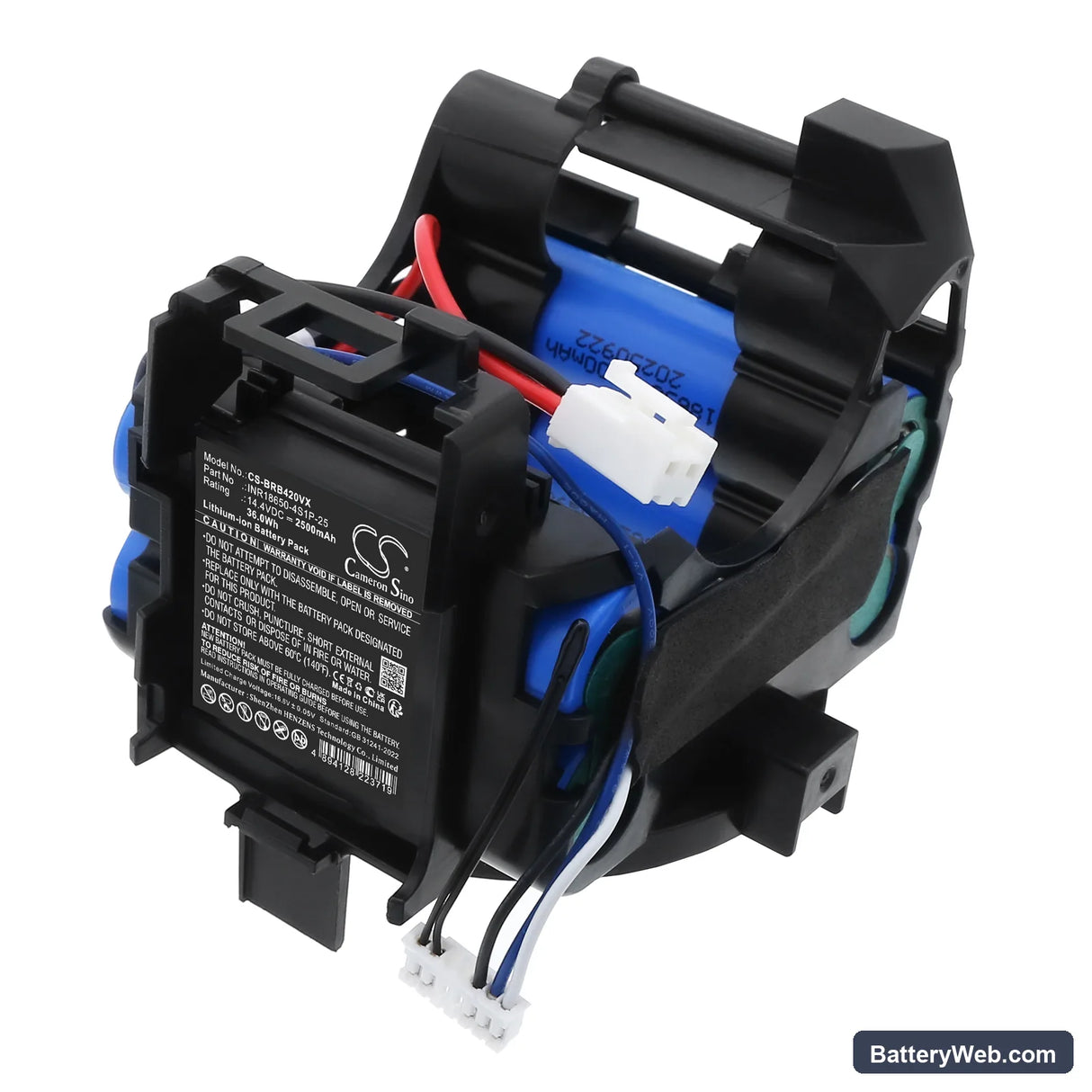

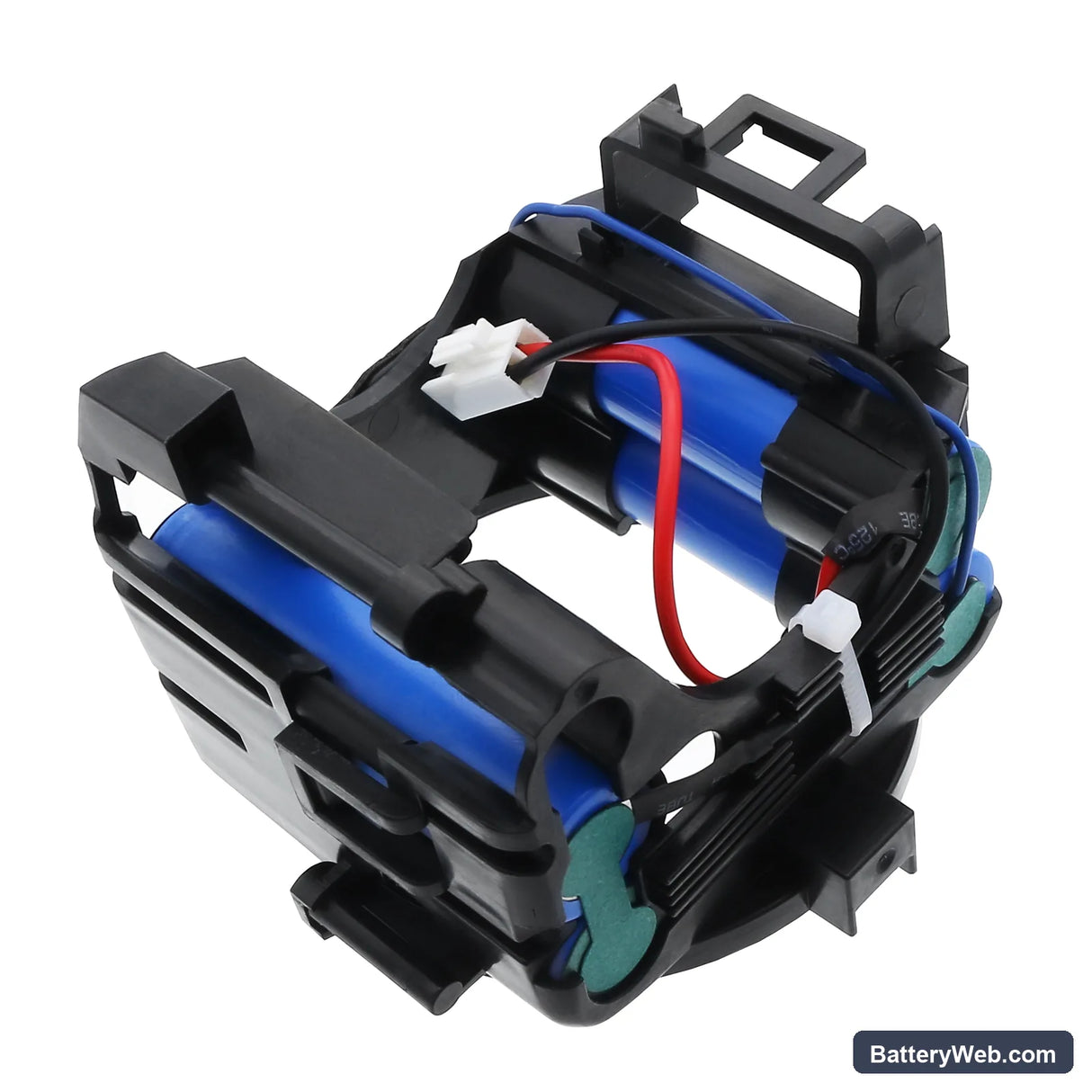

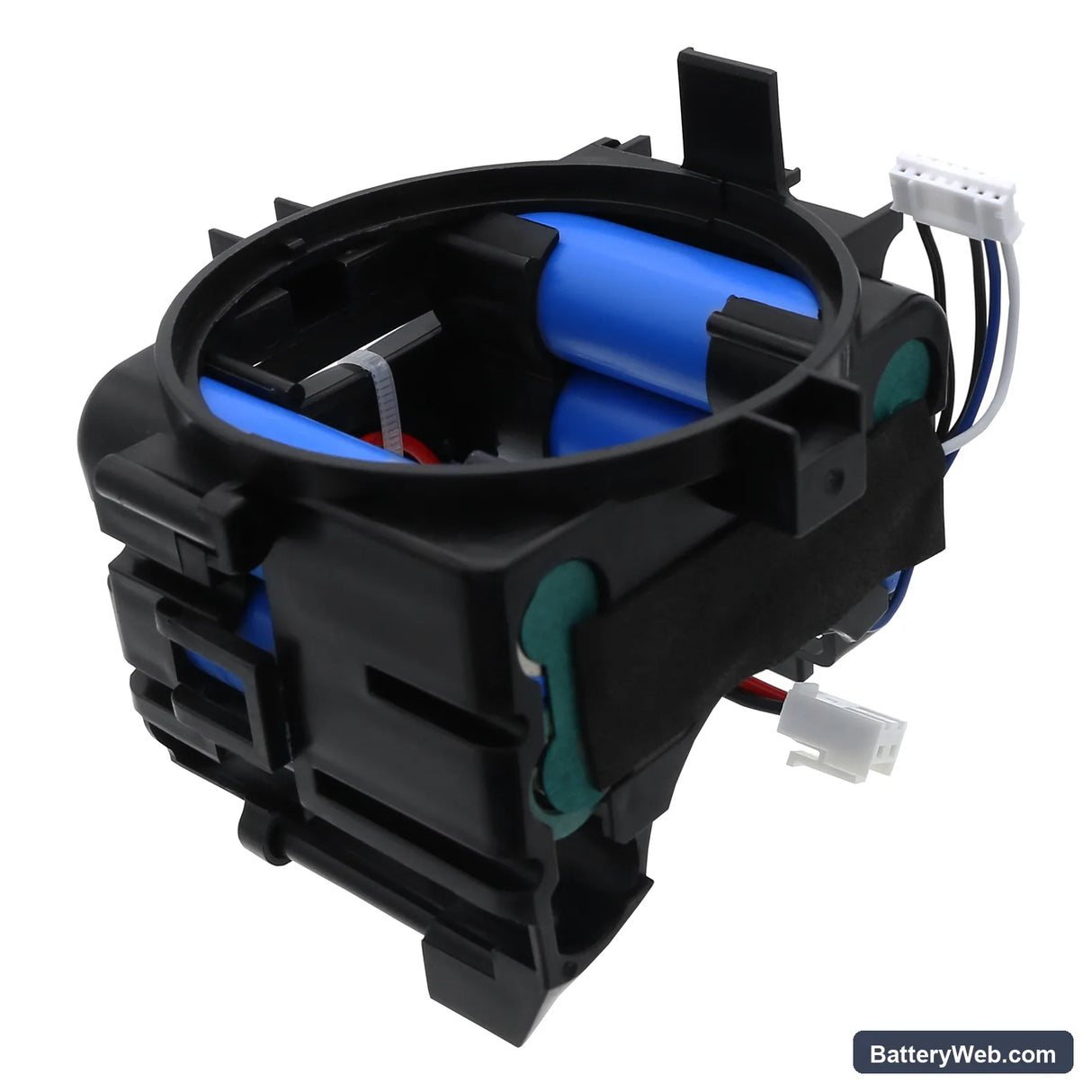

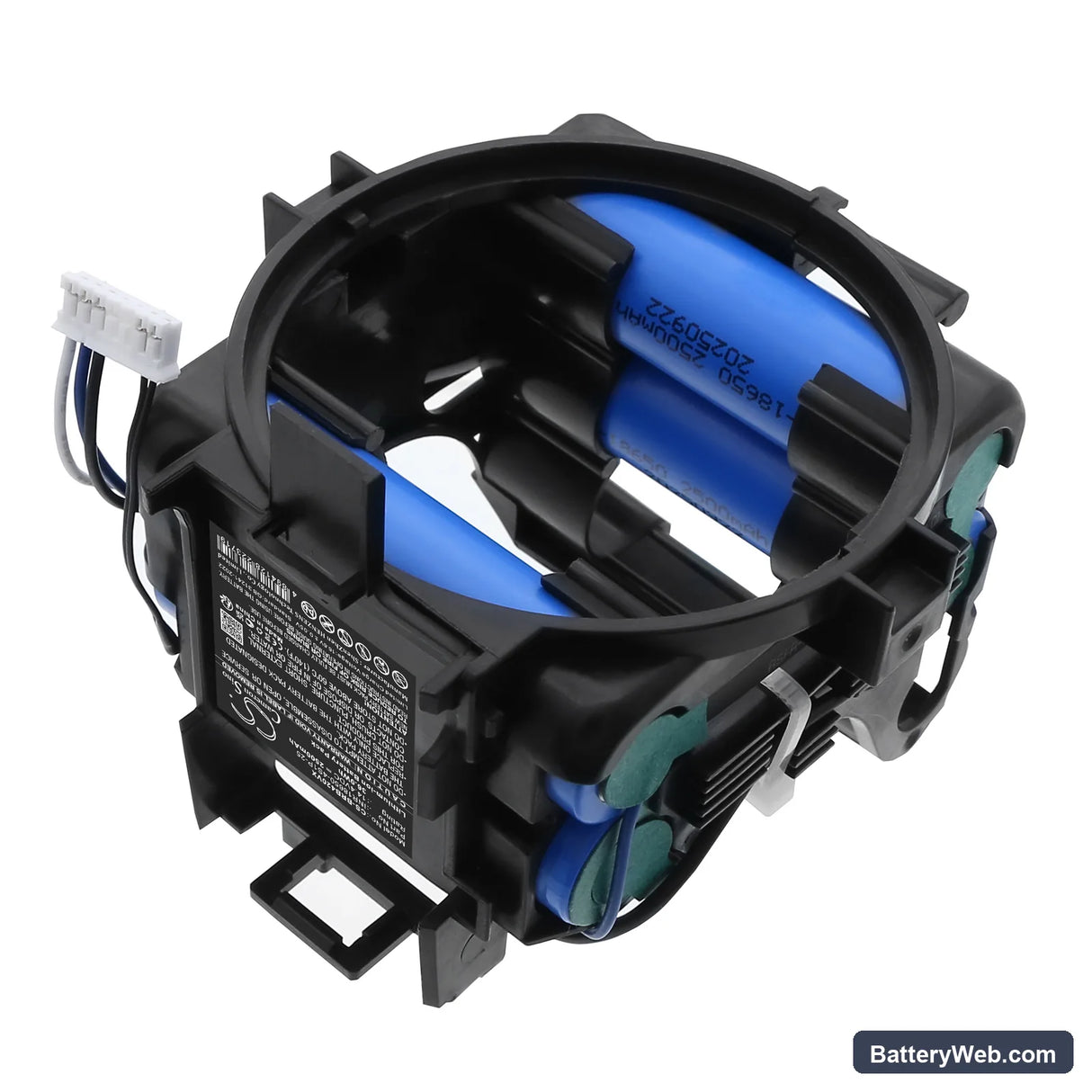

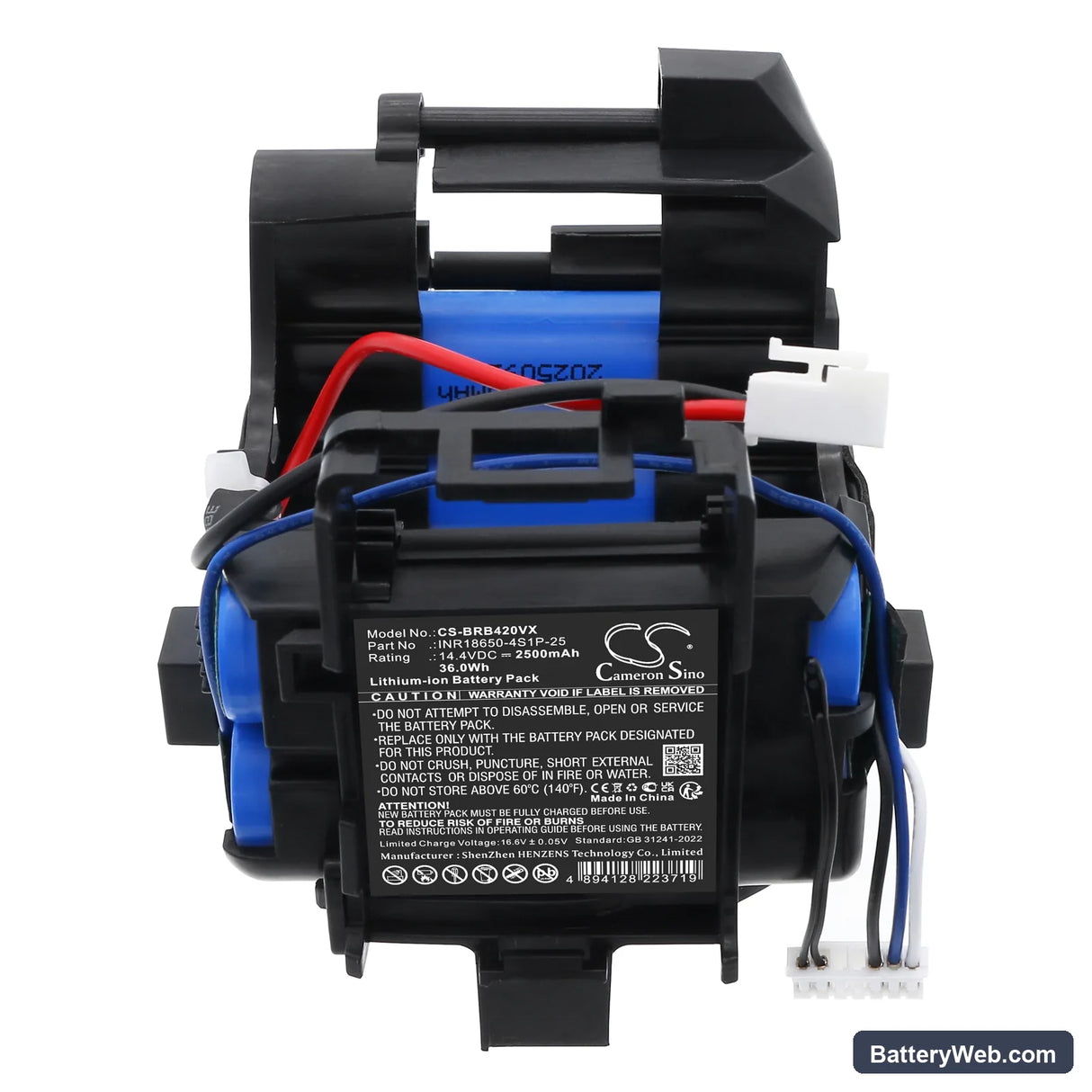

This 14.4V 2500mAh (36Wh) Li-ion battery pack replaces the INR18650-4S1P-25 cell assembly in the Black+Decker HSVB42OJ handheld cordless vacuum. It uses a 4S1P 18650 cell configuration matched to the original voltage rail and BMS connector. Fit is direct — no modification needed.

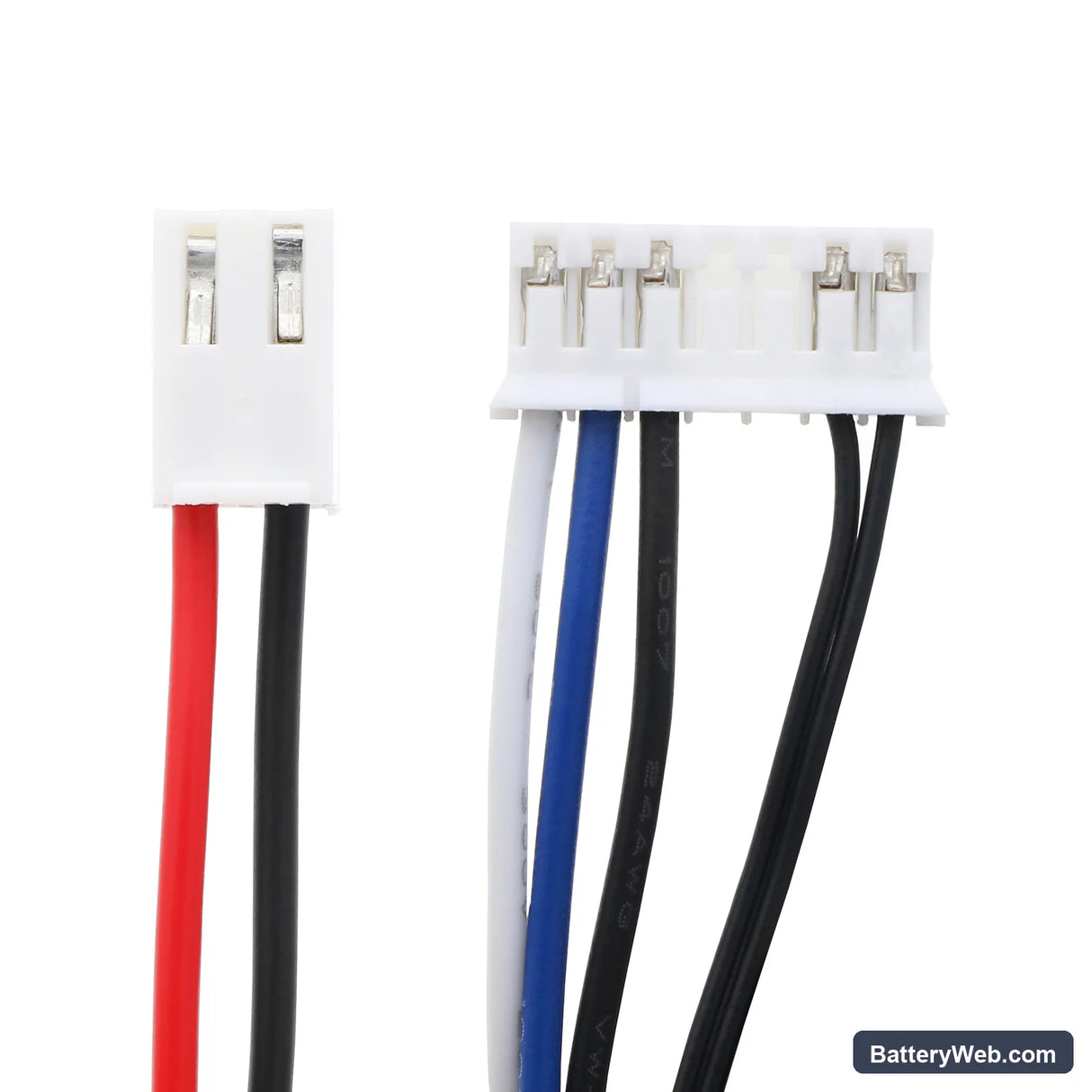

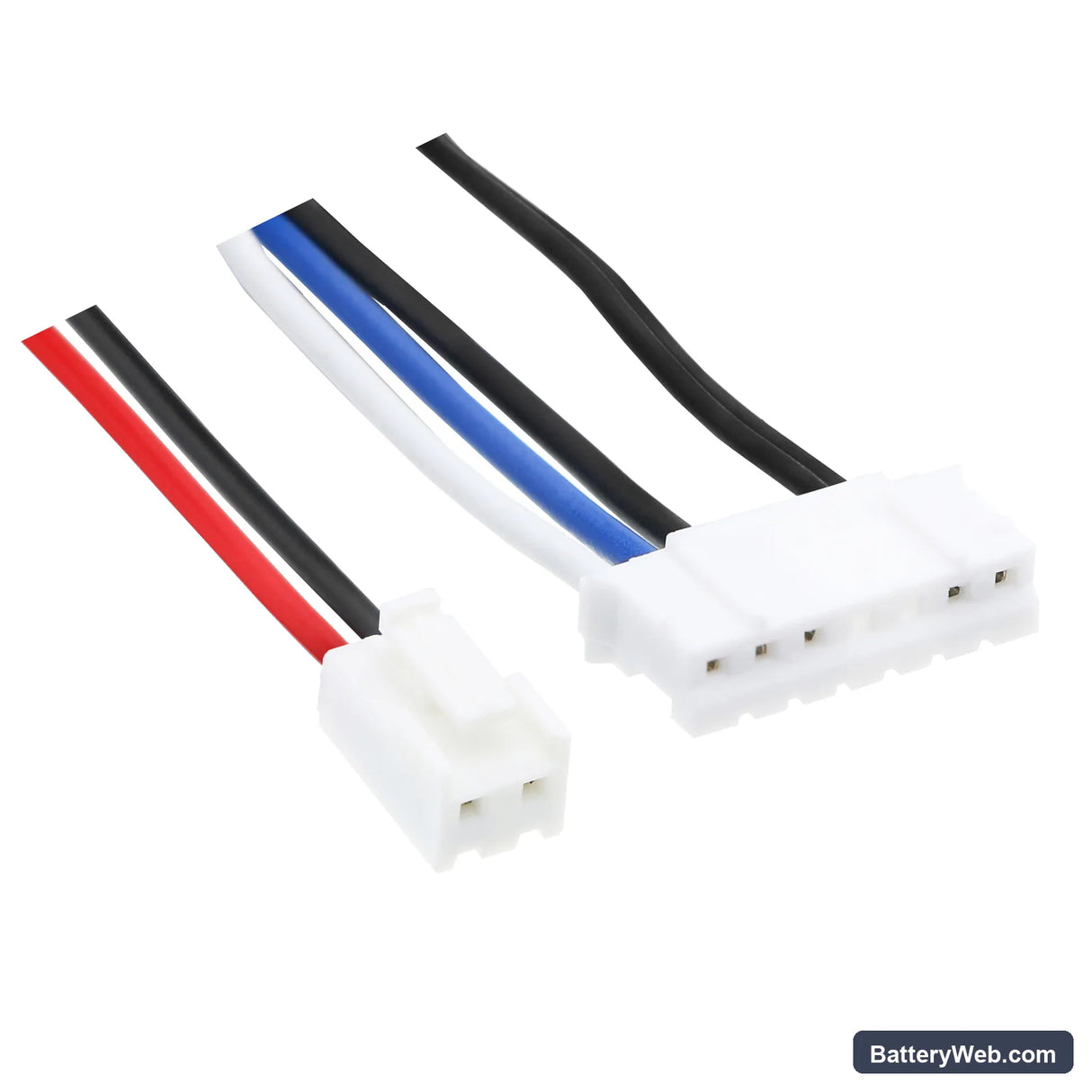

• HSVB42OJ platform fit: The HSVB42OJ runs a 14.4V motor stage with a BMS that monitors cell balance across the 4-cell series string. This replacement pack matches that cell count, nominal voltage, and connector pinout — the BMS handshake initialises without error on the dock charger.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the HSVB42OJ platform. The BMS held cell balance within spec across the series string, and the dock charger reached termination voltage without fault codes or charging interruption.
• Dock charge discipline for the HSVB42OJ: Remove the vacuum from the charging dock once the indicator shows full. The HSVB42OJ dock does not cut trickle charge aggressively — cells left on continuous dock charge cycle at low current repeatedly, which compresses usable capacity faster than standard use cycles would.

Suction dropping before the battery indicator reaches low on the HSVB42OJ

A partially blocked filter forces the motor to draw more current than rated to maintain airflow. That elevated draw causes the 14.4V pack to sag under load — the motor slows and suction drops, but the battery indicator still reads mid-range because resting voltage recovers when suction is released. The BMS is not tripping; the cell voltage is genuinely sagging under the excess load. Clear or replace the filter first — if suction restores, the battery is not the fault.

Motor cuts out mid-use then recovers after a few seconds

This is a BMS overcurrent trip, not a dead battery. When the filter is restricted or a blockage increases motor resistance, current draw spikes past the BMS protection threshold and the pack disconnects. The BMS resets automatically after a short thermal or timer delay — that is the recovery you see. Check the filter and clear any blockage at the intake before replacing the battery. If the cutout continues on a clean filter with a new pack, the motor itself is drawing excess current and needs inspection.
