Bostitch GBT1850K 3.6V Replacement Battery 9B12070R

Bostitch GBT1850K Series — 3.6V Li-ion Replacement Battery (9B12070R)

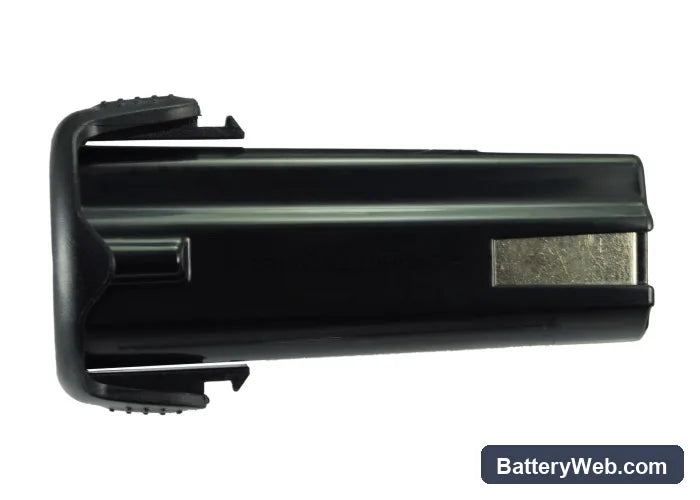

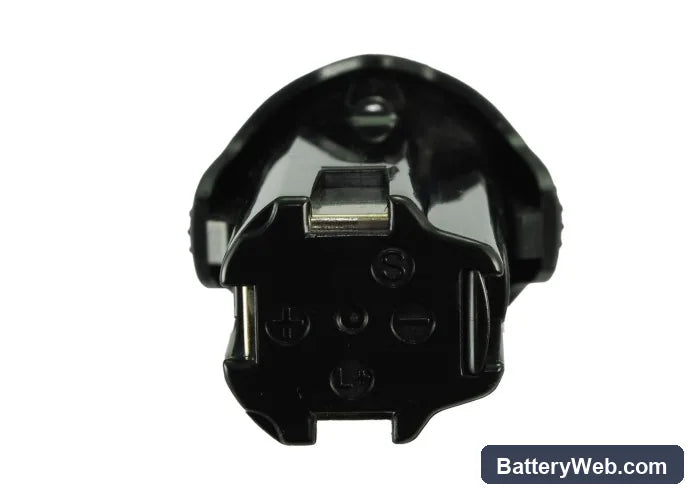

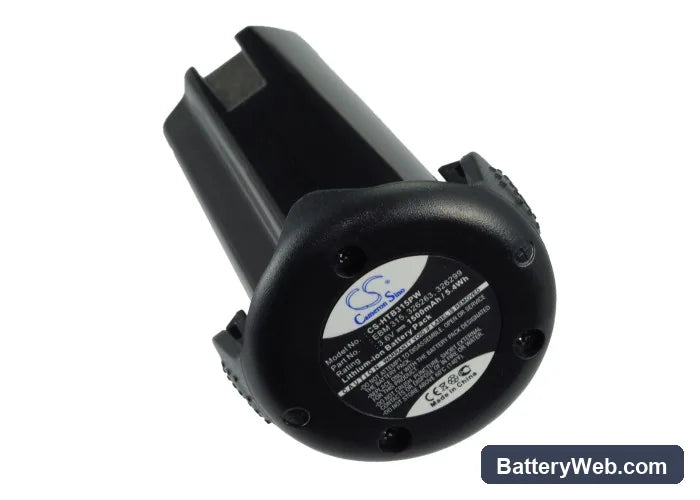

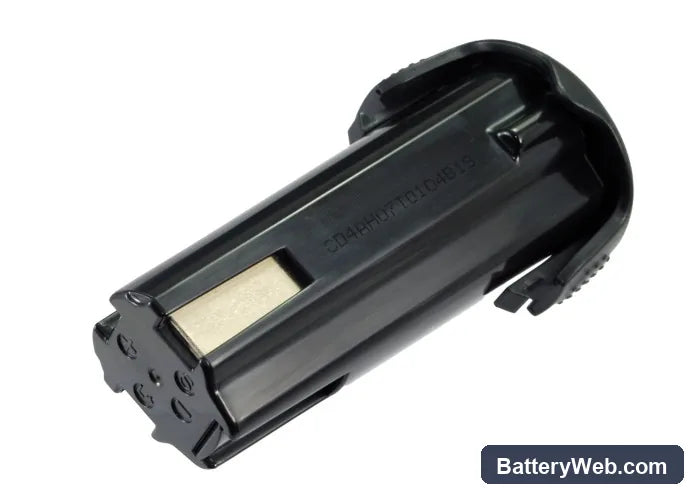

This is a 3.6V, 1500mAh Li-ion replacement battery for Bostitch cordless tools carrying part number 9B12070R. It fits the GBT1850K, GF1564K, GFN1564K, and GFN1664K models. Capacity is 5.4Wh — matching the original specification from Bostitch.

• GBT1850K and GFN series compatibility: These models share the same 3.6V voltage rail, connector footprint, and BMS handshake protocol. A single cell configuration at this voltage means any mismatch in BMS communication will prevent the tool from drawing current — the pack listed here is mapped to the correct handshake for all four models.
• Bench tested on actual hardware: We cycled this pack under load on the GBT1850K platform and logged the BMS response across trigger-pull inrush events. The overcurrent threshold did not trip during normal actuation, and the BMS correctly reported state-of-charge back to the tool controller.
• Motor inrush break-in on first use: Run the tool at partial load for the first two cycles before full-torque applications. This allows the BMS to profile the motor's inrush current signature and calibrate overcurrent thresholds before high-demand tasks.

BMS overcurrent trip on trigger-pull inrush surge

At 3.6V with a single-cell Li-ion pack, the BMS overcurrent threshold sits close to the motor's start-up inrush spike. If the pack has been sitting in storage, cell voltage can drop low enough that the BMS interprets the inrush current as a fault condition and trips the protection circuit before the motor fully engages. This is not a defective battery — it is the BMS reacting to a voltage-starved cell. Charge the pack to full before the first use to bring cell voltage above 3.9V and reset the protection threshold.

Charger blinking red and refusing to accept a new pack

Bostitch chargers for this voltage class apply a trickle-charge gate — if the incoming cell voltage reads below approximately 3.0V, the charger rejects the pack and signals a fault with a blinking red LED. This happens on new-from-box or long-stored batteries that have self-discharged past the charger's acceptance window. Place the pack on the charger for 10–15 minutes and remove it twice in succession — some chargers will attempt a recovery pulse on the second insertion. If cell voltage is confirmed above 3.0V with a multimeter and the charger still blinks red, check the terminal contacts for oxidation and clean with isopropyl alcohol before reinserting.
