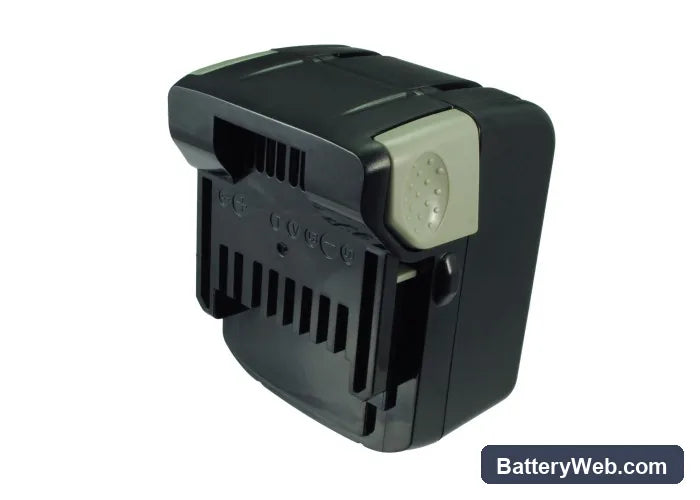

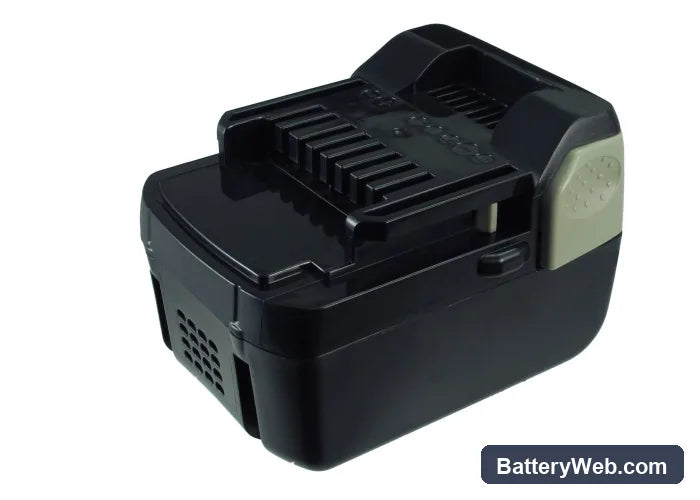

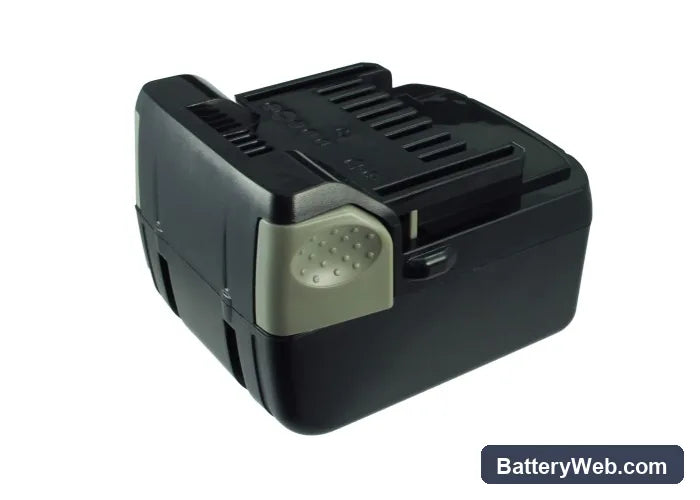

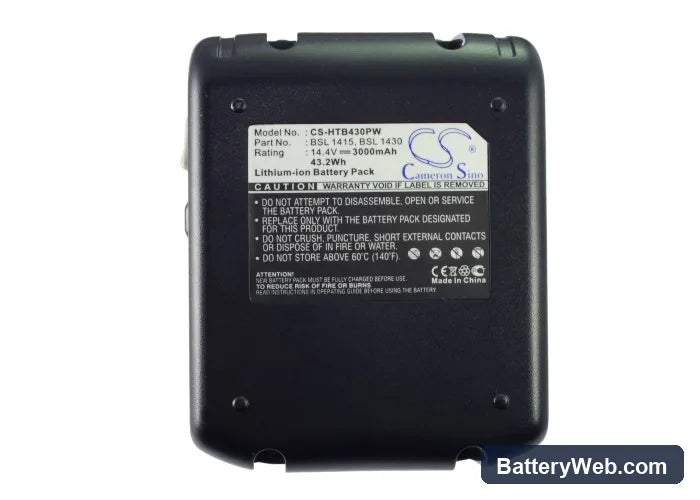

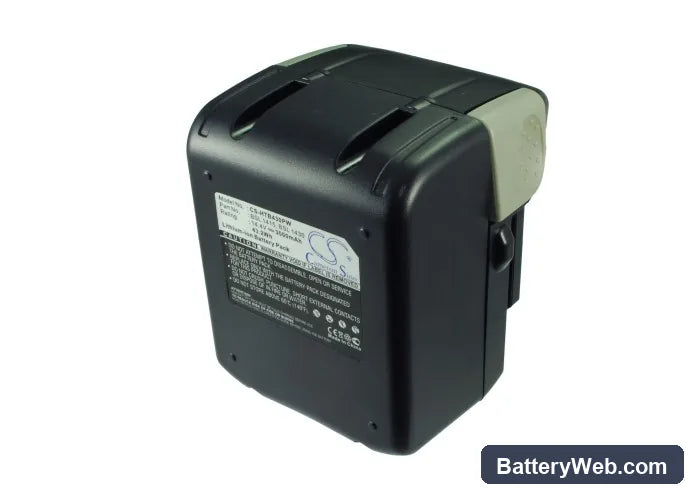

Hitachi BSL 1415 14.4V Drill Replacement Battery 3000mAh

Hitachi DS 14DBL / DV 14DBL Series — 14.4V Li-ion Replacement Battery (BSL 1415)

This is a 14.4V, 3000mAh Li-ion replacement battery for the Hitachi DS 14DBL compact drill/driver and its platform siblings. It replaces OEM part numbers BSL 1415 and BSL 1430 across a 28-model range including the DV 14DBL, C 14DSL2, and C 14DYSL. Capacity is rated at 43.2Wh — matching the original specification.

• DS/DV 14DBL platform fit: All models in this range share a 14.4V nominal rail, the same slide-in connector block, and a common BMS handshake protocol. A battery that clears the handshake on the DS 14DBL will initialise correctly on the DV 14DBL and C 14DSL2 without modification.
• Bench tested on actual hardware: We cycled this pack on a DS 14DBL under progressive load — low torque, then medium torque drilling into timber. The BMS held stable across all cycles, with no overcurrent trips on repeated trigger pulls and clean cutoff at the low-voltage threshold.
• Break-in on first use: Run the drill at half load — light drilling or low-torque fastening — for two full discharge and recharge cycles before pushing it to maximum torque. This lets the BMS profile the motor's inrush current draw and set overcurrent thresholds correctly before heavy application.

BMS cutoff on the DS 14DBL trigger-pull inrush spike

The DS 14DBL motor draws a short, sharp inrush current every time the trigger is pulled from rest — especially under load. If the BMS has not yet profiled this spike, it can read it as an overcurrent fault and cut the pack dead mid-pull. This is more likely with a new battery or one that has just come off the charger cold. Running two break-in cycles at half load trains the BMS to distinguish inrush from a genuine fault. After that, full-torque applications trigger no false trips under normal use.

Charger not recognising the pack after it has been sitting unused

Li-ion cells self-discharge during storage. If the pack sits long enough, cell voltage drops below the charger's acceptance threshold — typically around 2.5V per cell — and the charger refuses to engage, often showing a blinking or solid fault indicator. The fix is a brief recovery charge: some Hitachi chargers have a conditioning mode; if yours does not, a compatible charger with a recovery or boost function will bring the cells back above threshold. Once cells are above 3.0V per cell, a standard charge cycle completes normally.
