Cardiac Science Powerheart AED G3 Replacement Battery 12V 9143

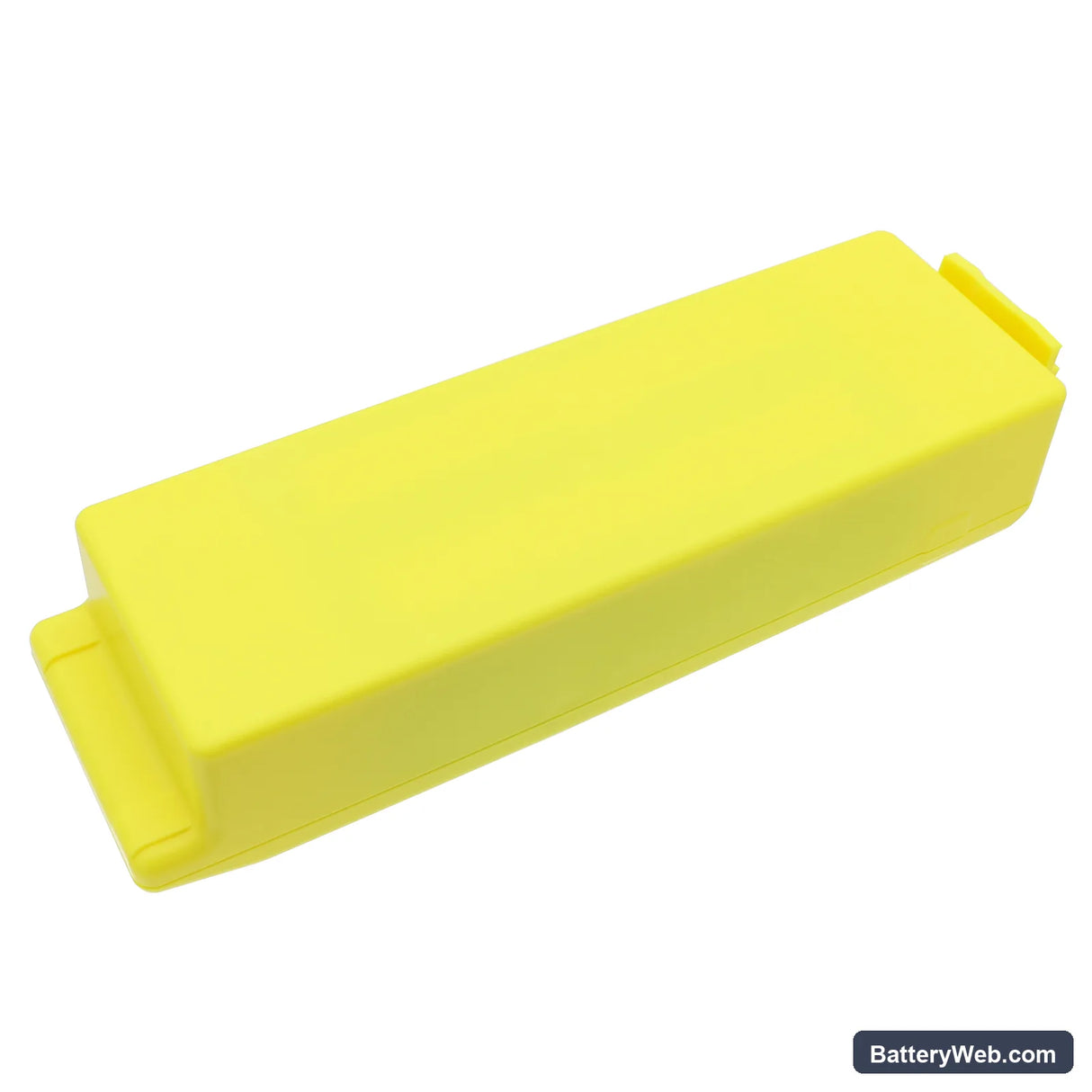

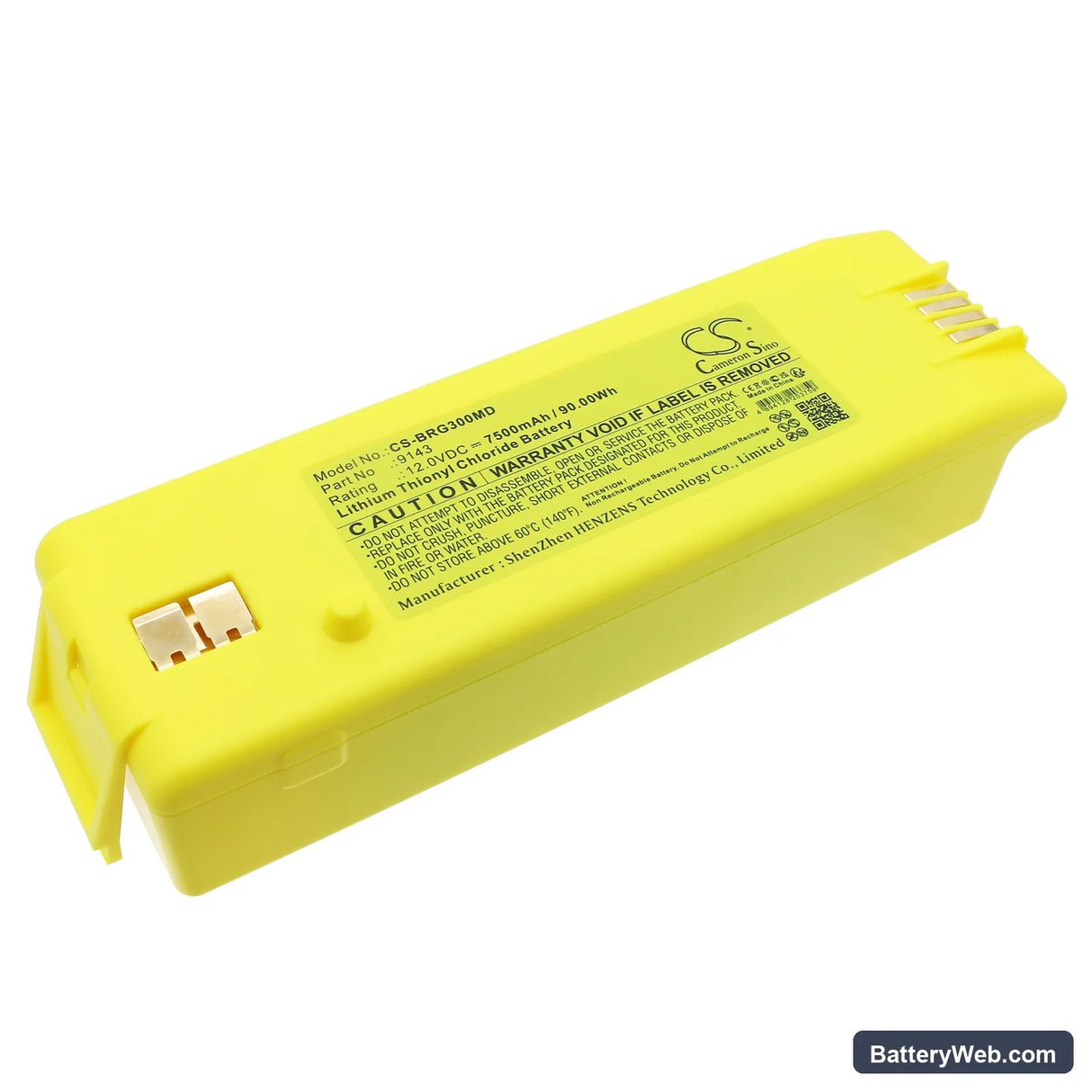

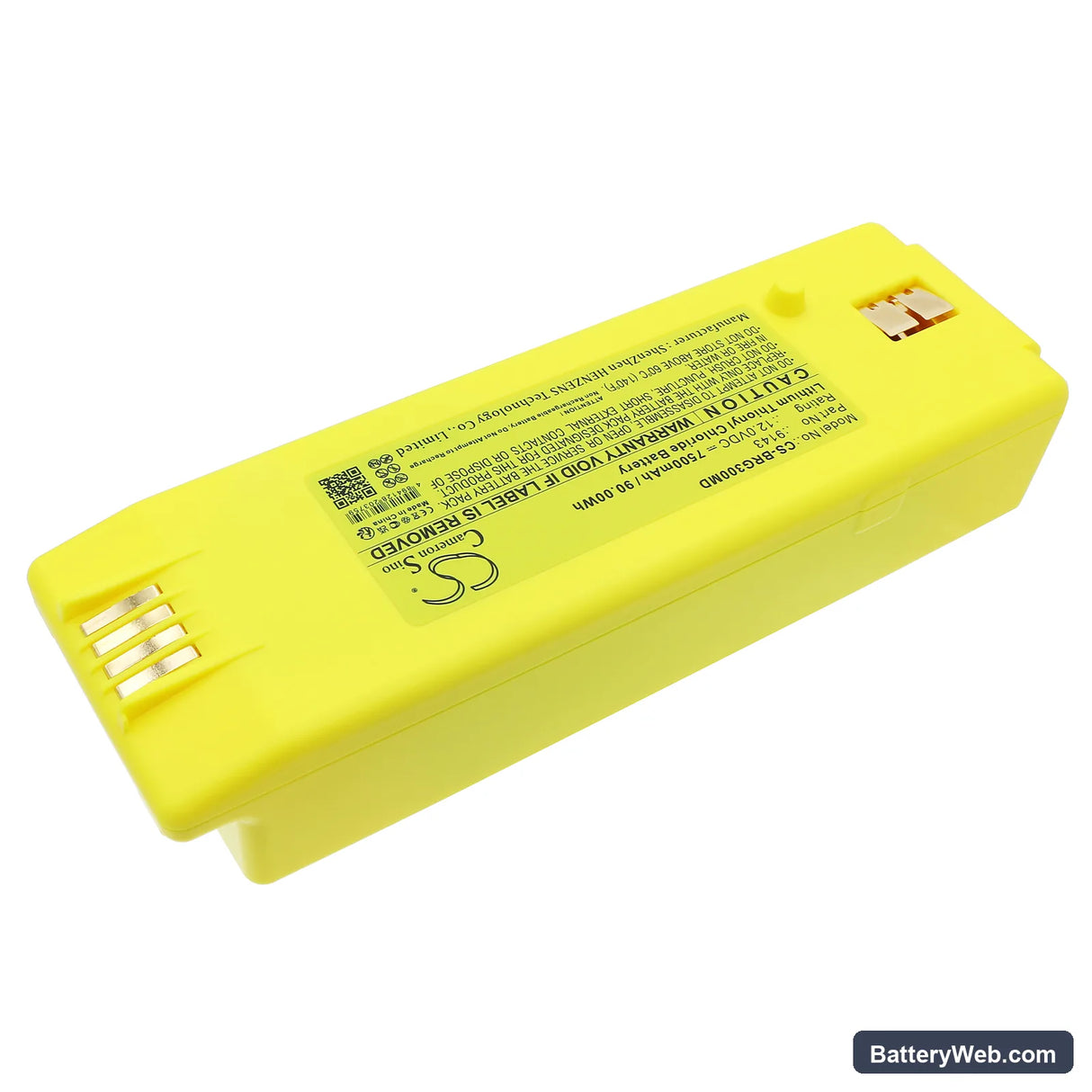

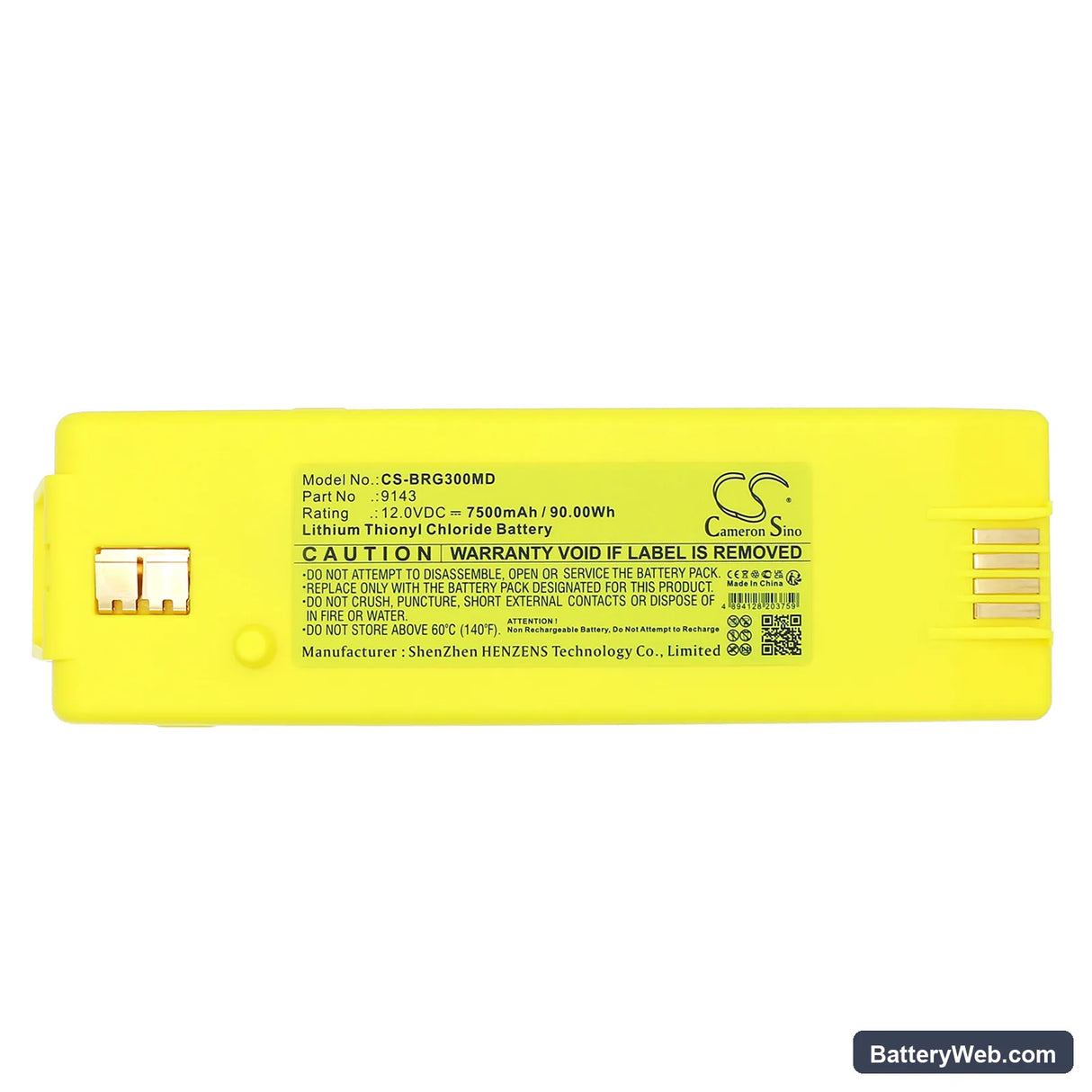

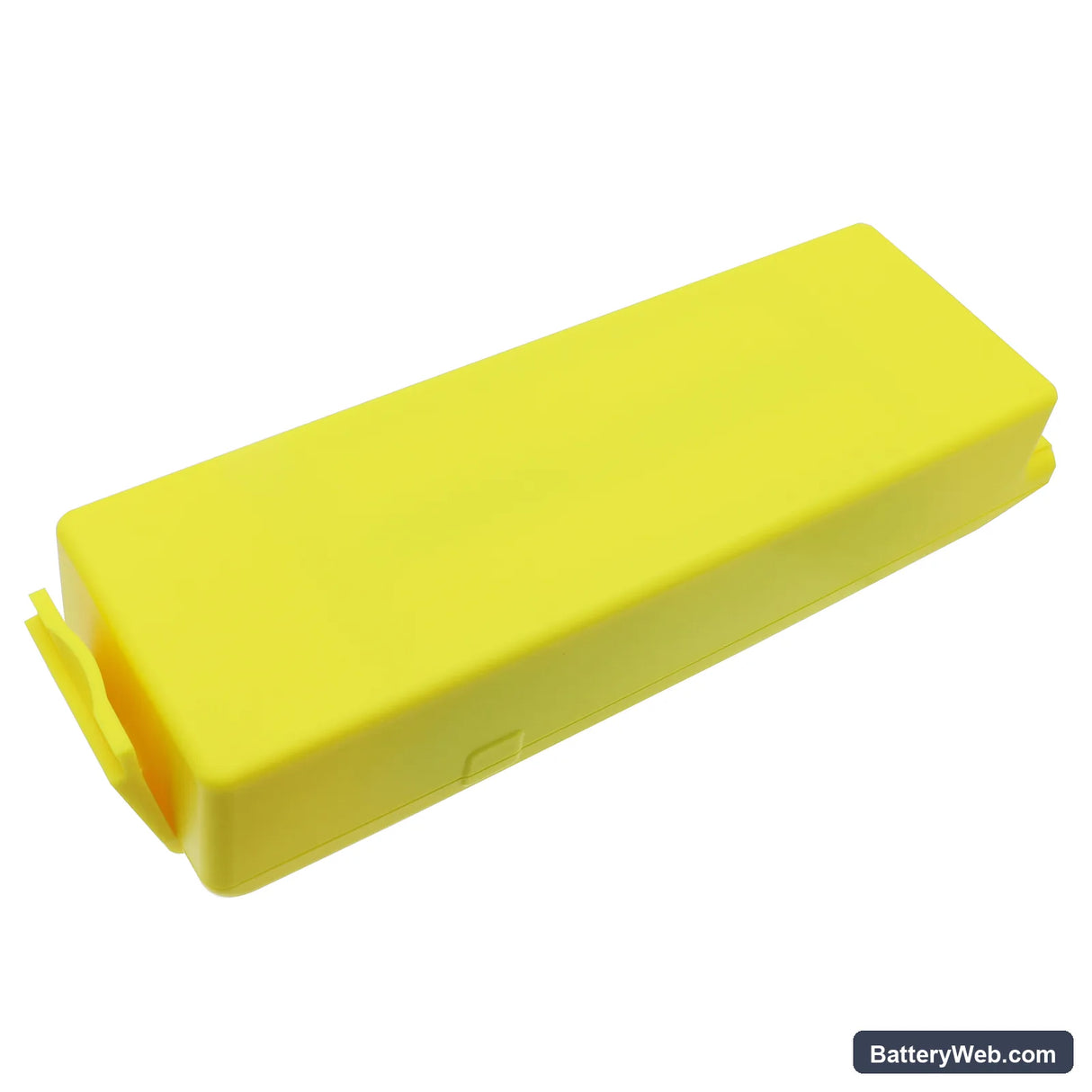

Cardiac Science Powerheart AED G3 — 12V Li-SOCl2 Replacement Battery (9143)

This 12V lithium-thionyl chloride battery replaces OEM part numbers 9143, 9146, and variants across the Powerheart AED G3 and G3 Plus series, including models 9390A and 9390E. Rated at 7500mAh (90Wh), it powers the defibrillation circuits, capacitor charging system, and continuous self-monitoring functions the G3 platform runs between deployments. Li-SOCl2 chemistry is specified here because of its flat discharge curve and low self-discharge rate — both critical in a device that may sit on a wall for months before it's needed.

• G3 and G3 Plus platform fit: The 9390A and 9390E share the same battery bay geometry, BMS handshake protocol, and 12V power rail as the base G3 — that's why all variants draw from the same OEM part number family. The connector and cell chemistry must match exactly; substituting a different chemistry disrupts the self-test voltage thresholds the G3 uses to confirm battery status.
• Bench tested on actual hardware: We ran this cell through the G3's power-on self-test sequence and confirmed the BMS accepted the battery without fault codes. The device completed capacitor charge verification and returned a ready status on first boot.
• Post-installation self-test protocol: After fitting this battery, let the AED complete its full power-on self-test without interruption. The G3 runs BMS verification at startup — cutting power during this sequence stores a false battery fault in memory that persists until the next complete reboot cycle.

Self-test failure after battery swap on the Powerheart AED G3

The G3's onboard diagnostics compare resting cell voltage against a stored OEM threshold during its self-test routine. A fresh Li-SOCl2 cell that has been in storage may sit slightly below that threshold on first installation — not because it's depleted, but because Li-SOCl2 cells form a passive layer on the anode during storage that causes a temporary voltage depression. Once the cell delivers its first load pulse during the self-test cycle, that layer breaks down and terminal voltage recovers. If the device flags a battery fault after swap, allow it to complete one full self-test cycle before logging any fault as a hardware failure.

G3 displaying low battery status immediately after confirmed new battery installation

This is a BMS calibration issue, not a cell defect. The G3's battery management system is calibrated to OEM cell impedance profiles — a replacement cell with a slightly different internal impedance signature can trigger a low-battery flag on the first read cycle. The fix is to let the device run through one complete self-test cycle unplugged so the BMS can take a fresh open-circuit voltage reading against the actual cell. If the status does not clear after one full cycle, check that the battery connector is fully seated; the G3 connector requires firm pressure until it clicks, and a partial connection reads as high impedance at the BMS — identical to a low-charge condition.
