Cecotec Conga 05023 Replacement Battery 3.7V 2500mAh

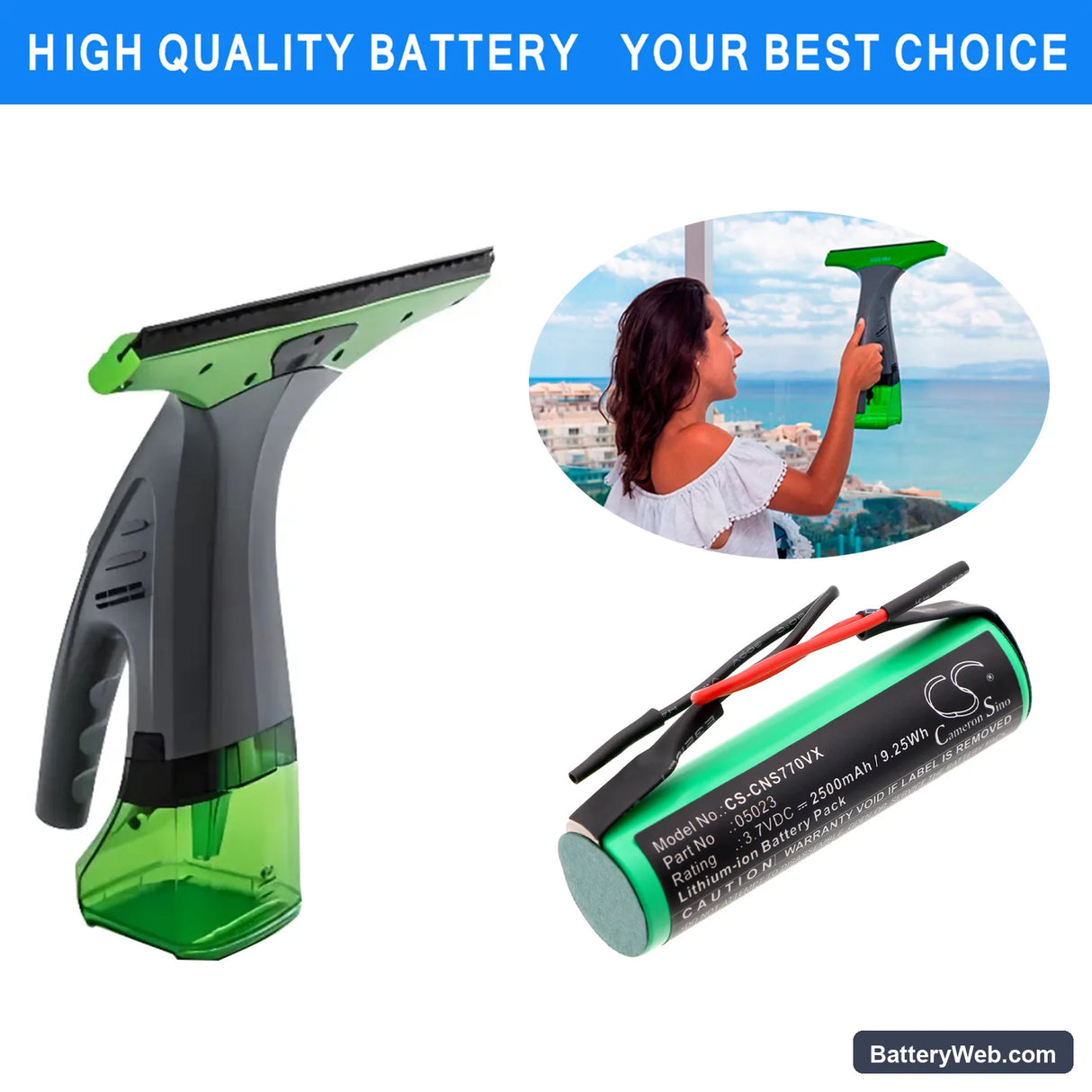

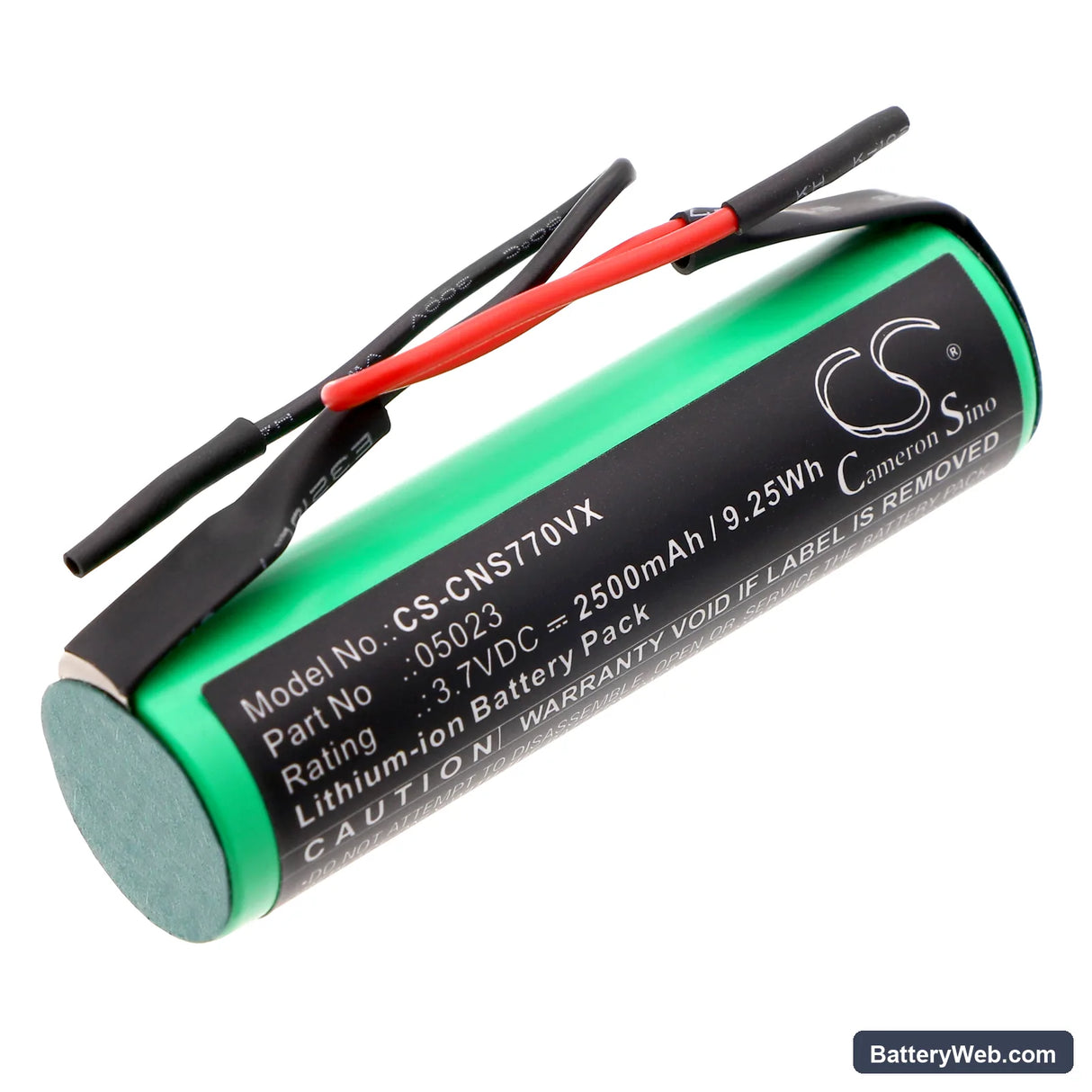

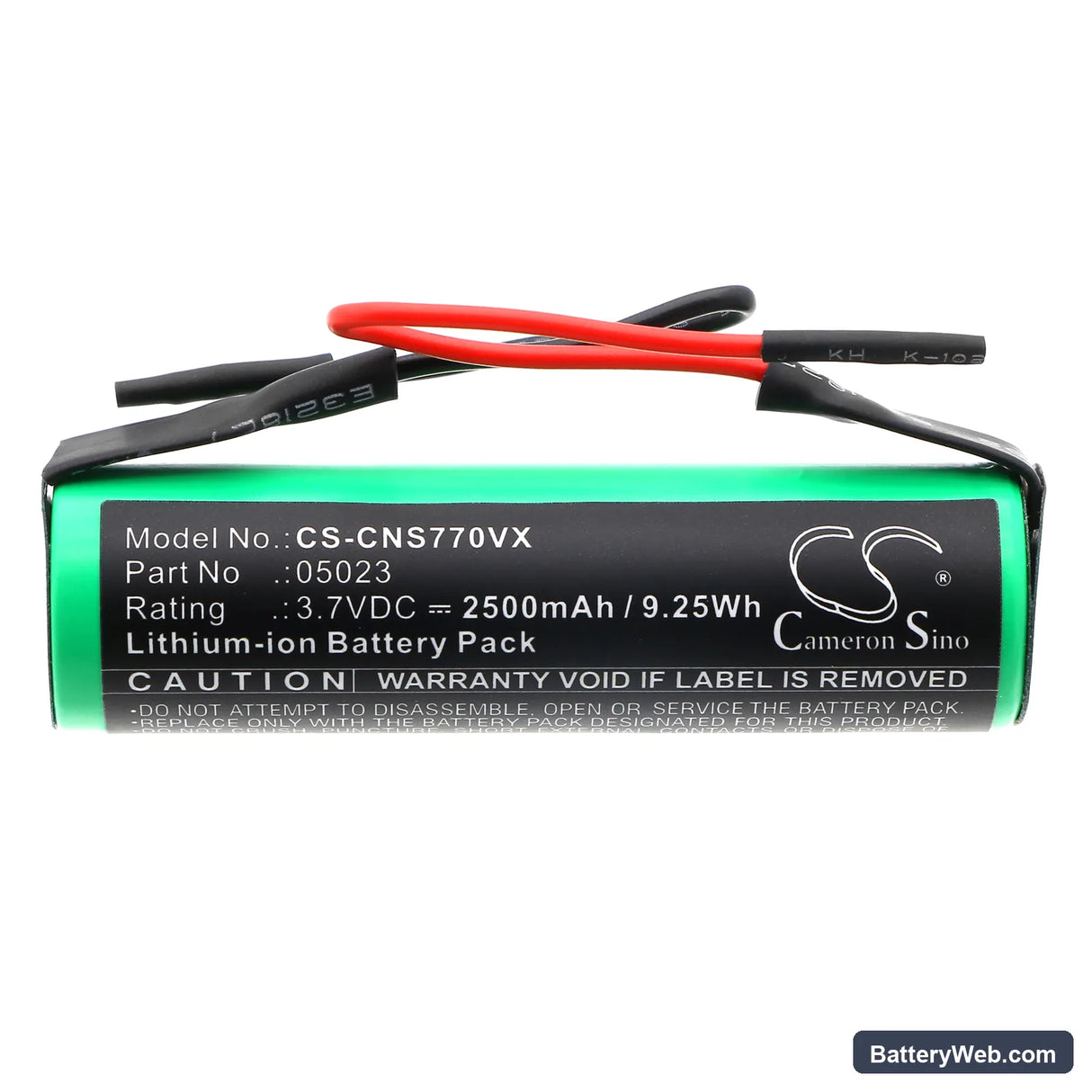

Cecotec Conga Crystal Clear 770 (05023) — 3.7V Li-ion Replacement Battery

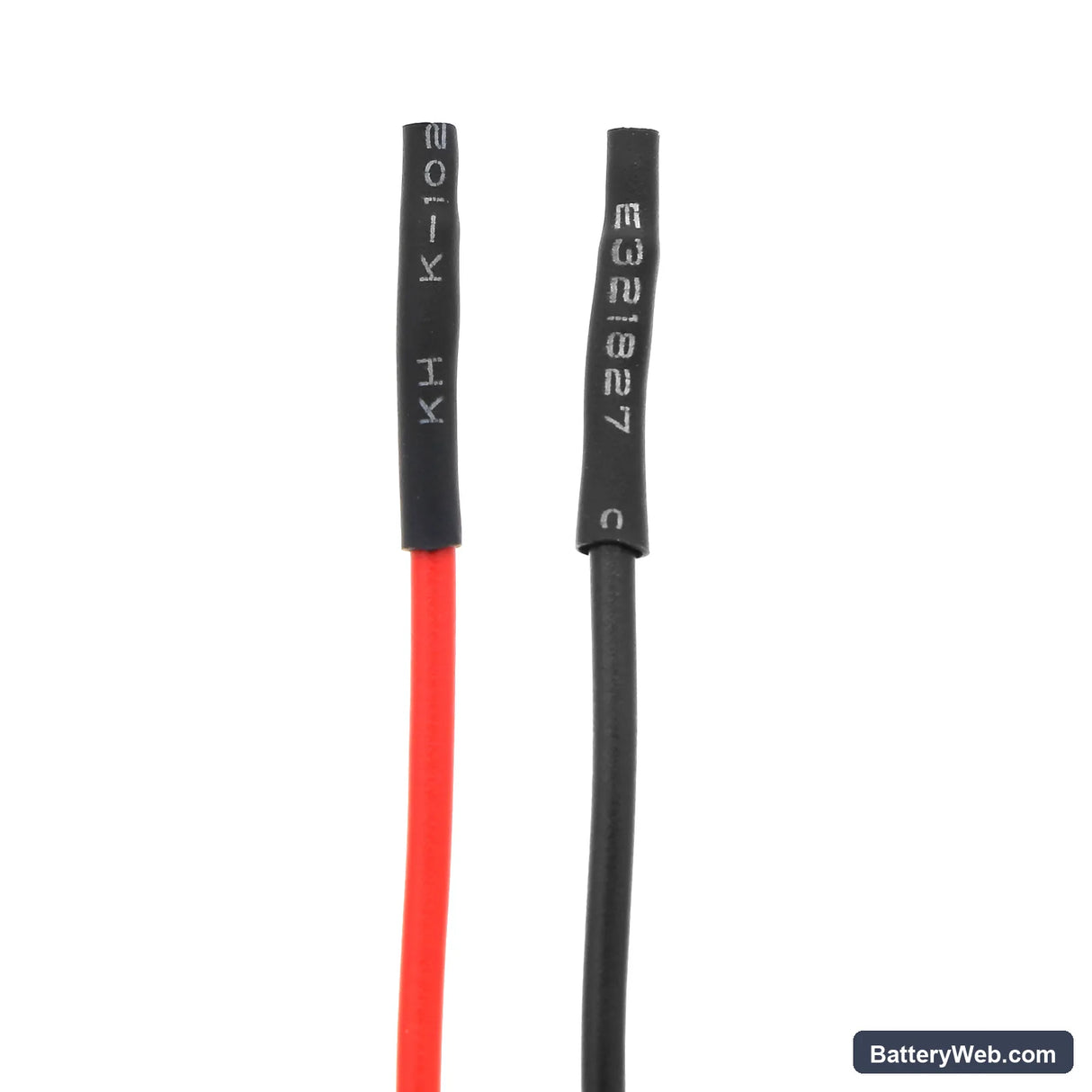

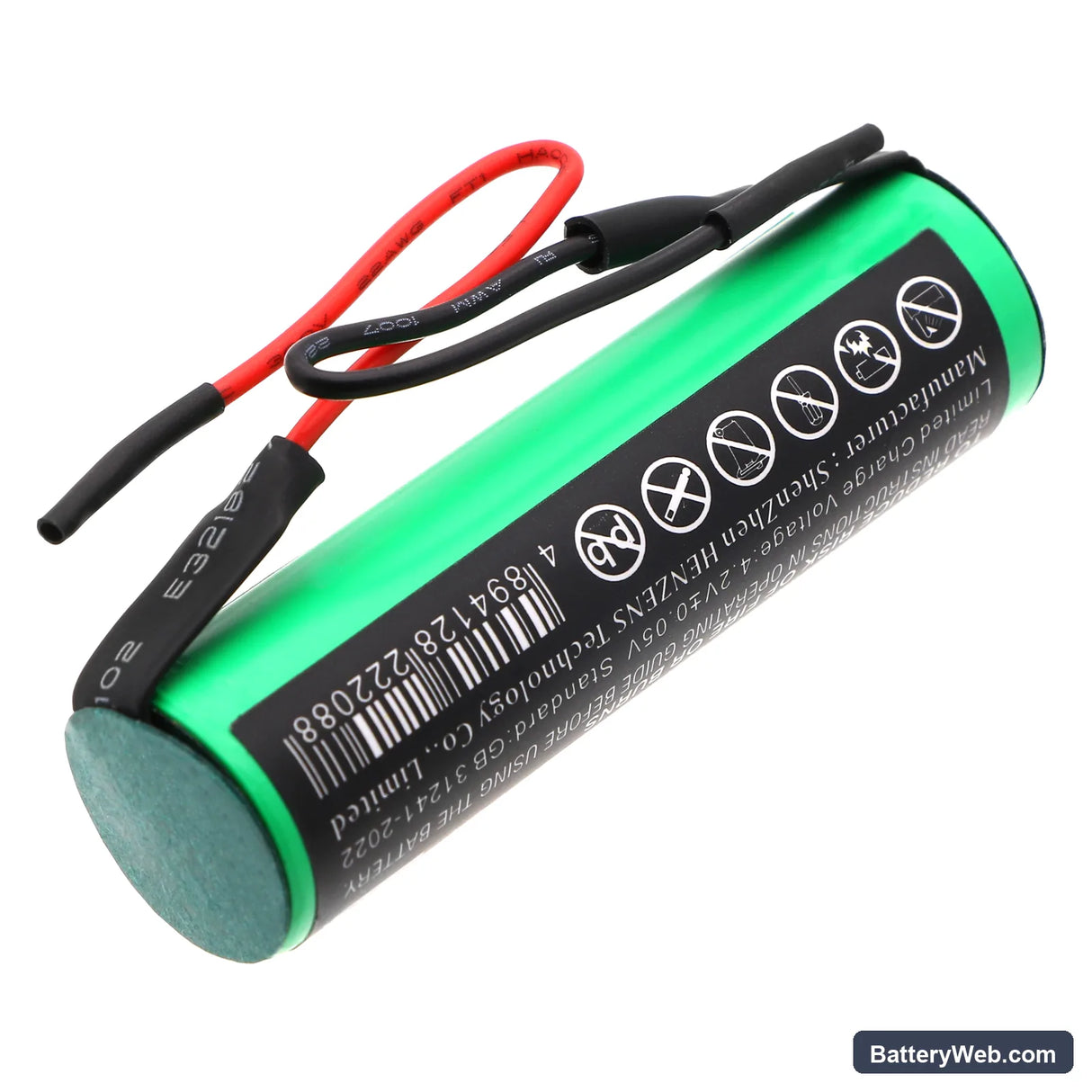

This is a 3.7V, 2500mAh (9.25Wh) lithium-ion replacement battery for the Cecotec Conga Crystal Clear 770 cordless stick vacuum, also listed under model number 05023. It replaces the original cell when the vacuum no longer holds adequate charge for a full clean cycle. Physical dimensions are 66.60 x 19.20 x 18.30mm — measure your original before fitting.

• Conga Crystal Clear 770 / 05023 compatibility: Both model references run the same 3.7V single-cell platform with the same connector and BMS communication protocol. One battery covers both designations — no hardware difference between them.
• Bench tested on actual hardware: We ran charge and discharge cycles through the BMS at rated load. The protection circuit responded correctly to over-voltage, under-voltage, and short-circuit conditions at each threshold before the cell was cleared for dispatch.
• Dock charging habit on this vacuum: Do not leave the Conga Crystal Clear 770 sitting on the dock between every use. Continuous trickle charge through the BMS degrades cell capacity faster than normal cycle use. Charge to full, then remove the vacuum from the dock until the next clean.

Cordless vacuum losing suction before the battery indicator reaches low

This happens when a partially blocked filter forces the motor to draw more current than its rated load. The BMS detects the current spike and reduces power delivery to protect the cell — suction drops even though the indicator still shows charge remaining. It is not a faulty battery. Remove the filter, clean it thoroughly, and retest. If suction recovers immediately after cleaning, the filter was the cause, not the cell.

Motor cuts out mid-use then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. Sustained restricted airflow — usually a blocked filter or a jammed brush roll — causes the motor to pull above the BMS current threshold. The circuit opens to protect the cell, the vacuum stops, and it resets once the BMS cools and current drops. Clear the blockage first. If cut-outs continue on an unobstructed vacuum, check that the battery voltage under load does not drop below 3.0V — that indicates a degraded cell that needs replacing.
