Dell Studio 1745 Replacement Battery 11.1V 4400mAh 312-0186

Dell Studio 1745 / 1747 / 1749 — 11.1V Li-ion Replacement Battery (312-0186)

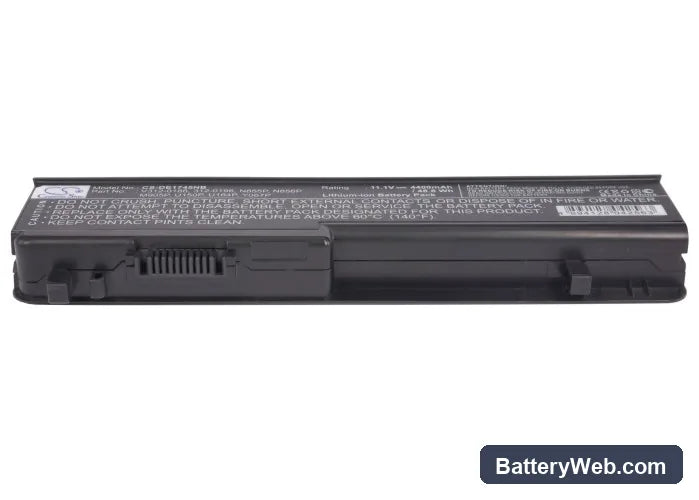

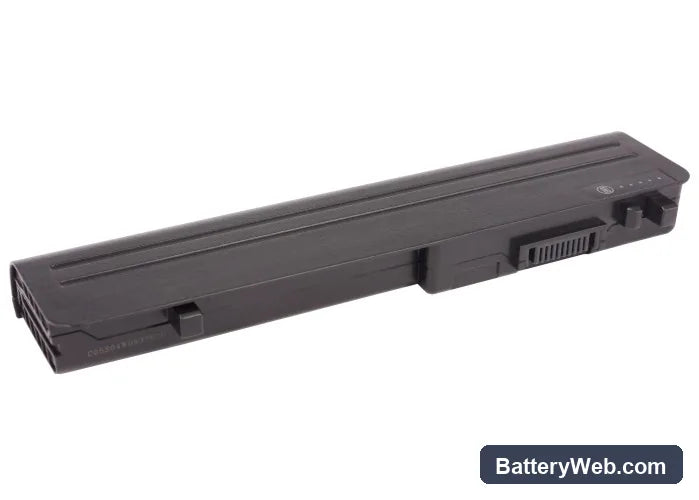

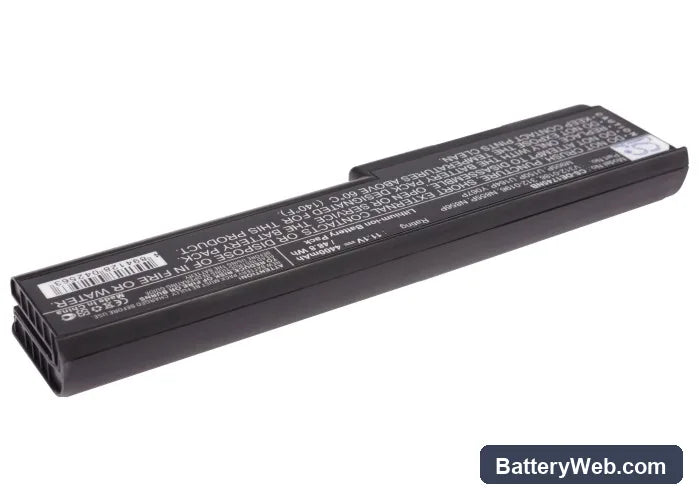

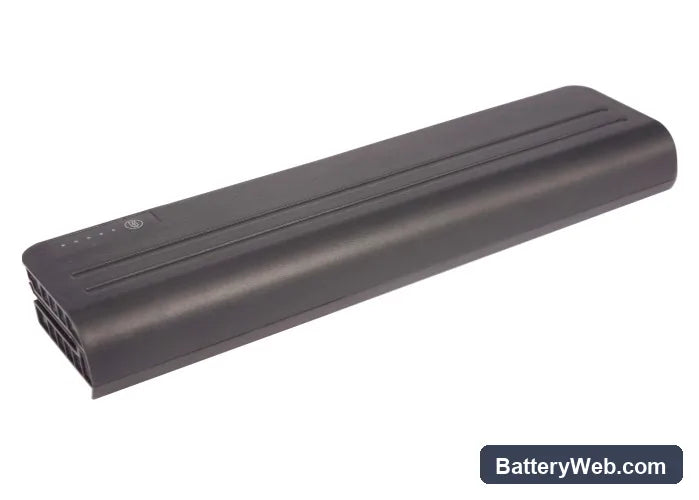

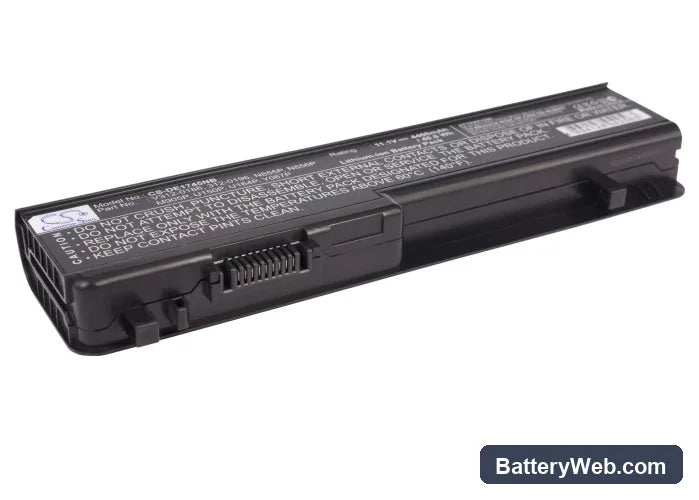

This is an 11.1V 4400mAh Li-ion battery for the Dell Studio 1745, 1747, 1749, and P02E laptops. It replaces OEM part numbers including 312-0186, 312-0196, N855P, N856P, M905P, U150P, U164P, and Y067P. The battery slots into the original bay and connects to the same SMBus circuit the Dell BIOS uses to read charge state and health data.

• Studio 1745 / 1747 / 1749 / P02E platform fit: These four models share the same 11.1V three-cell battery bay, identical connector pinout, and the same SMBus handshake protocol. Any battery carrying the 312-0186 or cross-referenced OEM part numbers will communicate with the EC on all four boards.
• Bench tested on actual hardware: We ran this cell on a Studio 1747 board. The BMS negotiated correctly over SMBus, charge current stepped down at the expected 4.20V per cell threshold, and the protection circuit tripped cleanly at under-voltage before the cells could drop below safe floor.
• First-cycle calibration on Dell BIOS: After fitting this battery, run the laptop on battery power down to hibernate cutoff — do not interrupt. Then charge uninterrupted to 100%. This forces the Dell BIOS to rerun its battery learn cycle against the new cell data, clearing the false "poor health" warning that appears after every cell swap.

Why the Studio 1745 shuts down at 20–30% remaining after a battery swap

The Dell EC carries over the discharge curve map from the old cell. When the new cell's voltage profile doesn't match that stored map, the BIOS miscalculates the remaining capacity and triggers a shutdown well before the actual charge floor. This is not a fault in the replacement cell — it is a calibration mismatch. Running one full discharge-to-hibernate followed by a complete uninterrupted charge resets the learn cycle. After two to three of these cycles the fuel gauge IC tracks accurately against the new cell chemistry.

BIOS reporting 0% or "unknown battery" immediately after installation

The Studio BIOS reads battery identity and rated capacity from EEPROM data embedded in the battery's protection board. If the BIOS shows 0% or flags the battery as unknown, the SMBus connection is not completing — usually a dirty or slightly misaligned connector. Remove the battery, clean the gold contacts on both the battery and chassis with isopropyl alcohol, and reseat firmly until the latch clicks. If the BIOS still shows unknown after reseating, check Device Manager under Microsoft ACPI-Compliant Control Method Battery and confirm the driver is not flagging an error — a driver reinstall via uninstall and reboot resolves the read failure in most cases.
