Dogtra BP74T Transmitter 2500T Replacement Battery 7.4V 800mAh

Dogtra Transmitter 2500T / 2502T Series — 7.4V Li-Polymer Replacement Battery (BP74T)

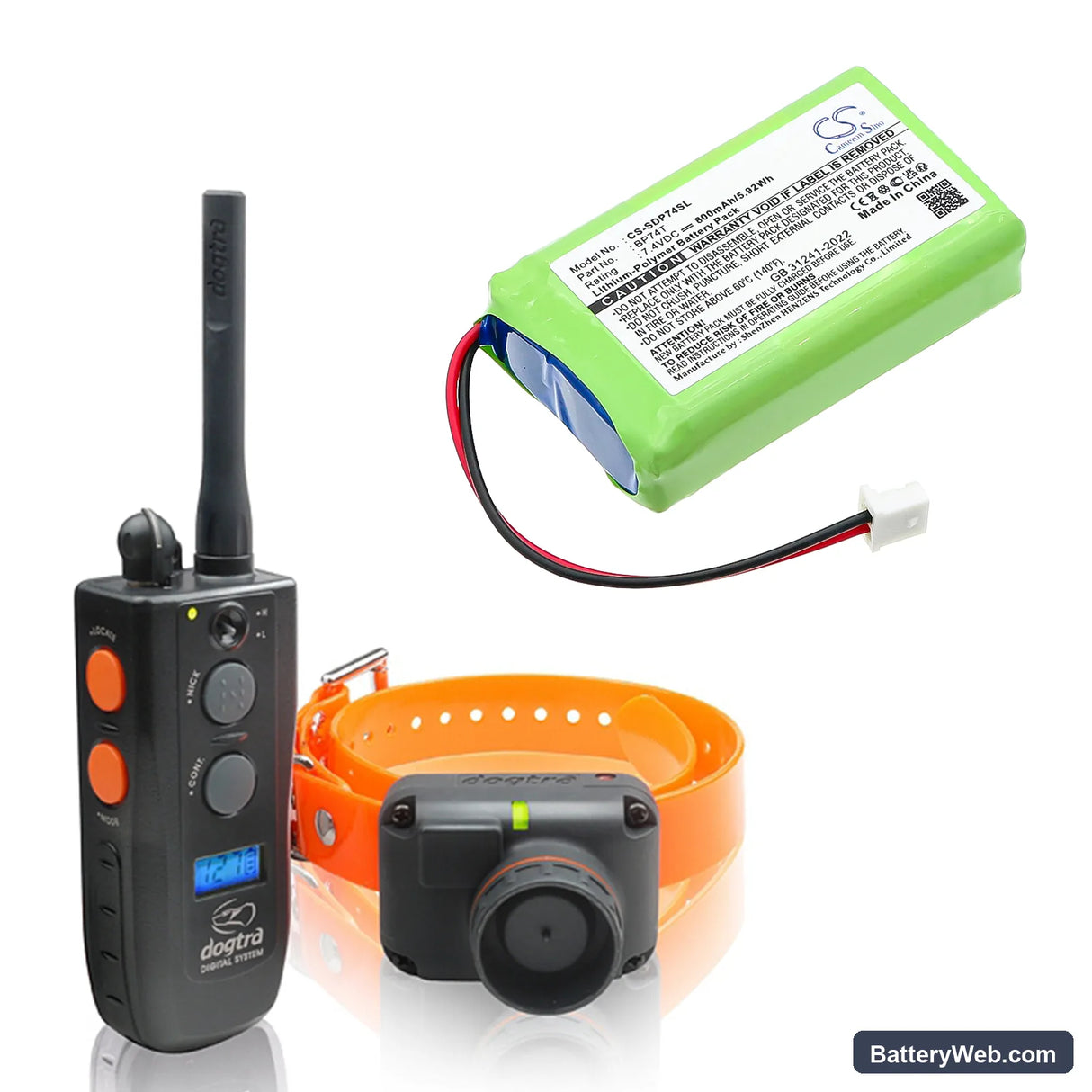

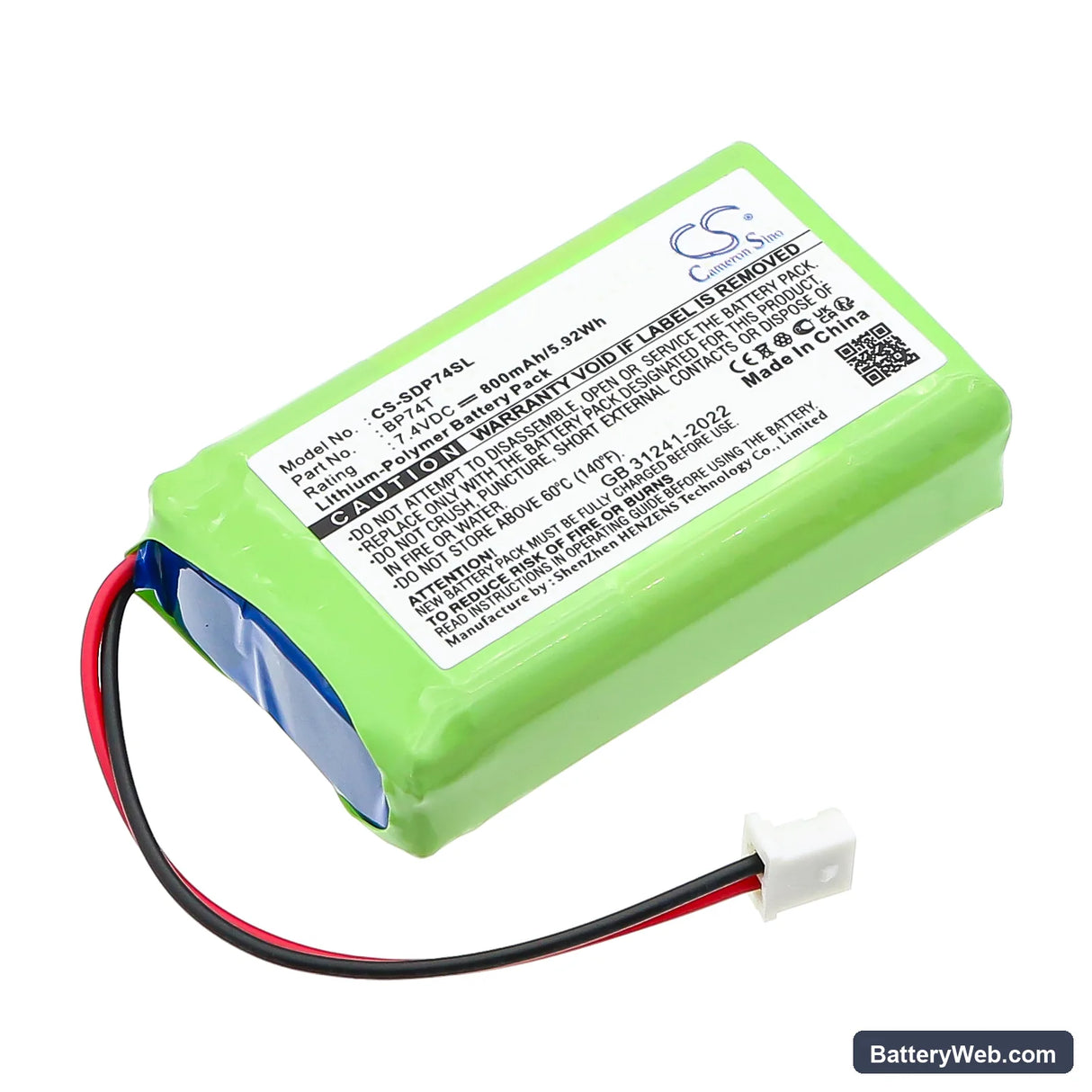

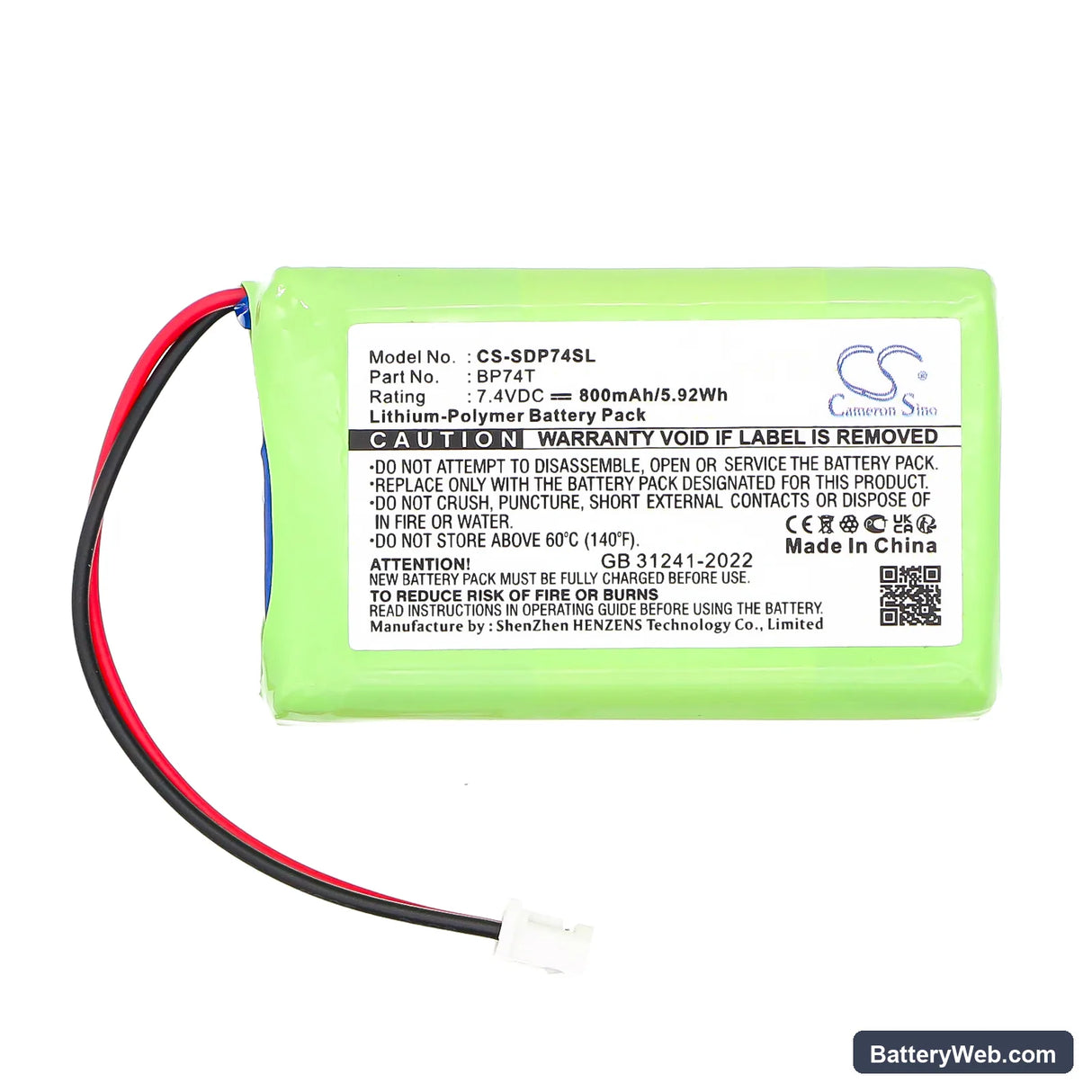

This is a 7.4V, 800mAh Li-Polymer battery for the Dogtra handheld transmitter range. It fits the Transmitter 2500T, 2500B, 2502T, 2502B, and 17 additional compatible models. The BP74T sits inside the transmitter handset — not the collar — and powers the RF signal sent to the receiver unit on the dog.

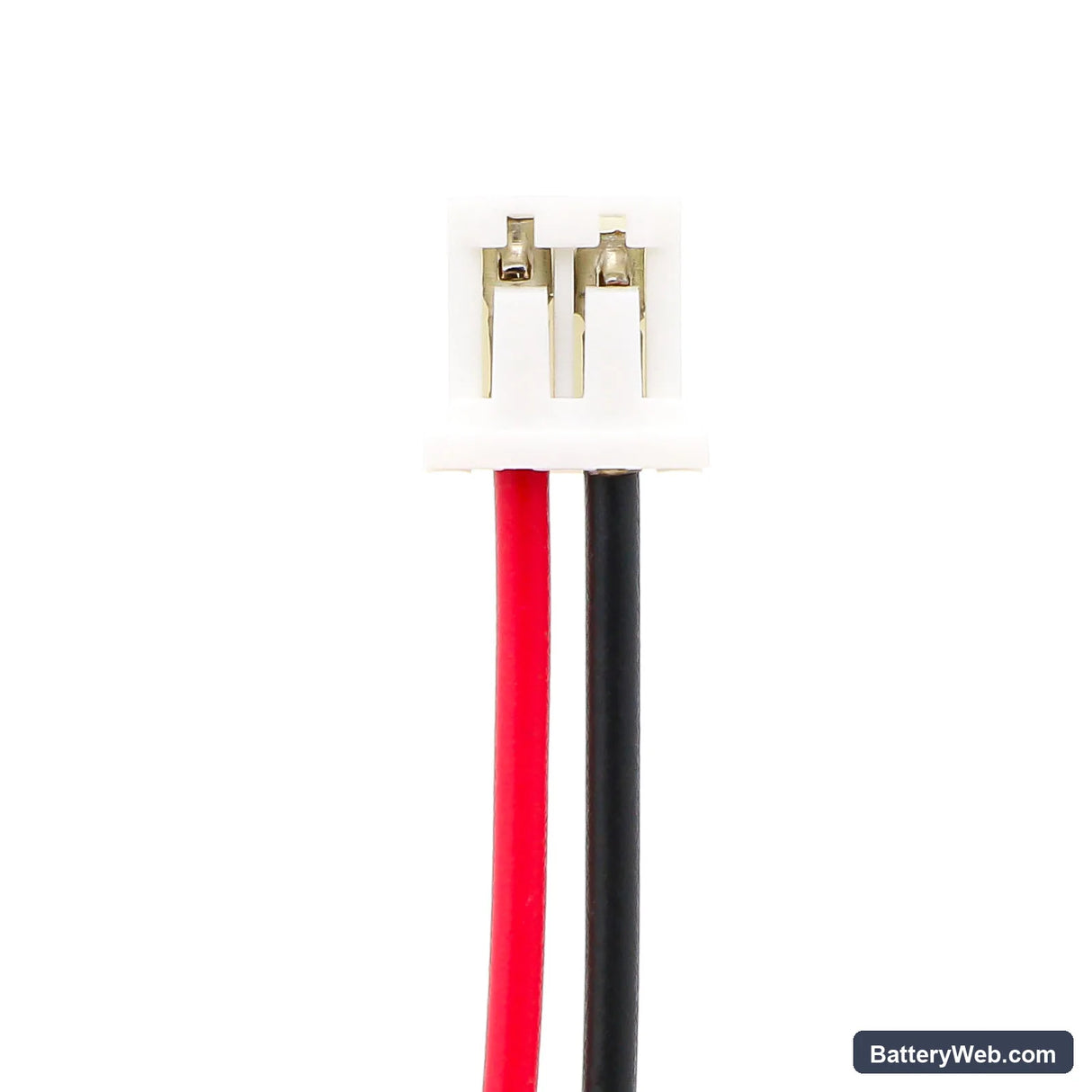

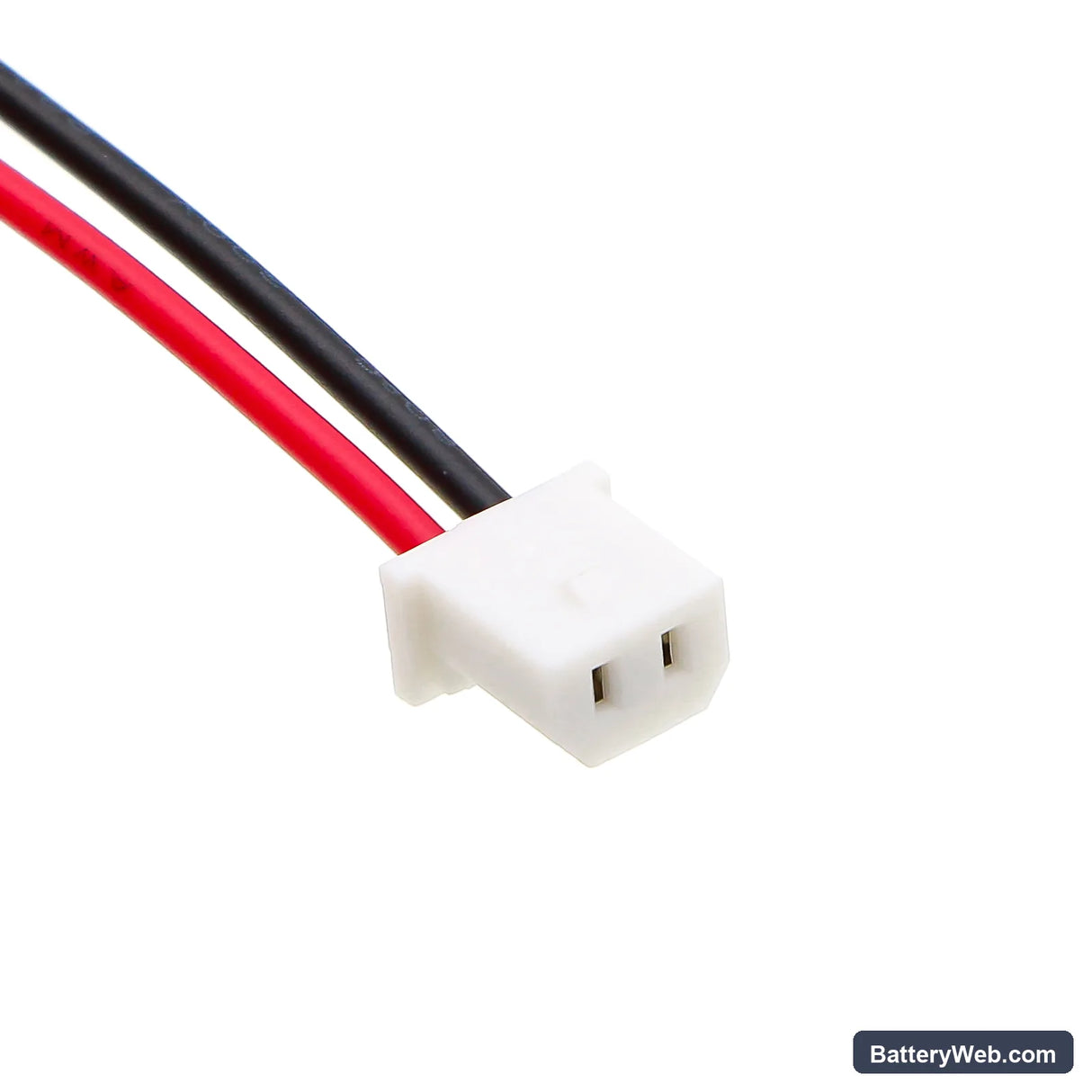

• 2500 and 2502 transmitter series: These models share the same internal battery bay dimensions, connector pin layout, and 7.4V nominal voltage rail. The BP74T fits all of them without modification. The BMS on each unit reads cell voltage on startup; an out-of-spec cell will cause the transmitter to refuse to power on.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the bench, monitoring BMS handshake, cutoff voltage, and charge acceptance. The protection circuit tripped correctly at both the low-voltage floor and the charge ceiling — no anomalies recorded.
• First-power tip after reinstalling: Pair the transmitter with the collar before sending any correction signals. The 2500 series re-establishes its RF link on first power-up, and attempting to send a signal before the link is confirmed will appear as a dead transmitter even with a full battery.

Why the 2500T transmitter shows full charge but outputs no signal

A full charge indicator on the transmitter does not confirm the RF output stage is active. The 2500T draws a short current spike when it initialises the transmitter module — if the cell voltage sags under that load, the unit may show charged but fail to transmit. This typically happens when a degraded battery holds a surface charge that collapses the moment draw increases. Replacing the cell and allowing a full charge cycle to 8.4V resolves it in most cases.

Transmitter powers on but collar does not respond after battery swap

After a battery swap, the transmitter loses its stored state and may need to re-link with the collar. The 2500 and 2502 series use a channel-based RF pairing — if the transmitter reset its channel during the power interruption, it will transmit on the wrong frequency. Turn both units off, then power the collar on first, followed by the transmitter, and confirm the channel number on both matches before testing response. This is not a battery fault — it is a power-cycle re-registration step.
