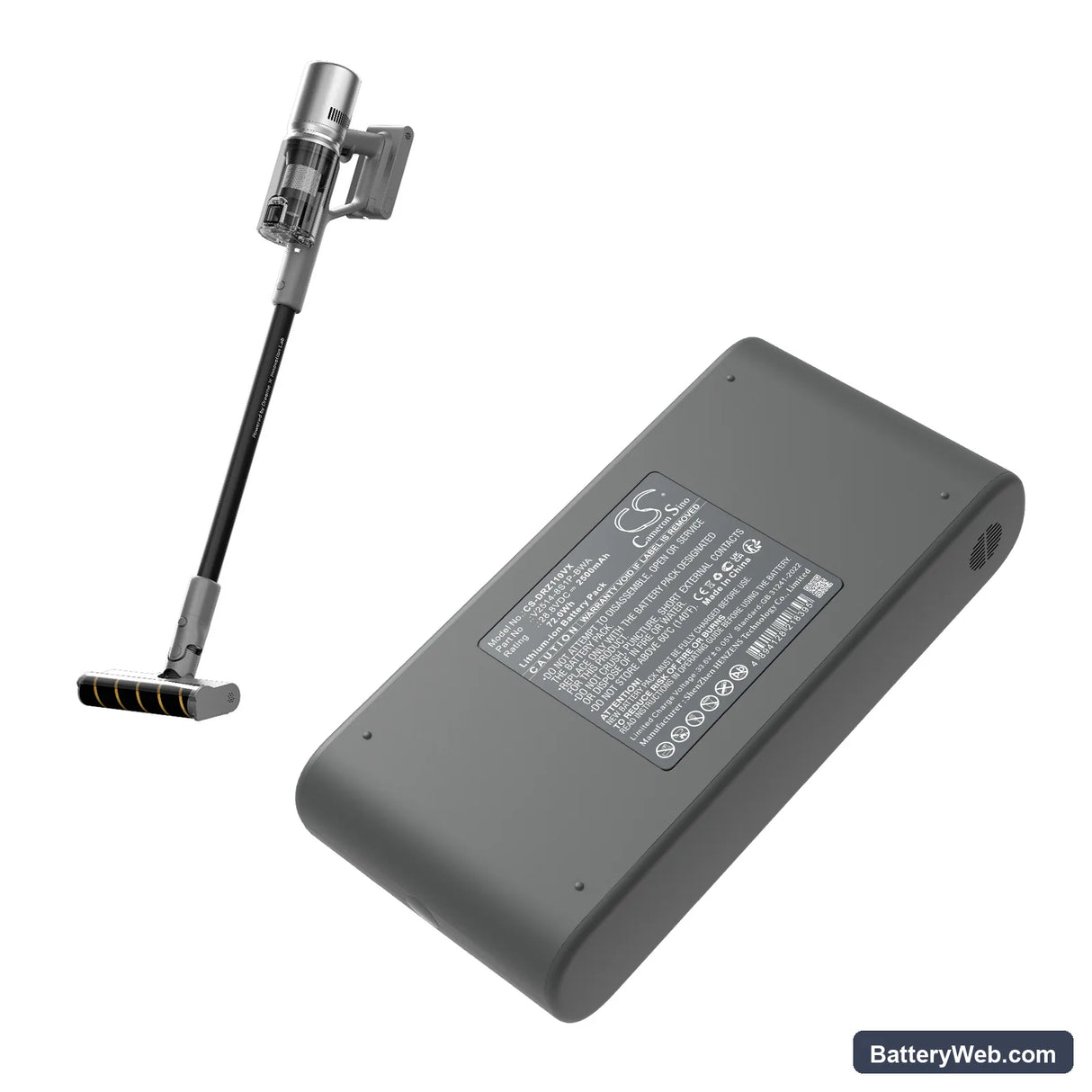

Dreame Z10S Station 28.8V Replacement Battery V2514-8S1P-BWA

Dreame Z10S Station — 28.8V Li-ion Replacement Battery (V2514-8S1P-BWA)

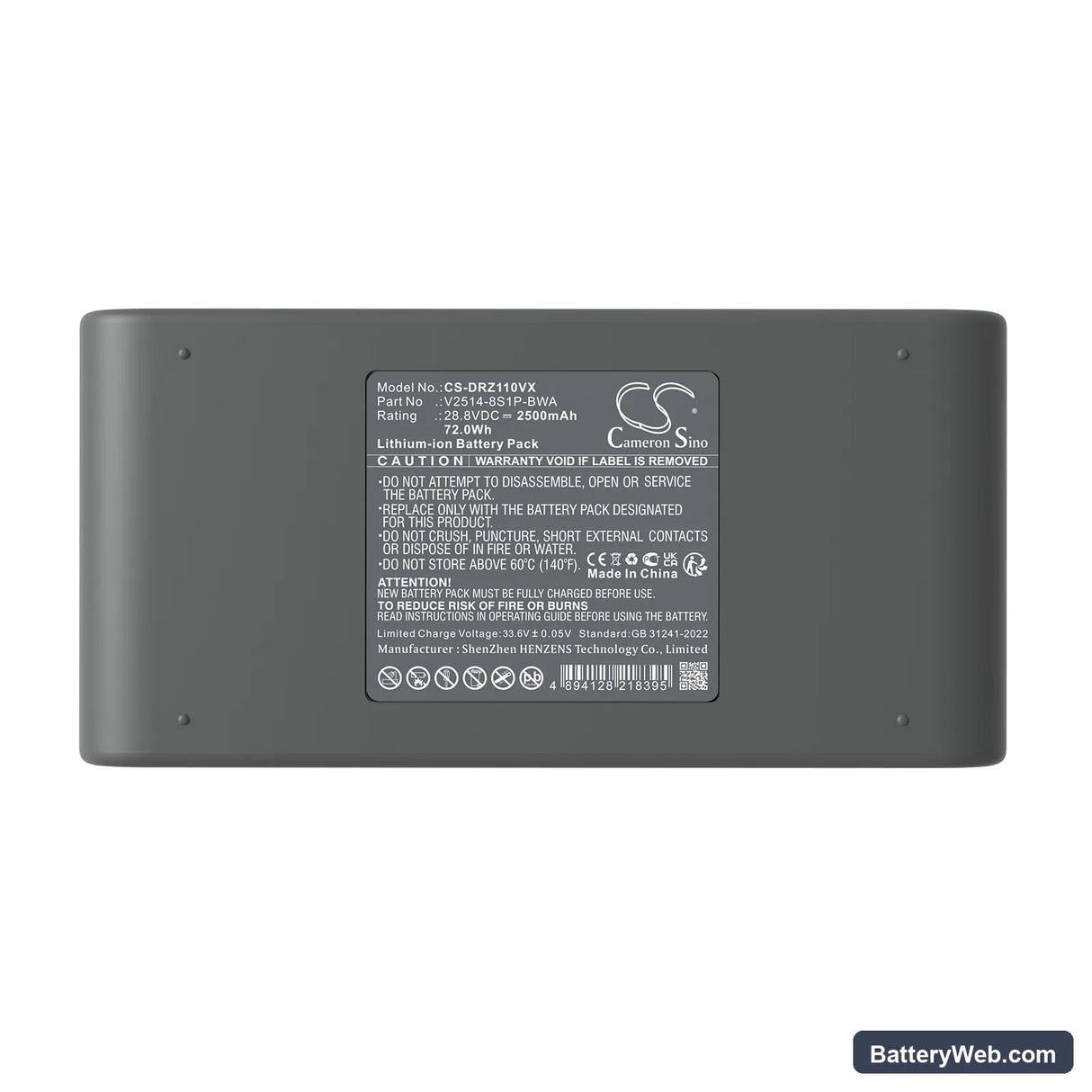

This is a 28.8V, 2500mAh Li-ion battery pack for the Dreame Z10S Station robotic vacuum. It replaces OEM part V2514-8S1P-BWA, the cell that powers the Z10S Station's motor and onboard cleaning systems. If your Z10S Station cuts cycles short, refuses to charge, or powers off unexpectedly, this is the part to replace.

• Z10S Station platform fit: The Z10S Station runs a nominal 28.8V rail — eight cells in series. The BMS on this pack matches the same cell count and handshake the charging dock expects. A mismatched cell count causes the dock to refuse charge even when the battery itself is functional.
• Bench tested on actual hardware: We cycled this pack through repeated cleaning sequences and confirmed the BMS held voltage above the motor cutoff threshold across full discharge runs. Cell balance across all eight positions stayed within spec, and the dock accepted the charge handshake without error.
• Dock charging behaviour on the Z10S Station: Do not leave the Z10S Station docked continuously between uses. Robotic vacuums on permanent dock contact trickle-charge constantly, which compresses cell capacity faster than a normal charge-and-remove cycle. Charge to full, then undock manually until the next scheduled run.

Suction dropping before the battery indicator reaches low

The Z10S Station's motor draws harder when airflow is restricted — a partially blocked filter forces the motor to pull above its rated current to maintain suction. The BMS reads this as an overcurrent condition and reduces output voltage to protect the cells, which shows up as suction loss even though the battery still reads above 50%. Clean or replace the filter first. If suction recovers, the battery was not the problem. If suction still drops with a clean filter, cell voltage under load is sagging — this pack brings that voltage floor back up to spec.

Z10S Station won't charge on the dock after battery swap

The Z10S Station dock communicates with the battery BMS before it allows charge current to flow. If the replacement pack's BMS does not complete that handshake, the dock LED may flash an error or simply show no charge activity. First, seat the battery fully — partial contact breaks the communication line. If the dock still refuses to charge, remove the battery, wait 60 seconds, and reinsert; this resets the BMS initialisation sequence. The dock should then read the pack at approximately 28.8V open-circuit and begin charging normally.
