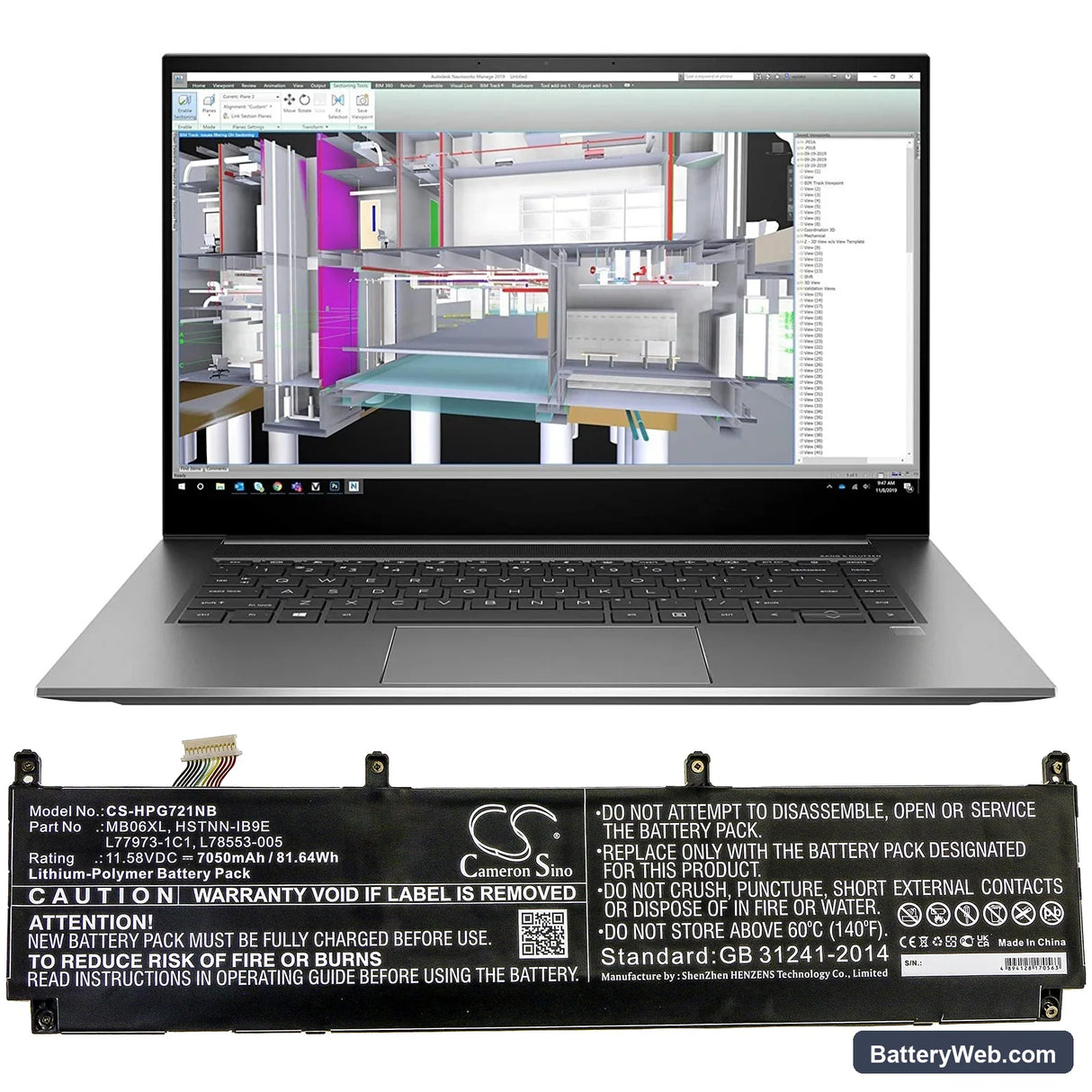

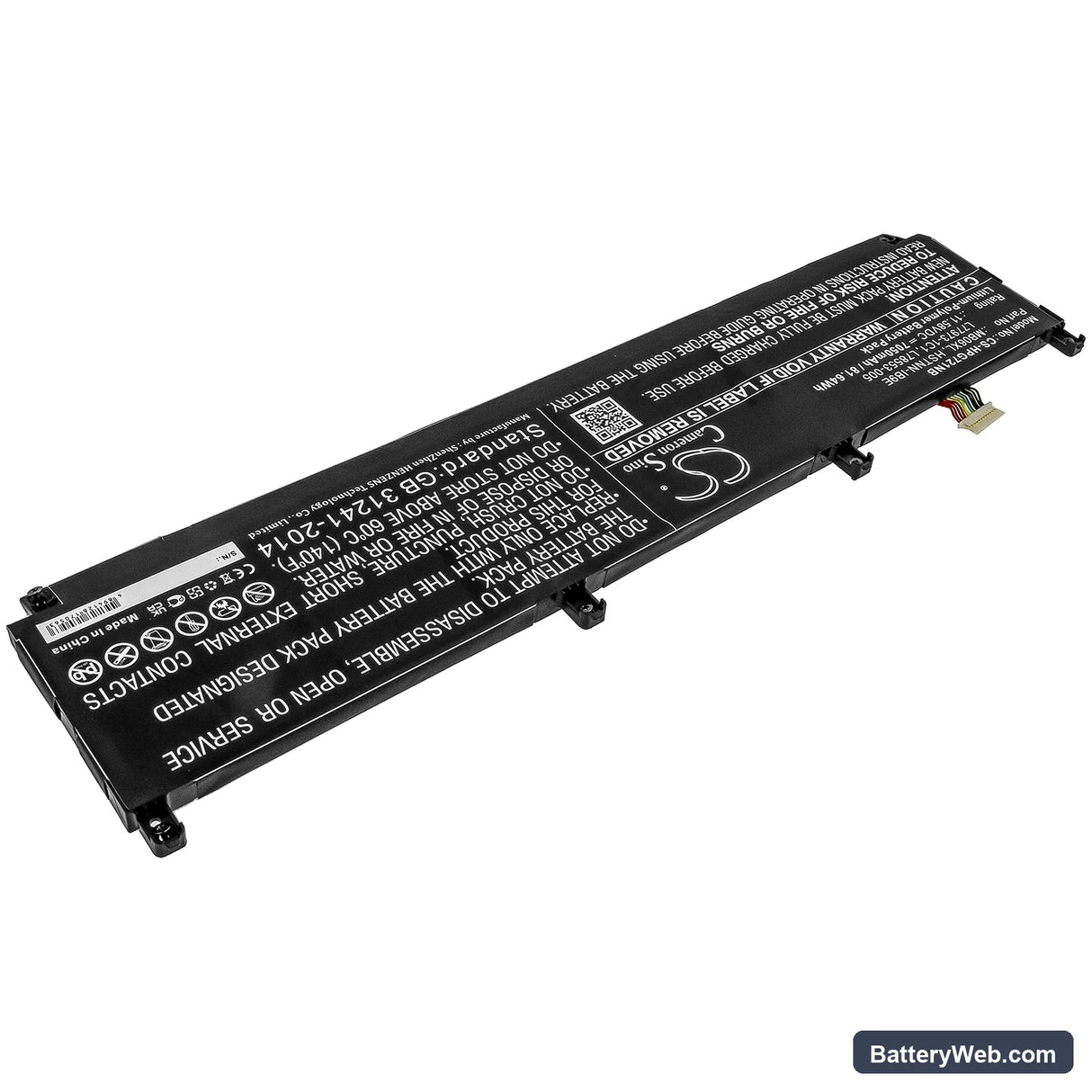

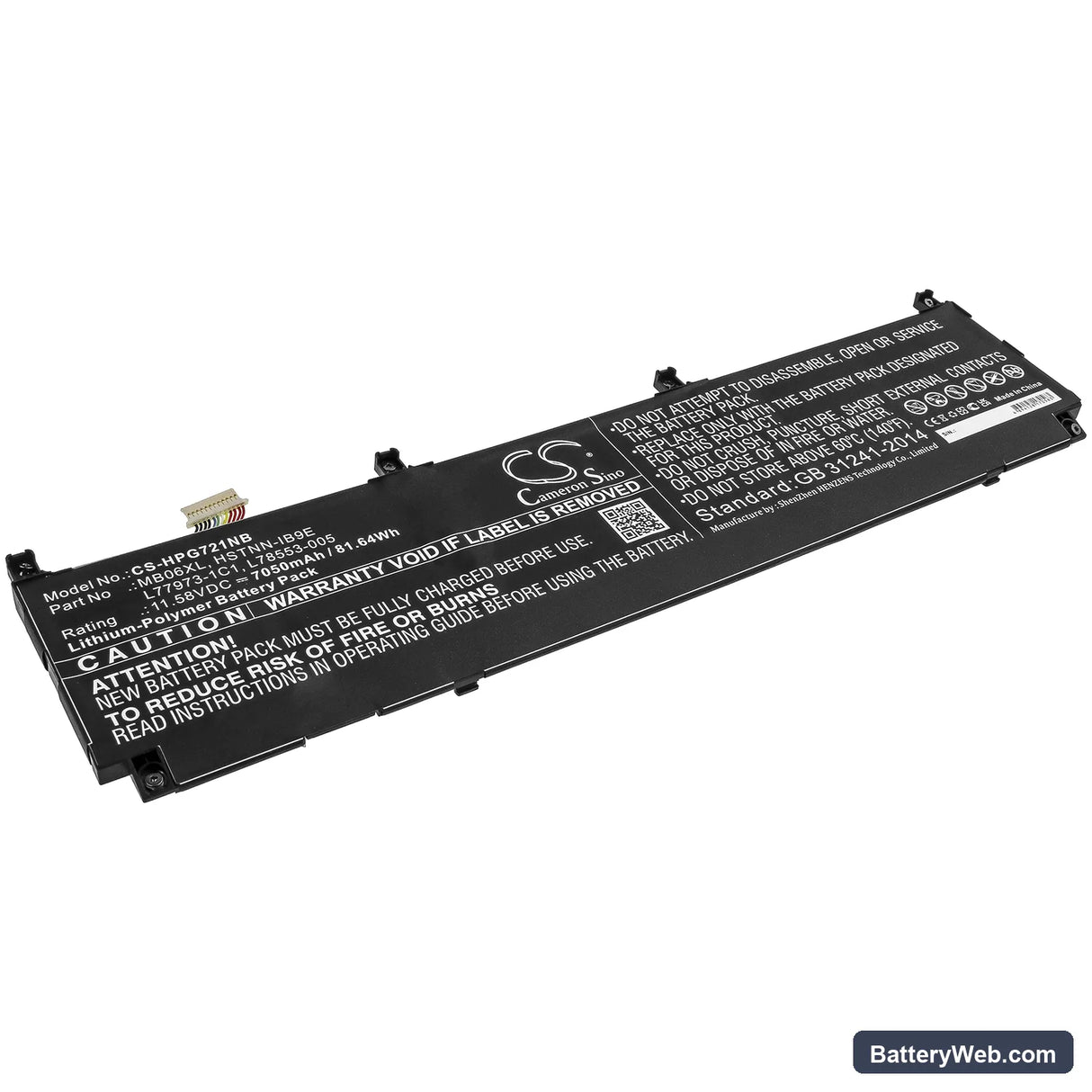

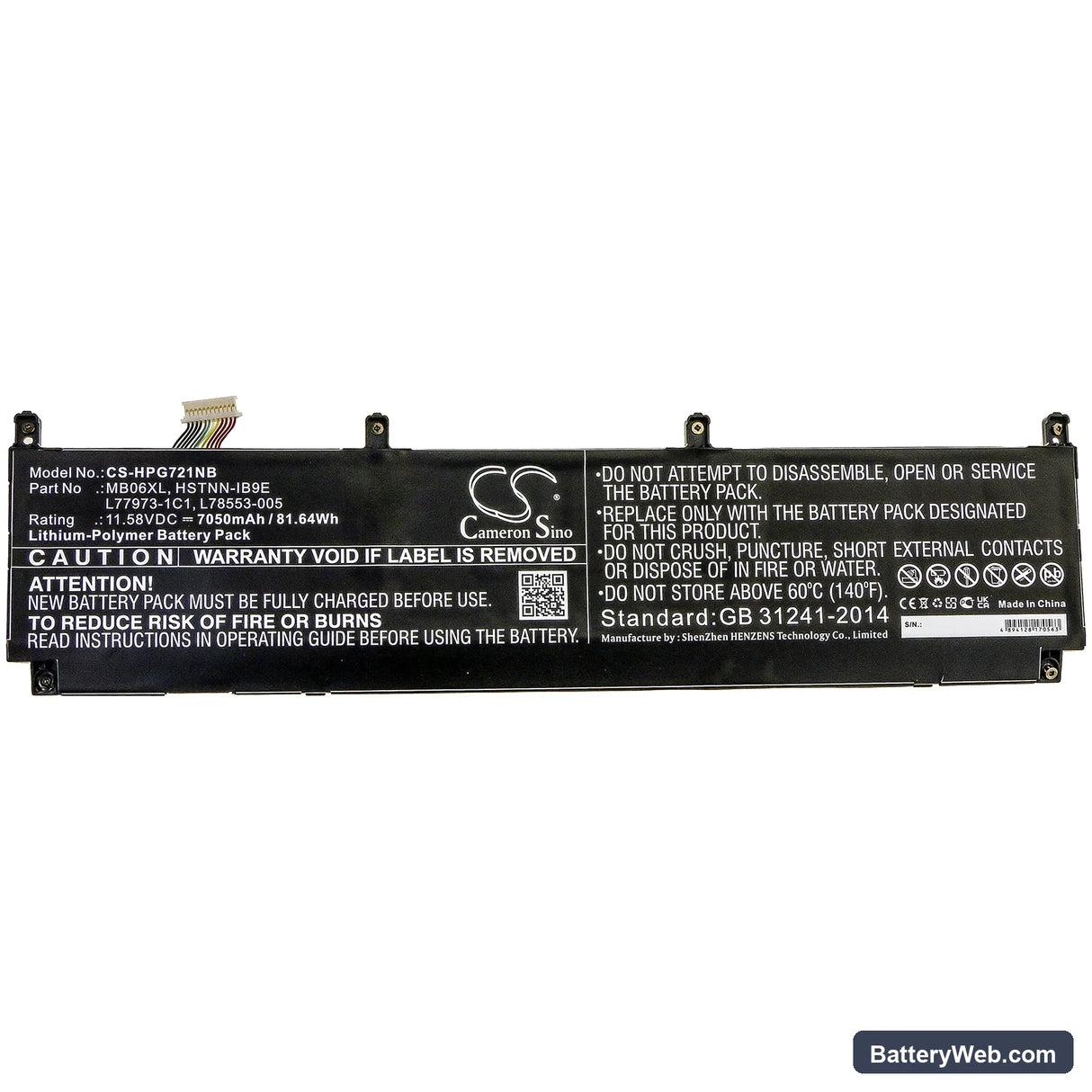

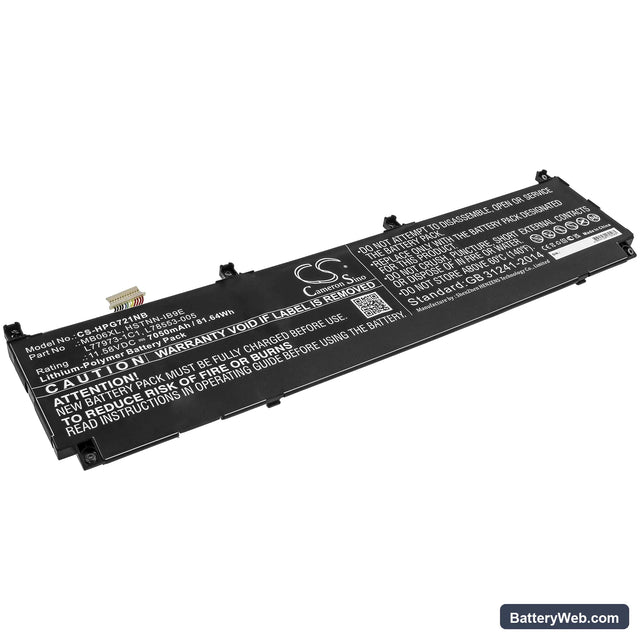

HP ZBook Studio G7 Replacement Battery MB06XL 11.58V 7050mAh

HP ZBook Studio G7 Series — 11.58V Li-Polymer Replacement Battery (MB06XL)

This is an 11.58V, 7050mAh (81.64Wh) Li-Polymer replacement battery for the HP ZBook Studio G7 mobile workstation. It fits a wide range of ZBook Studio G7 configurations, including the 2J3H8PA, 1J3R6EA, 1J3U6EA, and 21X54UT, among others. OEM part numbers covered include MB06XL, HSTNN-IB9E, L77973-1C1, and L78553-005.

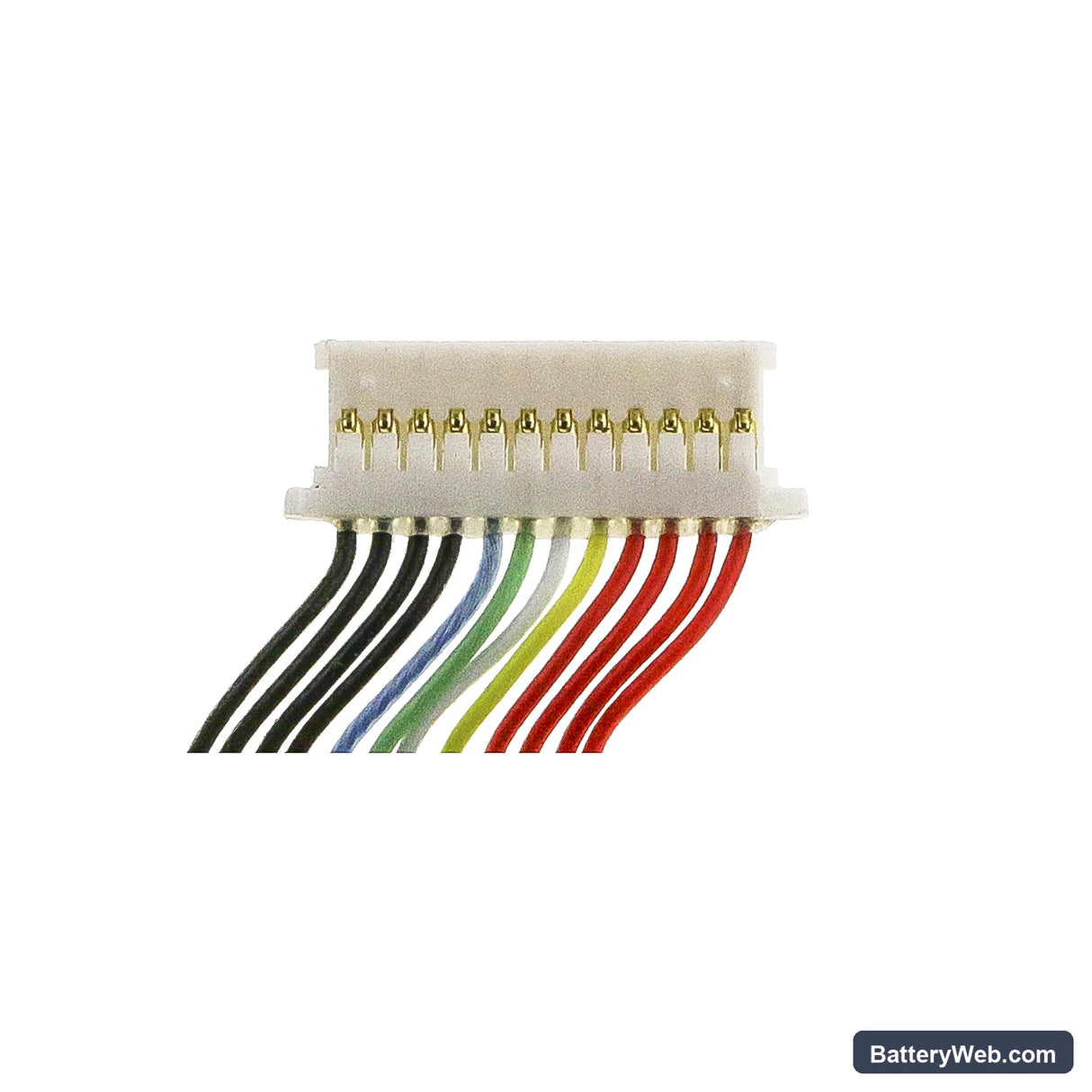

• ZBook Studio G7 platform fit: All listed G7 configurations share the same 11.58V three-cell Li-Polymer architecture, the same physical connector pinout, and the same BMS handshake protocol. That is why one SKU covers the full model range — the power rail and communication lines are identical across these variants.
• Bench tested on actual hardware: We ran this cell through a full charge and discharge cycle on a ZBook Studio G7 chassis. The BMS negotiated correctly with the EC, charge current stepped down normally at top-of-charge, and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
• ZBook Studio G7 first-cycle reset: After installing this cell, run one full discharge down to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears on the first boot after any cell swap.

BIOS reporting battery health as poor immediately after replacement

The ZBook Studio G7 BIOS reads health data from EEPROM registers on the battery's fuel gauge IC, not from a live capacity measurement. When a new cell is installed, those registers still reflect the degraded profile of the old battery until a learn cycle writes fresh data. This is not a fault with the replacement cell — it is a calibration state. Run a full discharge to hibernate-cutoff followed by an uninterrupted charge to 100% to force the BIOS to rewrite the health registers. After one complete cycle, the health status should return to normal.

Laptop shutting down at 20–30% charge shown on screen

This happens when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The reported state-of-charge diverges from real cell voltage under load — the workstation hits the hardware low-voltage cutoff while the OS still shows charge remaining. Under full CPU and display load, the G7 draws enough current to expose this gap quickly. Two to three full discharge-and-charge cycles recalibrate the fuel gauge IC; the shutdowns stop once the reported percentage aligns with the actual cell voltage at load, typically above 3.4V per cell at cutoff.
